Medium Case

Z60

The SAMA Z60 case elevates functionality with an elegant design, featuring two authentic walnut strips on the front panel for a touch of natural warmth that complements your living space.
Color
  • #ffffff
  • #000000
Product Manual
Amazon Newegg

SAMA Z60

The SAMA Z60 case elevates functionality with an elegant design, featuring two authentic walnut strips on the front panel for a touch of natural warmth that complements your living space. Beyond its stylish exterior, the Z60 offers a spacious interior that comfortably supports large GPU without sacrificing cooling efficiency. This case seamlessly merges aesthetics with practicality, making it an ideal choice for those who value both performance and design.

AVAILABLE IN TWO COLORS

The SAMA Z60 is available in two stunning color options: a timeless black for a sleek, understated look and an elegant white for a clean, modern aesthetic. Each color choice is designed to seamlessly complement a range of personal styles, allowing you to select the perfect match for your unique setup.

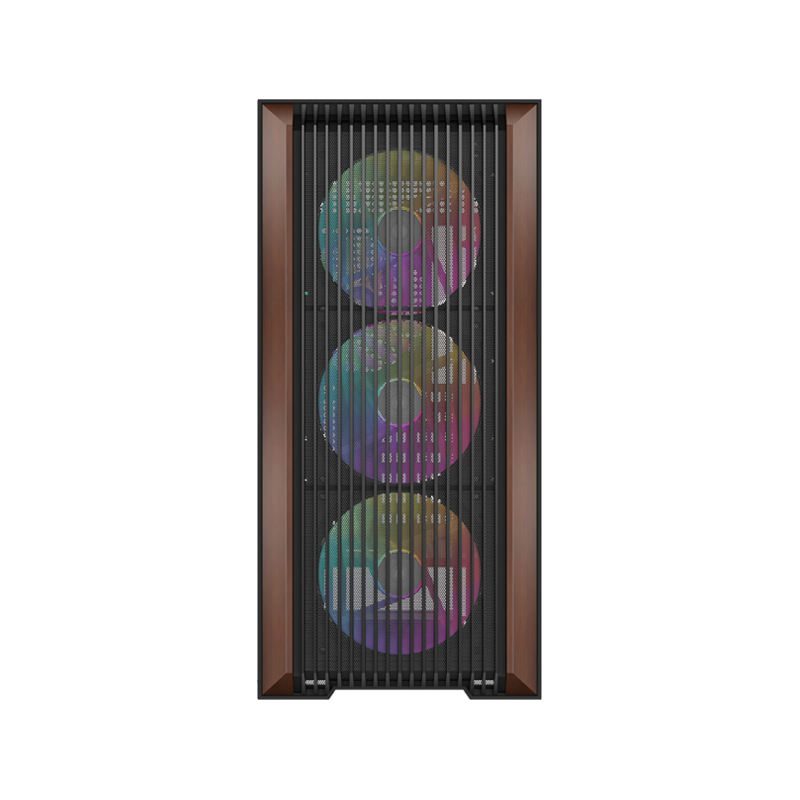

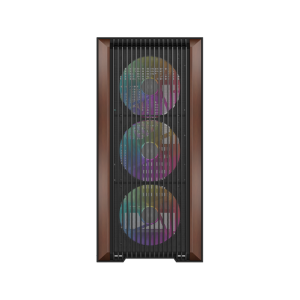

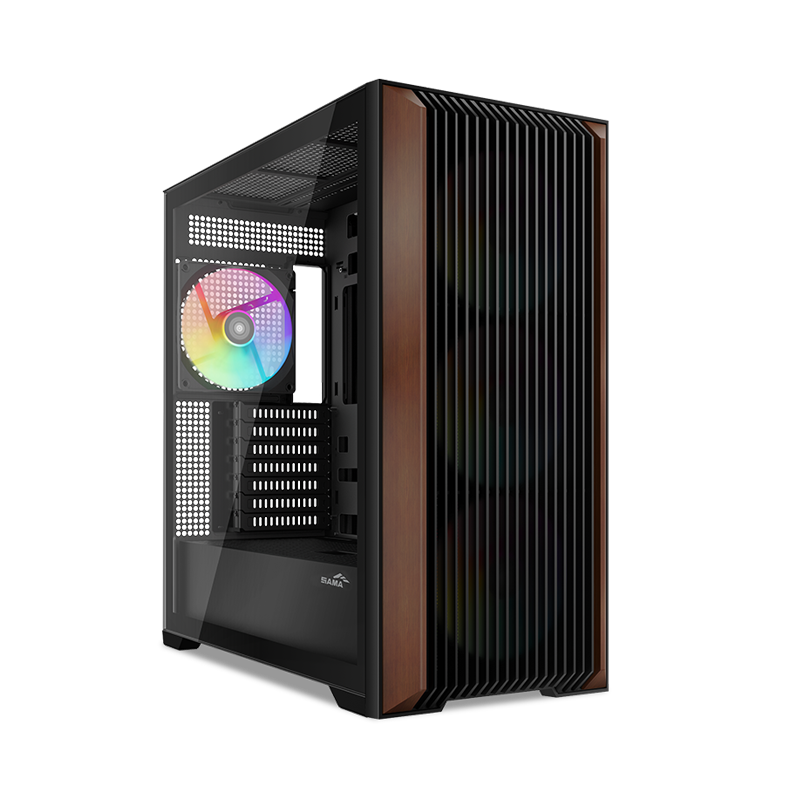

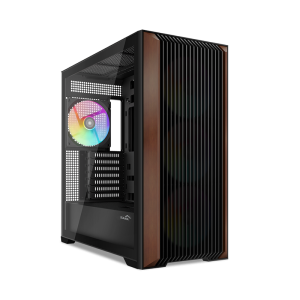

BLACK

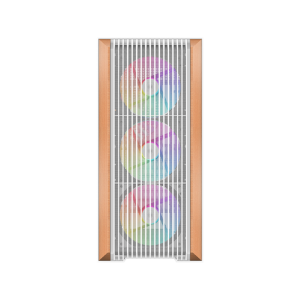

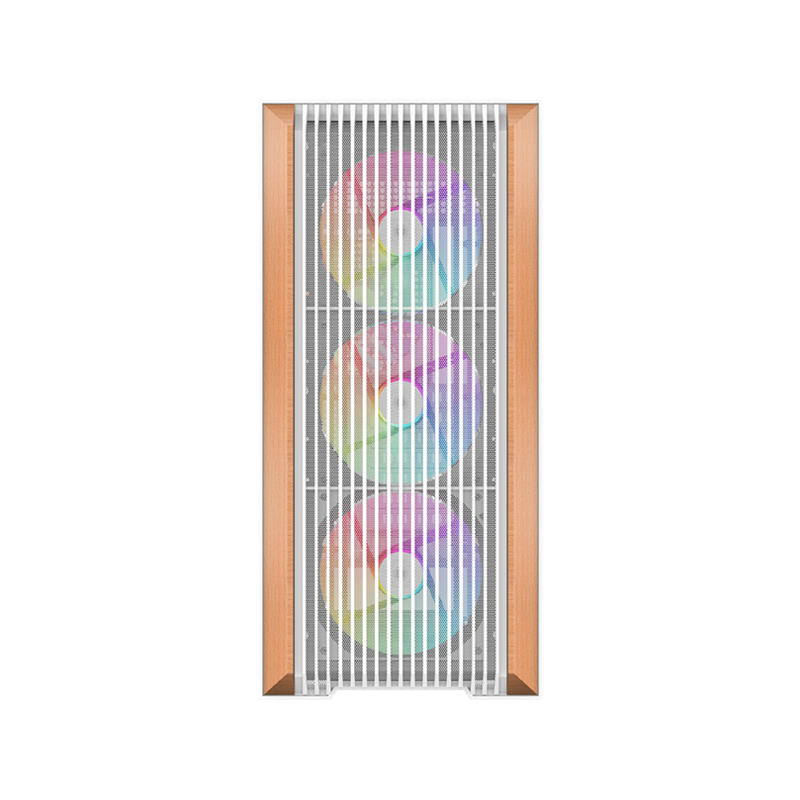

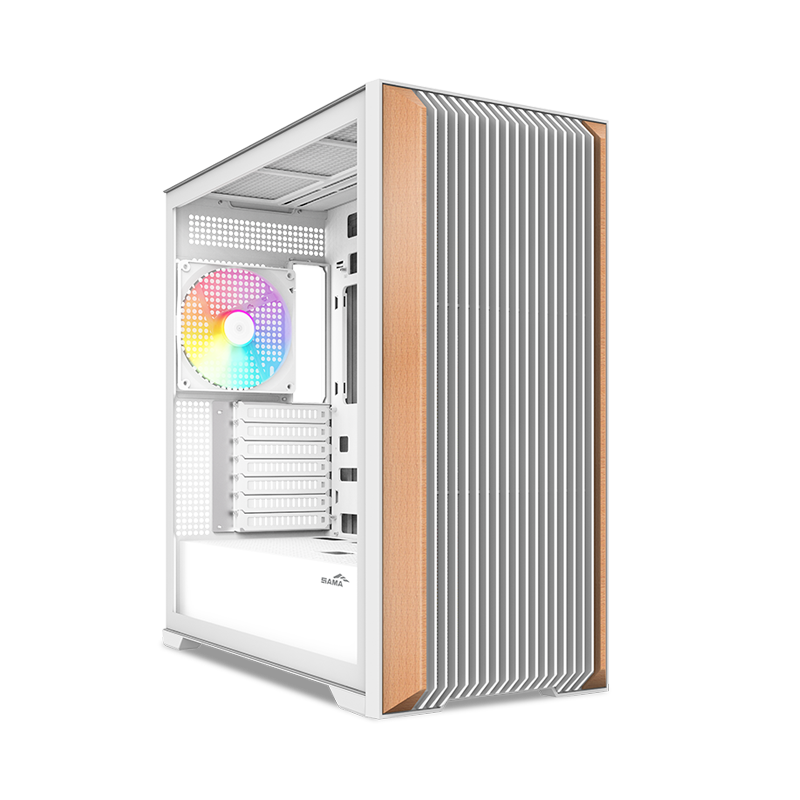

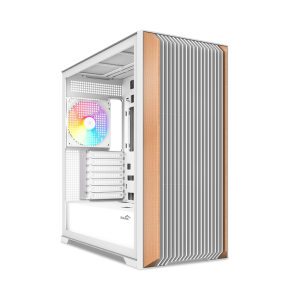

WHITE

PRE-INSTALLED FANS

× 4
The SAMA Z60 comes pre-installed with four 140mm PWM fans: 3 at the front and 1 at the rear. While offering out-of-box cooling, these high-performance ARGB fans can also showcase vibrant lighting effects, allowing for a visually stunning build that ighlights your personal style.

WIDER IS BETTER

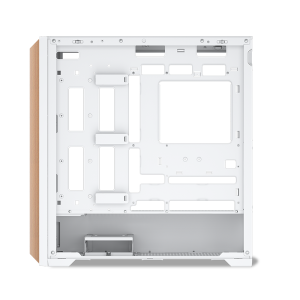

The Z60’s wide-body design provides ample space, making it compatible with back-connect motherboards while easily supporting bulky GPUs (like RTX 4090) and robust air coolers. This spacious layout ensures excellent airflow and thermal performance, allowing users to build a powerhouse system without compromising on cooling efficiency.

VERTICAL GPU SPPORTED

The Z60 is equipped with a rotatable PCle bracket, allowing forvertical GPU installation, This feature gives you the flexibility to dispiay your graphics card from various angles, enhaneing the averall aesthetics of your build and providing a unique showease for your high-performance hardware

OPTIMAL COOLING COMPATIBILITY

  • AIO:360/280/240mm
  • FAN:120mm×3/140mm×2
  • AIO:360mm/280mm/240mm
  • FAN:120mm×3/140mm×2/160mm×2
  • AIO:120mm/140mm
  • FAN:140mm×1/120mm×1
  • FAN: 120mm×2(PSU shroud)+ 120mm×1 (Bottom)
  • SIDE FAN:120mm×3
The Z60 is engineered for exceptional thermal efficiency, supporting versatile cooling configurations. It accommodates up to three 140mm fans at the front, a single 140mm fan at the rear, and two 120mm fans at the bottom. Additionally, the top panel and the front panel are both designed to fit a 360mm radiator, ensuring flexibility for both water and air cooling setups. This optimized design provides robust cooling options to maintain peak performance under any conditions.

Specifications
Dimensions 480×235×496mm (L×W×H) Radiator Support Front 360 / 280 / 240 / 140 / 120mm
Materials 0.7mm SPCC, SECC, Top 360 / 280 / 240 / 140 / 120mm
4mm Tempered Glass, ABS (max 46 mm RAM height)
Motherboard Support EEB, E-ATX (≤277mm), ATX, Rear 120mm
M-ATX, ITX，Back-connect ATX Bottom 240mm (PSU shroud)
Expansion Slots 7+2 vertical slots Pre-Installed Fans Front 3×140mm ARGB PWM fans (500~1500 rpm)
Max CPU Cooler Height 180mm Rear 1×140mm ARGB PWM fan (500~1500 rpm)
Max GPU Length 410mm(280mm with HDD cage installed) Bottom None
Power Supply Type ATX (Maximum length:
250mm / 160mm with HDD cage installed)
Fan Support Front 3×120mm / 2×140mm / 2×160mm Front I/O Ports USB 3.1 Type-C×1, USB 3.0×2
Top 3×120mm / 2×140mm Audio/Mic×1, Power, Reset
Rear 1×120mm / 1×140mm 3.5" Drive Bays 2
Bottom 2×120mm (PSU shroud) + 1×120mm 2.5" Drive Bays 0 + 4 combined with 3.5" mounts
Side 3×120mm
