V50

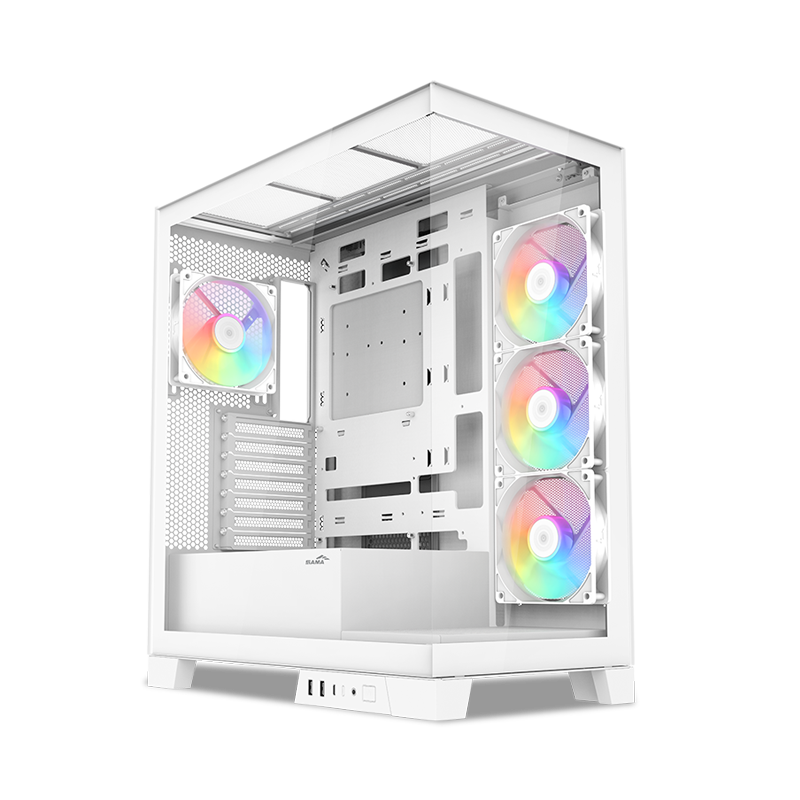

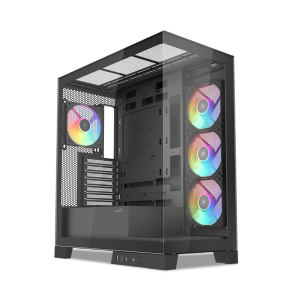

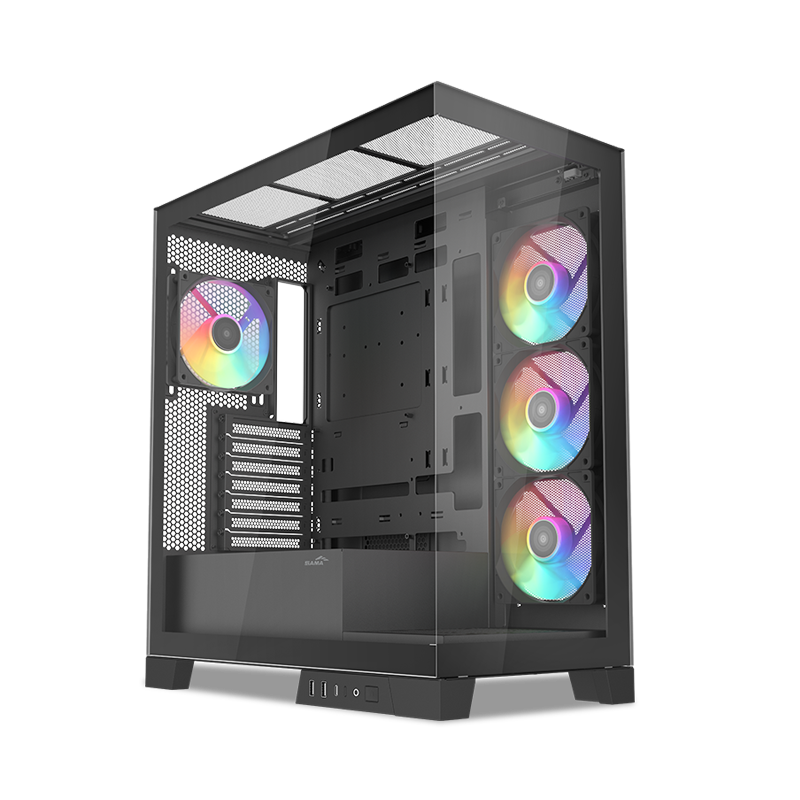

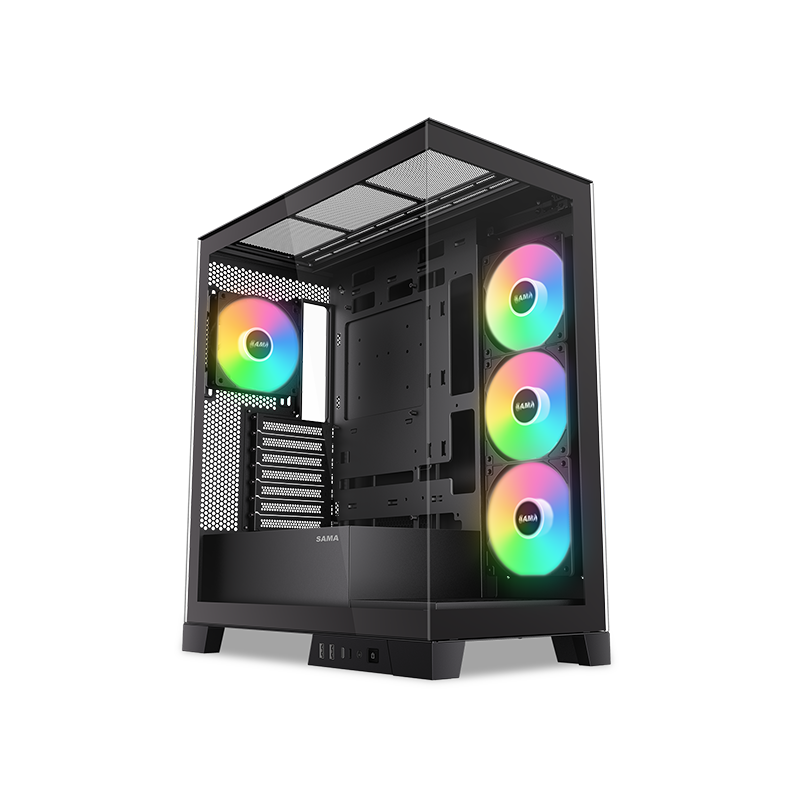

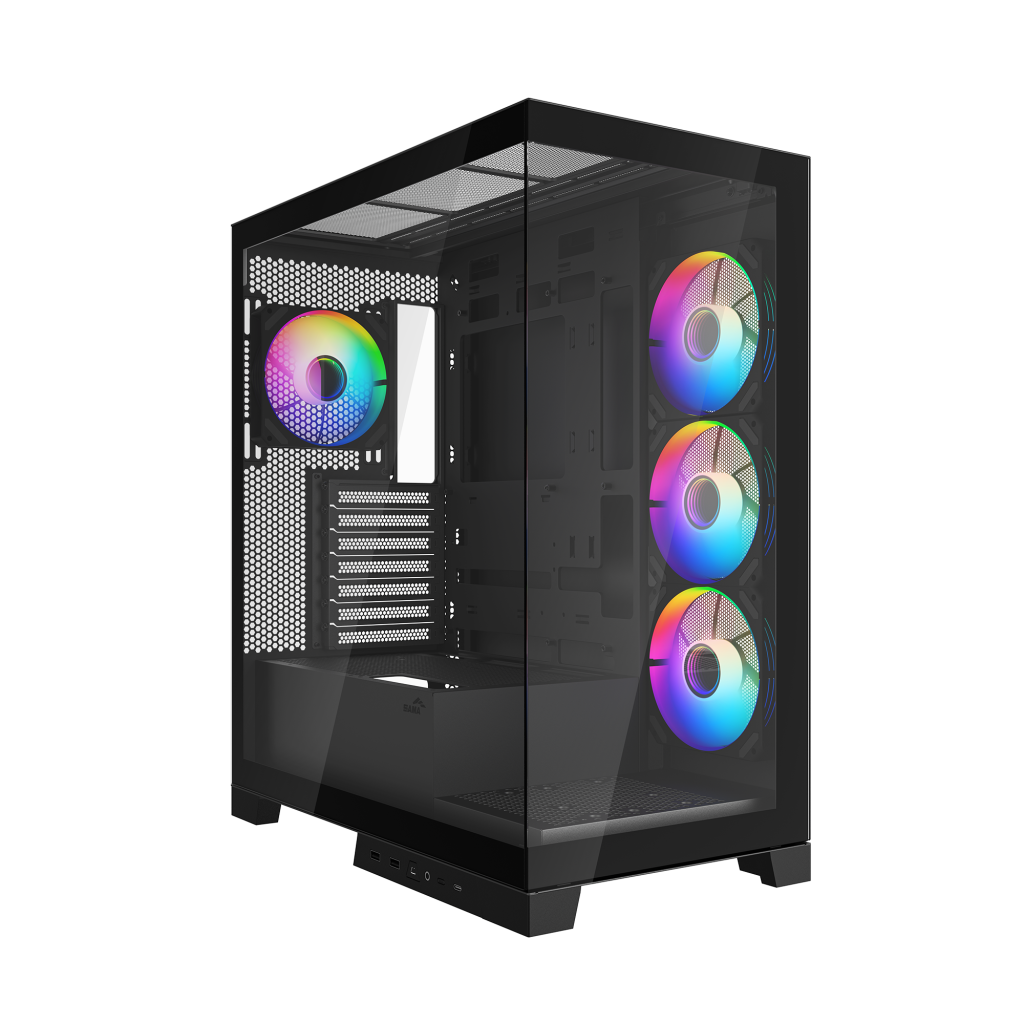

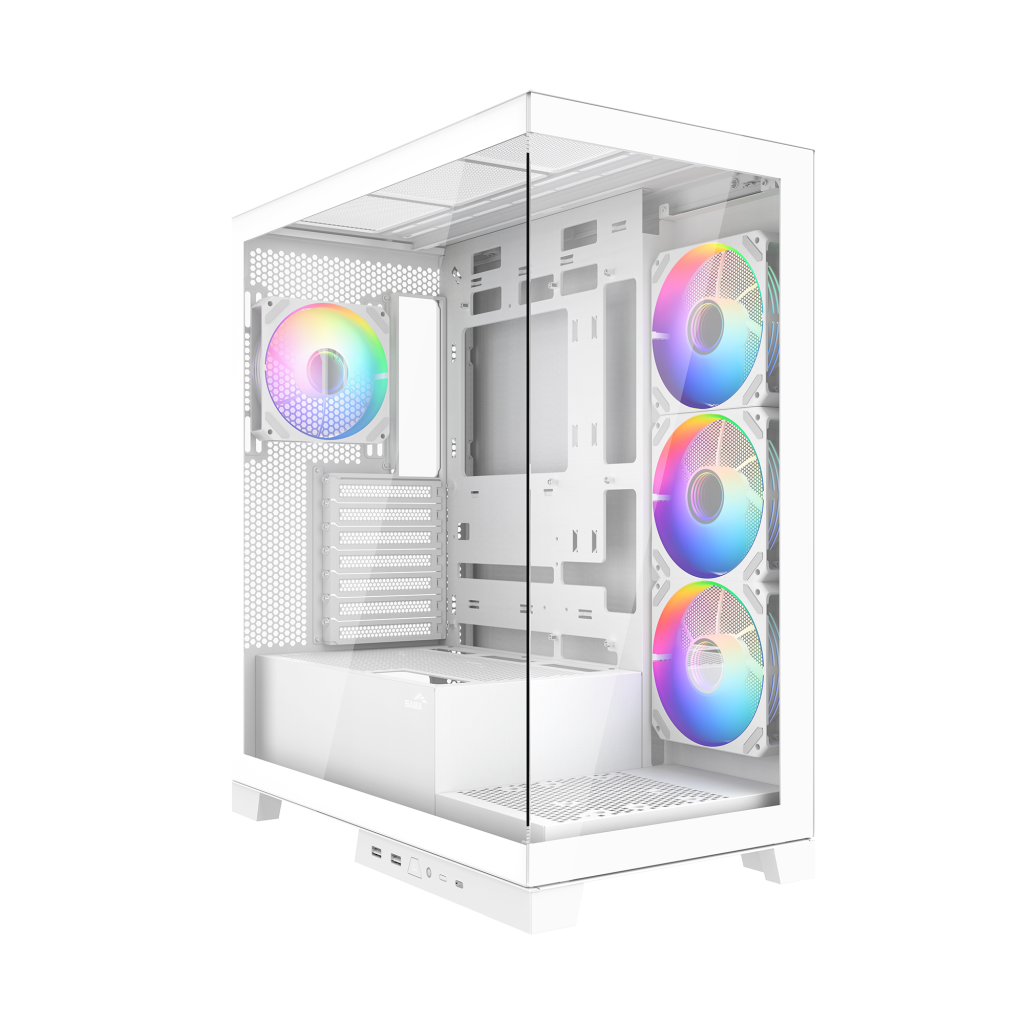

Blending practicality with aesthetics, the SAMA V50 takes PC case design to a new level. With two tempered glass panels and a removable pillar, it offers a seamless 270° view to showcase your build beautifully.

color

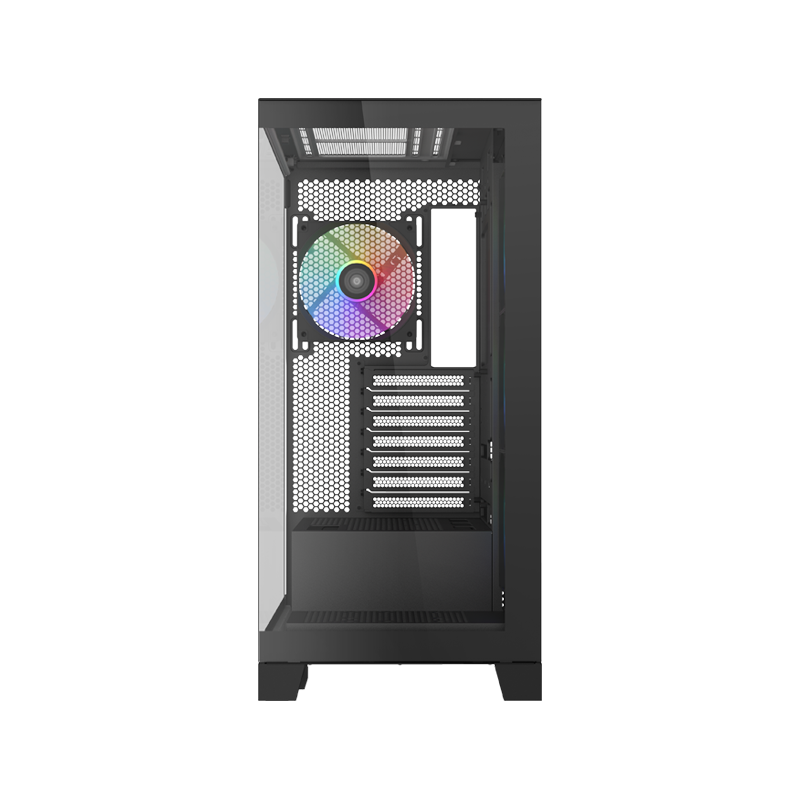

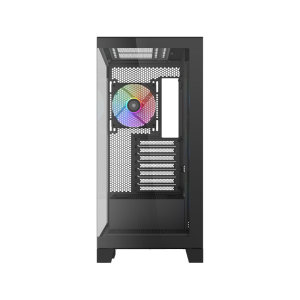

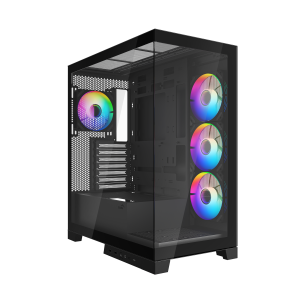

#0a0a0a | 1

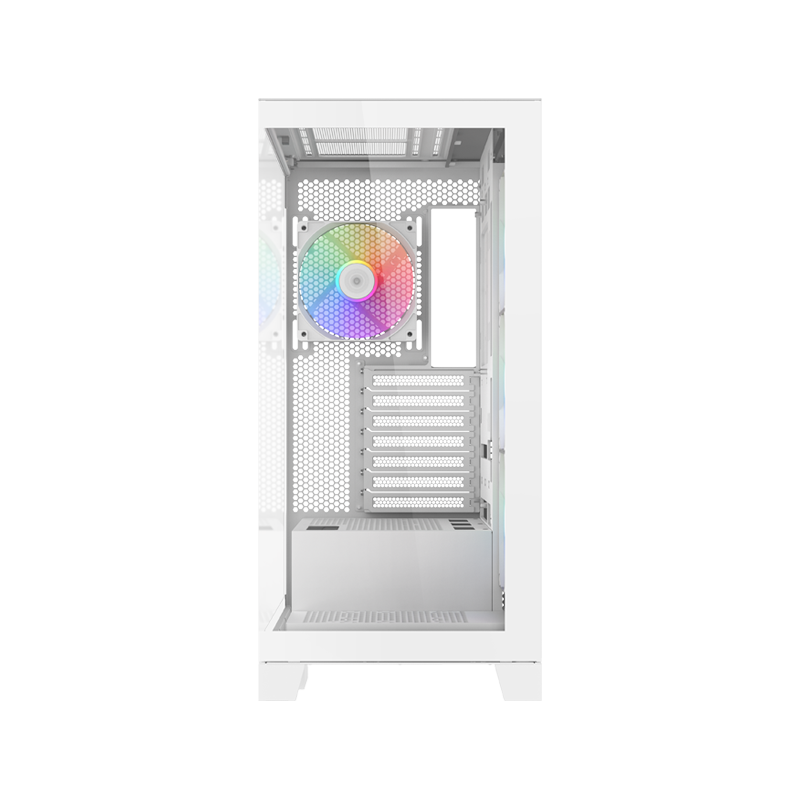

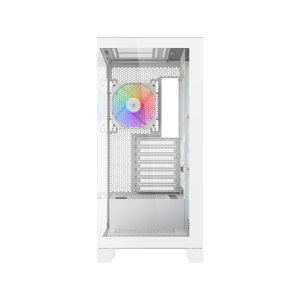

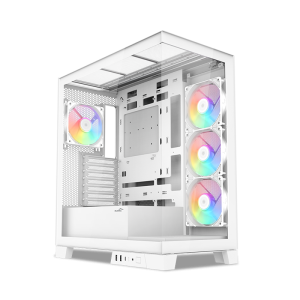

#ffffff | 2

view specifications

product manual

Specifications

Dimensions	441×235×501mm (L×W×H)	Radiator Support Front	N/A
Materials	SPCC, Tempered Glass, ABS	Top	360 / 280 / 240 / 140 / 120mm
Motherboard Support	ATX, M-ATX, ITX	Rear	120 / 140mm
	Back-connect ATX/M-ATX	Bottom	N/A
Expansion Slots	7	Side	360 / 240 / 120mm
Max CPU Cooler Height	180mm	Pre-Installed Fans Side	3×120mm ARGB PWM reverse fans
Max GPU Length	410mm	Rear	1×120mm ARGB PWM fan
Power Supply Type	ATX, 250mm	Bottom	None
Fan Support Top	3×120mm / 2×140mm	Front I/O Ports	USB 3.1 Type-C×1,
Rear	1×120mm / 1×140mm		USB 3.0×2
Bottom	3×120mm	3.5" Drive Bays	3
Side	3×120mm	2.5" Drive Bays	0 + 3 combined with 3.5" mounts
