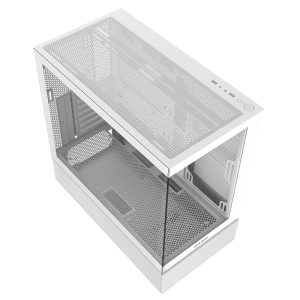

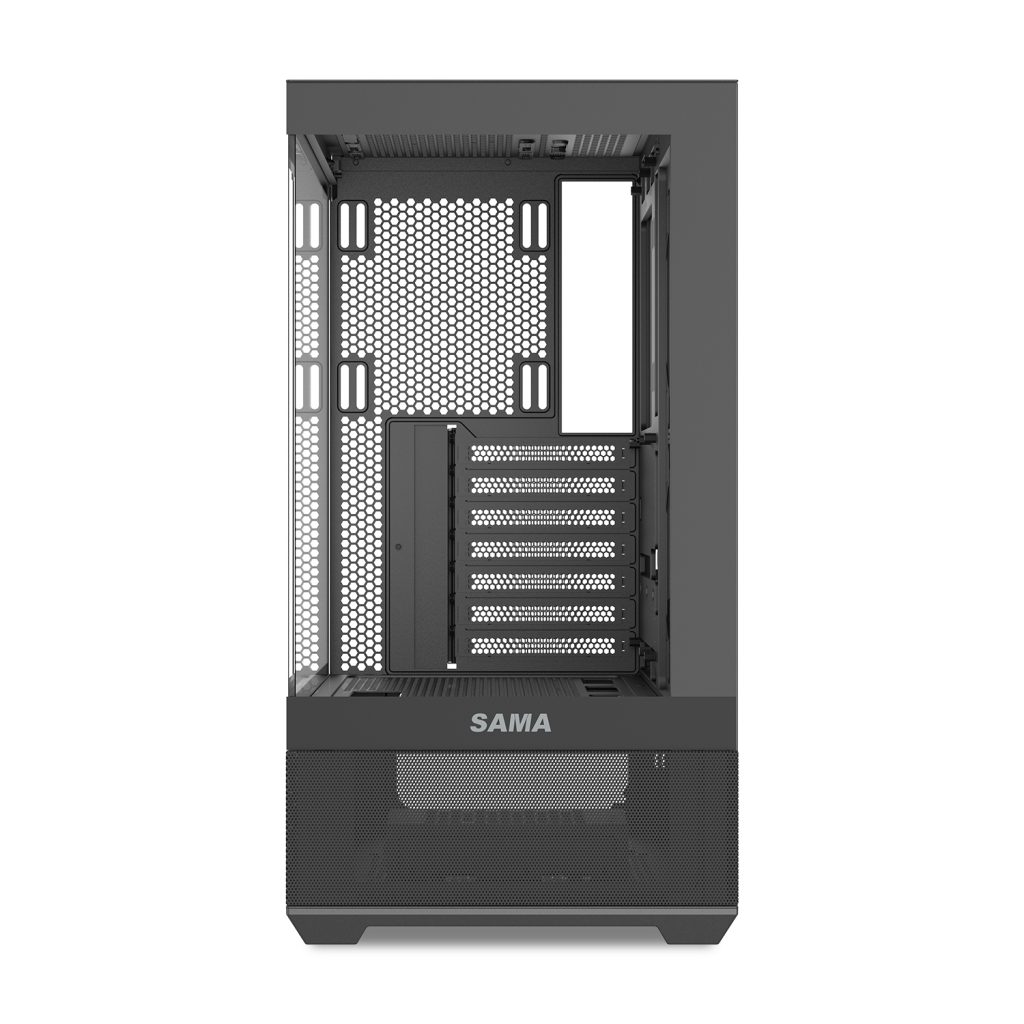

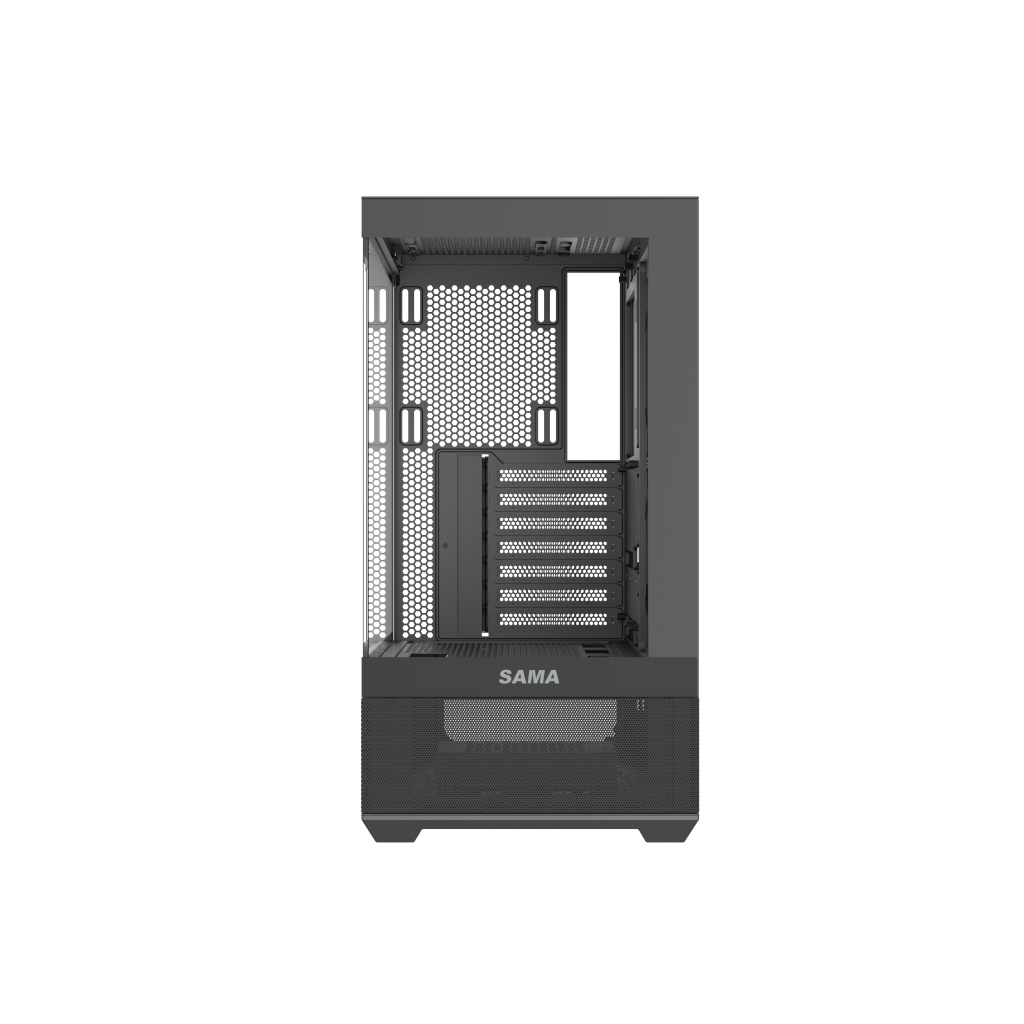

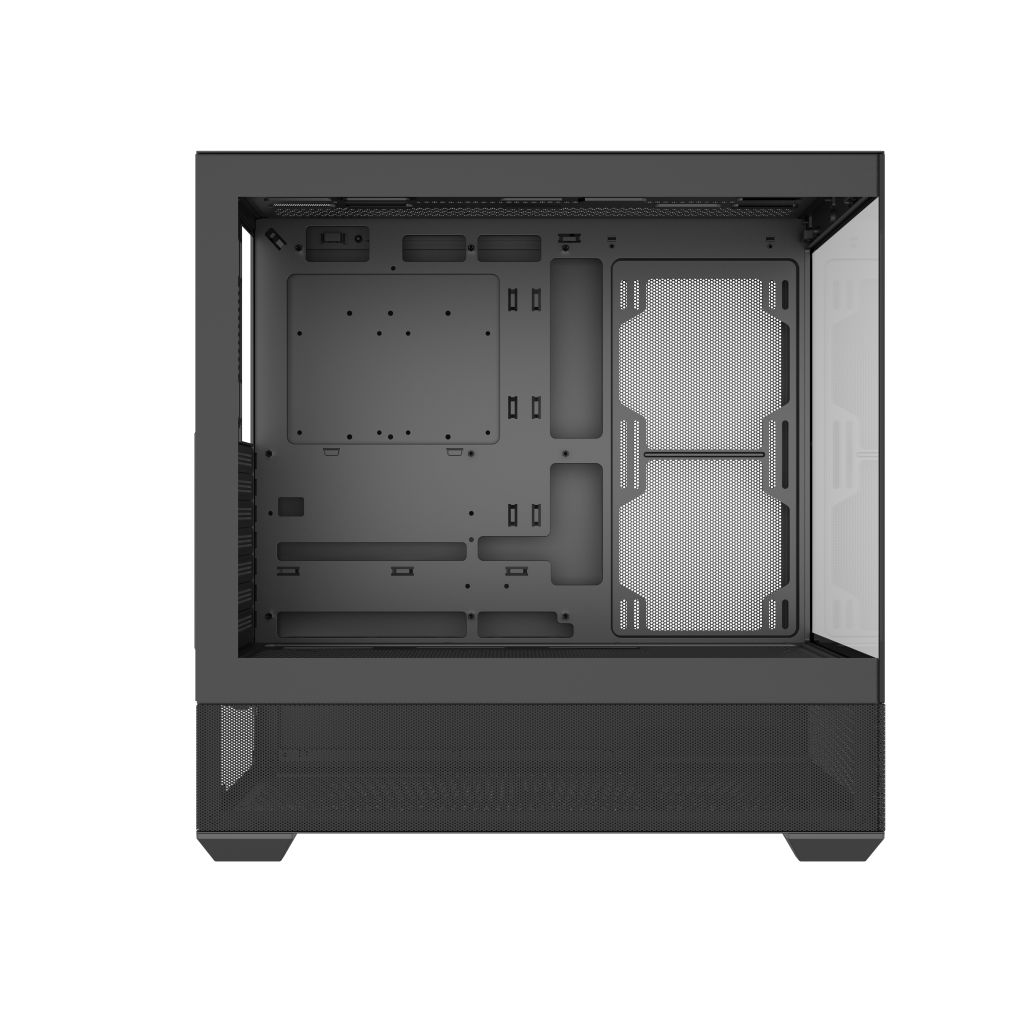

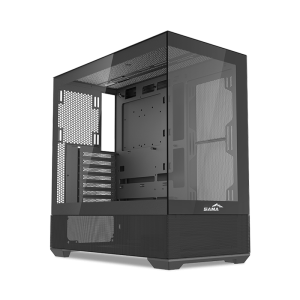

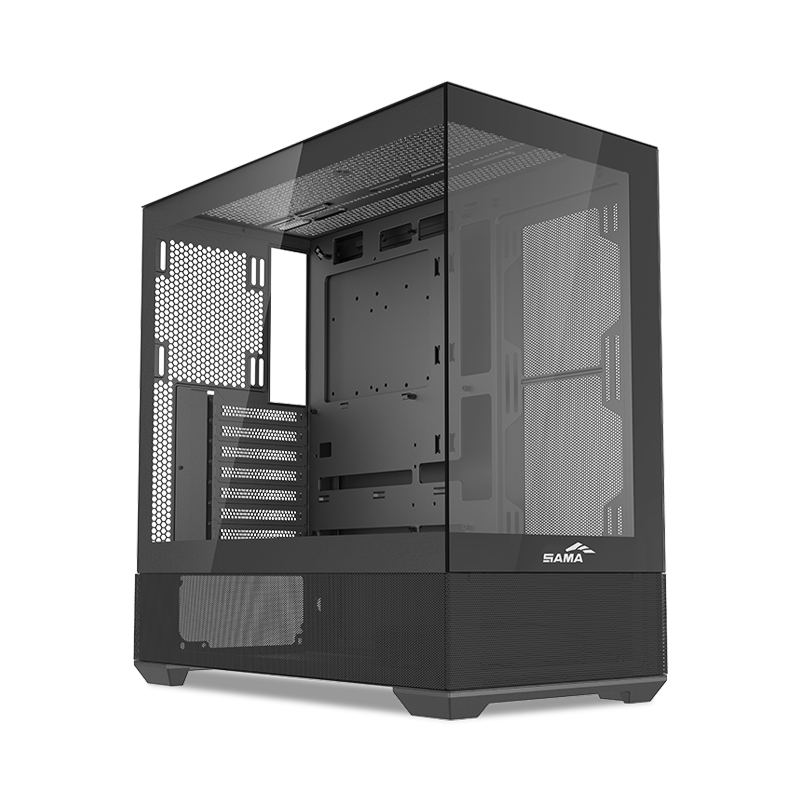

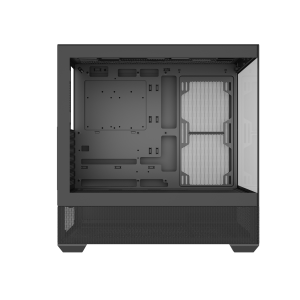

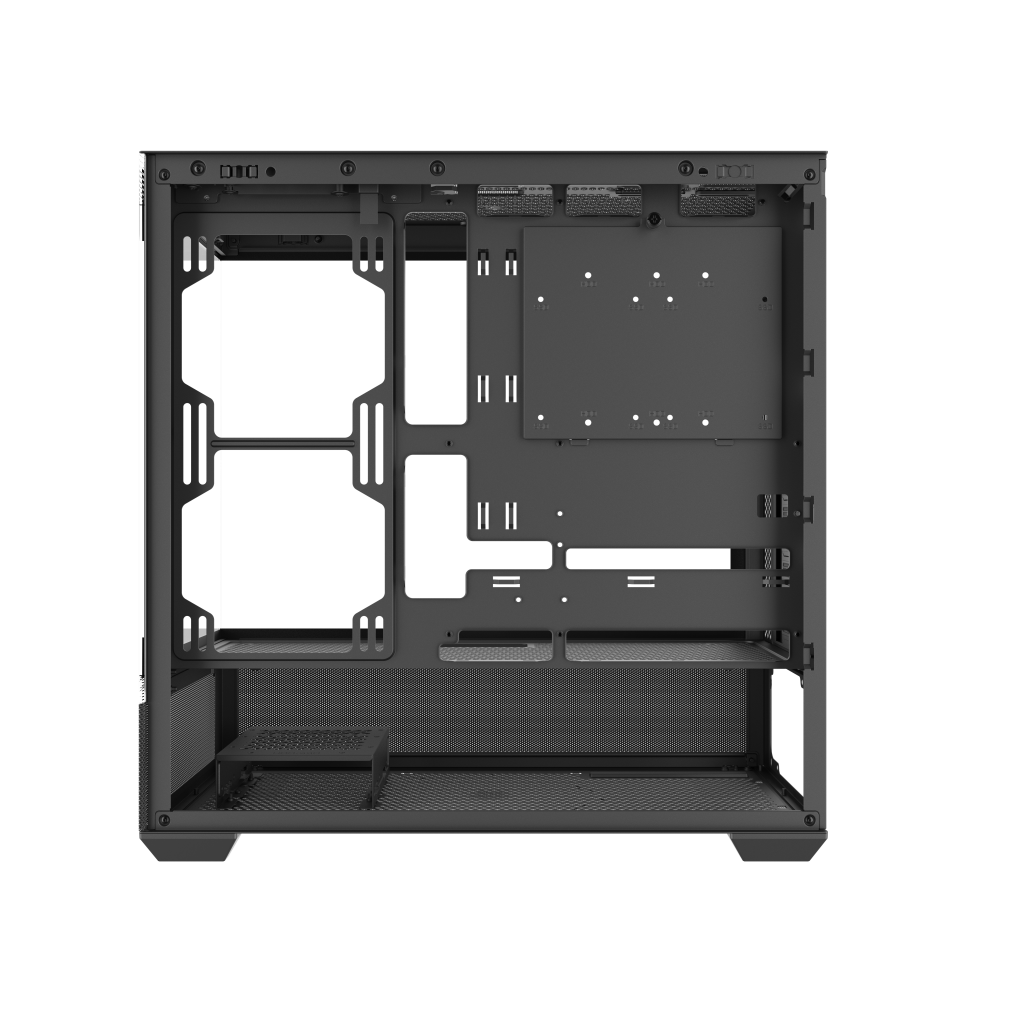

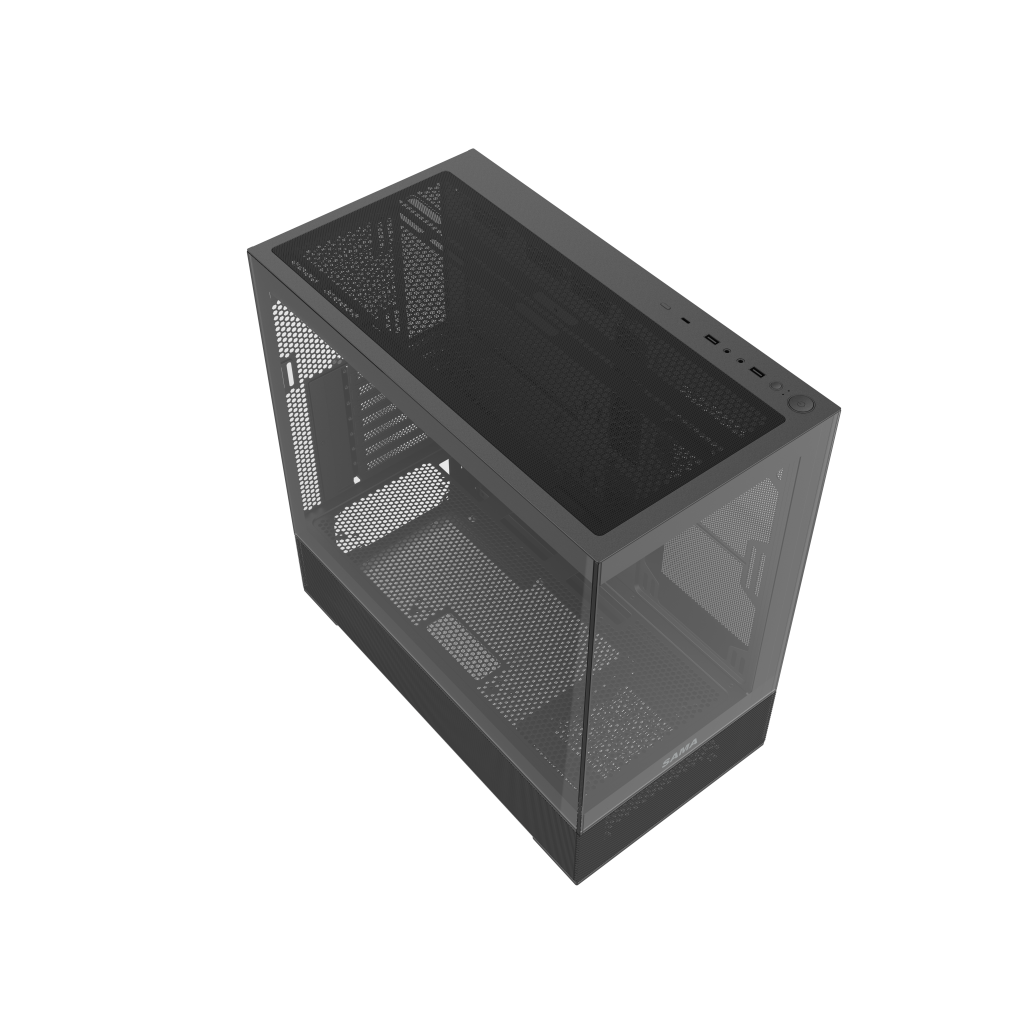

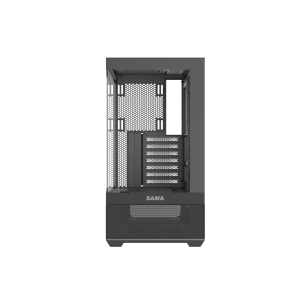

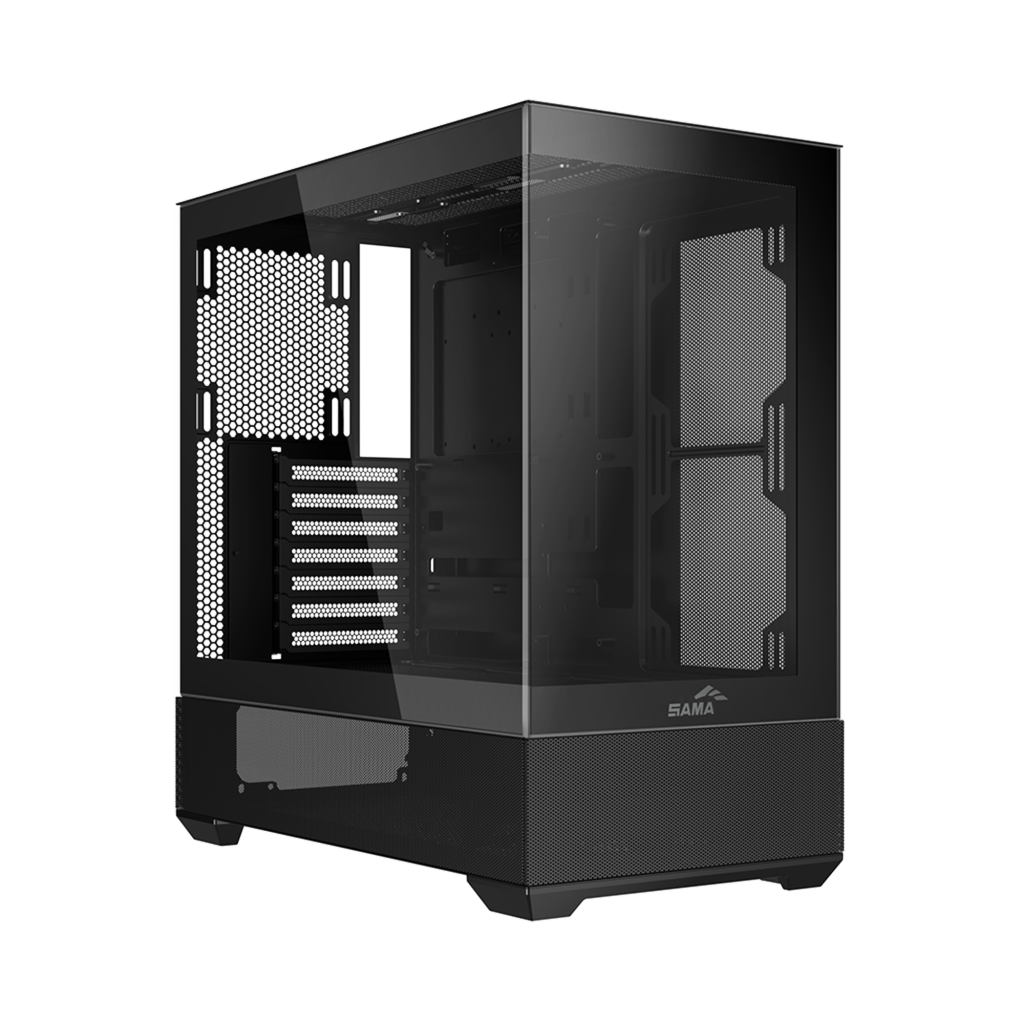

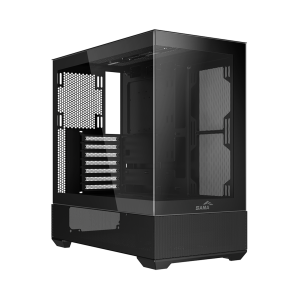

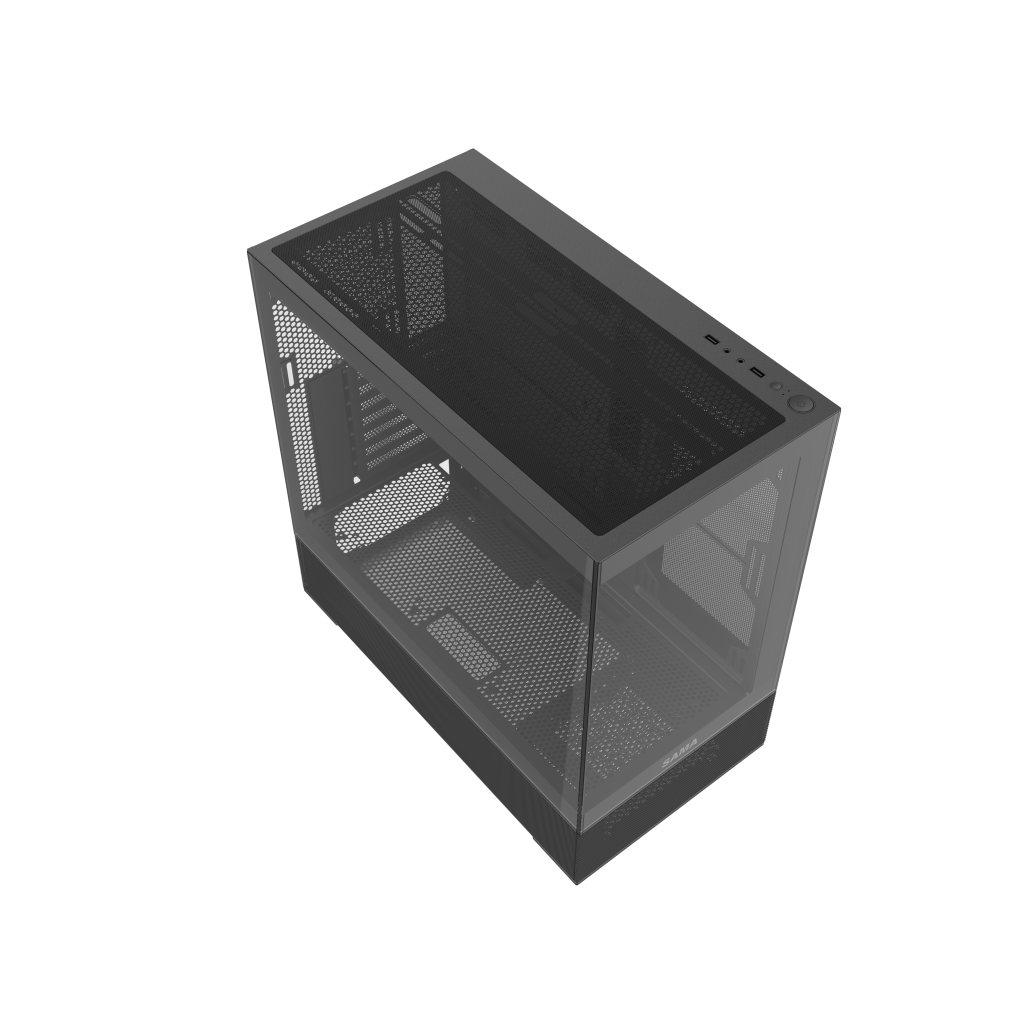

V40E

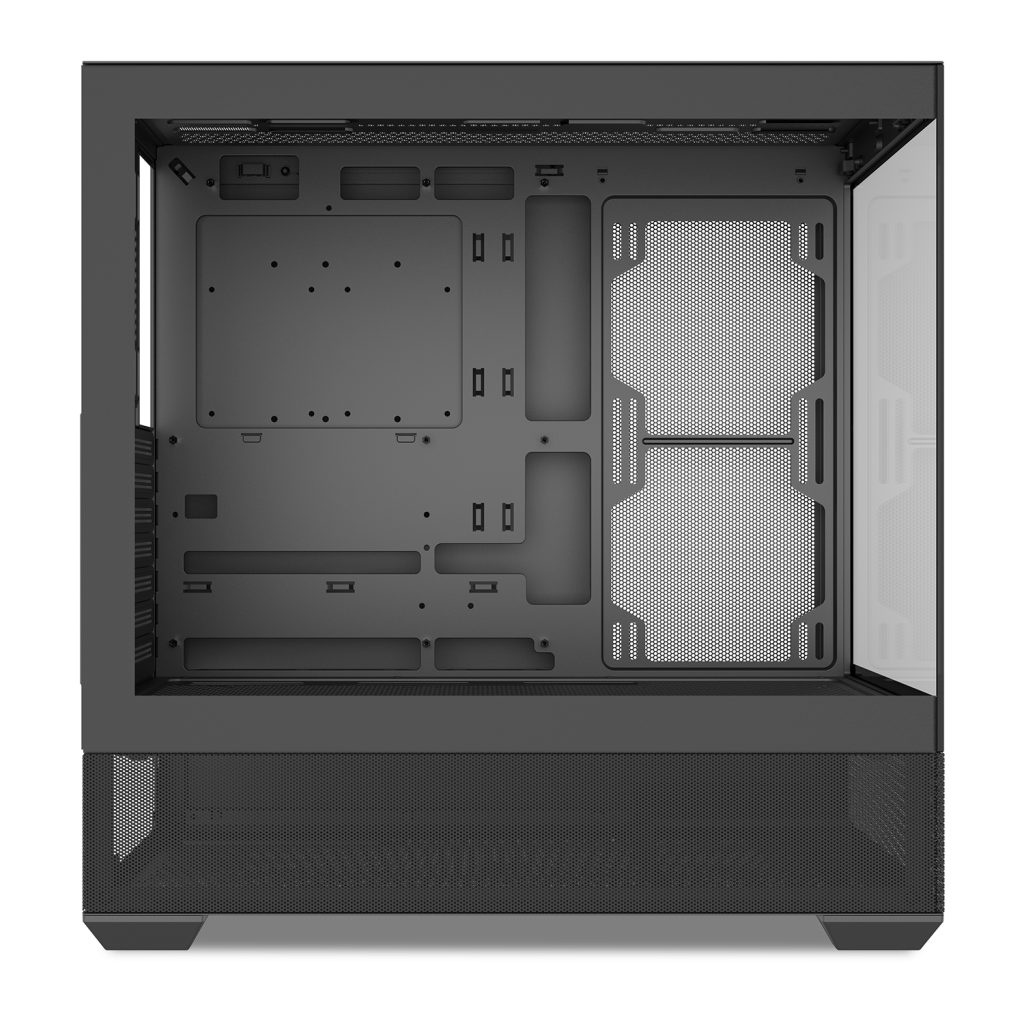

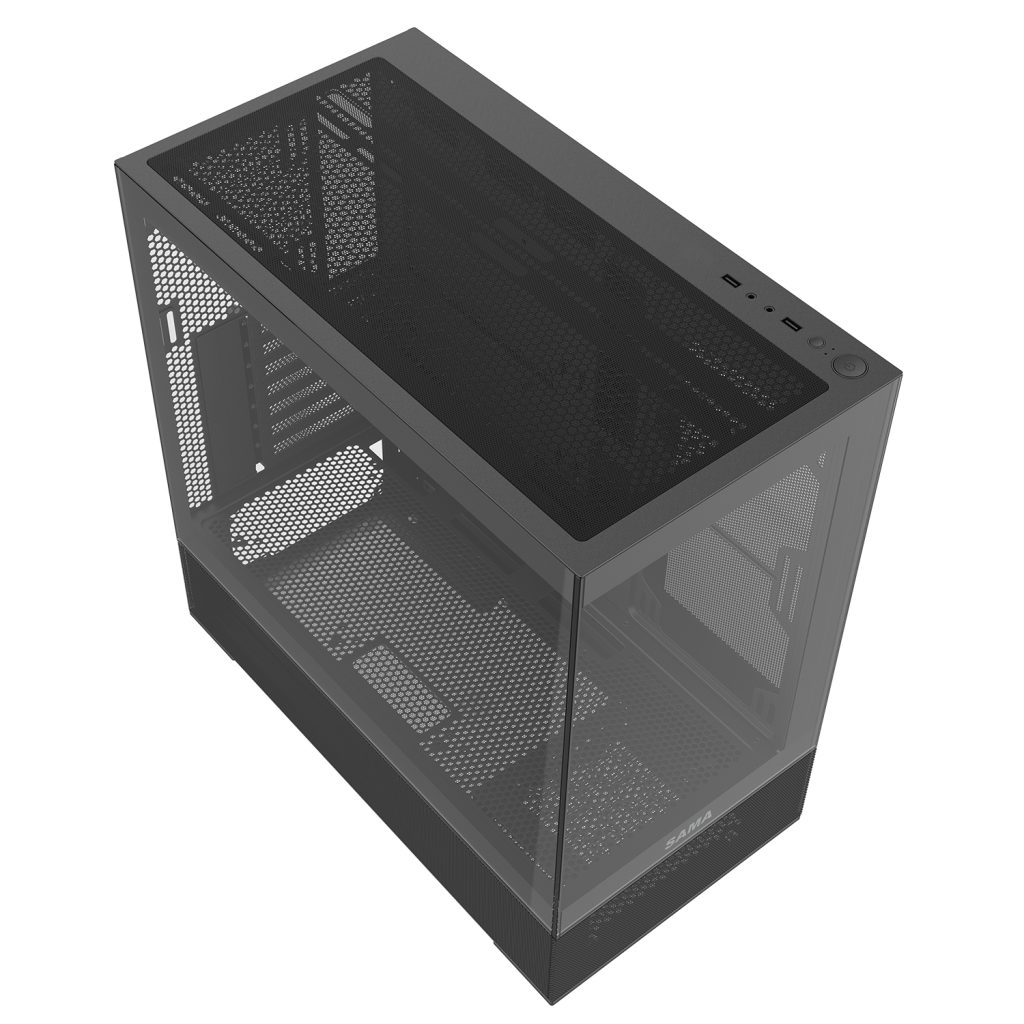

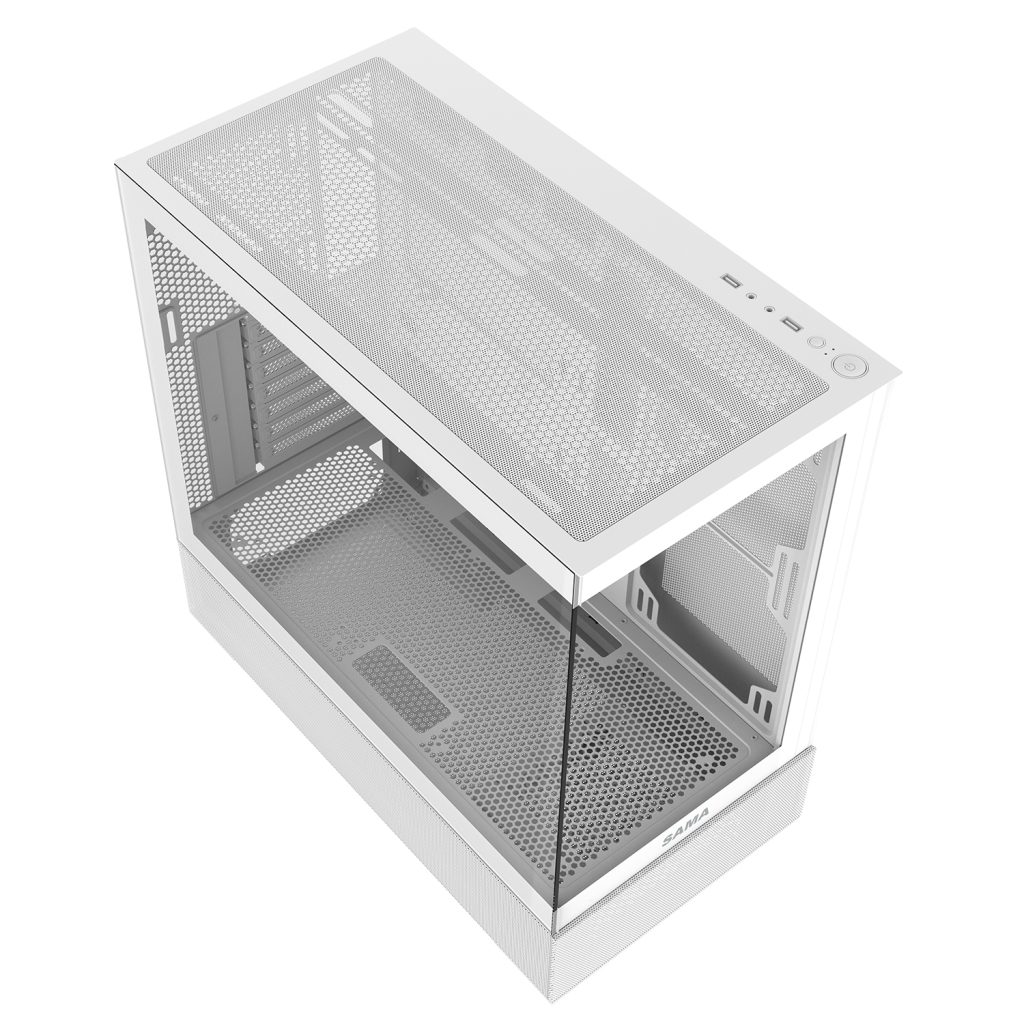

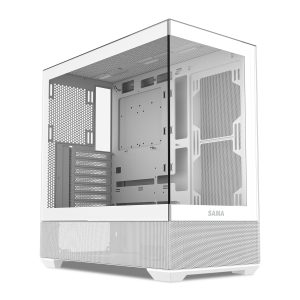

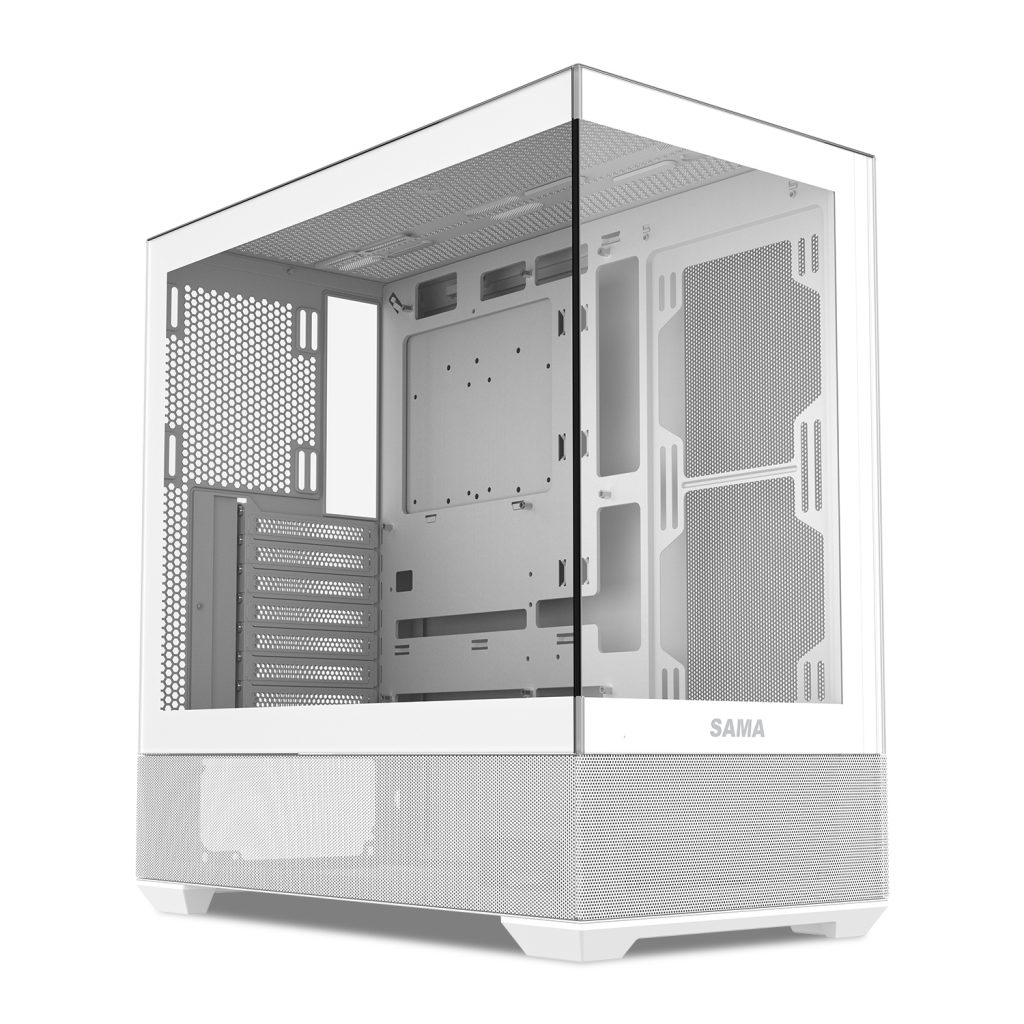

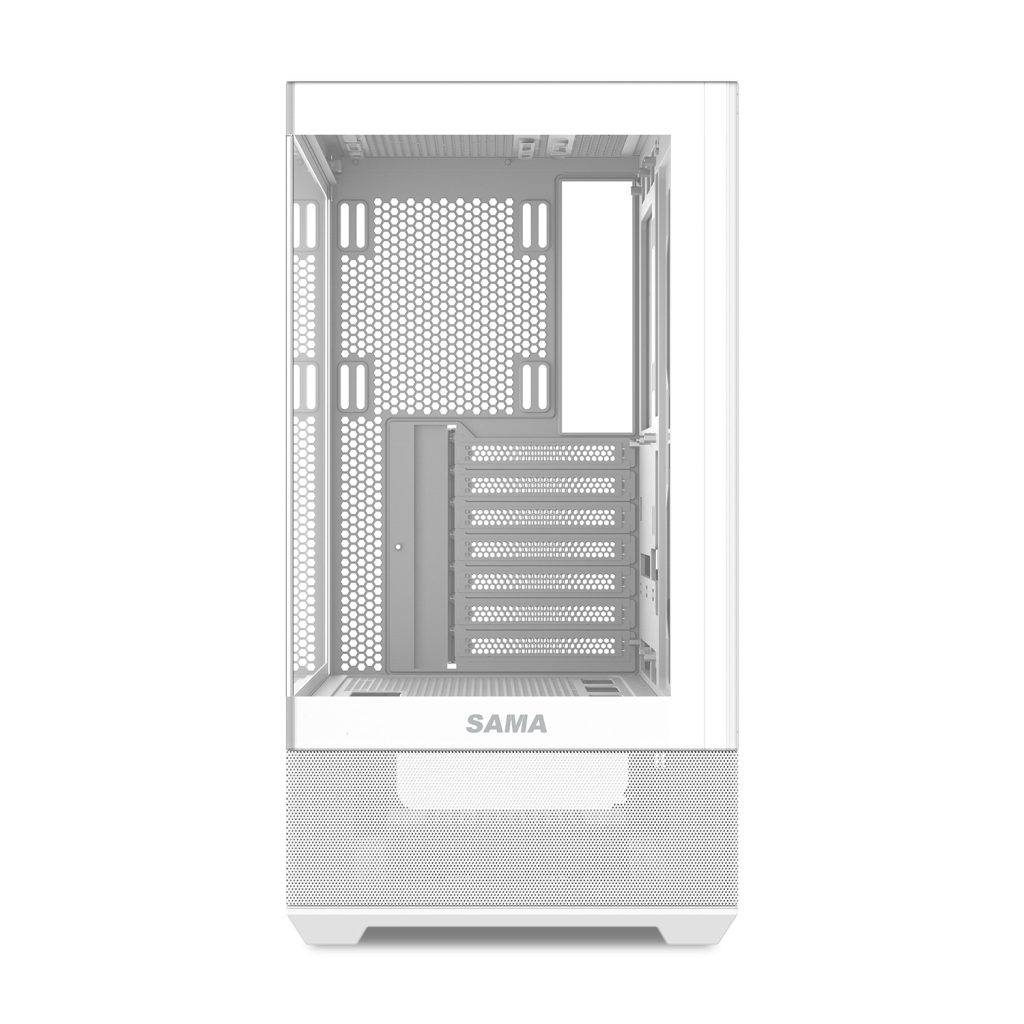

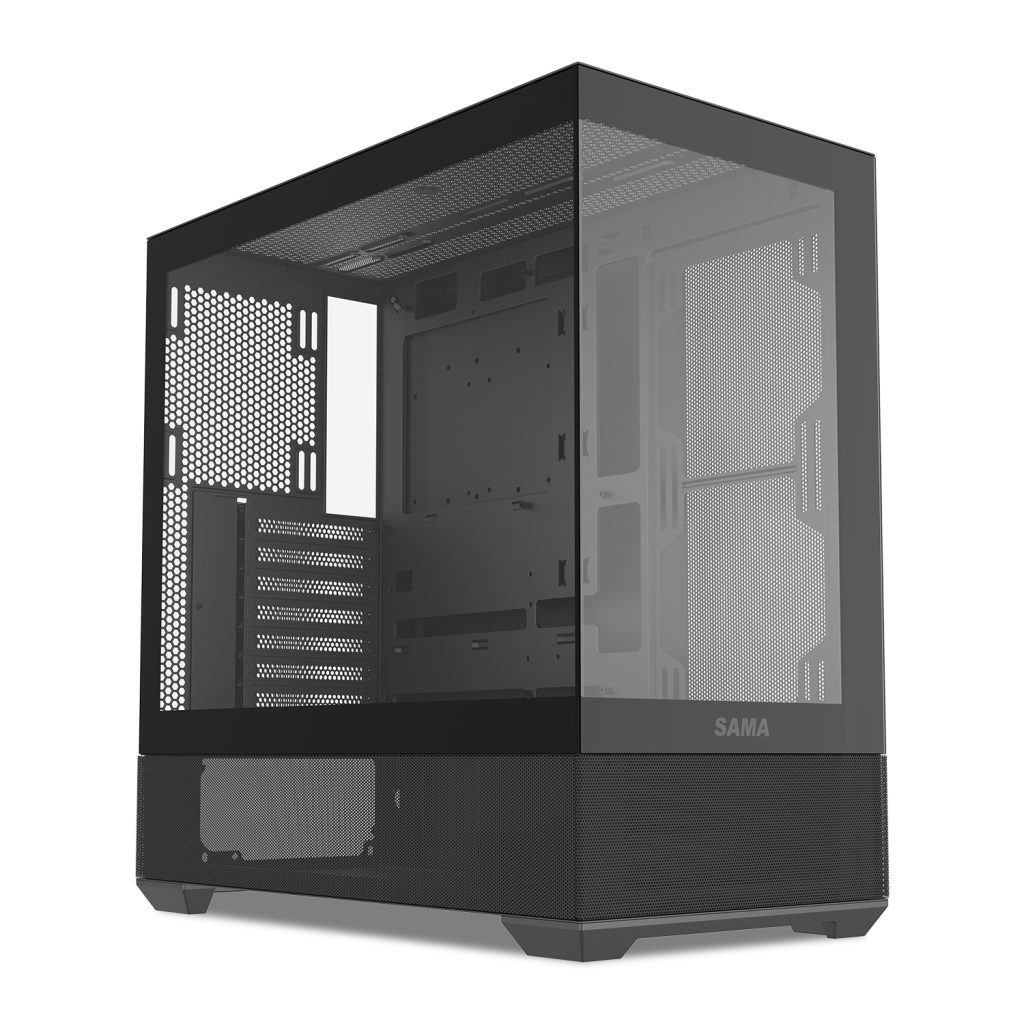

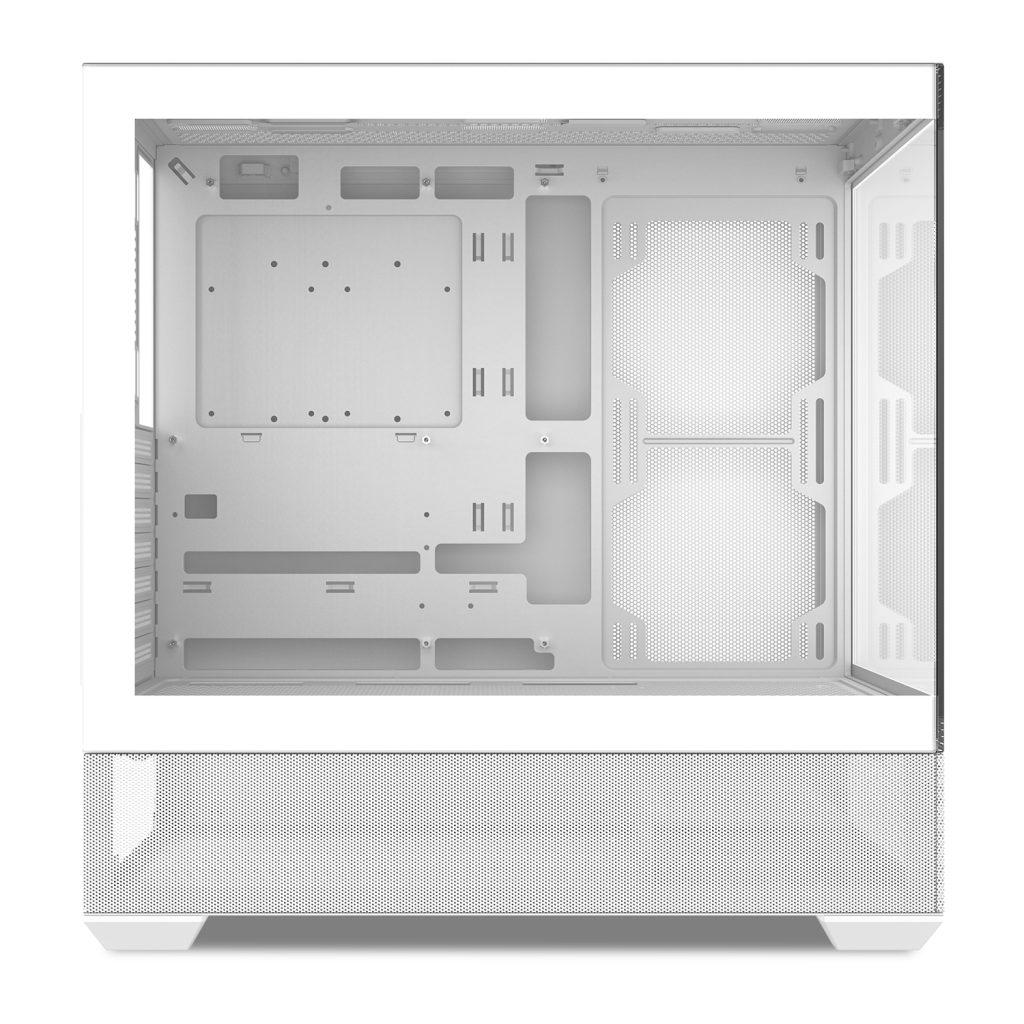

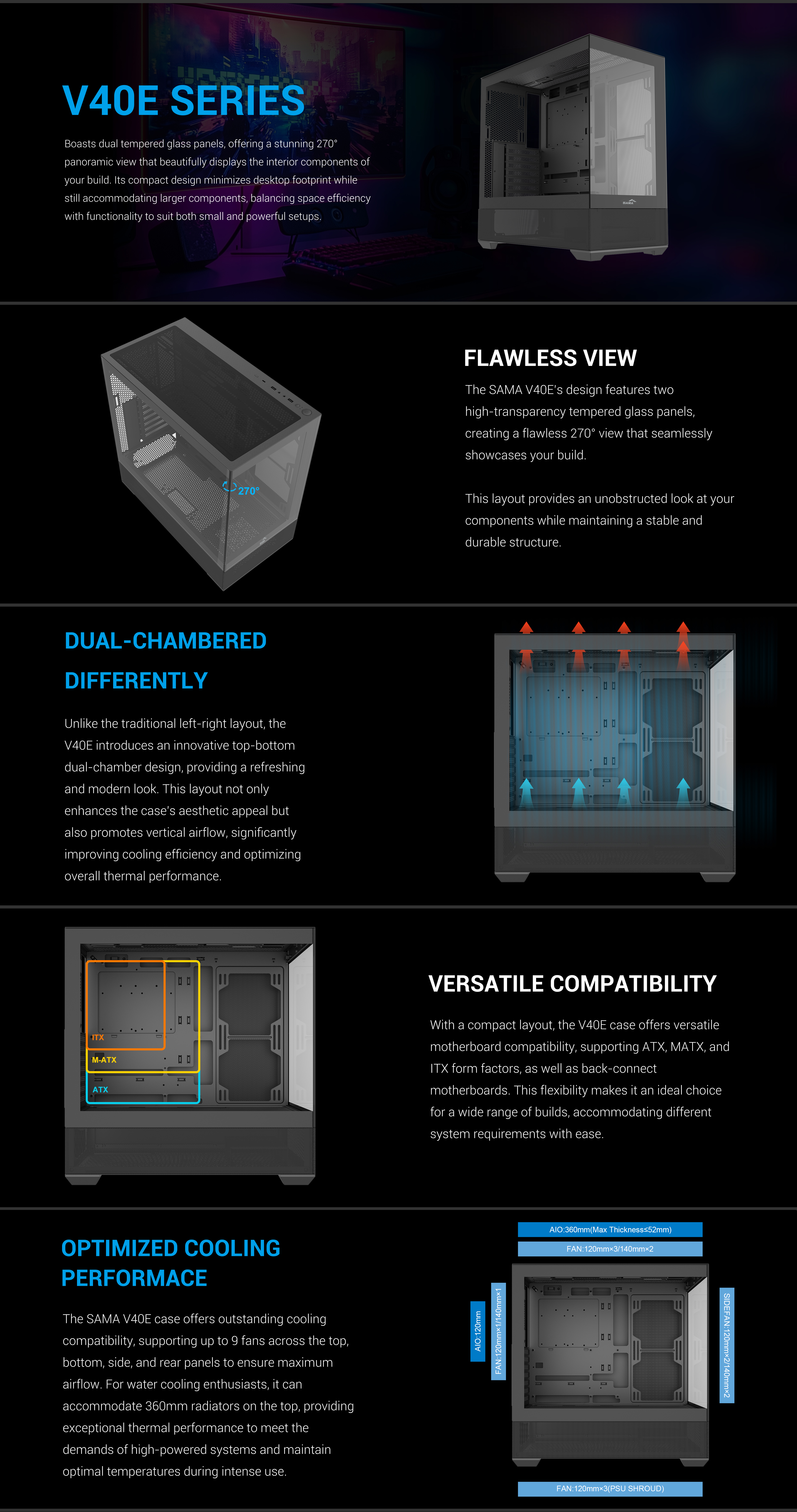

The V40E combines dual tempered-glass panels with a sleek 270-degree panoramic view, supported by a vertical airflow design and supports up to 9 x 120mm fans to provide effective cooling for high-performance components.

color

#000000 | 1

view specifications

image pack

product manual

Specifications

Dimensions		453×235×450mm(L×W×H)
Materials		SPCC, Tempered Glass, ABS
Motherboard Support		ATX, M-ATX, ITX, Back-connect ATX/M-ATX
Expansion Slots		7
Max CPU Cooler Height		181mm
Max GPU Length		410mm
Power Supply Type		ATX, 265mm
Fan Support	Front	N/A
	Top	3×120mm / 2×140mm
	Rear	1×140mm / 1×120mm
	Bottom	3×120mm (PSU shroud)
	Side	2×140mm / 2×120mm
Radiator Support	Front	N/A
	Top	360/280/240/140/120mm
	Rear	120mm
	Bottom	N/A
	Side	N/A
I/O Ports		USB 3.1 Type-C x 1, USB 3.0 x 2, AUDIO x 1, MIC x 1, LED Swtich Button, Power Button
3.5" Drive Bays		3
2.5" Drive Bays		3
