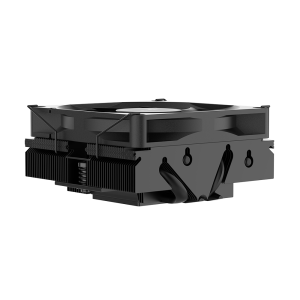

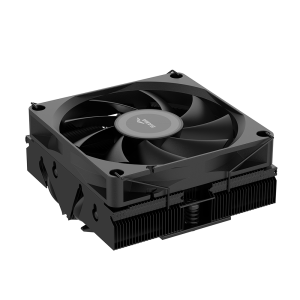

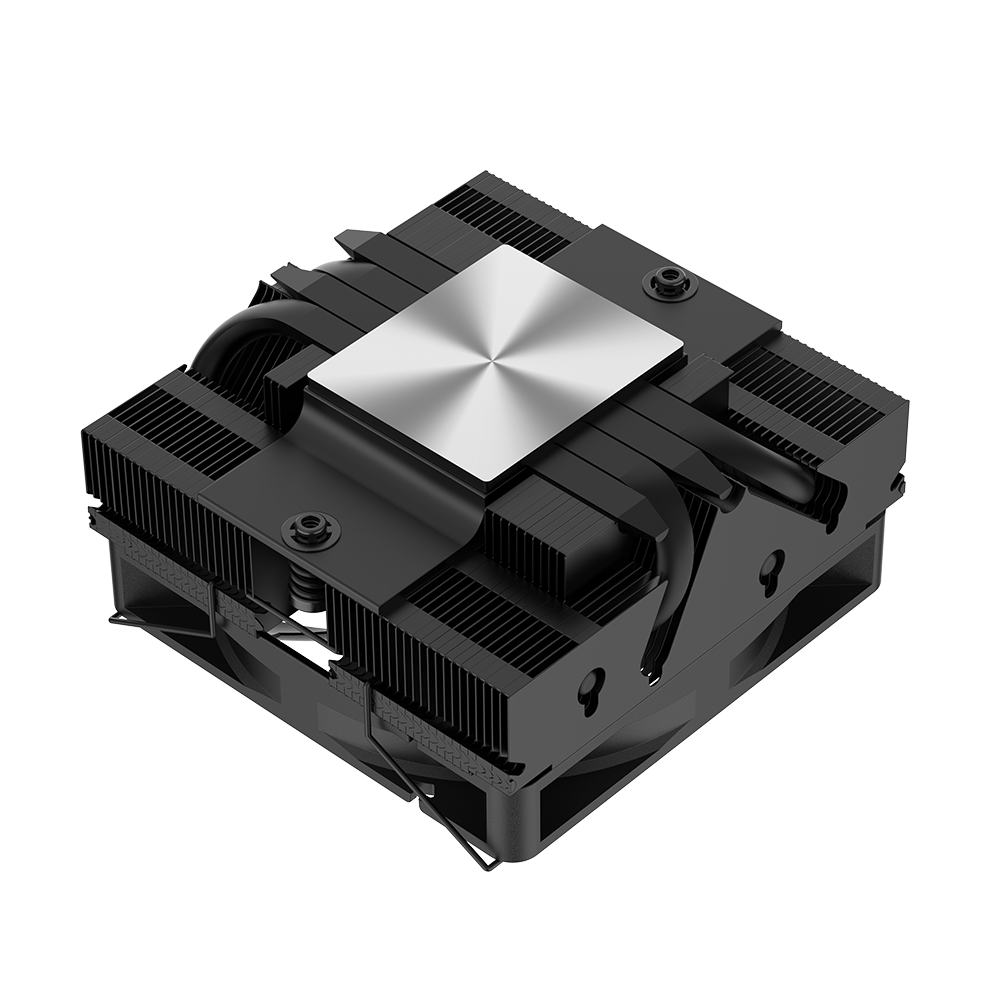

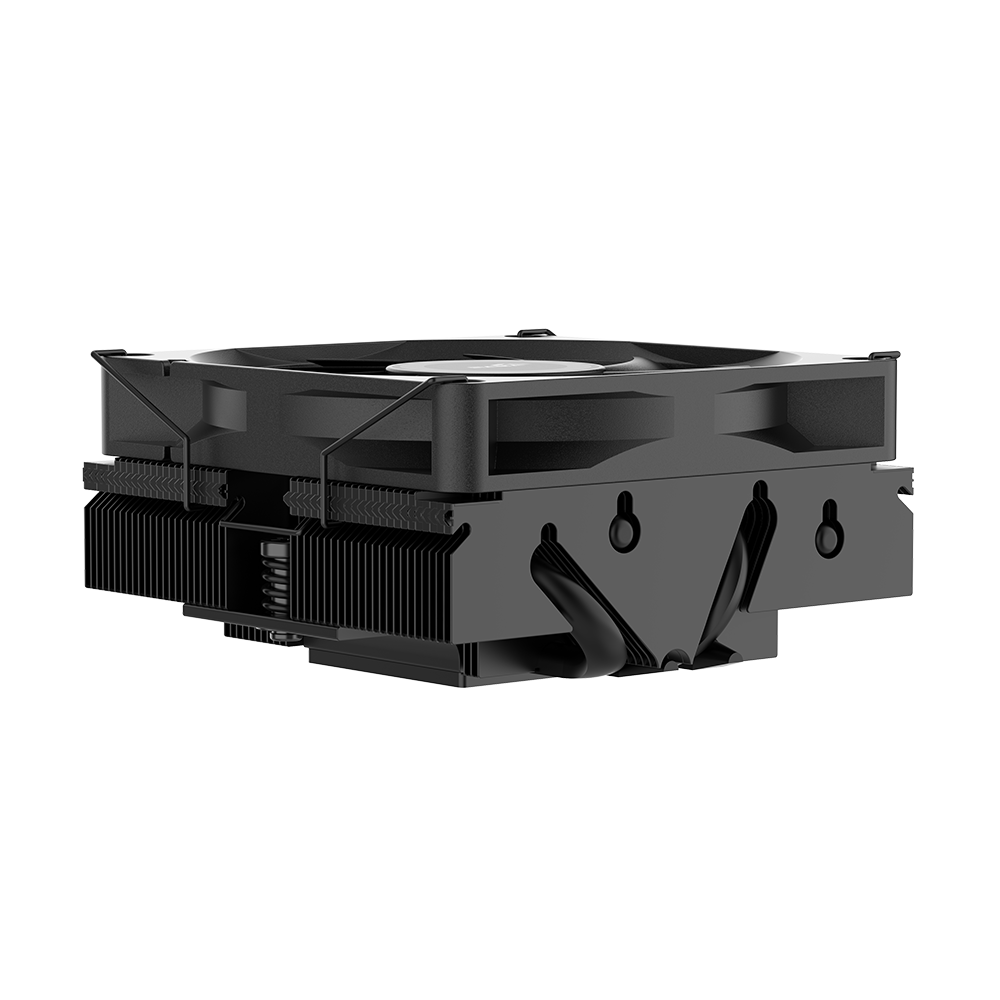

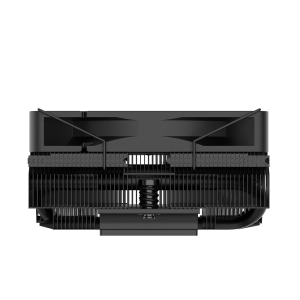

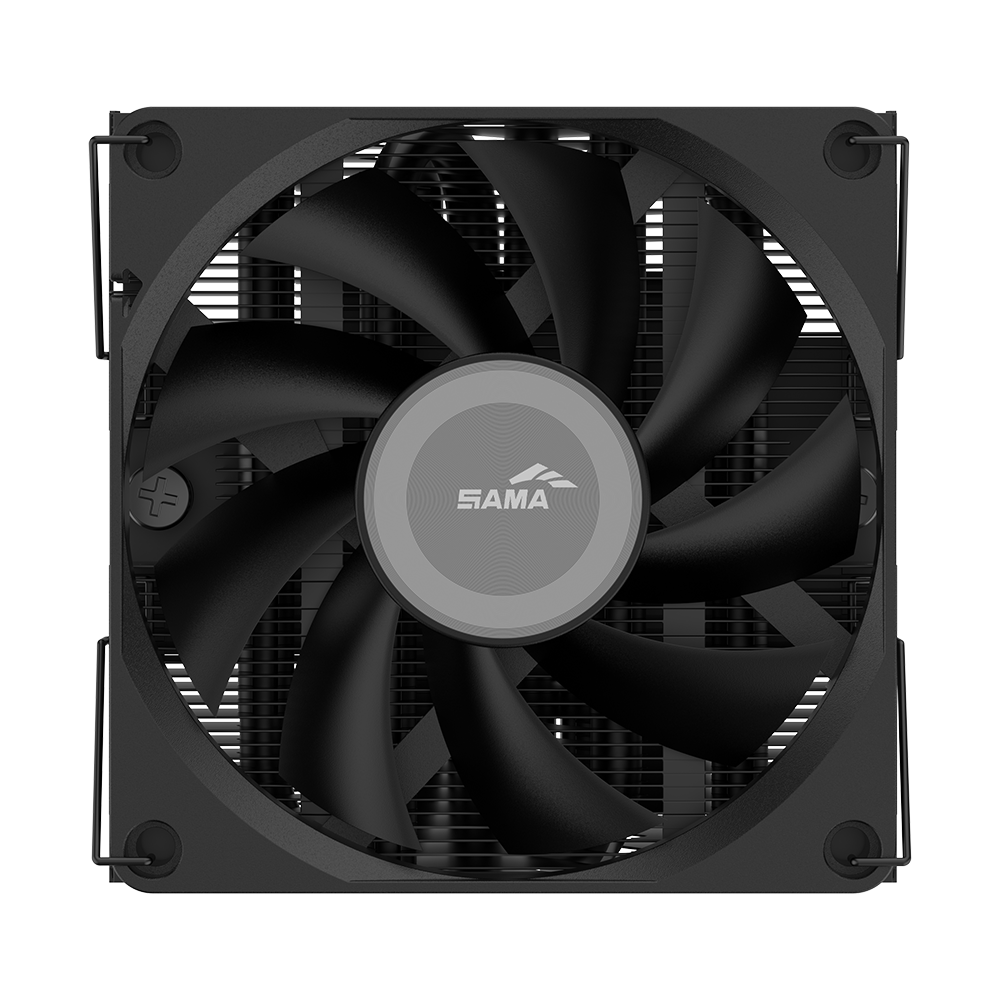

U40

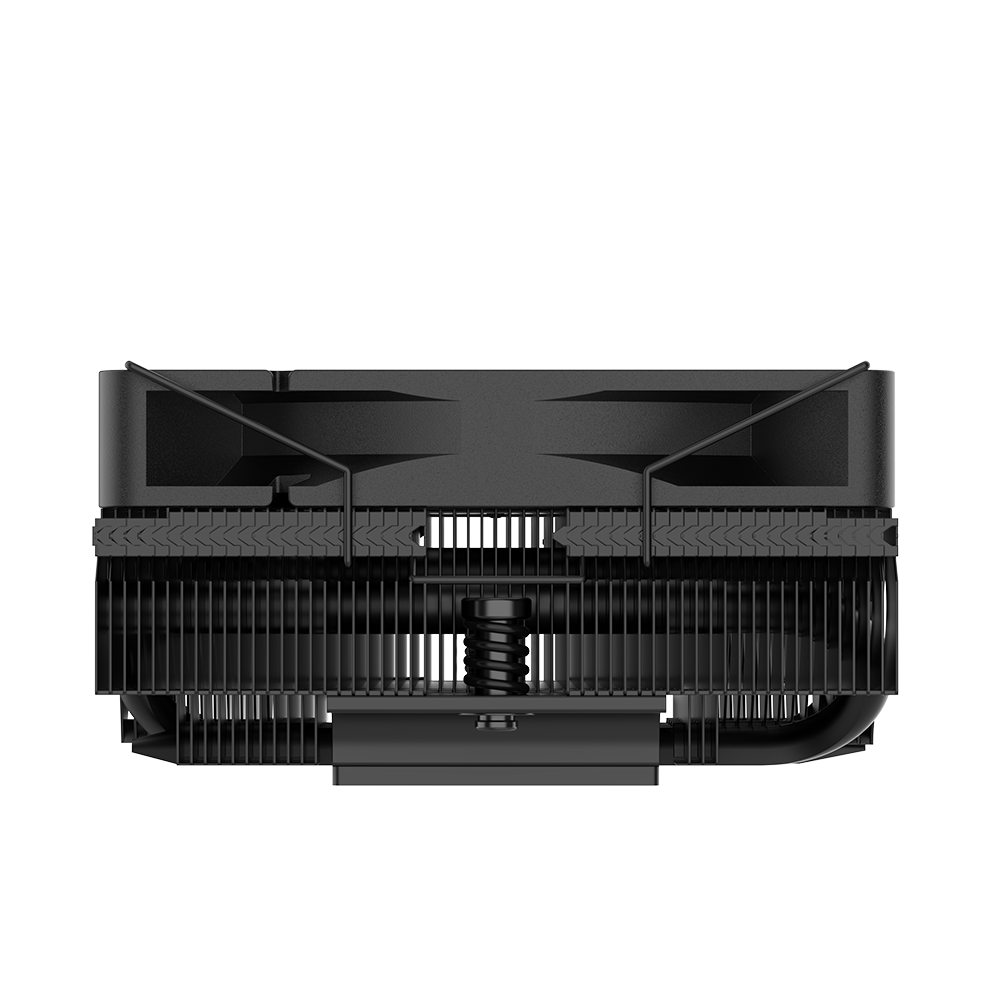

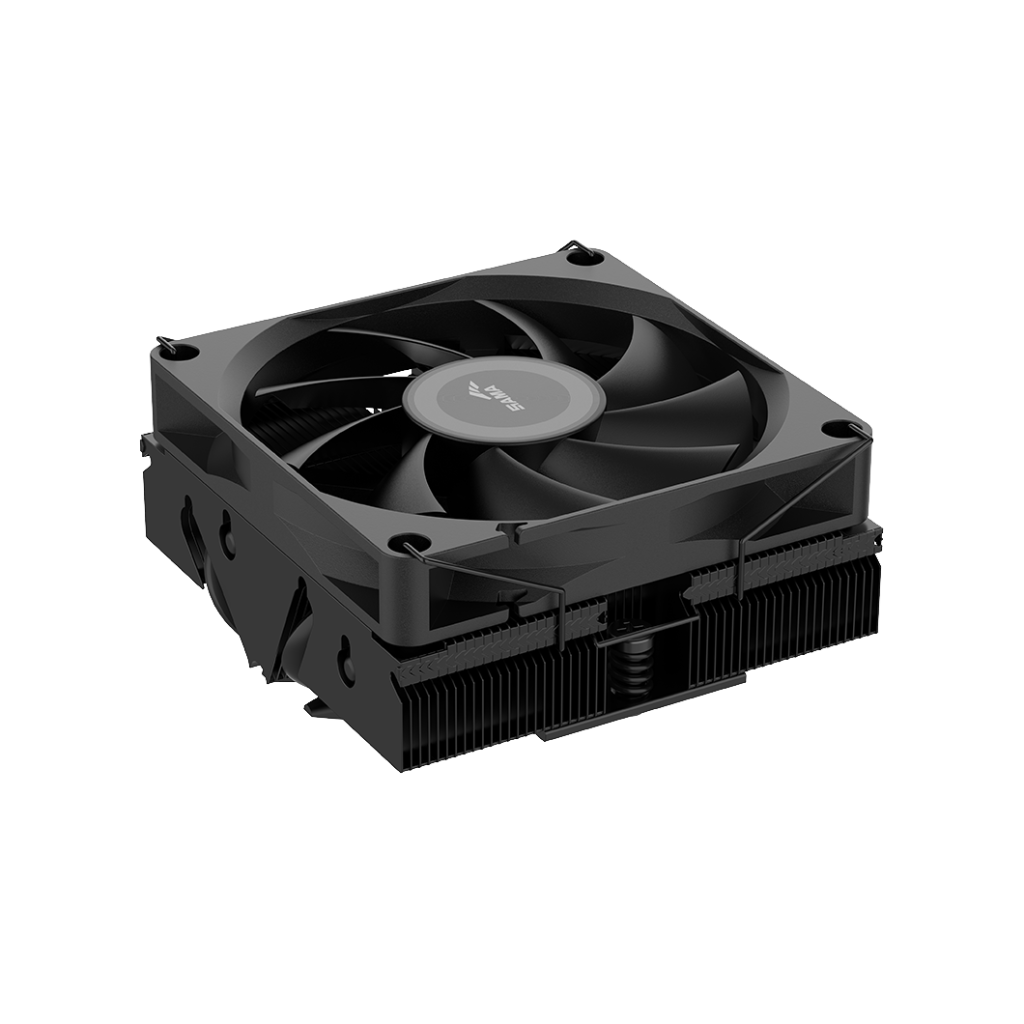

Featuring a 4-heatpipe top-flow design and a slim 47 mm profile, the SAMA U40 fits effortlessly into the tightest ITX cases and ensures an easy installation.

Color

#000000

Product Manual

Specifications

Model	U40
TDP	130W
CPU Socket	Intel : LGA115X/1200/1700/1851 AMD : AM4/AM5
Product Dimension	90×90×47mm

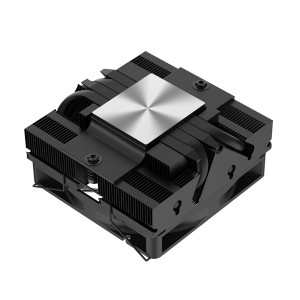

Heatpipe	Φ6mm×4
Color	Black
Fan Quantity	1pc
Warranty	2 Years

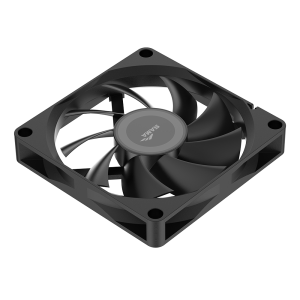

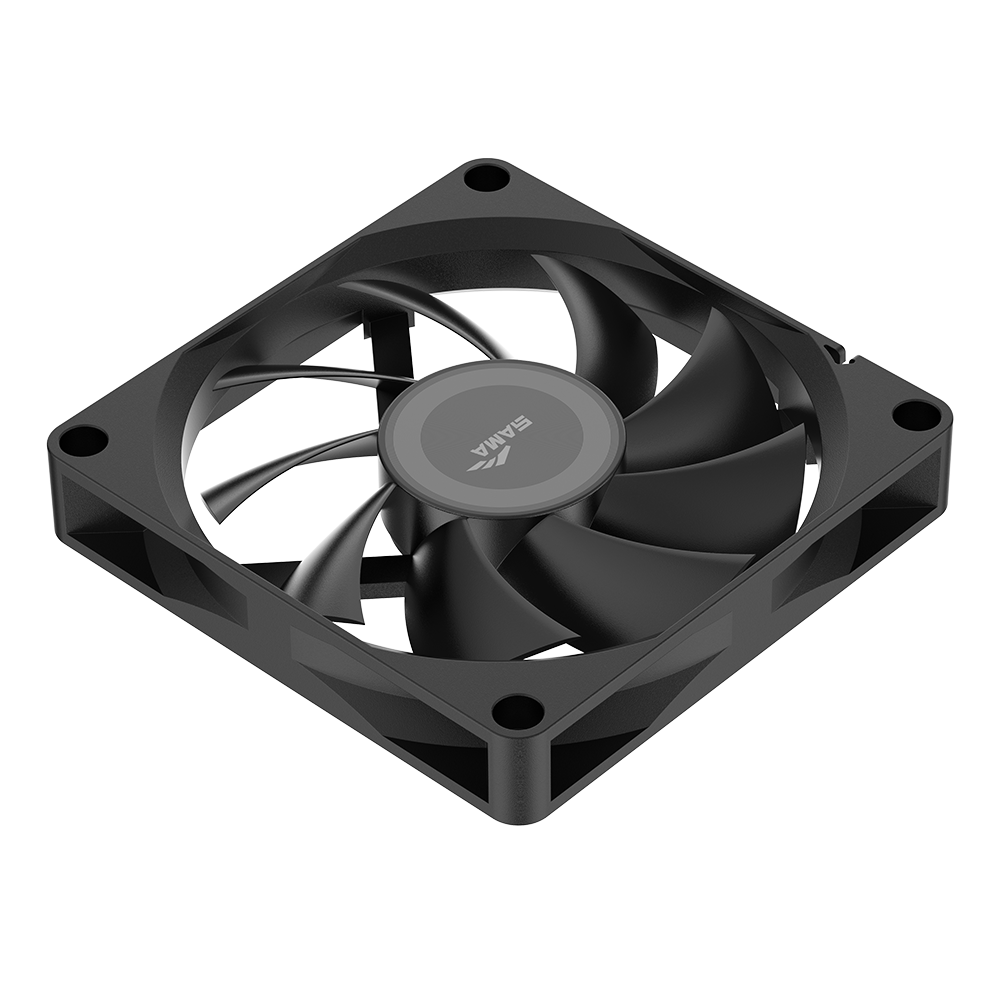

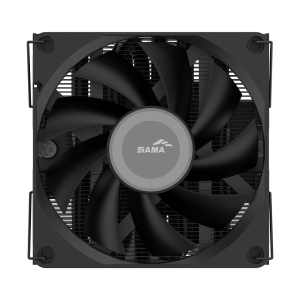

Fan	Dimension: 90×90×15mm Bearing Type: Hydro Bearing Noise: 34 dB-A Speed: 900~2800±10% RPM Air Flow: 38.18 CFM Air Pressure: 2.49 mmH2O Rated Voltage: 12 VDC Power Consumption: 2.88 W Fan Connector: 4-Pin PWM
