SV01

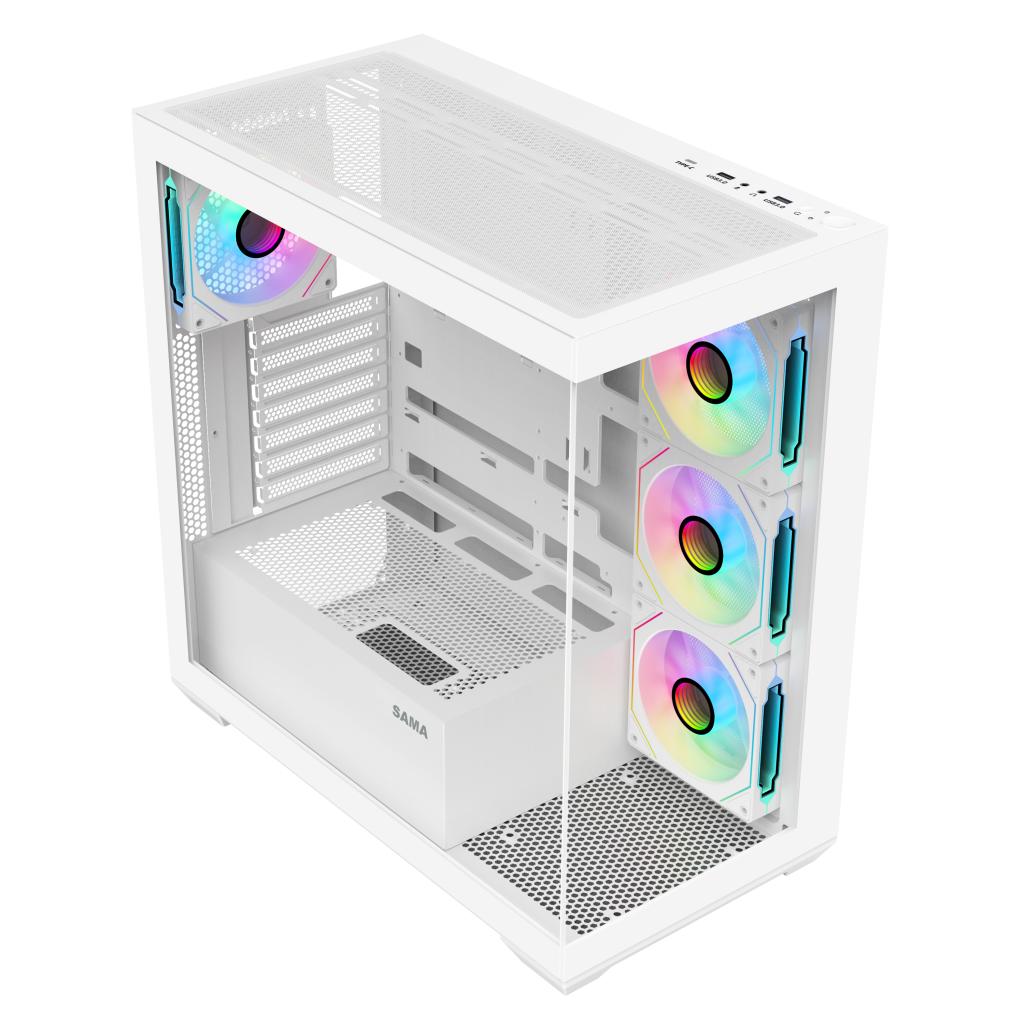

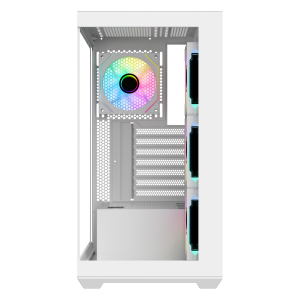

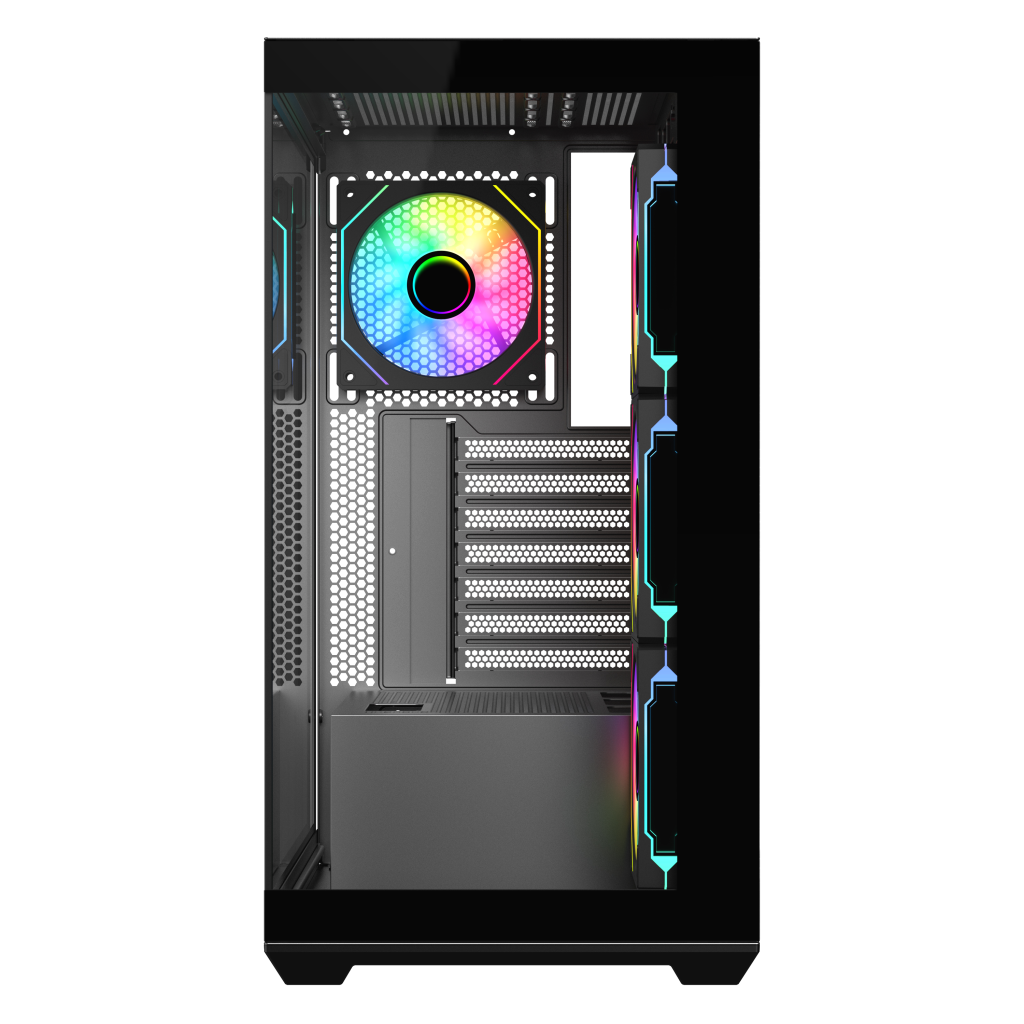

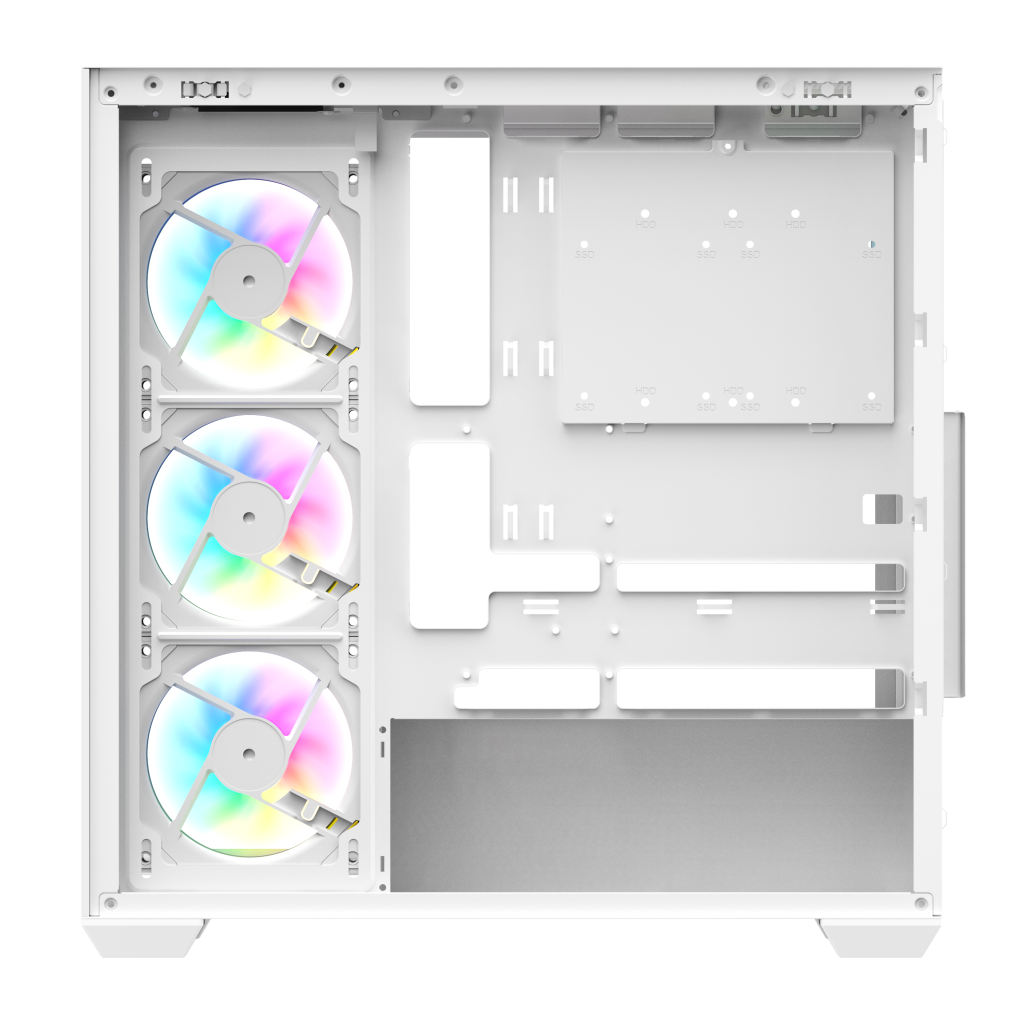

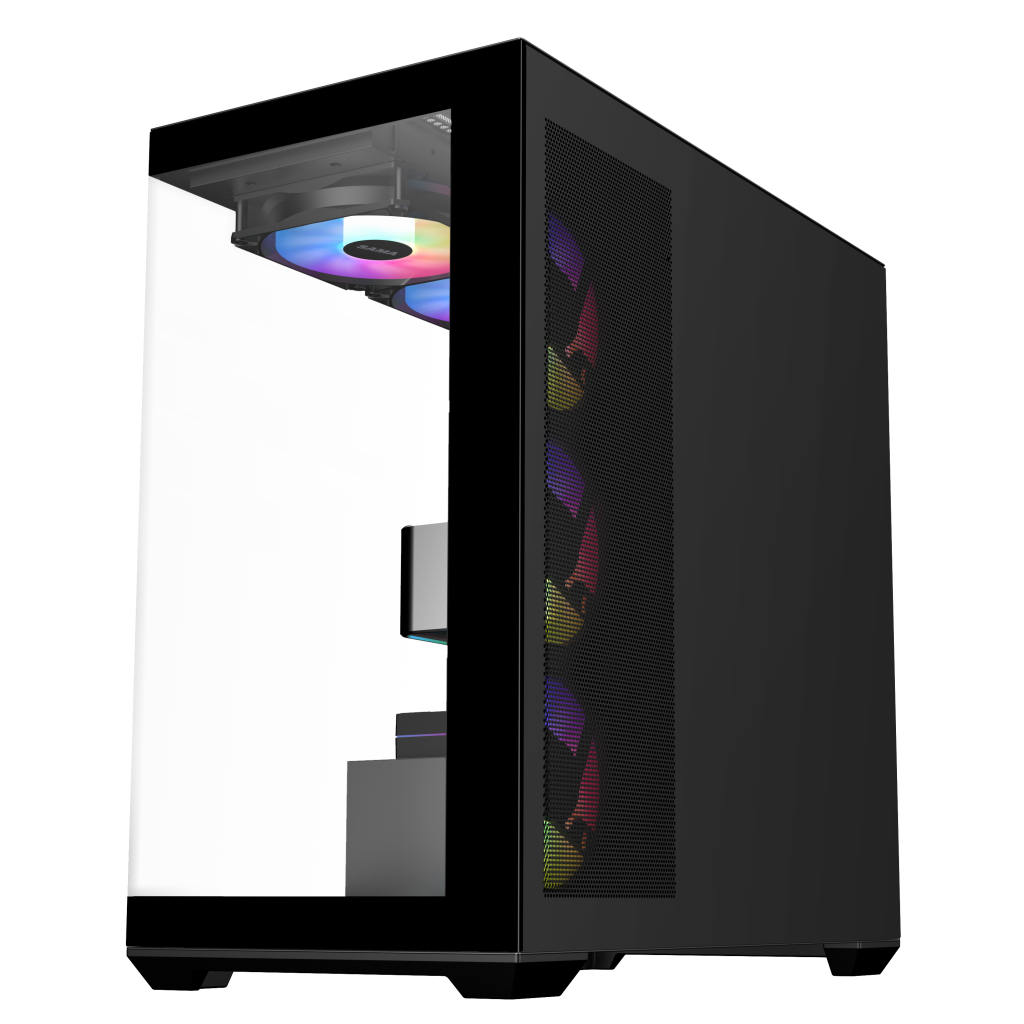

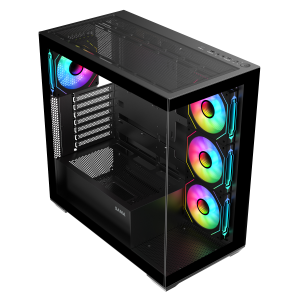

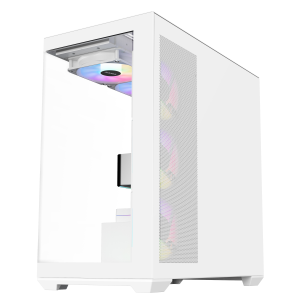

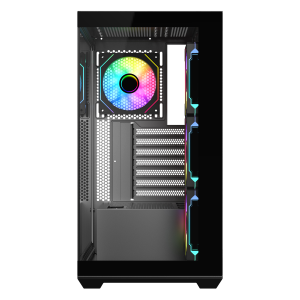

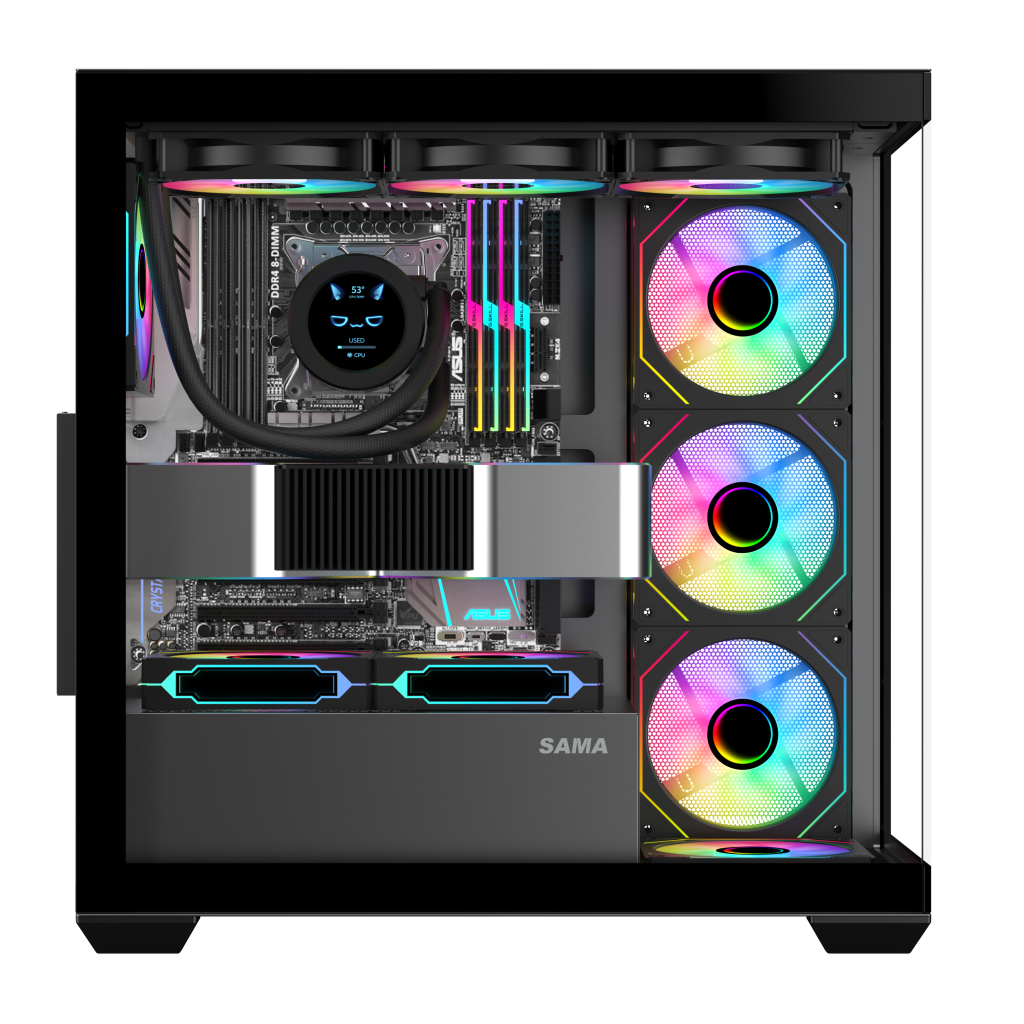

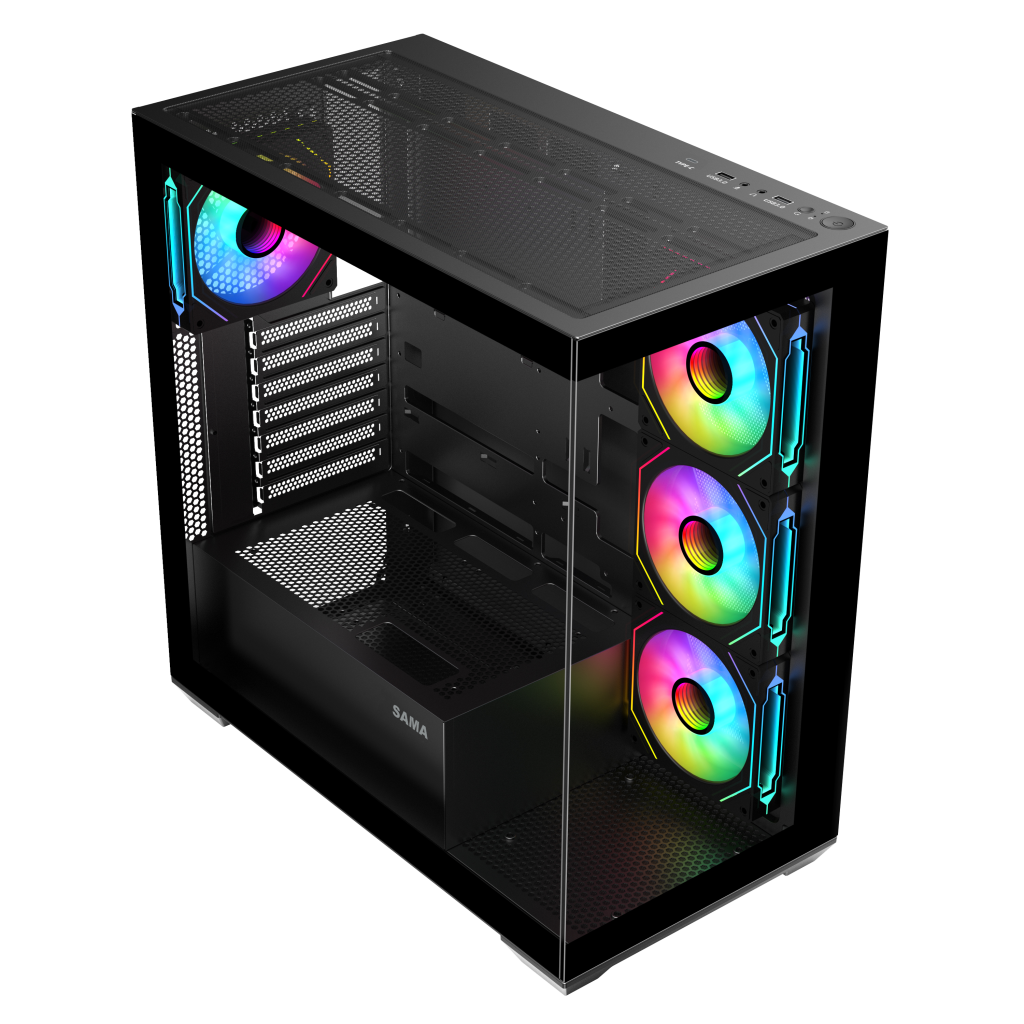

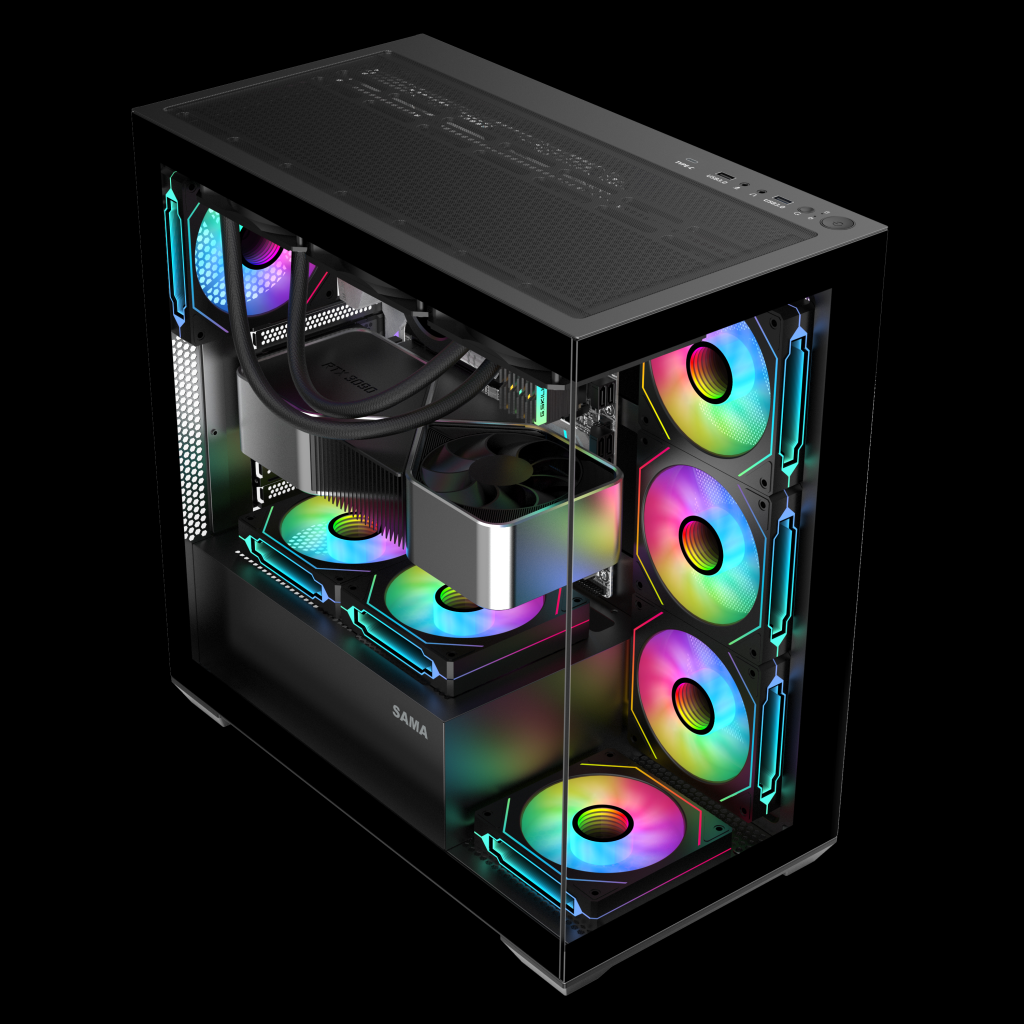

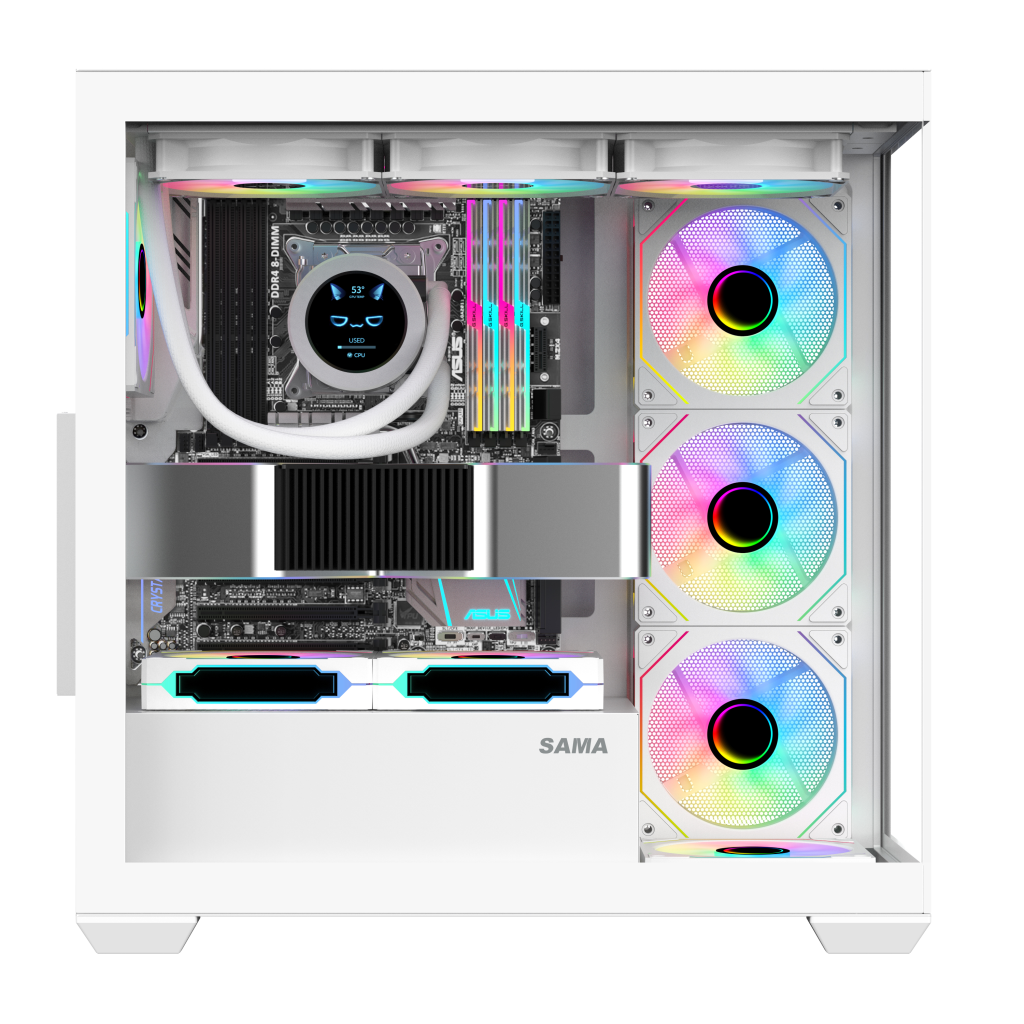

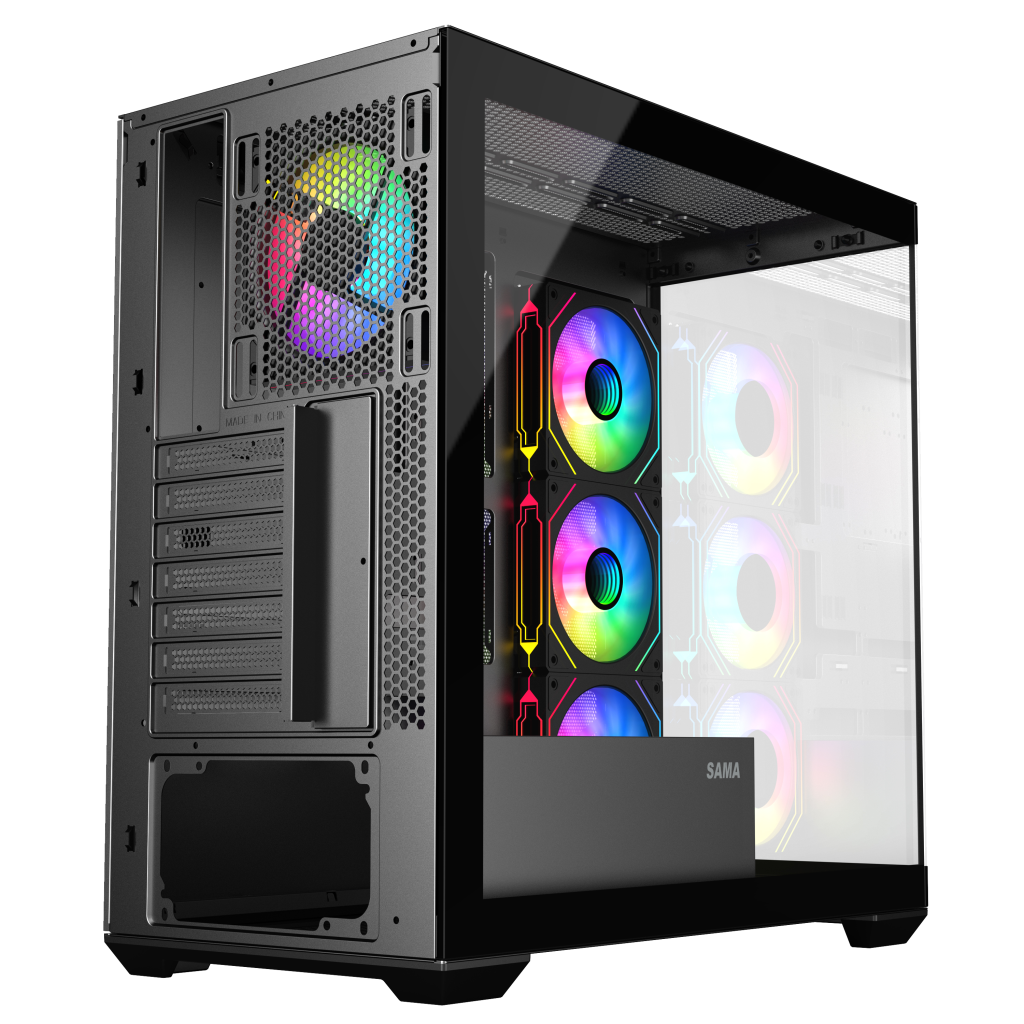

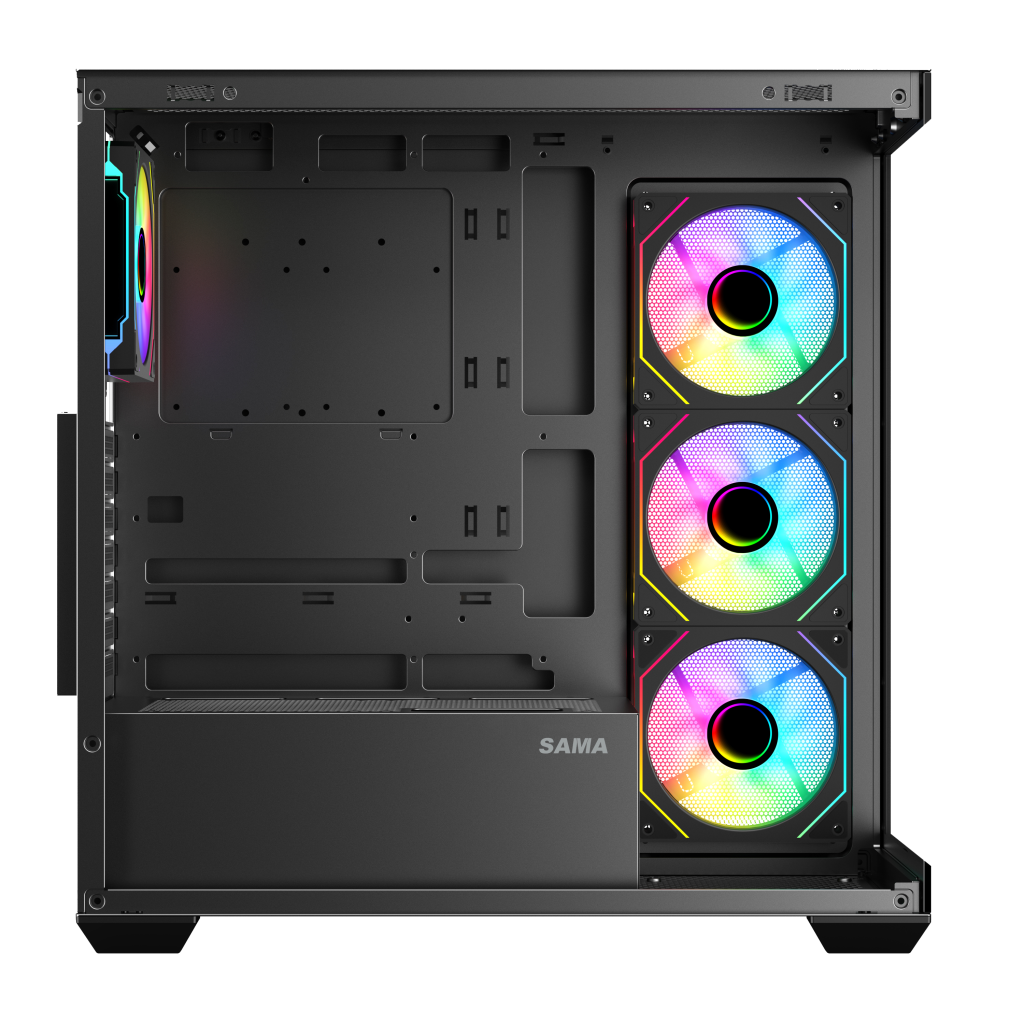

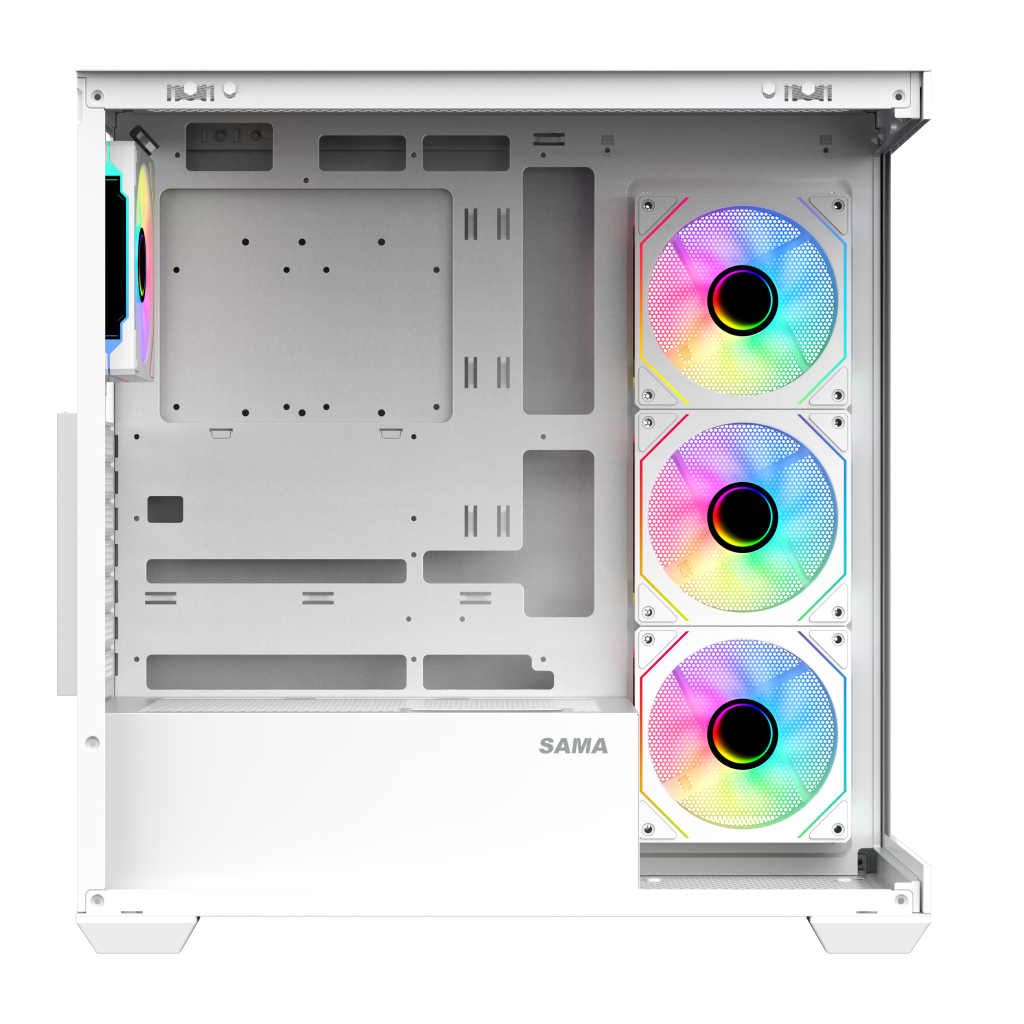

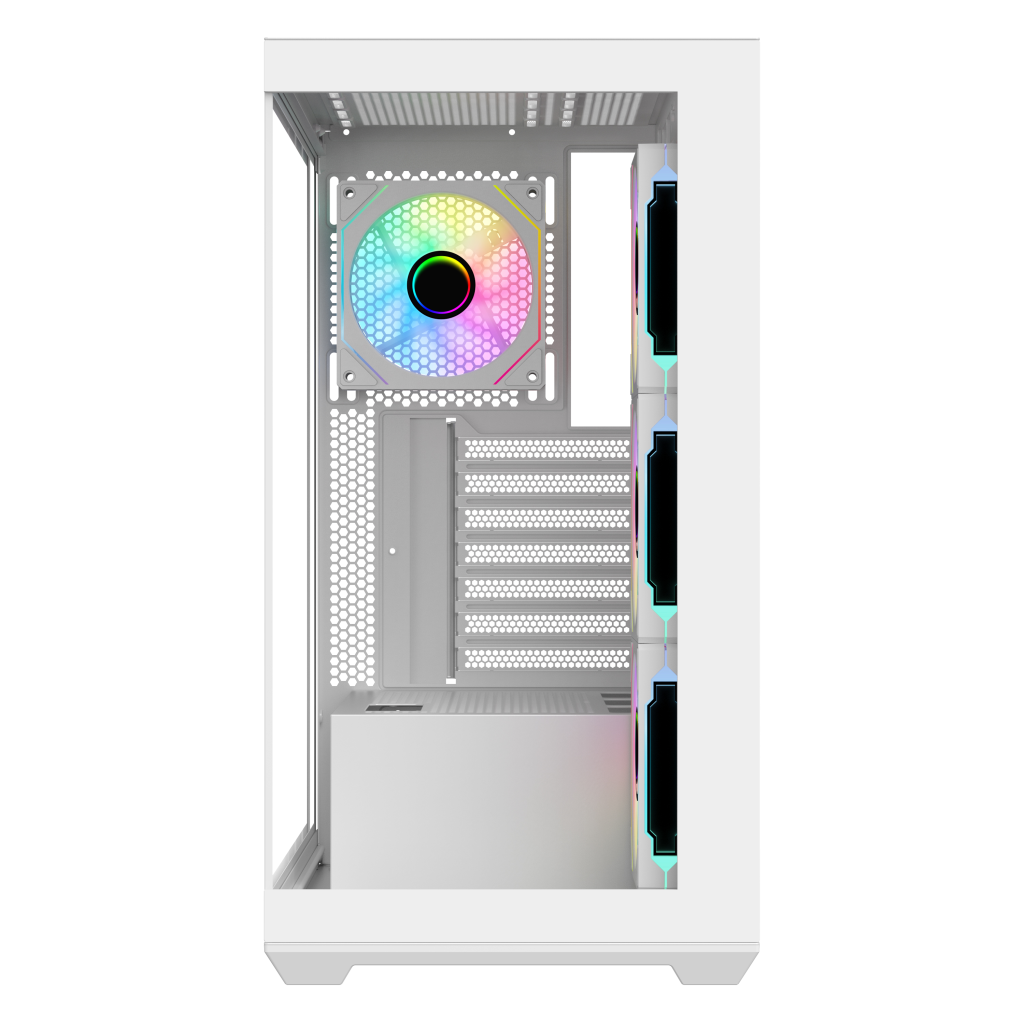

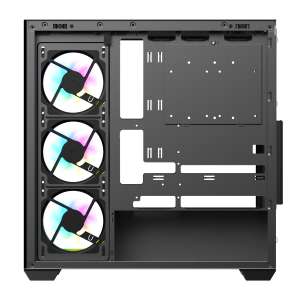

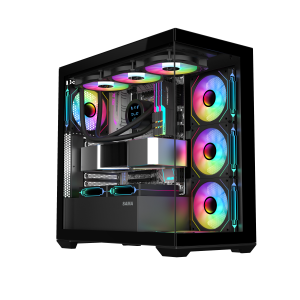

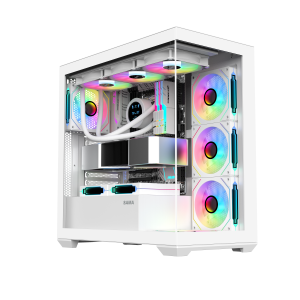

The SAMA SV01 is a stylish panoramic mid-tower case designed for PC enthusiasts who value both aesthetics and performance. Featuring dual tempered glass panels, it offers a stunning full-view showcase for high-end hardware. With support for ATX motherboards, 360mm liquid cooling, and large graphics cards, the SV01 delivers excellent hardware compatibility alongside efficient airflow. Pre-installed ARGB fans and a clean interior layout make it an ideal choice for users seeking a premium-looking build.

color

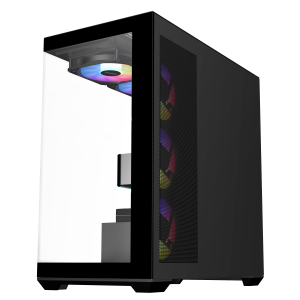

#000000 | 1

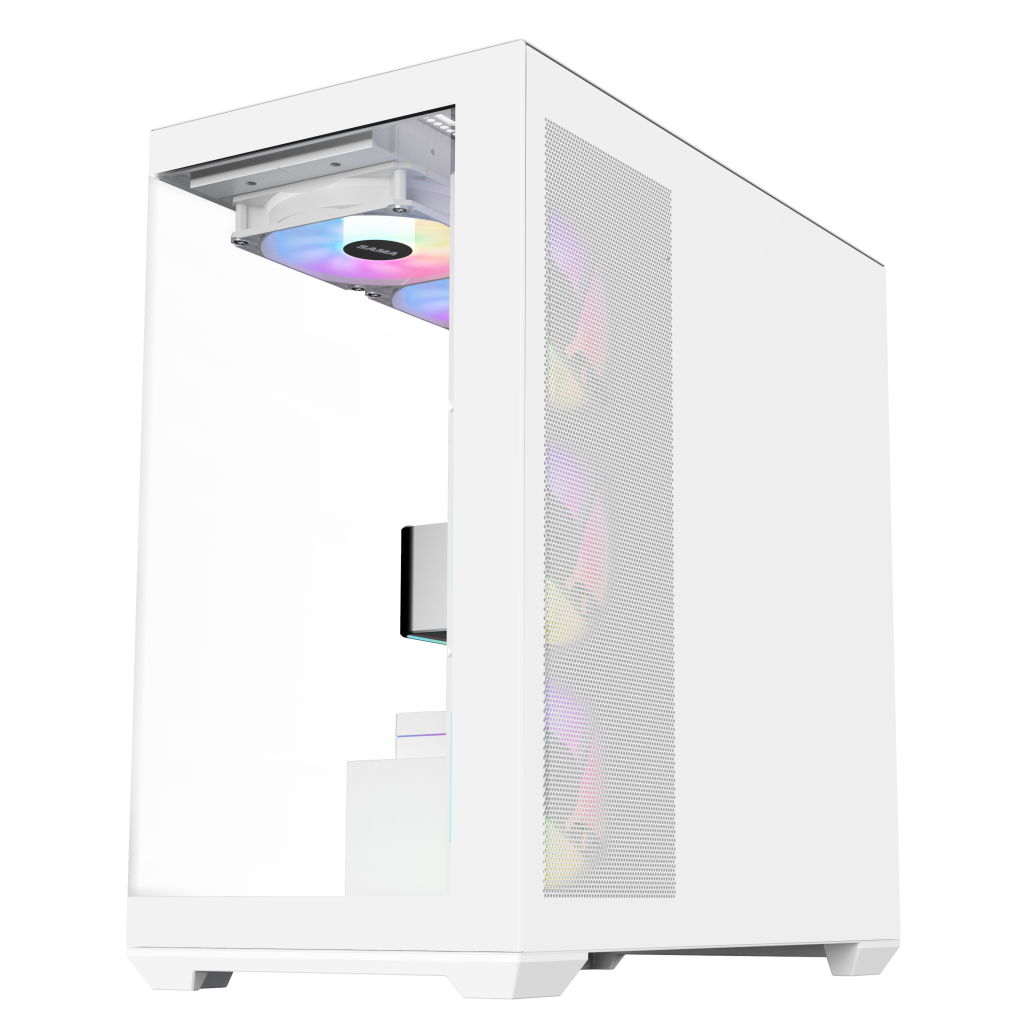

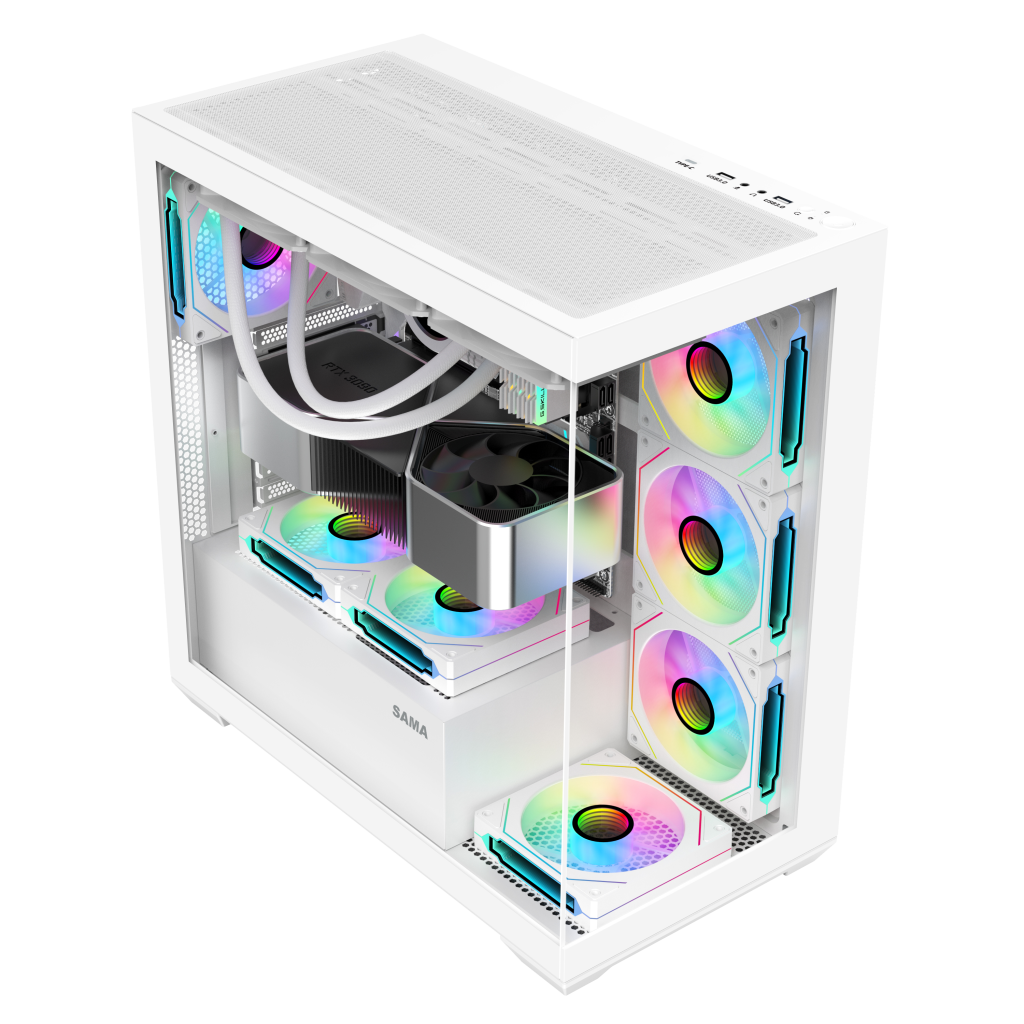

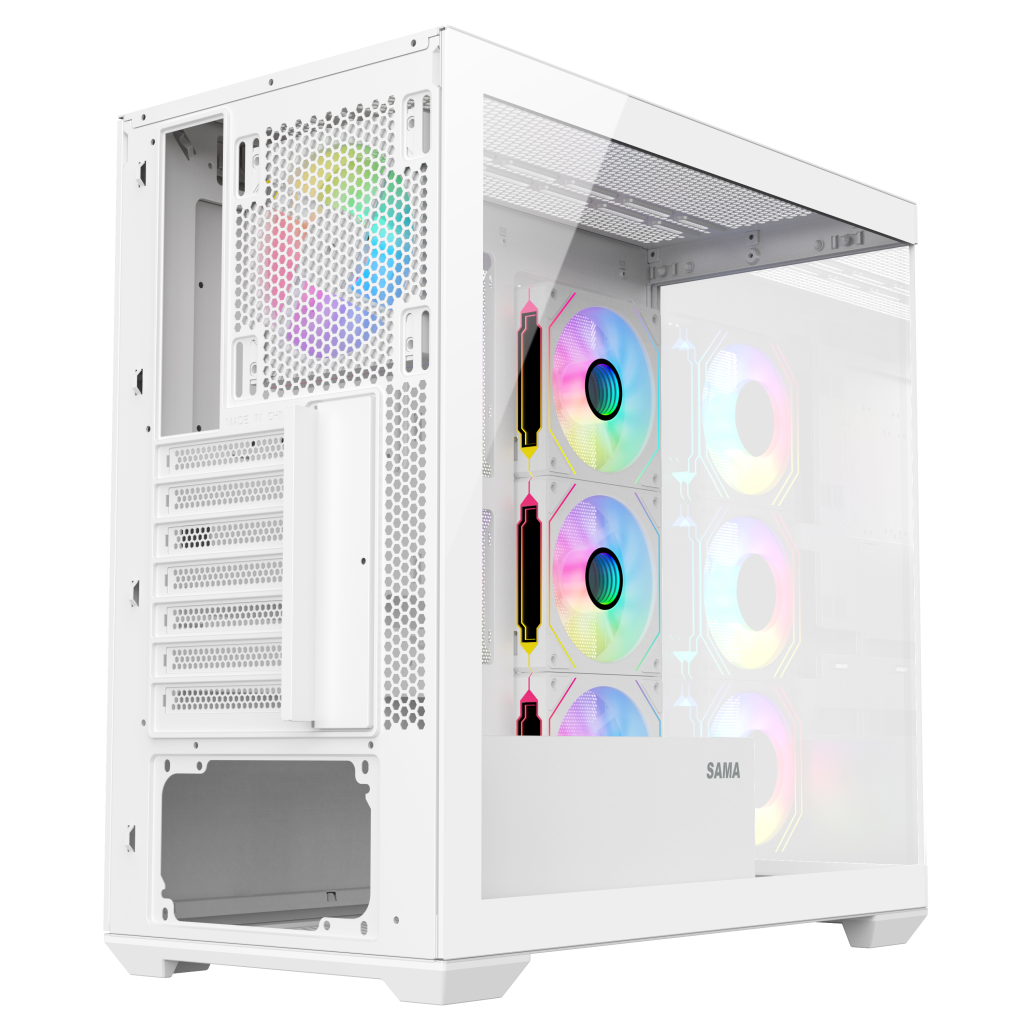

#ffffff | 2

view specifications

Specifications

EAN		6930788404926/6930788404940
P/N		SV01-BKAD4AX1-US/ SV01-WHAD4AX1-US
Dimensions		453235450mm (L×W×H)
Materials		SPCC + 4mm Tempered Glass
Motherboard Support		ATX / M-ATX / ITX (back-connected ATX & M-ATX)
Expansion Slots		7
Max CPU Cooler Height		181mm
Max GPU Length		410mm
Power Supply Type		ATX, 210mm
Fan Support	Front	N/A
	Top	3×120mm / 2×140mm
	Rear	1×120mm / 1×140mm
	Bottom	2×120mm（ PSU shroud）+120mm×1
	Side	3×120mm
Radiator Support	Front	N/A
	Top	240mm / 360mm
	Rear	120mm
	Bottom	N/A
	Side	240mm
Pre-Installed Fans	Side	3×120mm ARGB PWM fans
	Rear	1×120mm ARGB PWM fan
	Bottom	N/A
Pre-Installed Fans Spec	Speed	/
	Air flow	/
	Noise	/
	Air Pressure	/
I/O Ports		USB 3.1 Type-C x 1, USB 3.0 x 2, Audio x 1，Mic×1, Reset Button, Power Button
3.5" Drive Bays		2
2.5" Drive Bays		0pcs +2pcs combined with 3.5in mounts
Net Weight		6.6kg
Gross Weight		/
