S50

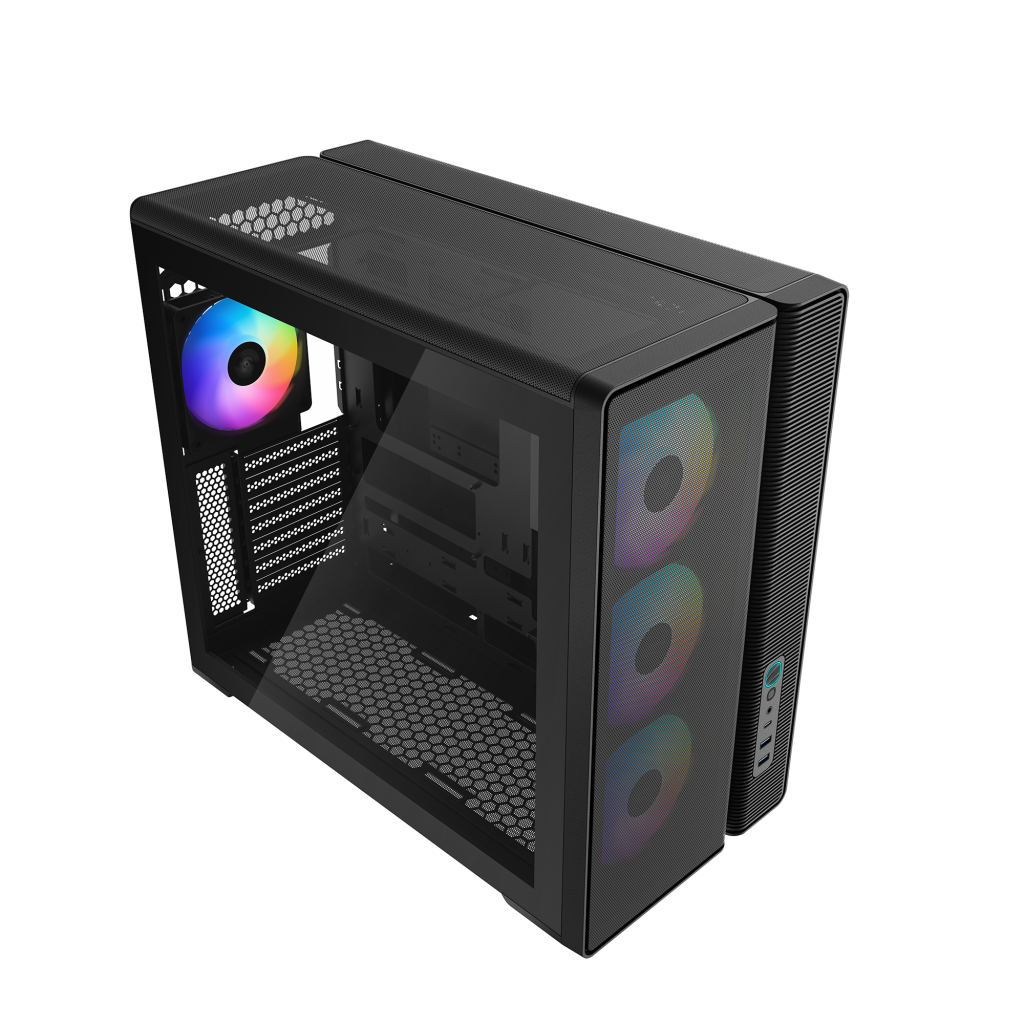

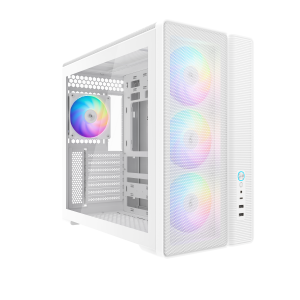

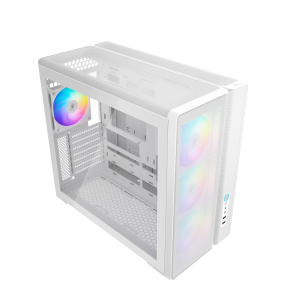

The SAMA S50 is a dual-chamber PC case that combines sleek aesthetics with excellent cooling. It features a panoramic tempered glass panel, high-density mesh on the front and top for strong airflow, and comes with 4 pre-installed ARGB PWM fans. With support for 360mm radiators and high-end GPUs, it’s built for powerful, premium systems.

color

#000000 | 1
#ffffff | 2

view specifications

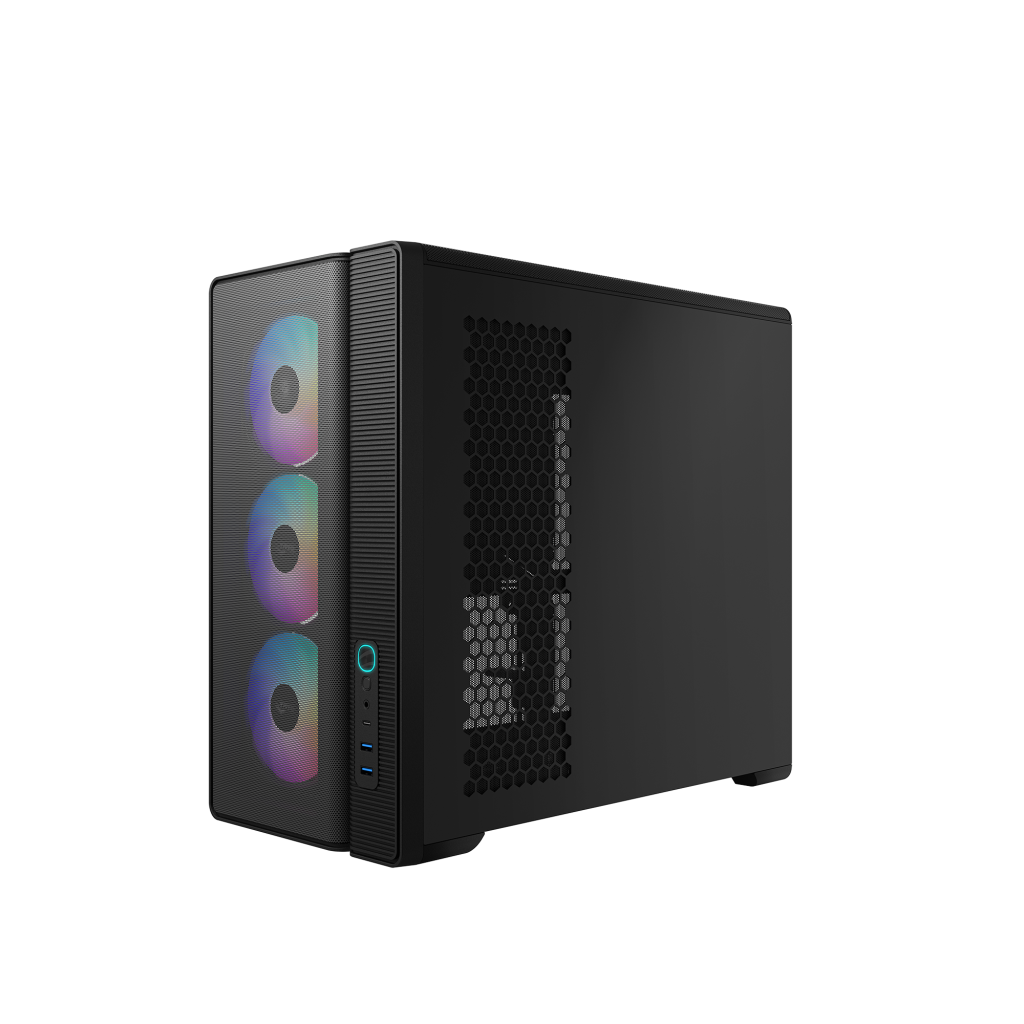

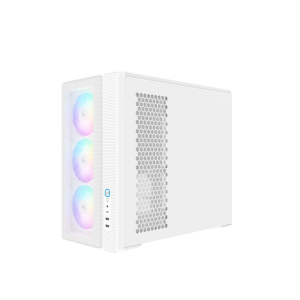

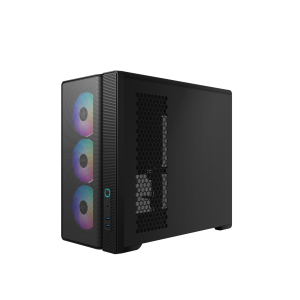

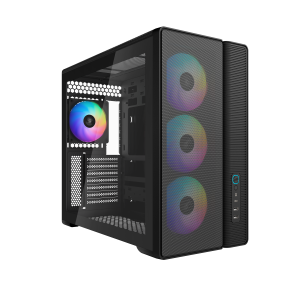

S50 ATX MID-TOWER Elite Cooling Panoramic Mesh Case

475MM 235MM 426MM

A+ Rated by PPLP.INFO

Mode	△TCPU(K) (350W)	△TCPU(K) (400W)	Noise(dBA)	Evaluation
Optimal Performance Mode	34.4	46.2	46.0	84.3
Same noise mode	39.6	47.8	36.0	73.1
Default Mode	38.4	49.4	46.9	73.3
Quantitative indicators Sl	85.8

BALANCED AIRFLOW DESIGN Featuring an optimized airflow design,cool air is drawn in from the front and bottom,directed over critical hardware,and rapidly exhausted through the top and rear.

OPTIMIZED PSU POSITIONING Strategically situated in the upper rear chamber, the vertically-mounted PSU leverages a side-to-side airflow path to isolate heat and maximize overall system stability.

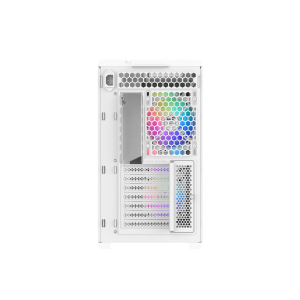

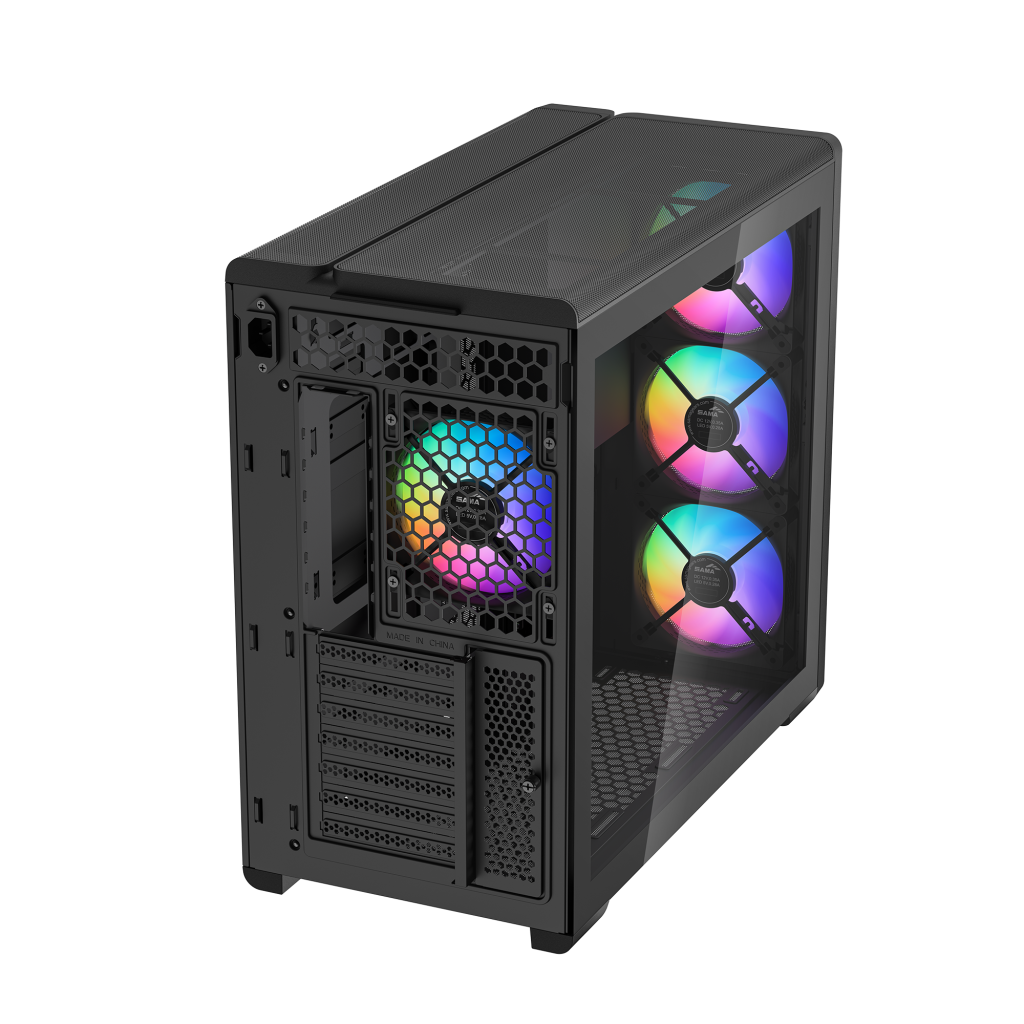

Rear 1×120mm PWM ARGB Fan

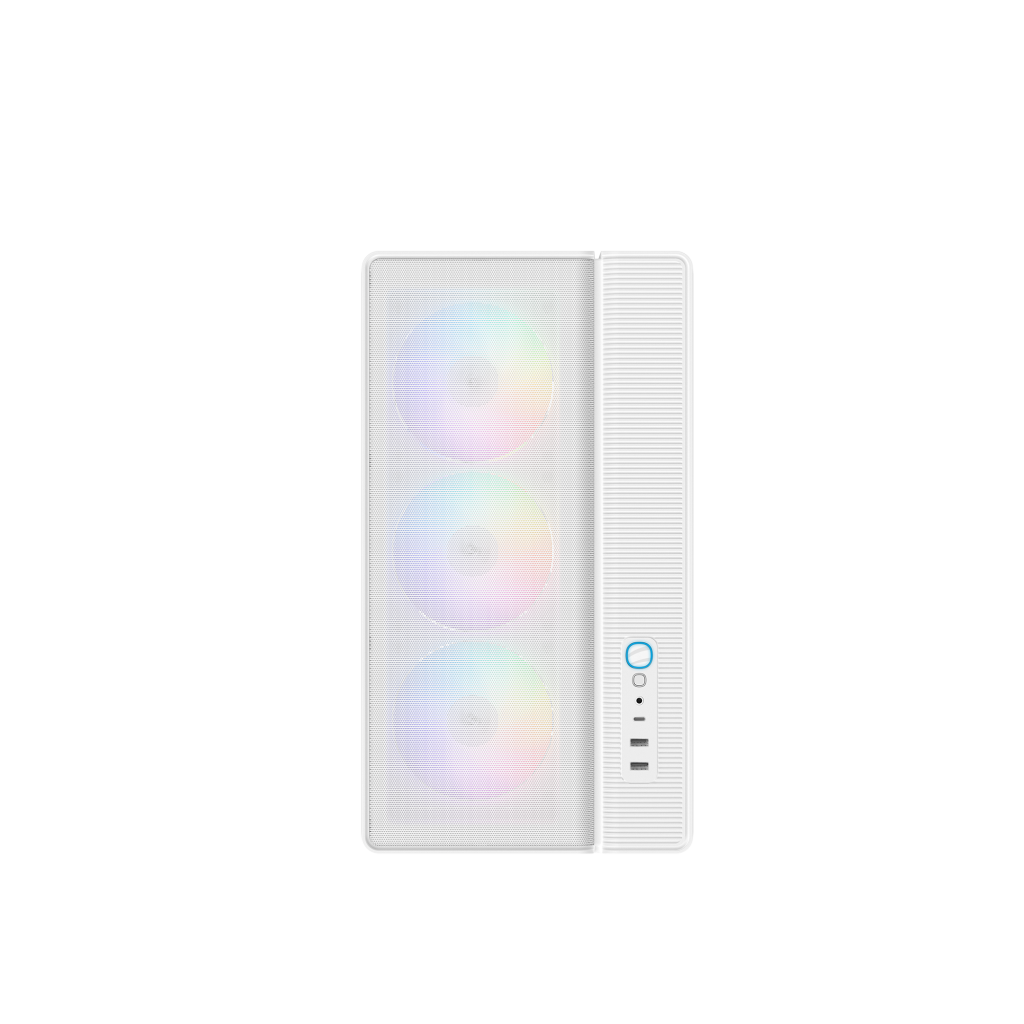

Front 3×120mm PWM ARGB Fans

4 PRE-INSTALLED PWM ARGB FANS For reference only, subject to actual product.

BUILT-IN HUB The built-in hub keeps fan and ARGB wiring in one place, and lighting can be controlled from the case LED button or synced to your motherboard.

DIY YOUR FAVOURITE COLOR Supports motherboard ARGB sync for unified lighting control via your preferred software.

Air Pressure

1.71mm-H20

Air Flow

66.2CFM

Speed

700-1500±10% RPM

Noise

28.5dB-A

HIGH-SPEED I/O PANEL

1 × USB3.2 Gen2x2 Type-C
2 × USB 3.0 Ports

TOOLLESS ACCESS A tool-free, quick-release panel structure provides instant access to the main chamber and rear cable management area.

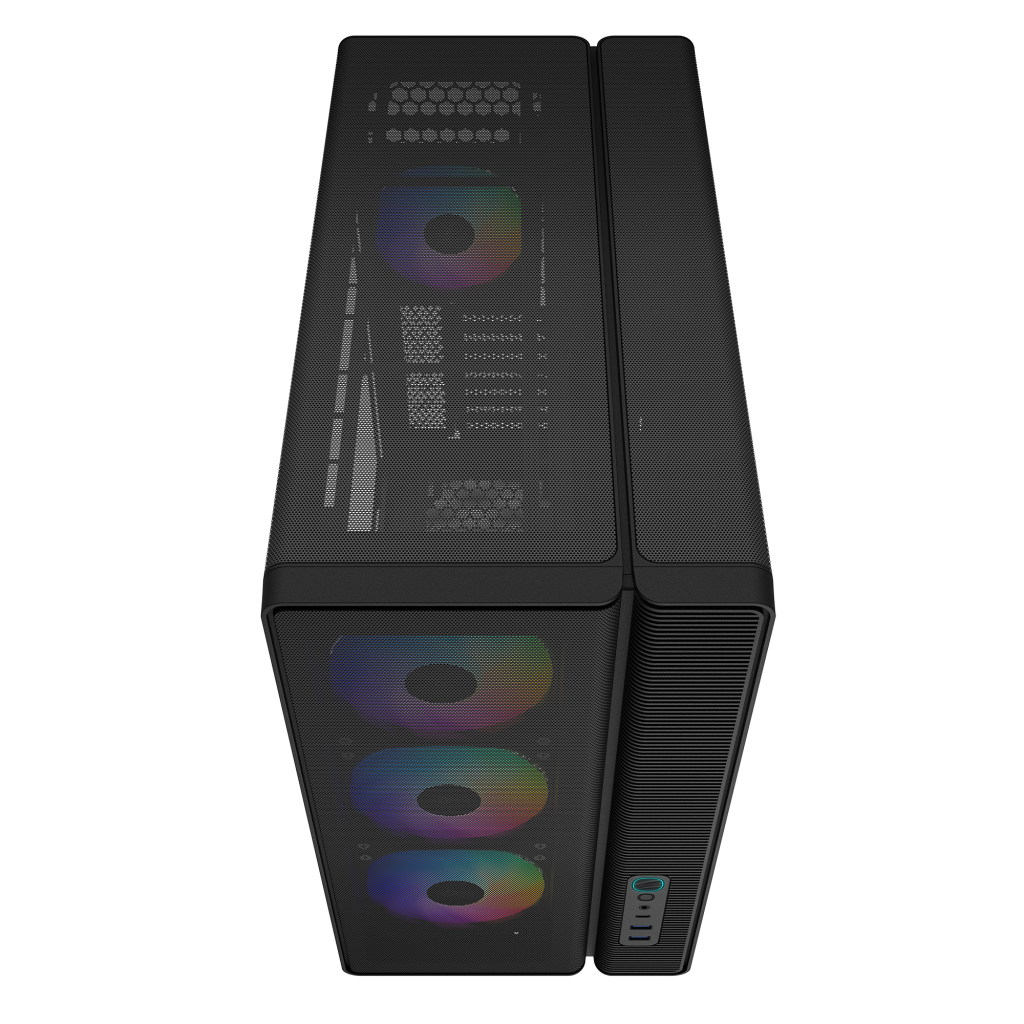

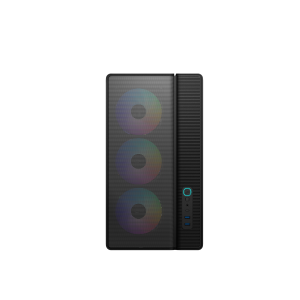

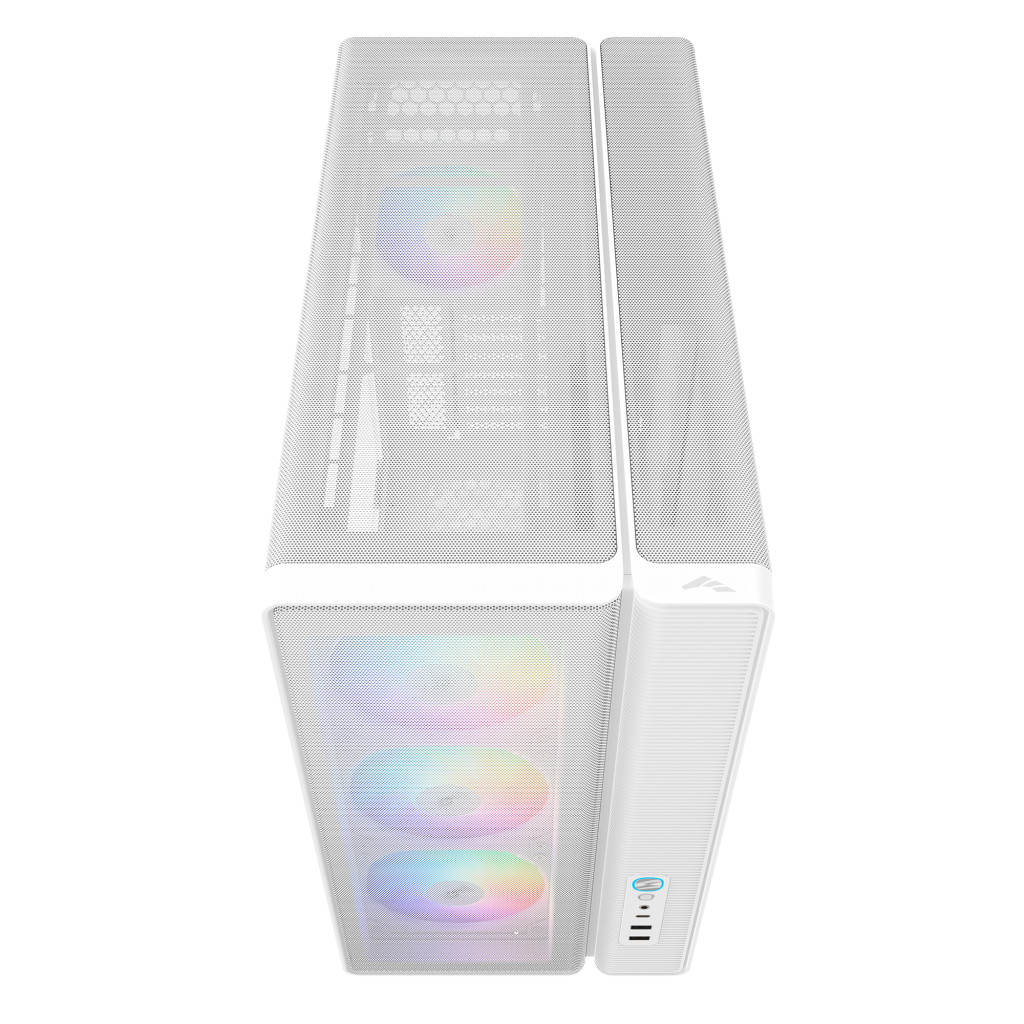

HIGH-FLOW FRONT PANEL Full-surface mesh design for maximized intake, delivering tremendous cooling performance.

Paired with 1.2mm high-density mesh for maximum airflow.

Snaps off easily for rapid cleaning and fan maintenance.

GPU COMPATIBILITY Sufficient clearance for GPUs up to 410mm cards.

AIR COOLING COMPATIBILITY 165mm clearance to support most dual-tower air coolers.

INNOVATIVE PSU COMPARTMENT Features a front-mounted PSU compartment and includes a PSU extension cable for easy installation, significantly reducing cable clutter.

VERSATILE HARDWARE COMPATIBILITY Motherboard: ATX, M-ATX, ITX, Back-connect ATX, M-ATX

STORAGE SUPPORT The drive bracket supports up to 4 x SSDs or 3 x HDDs, providing flexible storage configurations.

UP TO 11 FANS Supports up to 11 fans and a top-mounted 360mm radiator.

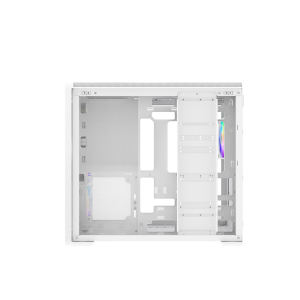

ENGINEERED FOR DISPLAY AND COOLING With high-density mesh panels and a panoramic glass showcase, the S50's dual-chamber structure optimizes airflow for high-count fan setups and ensures a streamlined building experience.

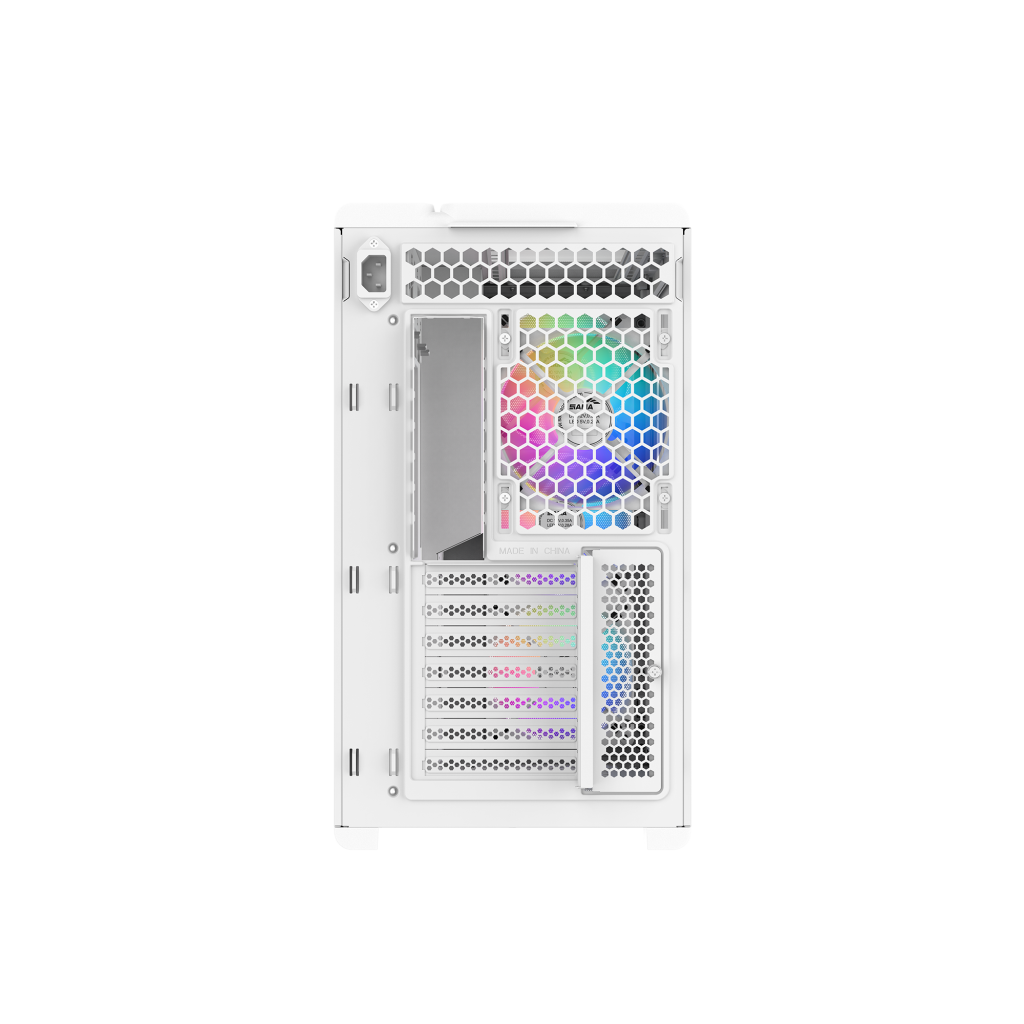

7 PCIE SLOTS Supports larger GPU while offering flexible expandability.

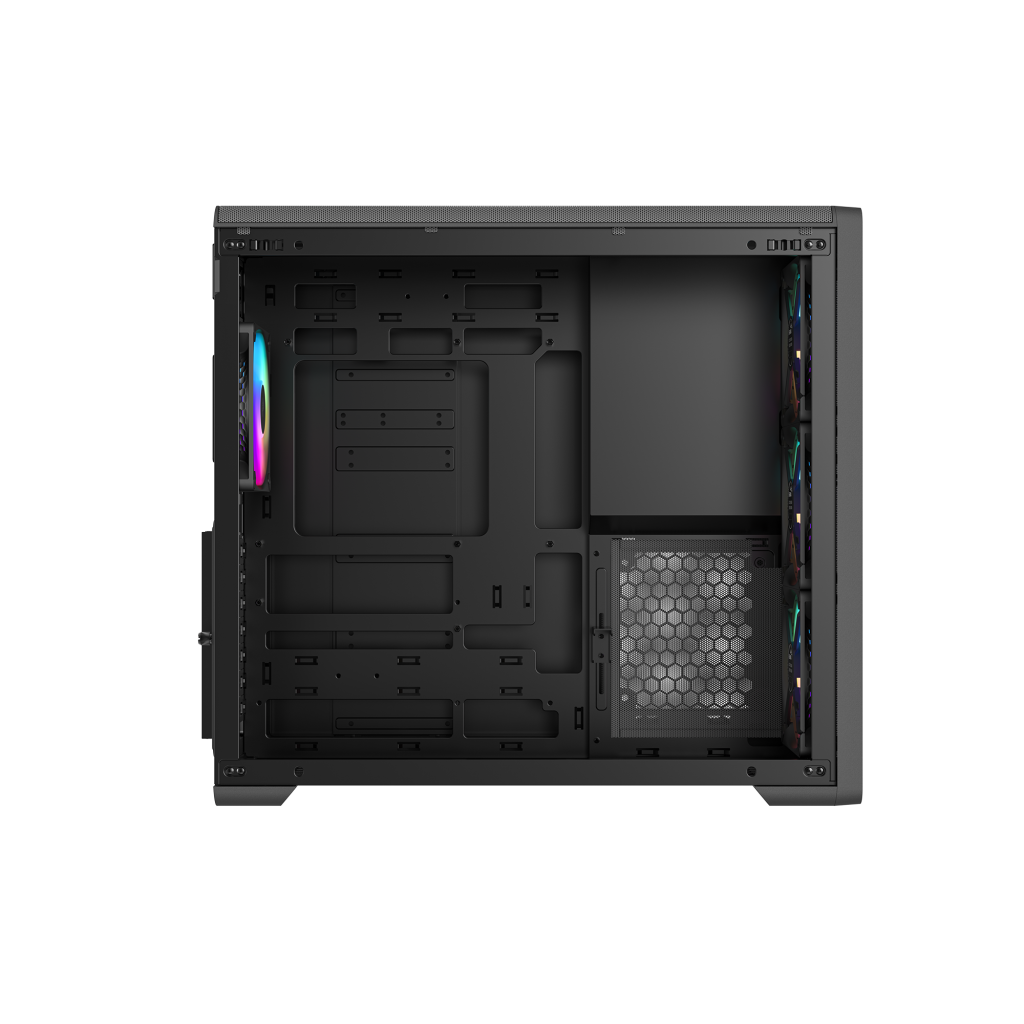

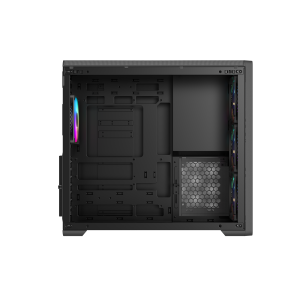

CABLE MANAGEMENT Multiple tie points and clear cable routes make it easy to secure cables and keep the build clean in the 47mm wide second chamber.

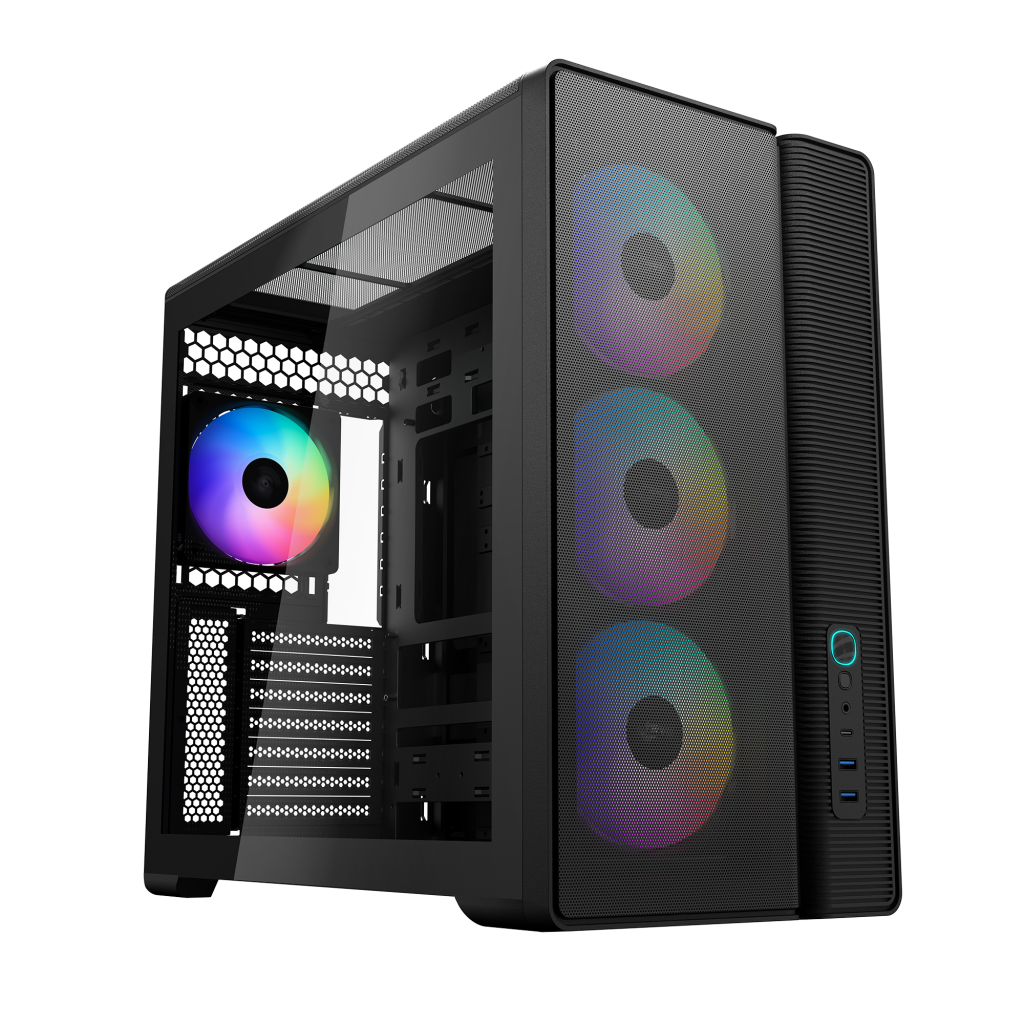

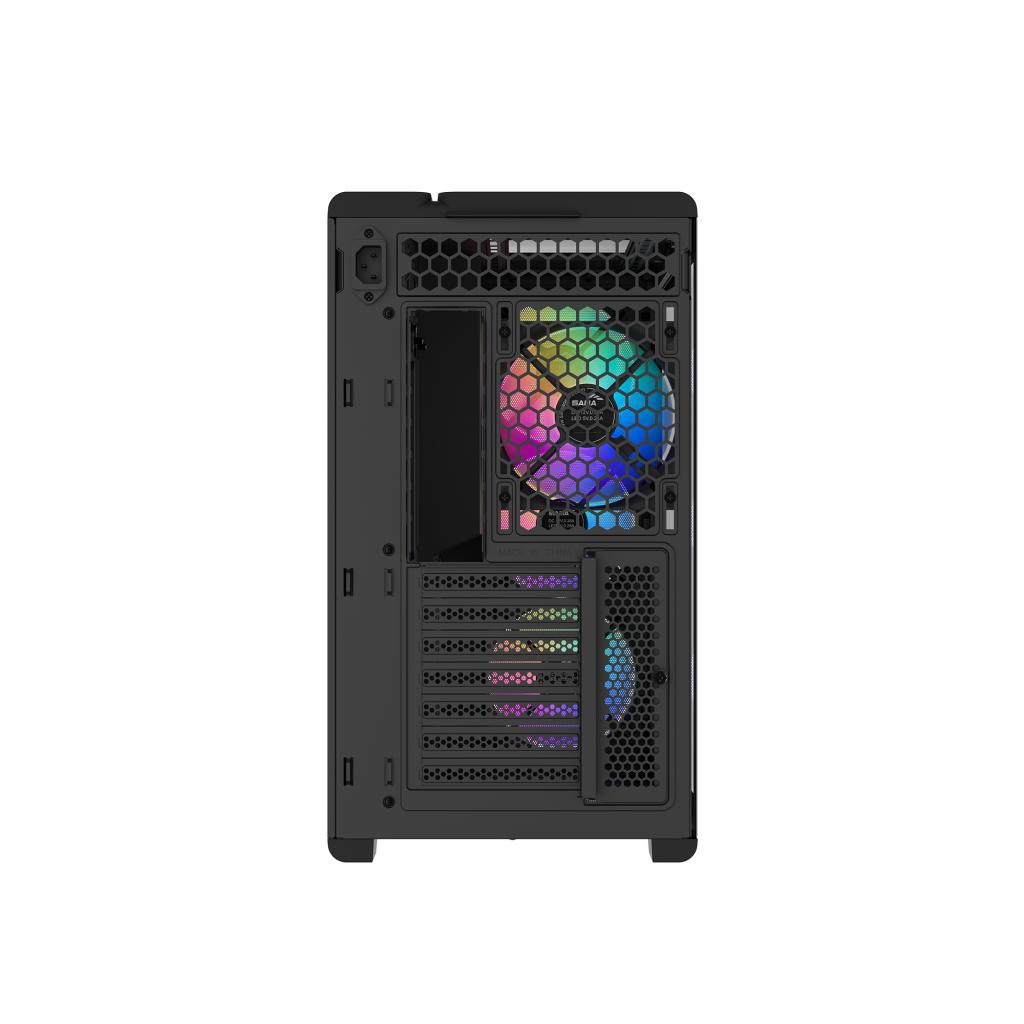

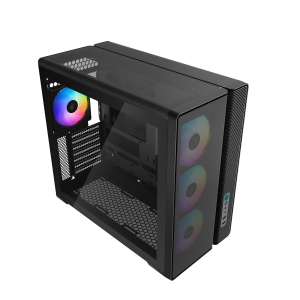

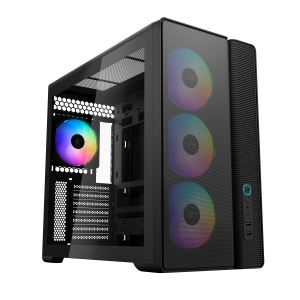

S50 BLACK

Panoramic thermal circulation. Dual-chamber architecture. Where crystalline visual transparency meets elite high-airflow cooling.

Dimensions	475235426mm
CPU Cooler Height	165mm
Graphic Card Length	410mm
120mm Fans	Up to 11
AIO Cooler	Up to 360mm
3.5" HDD Bays	3
2.5" SSD Bays	4

Specifications

EAN		6930788452125/6930788452132
P/N		S50-BKAGA4X1-GL/ S50-WHAGA4X1-GL
Dimensions		475235426mm (L×W×H)
Materials		SPCC+Tempered Glass+ABS
Motherboard Support		ATX/M-ATX/ITX，Back-connect ATX/M-ATX
Expansion Slots		7
Max CPU Cooler Height		165mm
Max GPU Length		410mm
Power Supply Type		ATX, 180mm
Fan Support	Front	3×120mm
	Top	3×120mm
	Rear	1×120mm
	Bottom	3×120mm(Thickness≤28mm）
	Side	1×120mm
Radiator Support	Front	N/A
	Top	120mm / 240mm / 360mm
	Rear	120mm
	Bottom	N/A
	Side	N/A
Pre-Installed Fans	Front	3×120mm ARGB PWM fans
	Rear	1×120mm ARGB PWM fan
	Top	N/A
Pre-Installed Fans Spec	Speed	700-1500RPH ± 10%
	Air flow	66.2CFM
	Noise	28.5dB
	Air Pressure	1.71mm-H20
I/O Ports		USB3.2 Gen2x2 Type-C×1,USB3.0×2,Audio&Mic×1, LED, Power
3.5" Drive Bays		3
2.5" Drive Bays		4
Net Weight		7.3kg
Gross Weight		8.6kg
