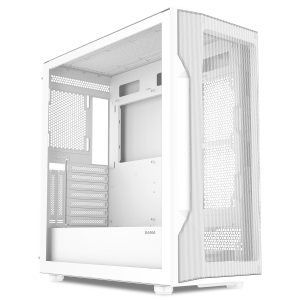

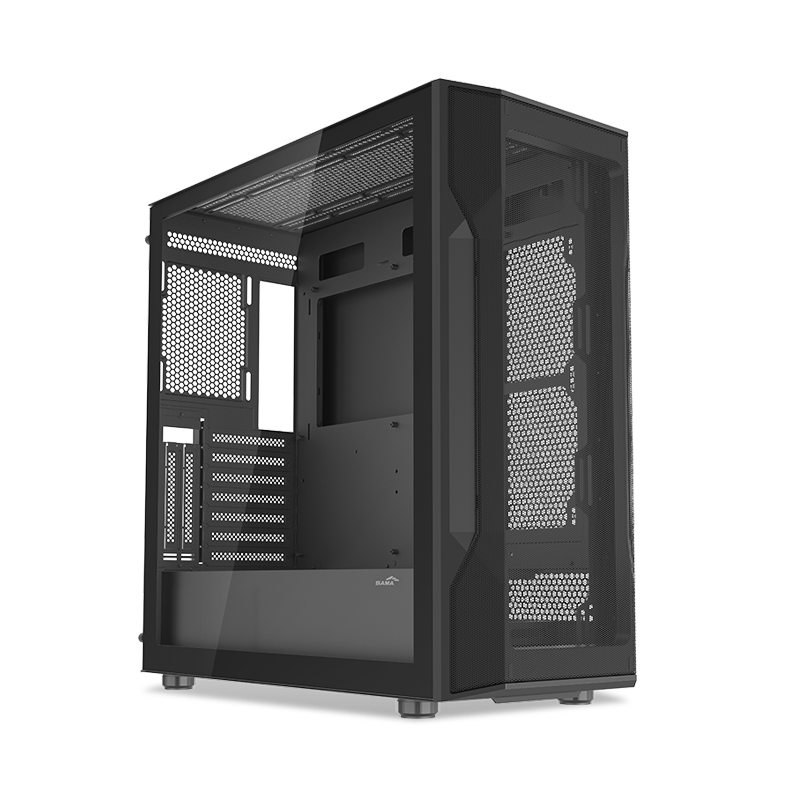

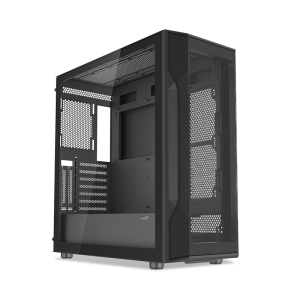

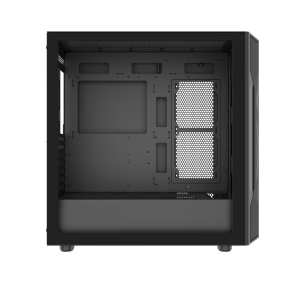

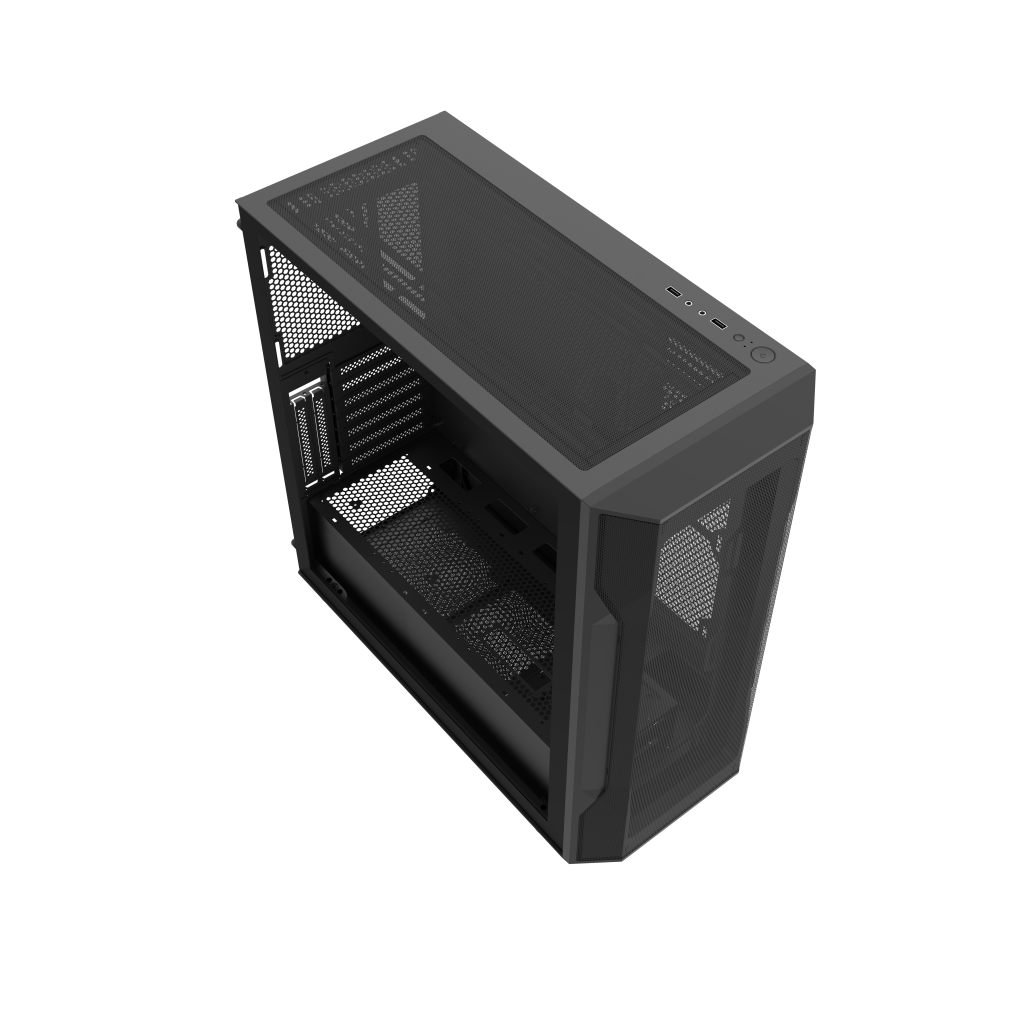

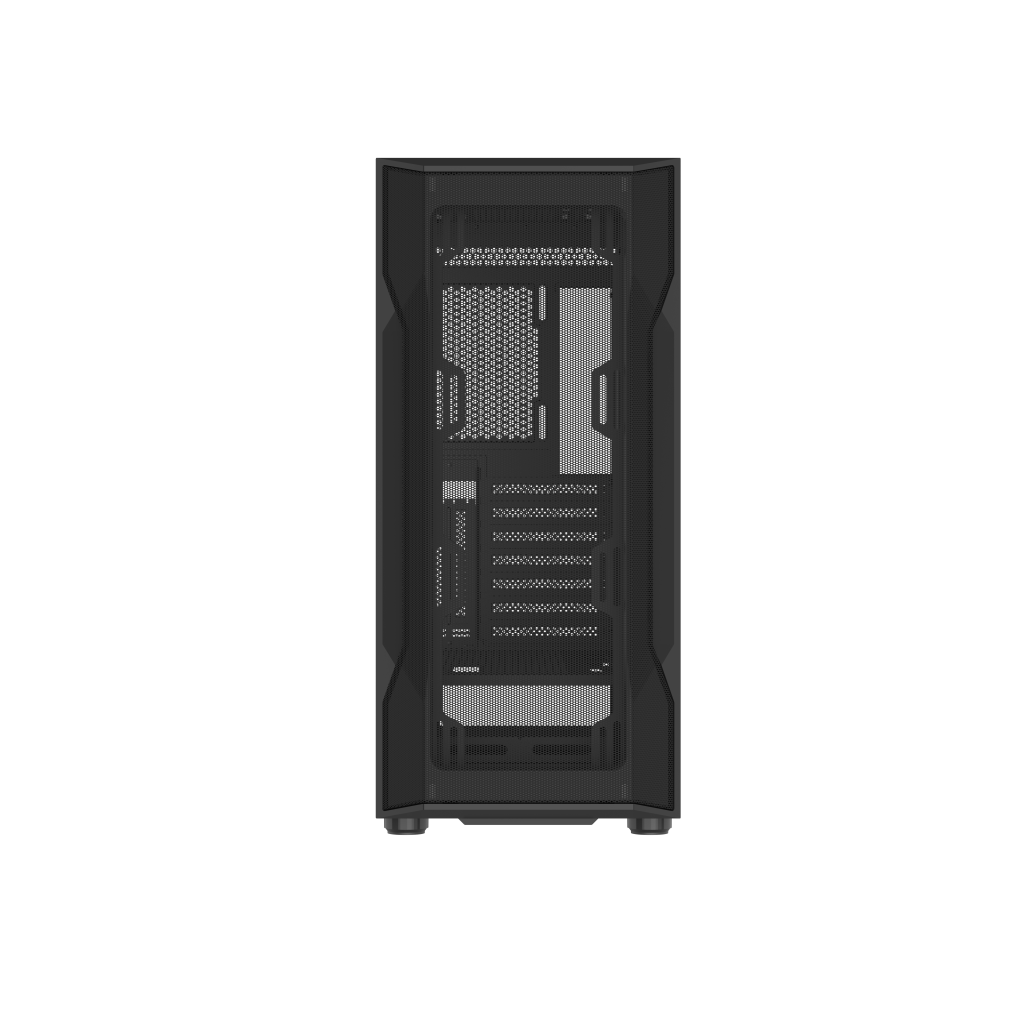

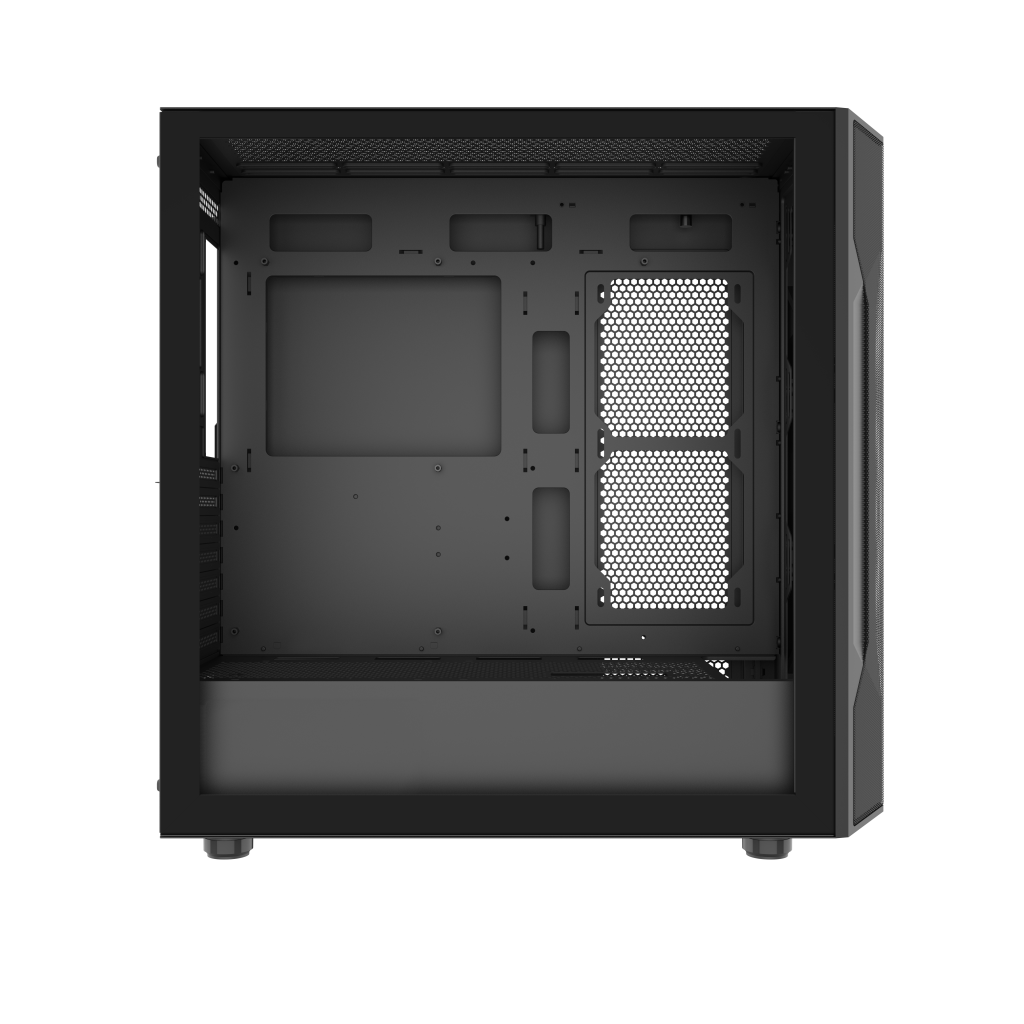

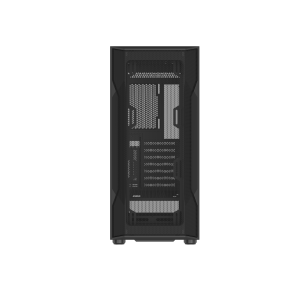

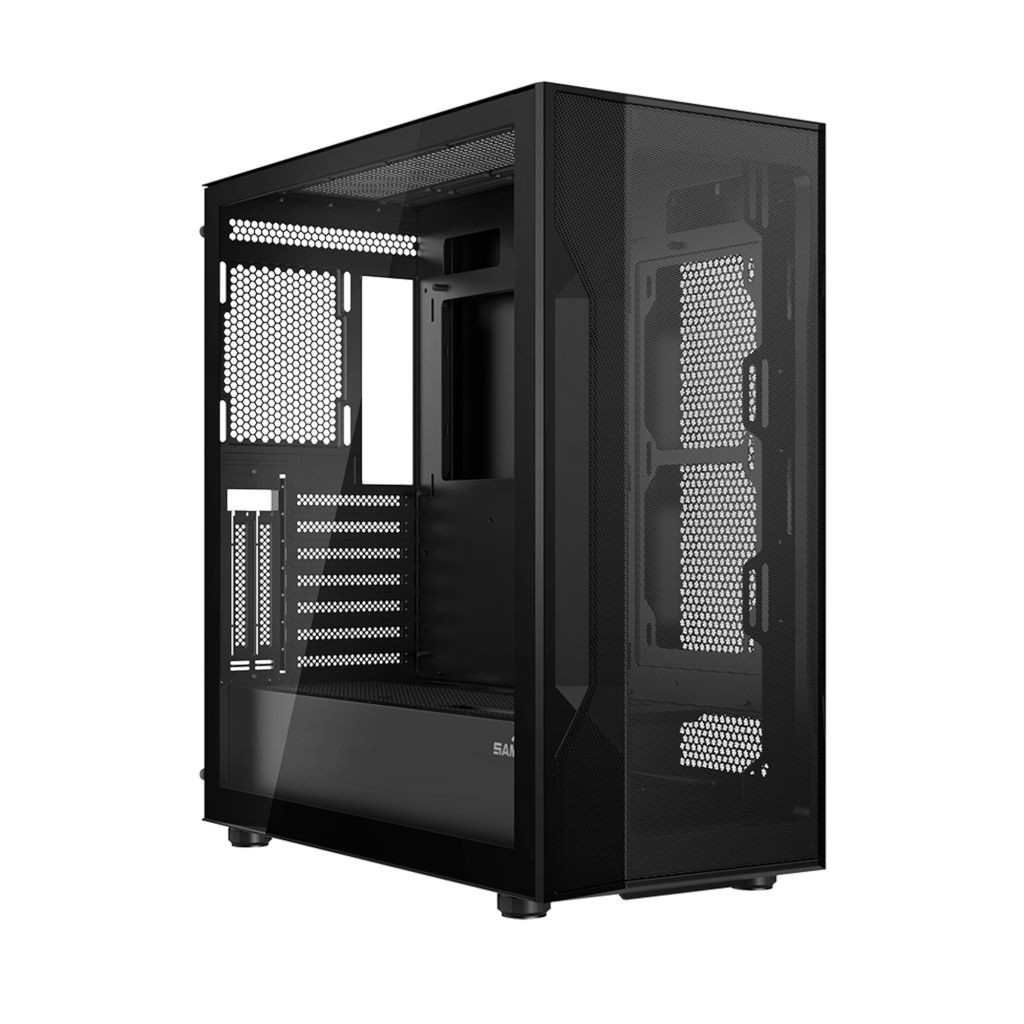

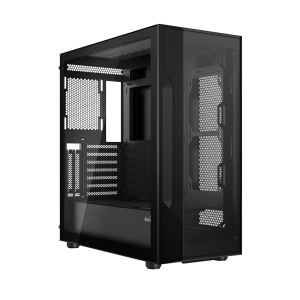

S40E

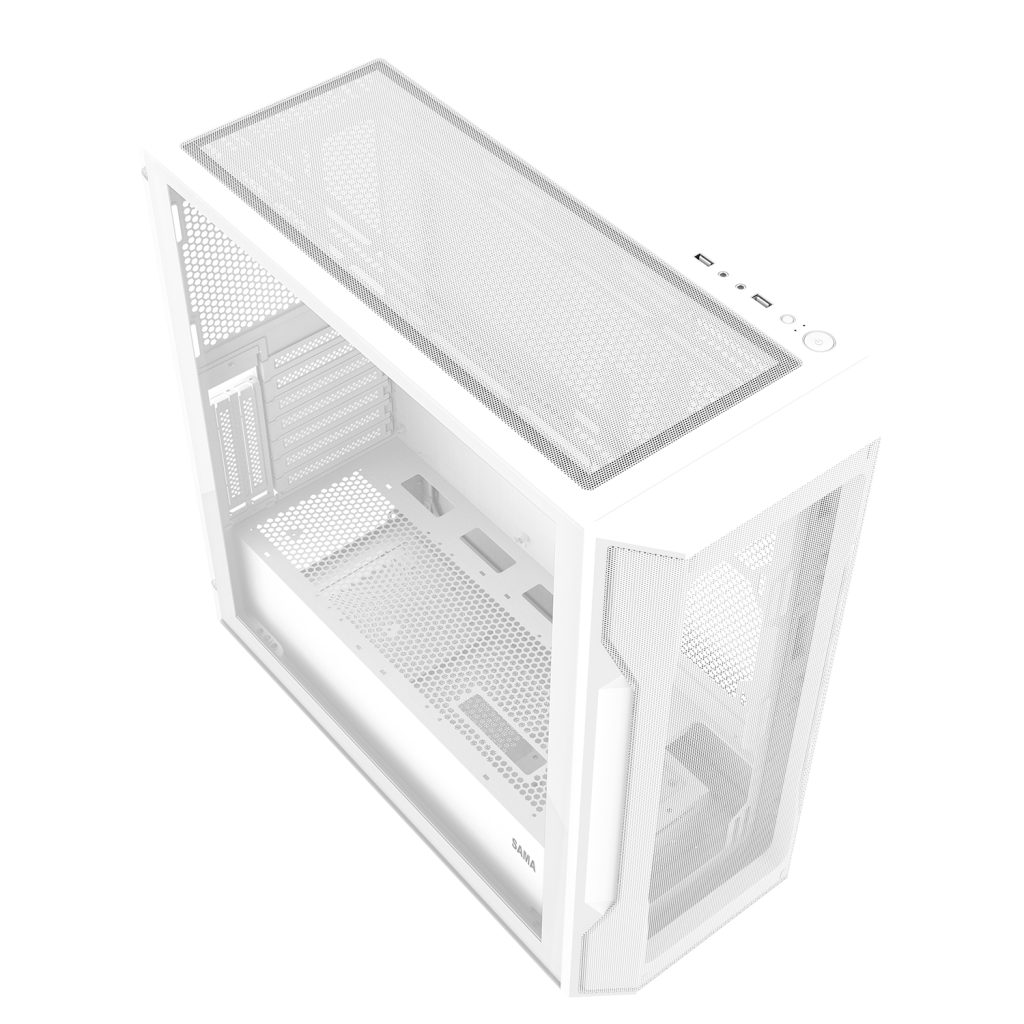

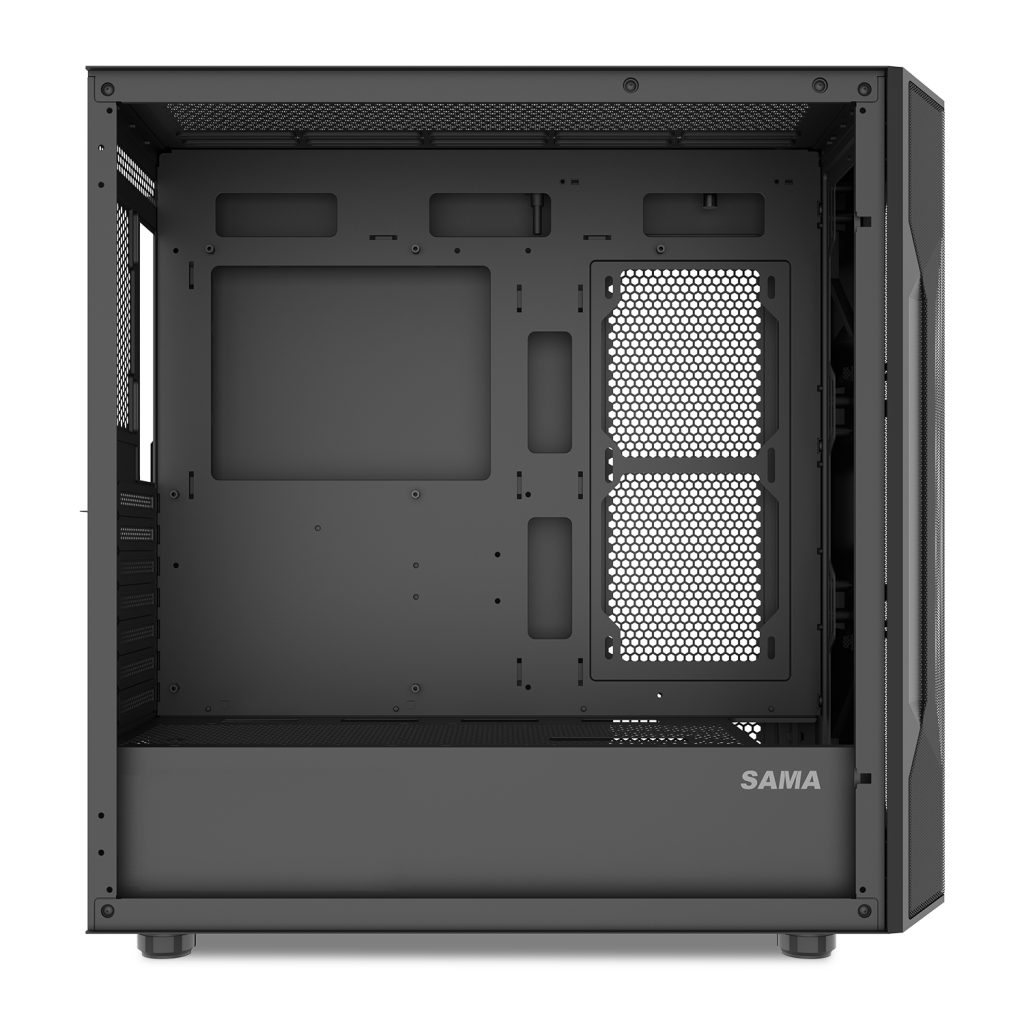

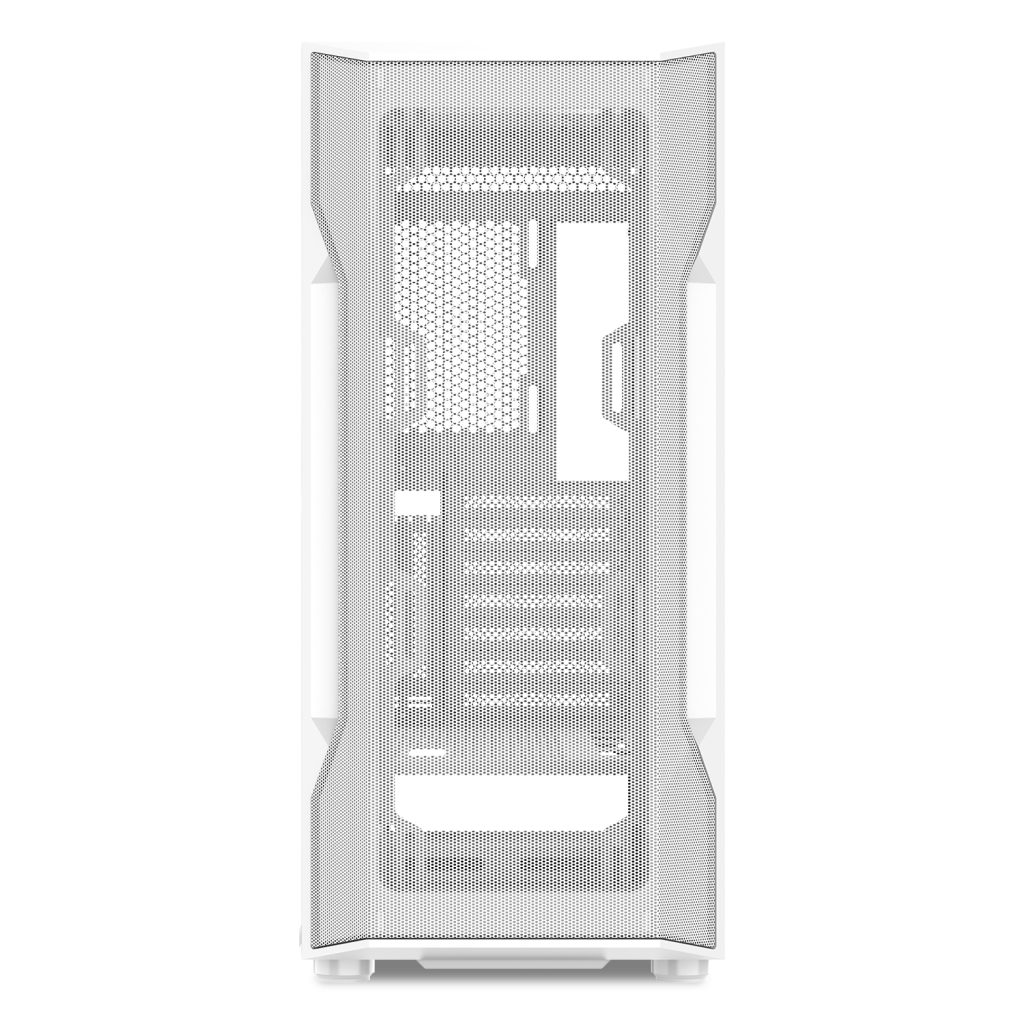

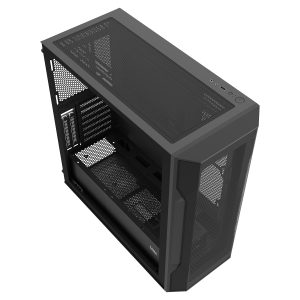

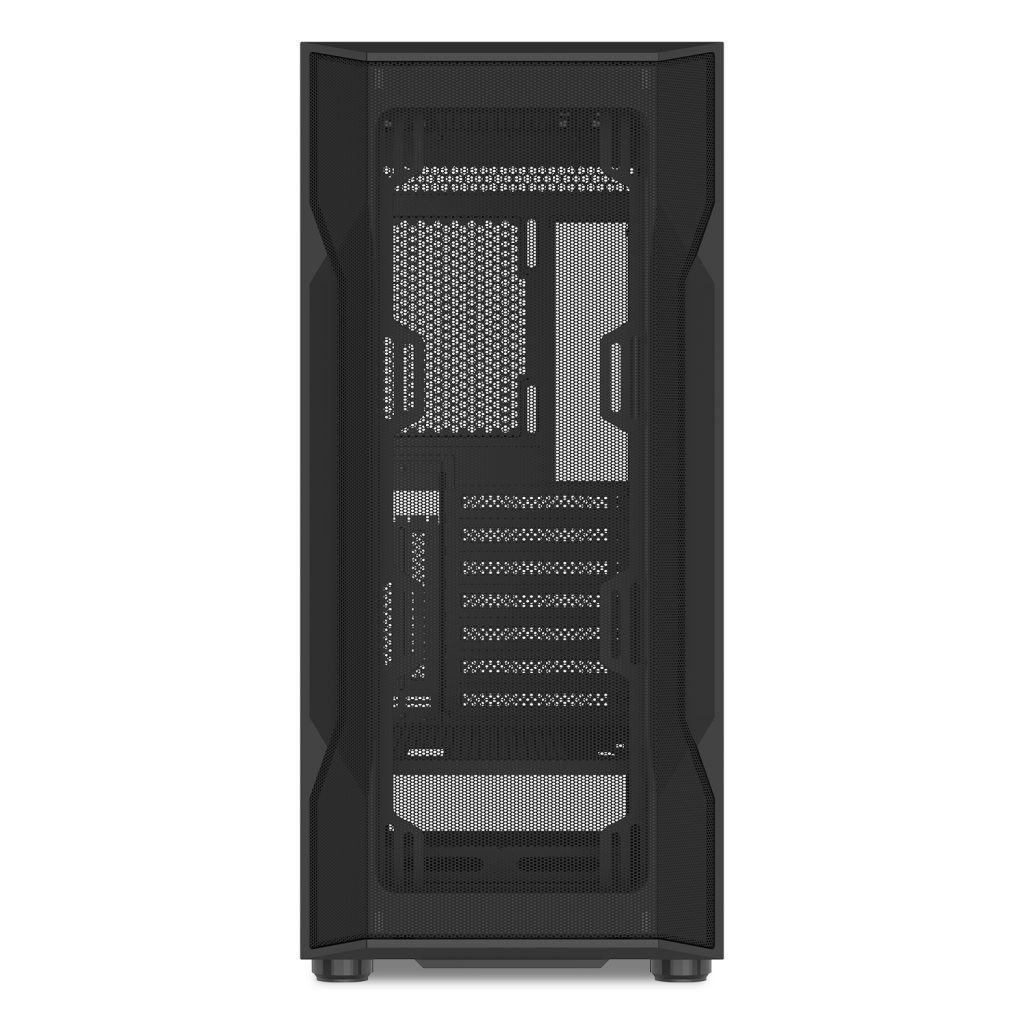

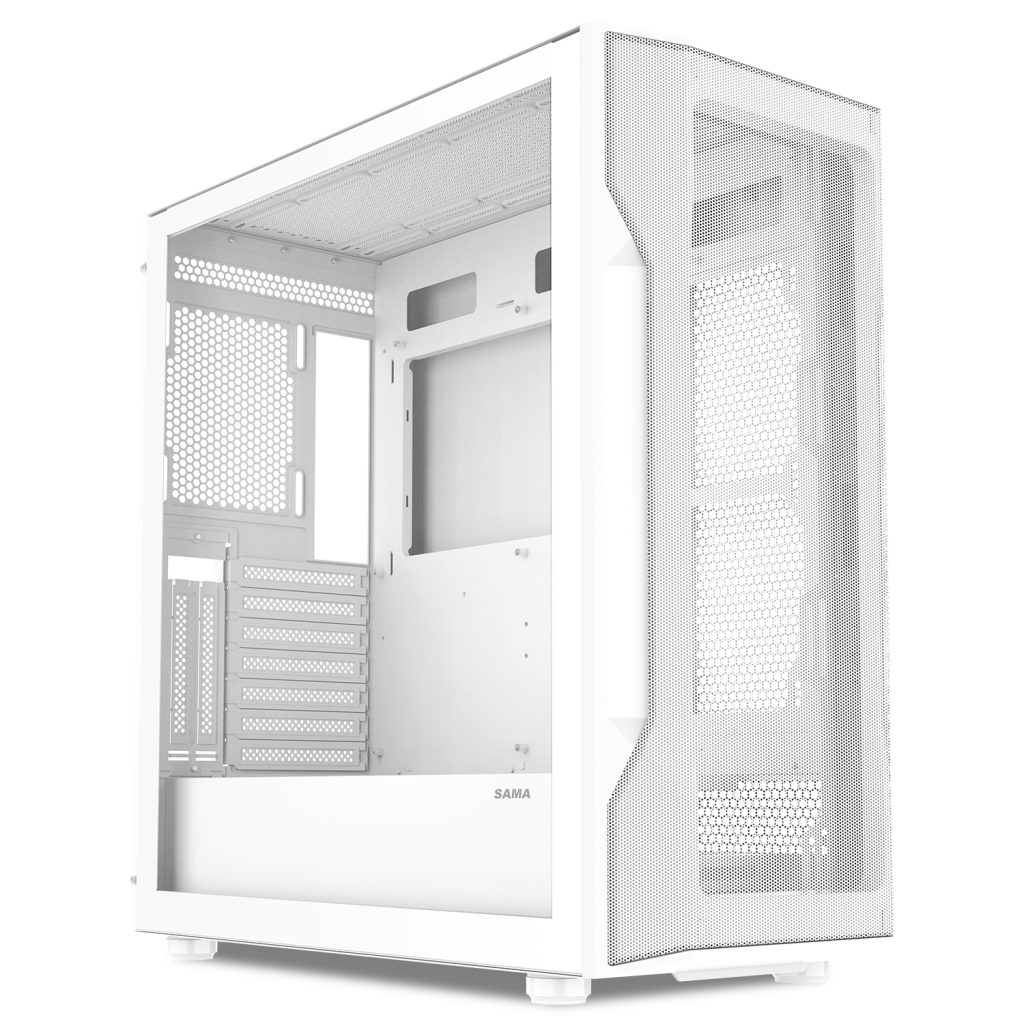

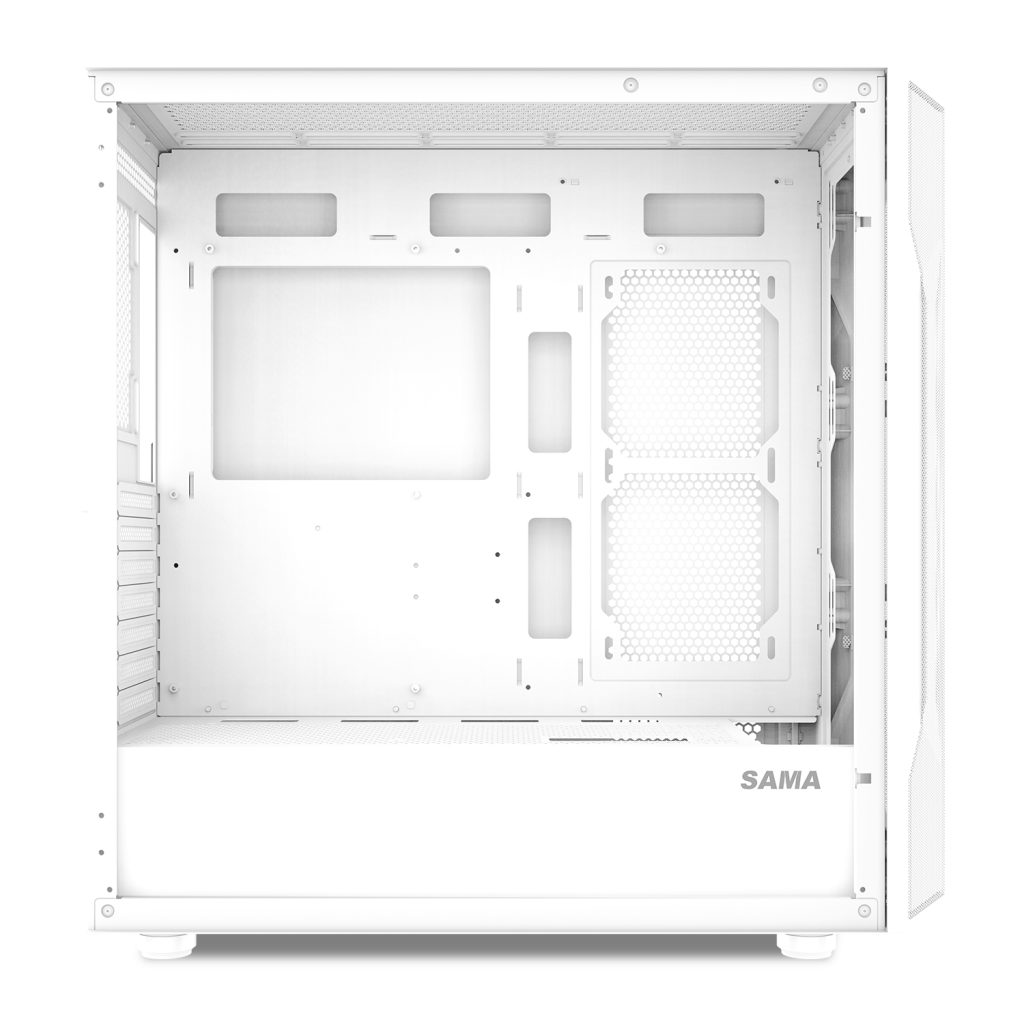

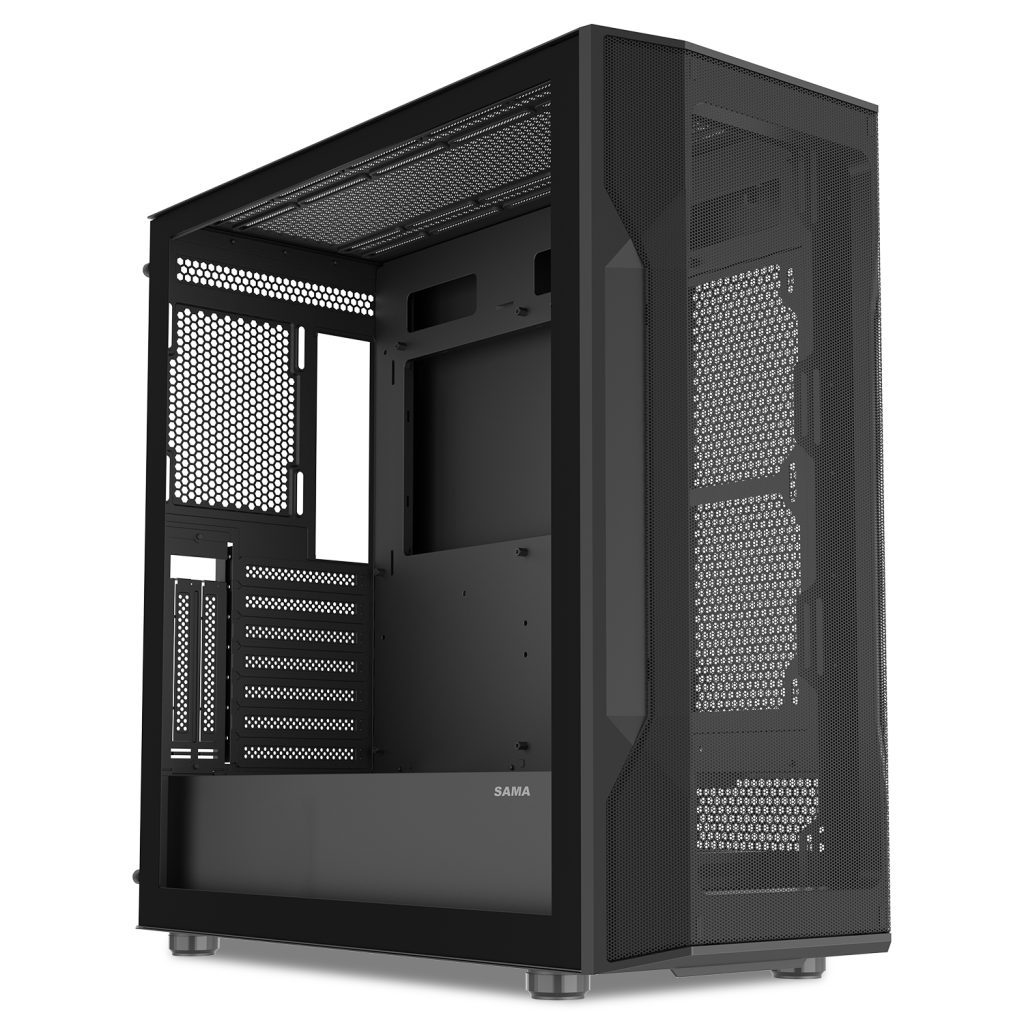

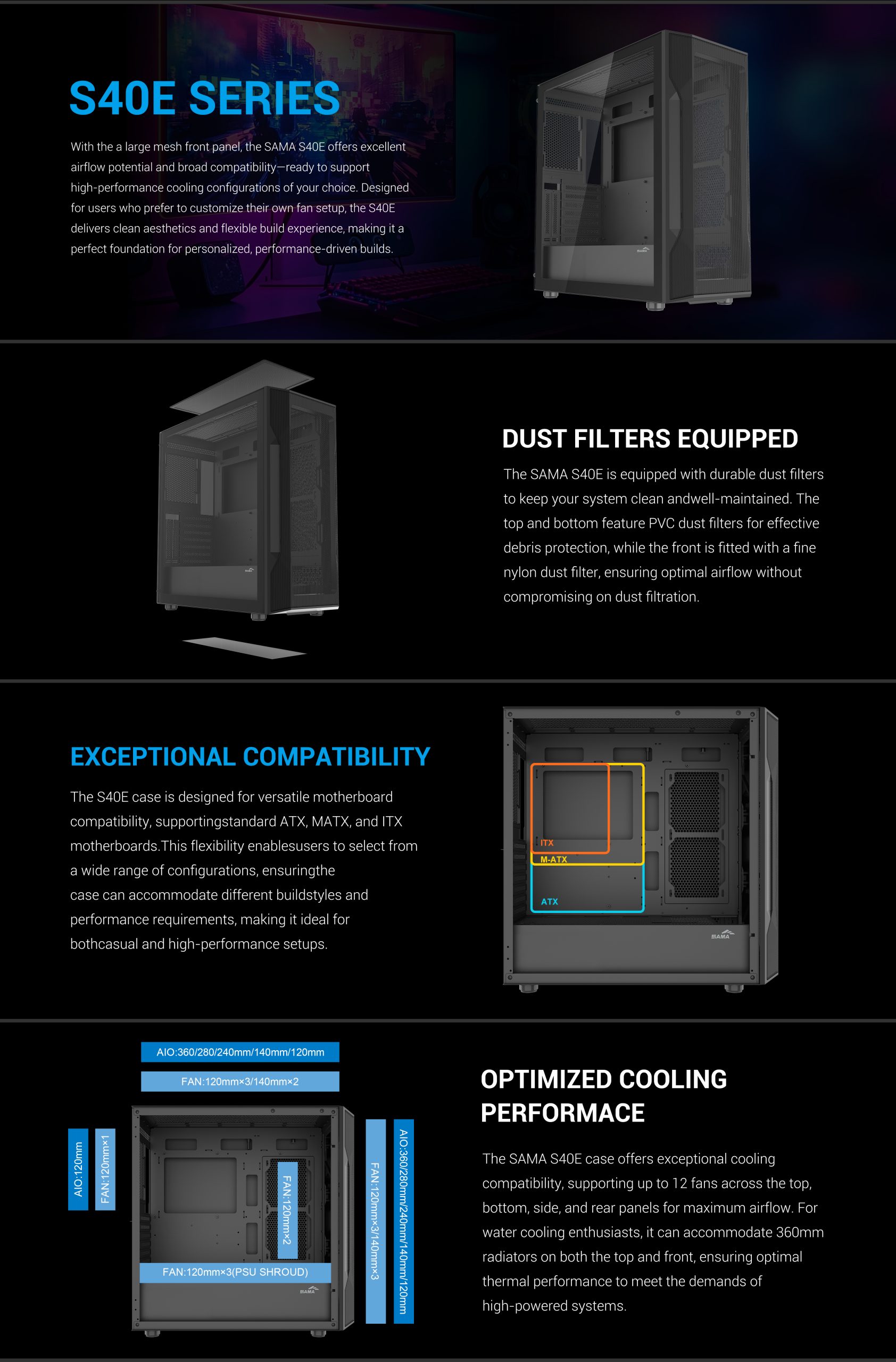

With a large mesh front panel, the SAMA S40E delivers excellent airflow and wide cooling compatibility. Designed for custom fan setups, it combines clean aesthetics with flexible, performance-focused building.

color

#000000 | 1

view specifications

product manual

Specifications

Dimensions		485×215×483mm (L×W×H)
Materials		SPCC, Tempered Glass, ABS
Motherboard Support		ATX, M-ATX, ITX
Expansion Slots		7+2 vertical slots
Max CPU Cooler Height		164mm
Max GPU Length		415mm
Power Supply Type		ATX, 220mm
Fan Support	Front	3×140mm / 3×120mm
	Top	3×120mm / 2×140mm
	Rear	1×120mm
	Bottom	3×120mm (PSU shroud)
	Side	2×120mm
Radiator Support	Front	360 / 280 / 240 / 140 / 120mm
	Top	360 / 280 / 240 / 140 / 120mm
	Rear	120mm
	Bottom	N/A
	Side	N/A
Front I/O Ports		USB 3.0×2
3.5" Drive Bays		2
2.5" Drive Bays		0 + 4 combined with 3.5" mounts
