Medium Case

S40

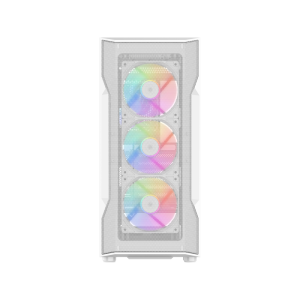

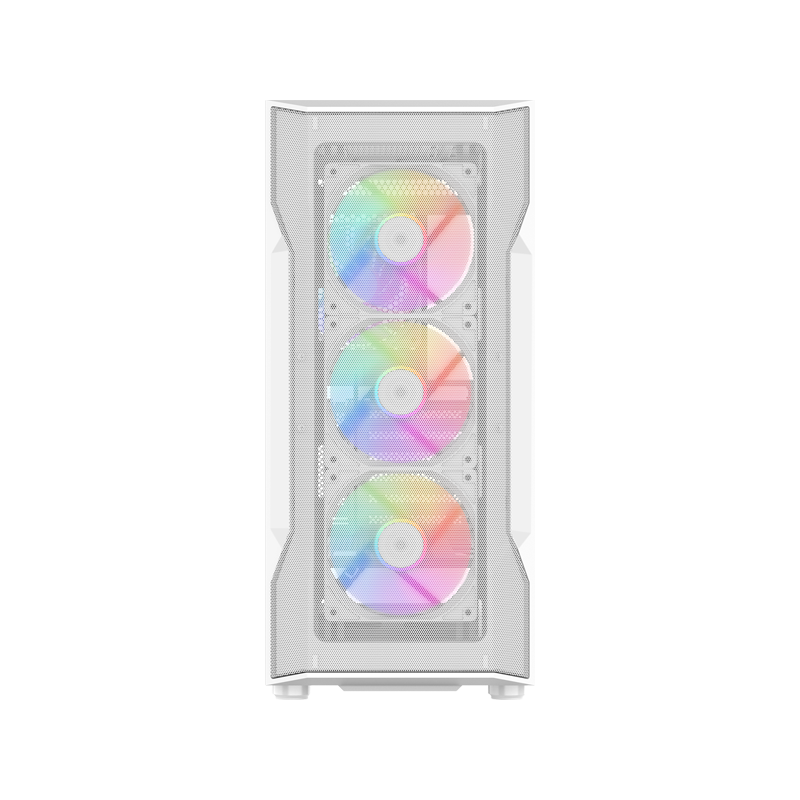

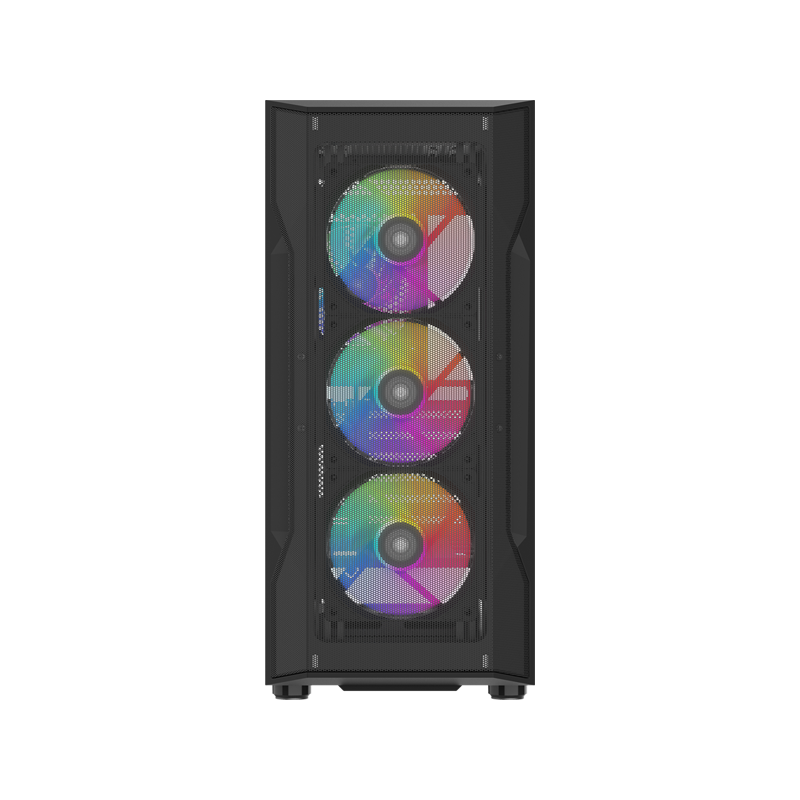

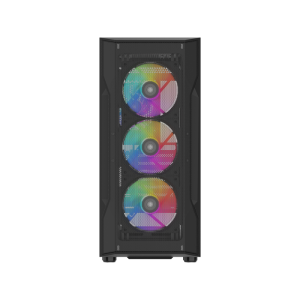

The SAMA S40 case, equipped with a large mesh front panel and four pre-installed high-performance ARGB fans, provides powerful cooling performance while displaying stunning lighting effects.
Color
  • #ffffff
  • #0a0000
Product Manual
Amazon Newegg

SAMA S40

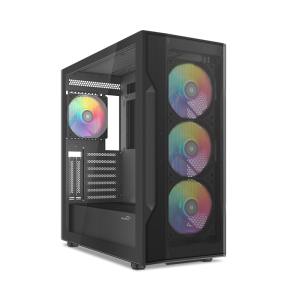

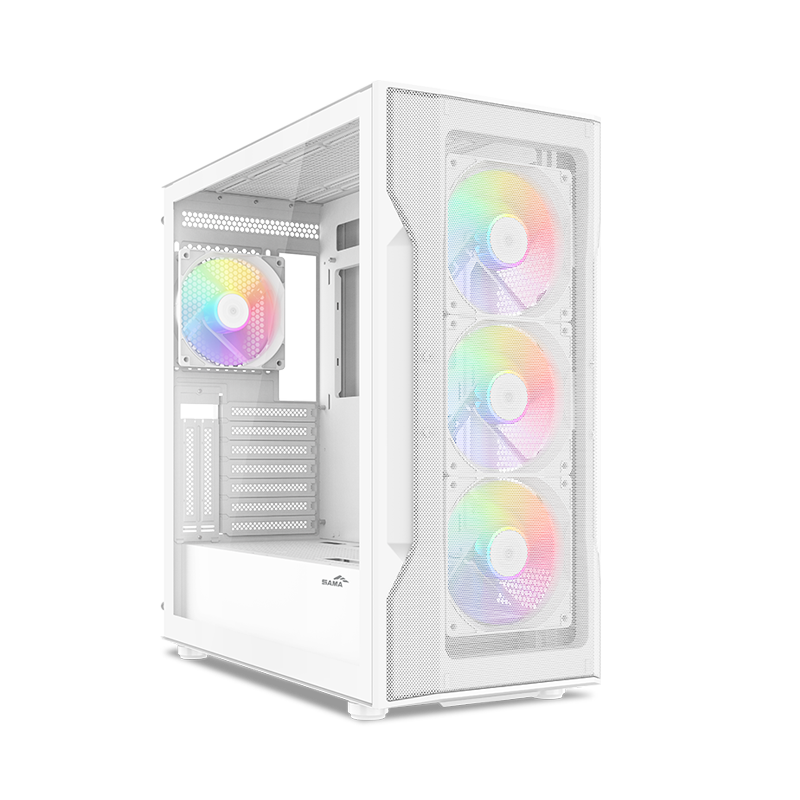

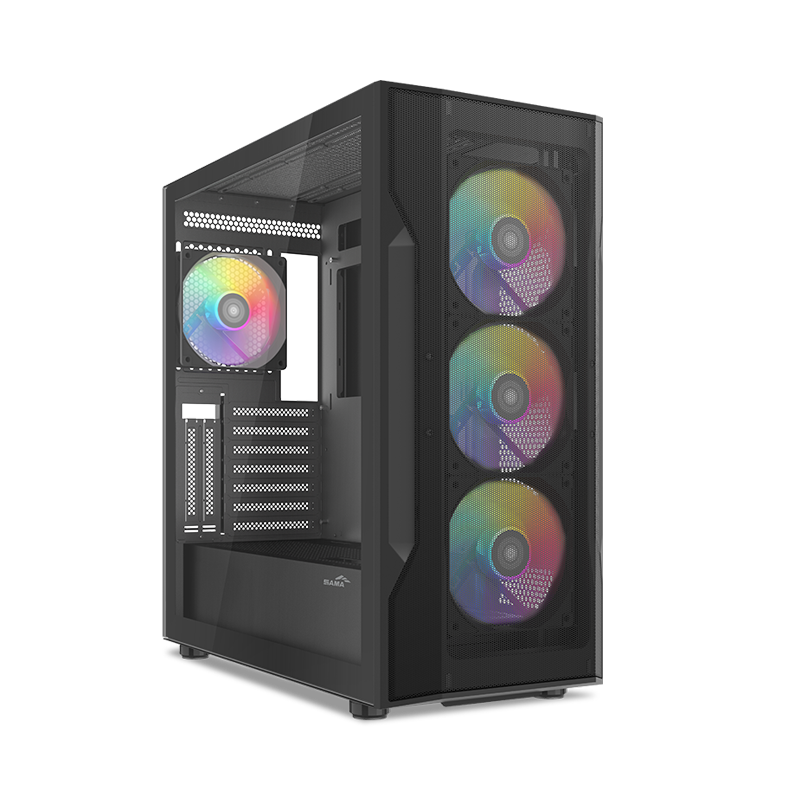

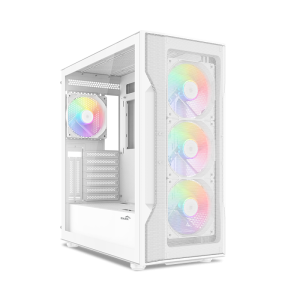

Equipped with a large mesh front panel and four pre-installed high-performance ARGB fans, provides powerful cooling performance while displaying stunning lighting effects. This combination of efficiency and style, along with broad compatibility, ensures an exceptional user experience, making it ideal for users seeking both functionality and visual appeal in their builds.

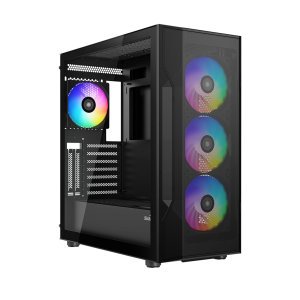

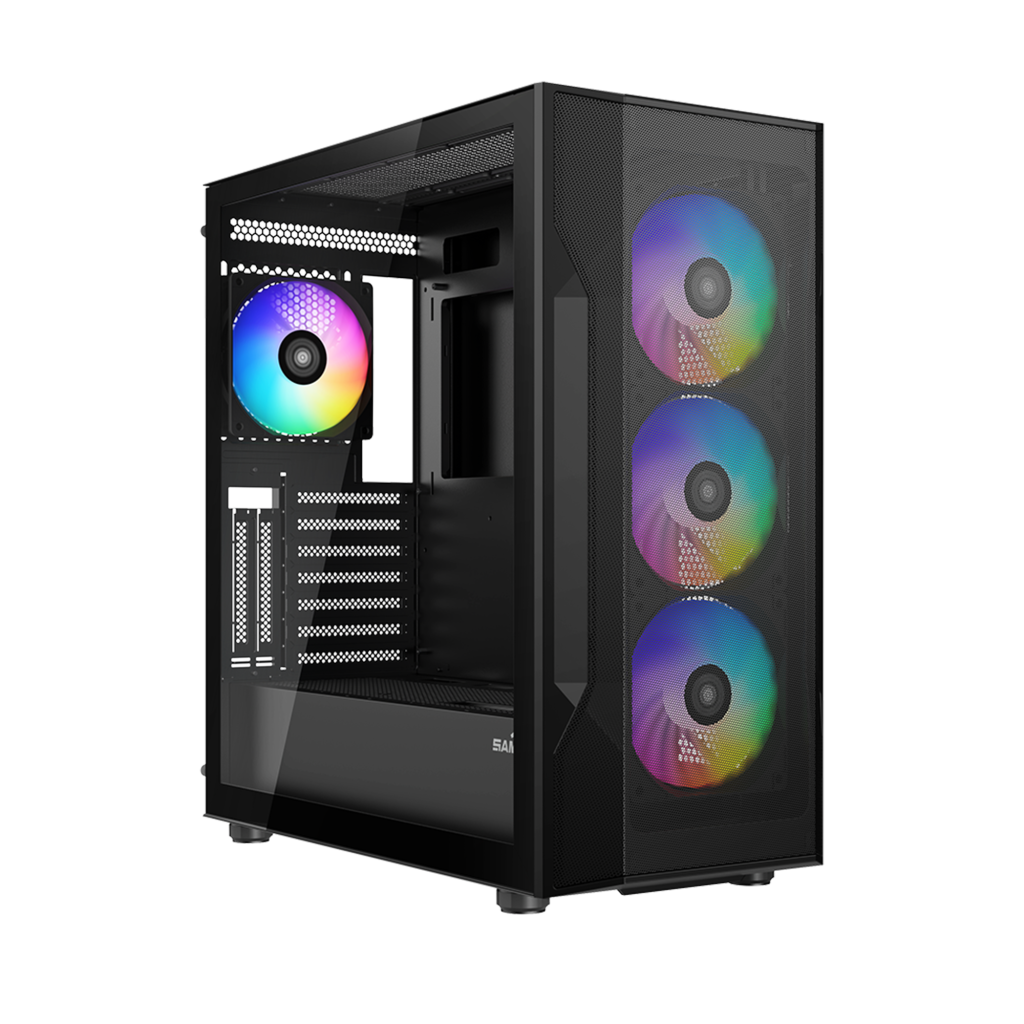

BLACK

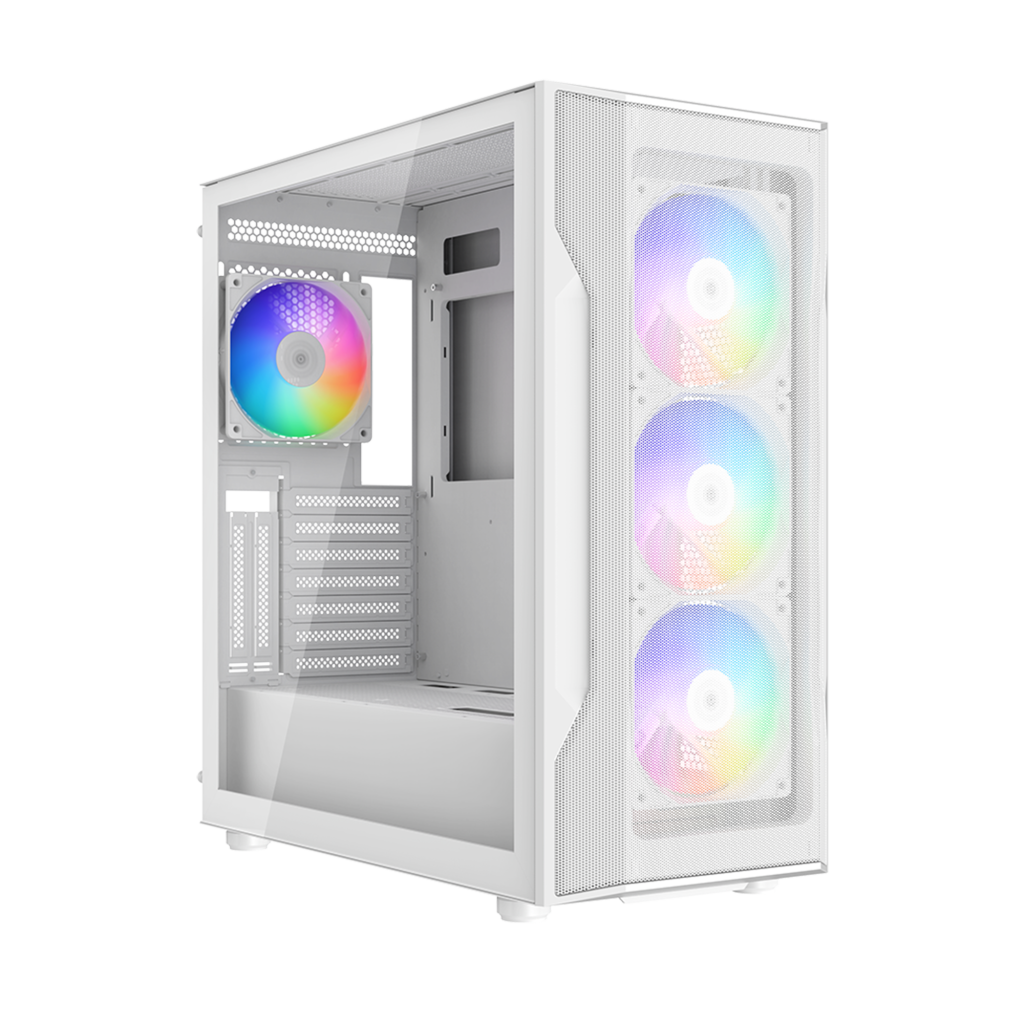

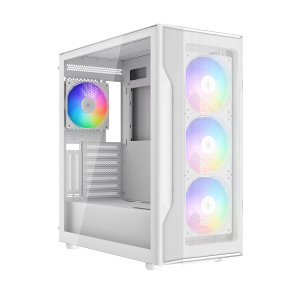

WHITE

AVAILABLE IN TWO COLORS

The S40 is available in two color options:
black and blue, allowing users to choose the look that best suits their style. These options provide flexibility to complement various setups, adding a personalized touch to your build.

DUST FILTERS EQUIPPED

The SAMA S40 is equipped with durable dust filters to keep your system clean andwell-maintained. The top and bottom feature PVC dust filters for effective debris protection, while the front is fitted with a fine nylon dust filter, ensuring optimal airflow without compromising on dust filtration.

PRE-INSTALLED FANS

× 4
The S40 comes pre-installed with four 120mm ARGB PWM fans—three at the front and one at therear—providing excellent out-of the-box cooling performance. These high-performance ARGB fans not only ensureoptimal airflow but also create vibrant lighting effects, allowing you to showcase a visually stunning build that reflects your personal style.

EXCEPTIONAL COMPATIBILITY

The S40 case is designed for versatile motherboard compatibility, supporting standard ATX, MATX, andITX motherboards.This flexibility enablesusers to select froma wide range of configurations, ensuringthe case can accommodate different build styles and performance requirements, making it ideal for both casual and high-performance setups.

OPTIMIZED COOLING PERFORMACE

  • AIO:360/280/240mm
  • FAN:120mm×3/140mm×2
  • AIO：360mm/280mm/240mm
  • FAN:120mm×3/140mm×3
  • AIO:120mm
  • FAN:140mm×1/120mm×1
  • FAN:120mm×3(PSU SHROUD)
The SAMA S40 case offers exceptional cooling compatibility, supporting up to 12 fans across the top, bottom, side, and rear panels for maximum airflow. For water cooling enthusiasts, it can accommodate 360mm radiators on both the top and front, ensuring optimal thermal performance to meet the demands of high-powered systems.

Specifications
Dimensions 485×215×483mm (L×W×H) Radiator Support Front 360 / 280 / 240 / 140 / 120mm
Materials SPCC, Tempered Glass, ABS Top 360 / 280 / 240 / 140 / 120mm
Motherboard Support ATX, M-ATX, ITX Rear 120mm
Expansion Slots 7+2 vertical slots Bottom N/A
Max CPU Cooler Height 164mm Side N/A
Max GPU Length 415mm Pre-Installed Fans Front 3×120mm ARGB PWM fans
Power Supply Type ATX, 220mm Rear 1×120mm ARGB PWM fan
Fan Support Front 3×140mm / 3×120mm Bottom None
Top 3×120mm / 2×140mm Front I/O Ports USB 3.1 Type-C×1, USB 3.0×2
Rear 1×120mm Audio/Mic×1, Power, Reset
Bottom 3×120mm (PSU shroud) 3.5" Drive Bays 2
Side 2×120mm 2.5" Drive Bays 0 + 4 combined with 3.5" mounts
