S40

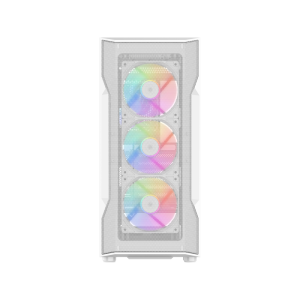

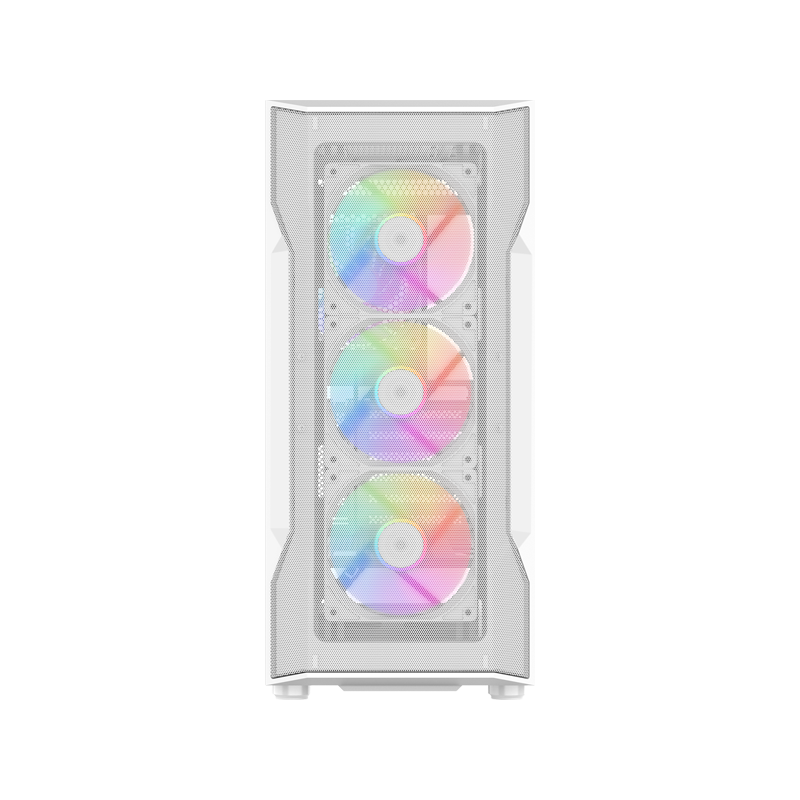

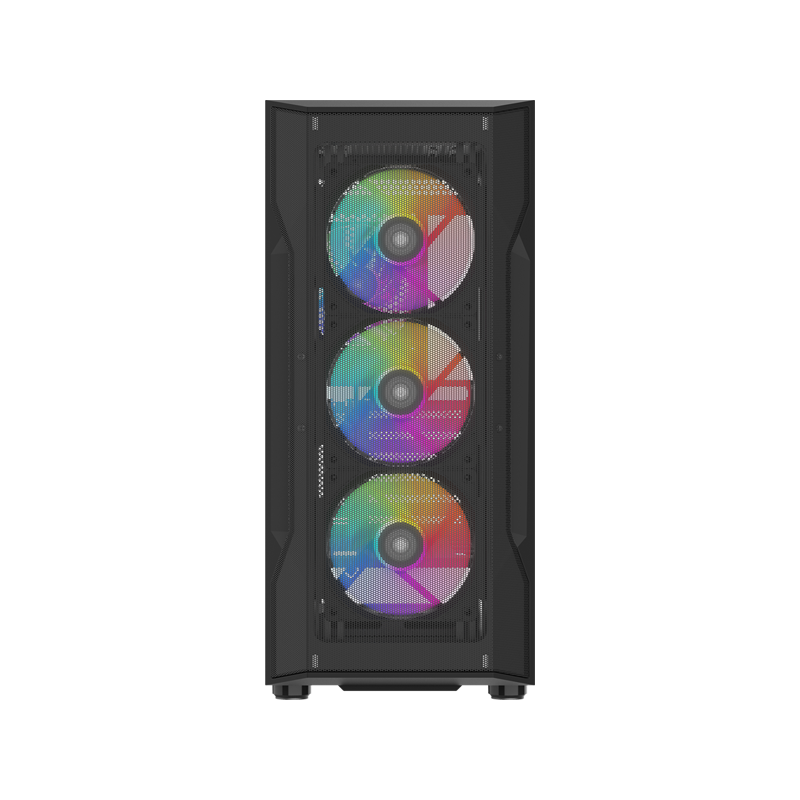

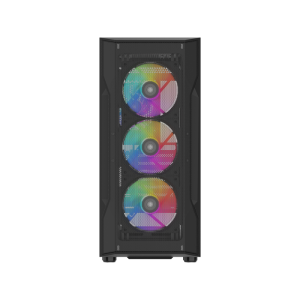

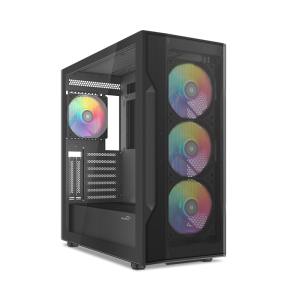

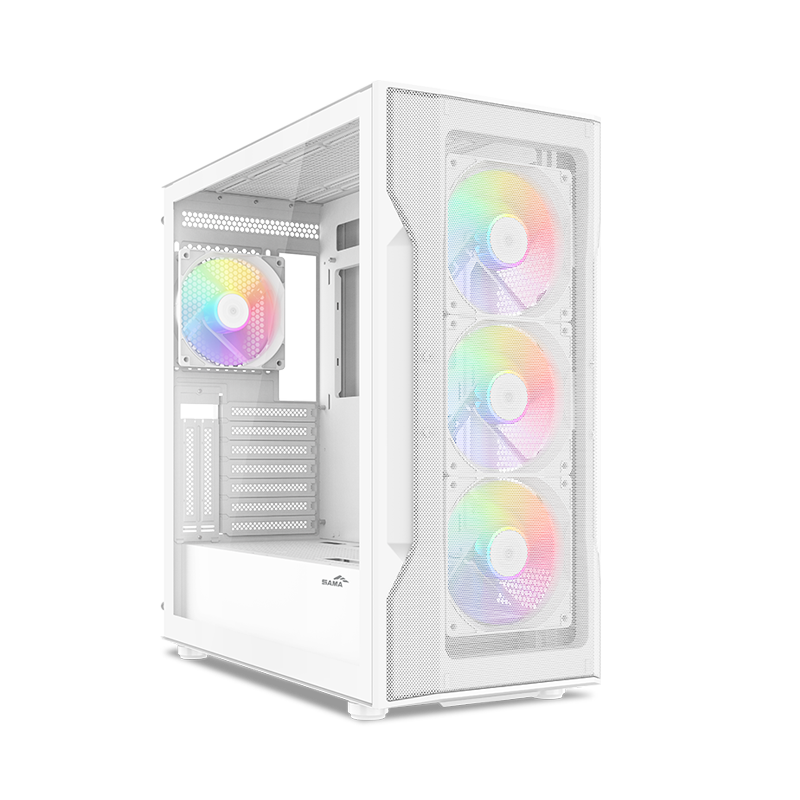

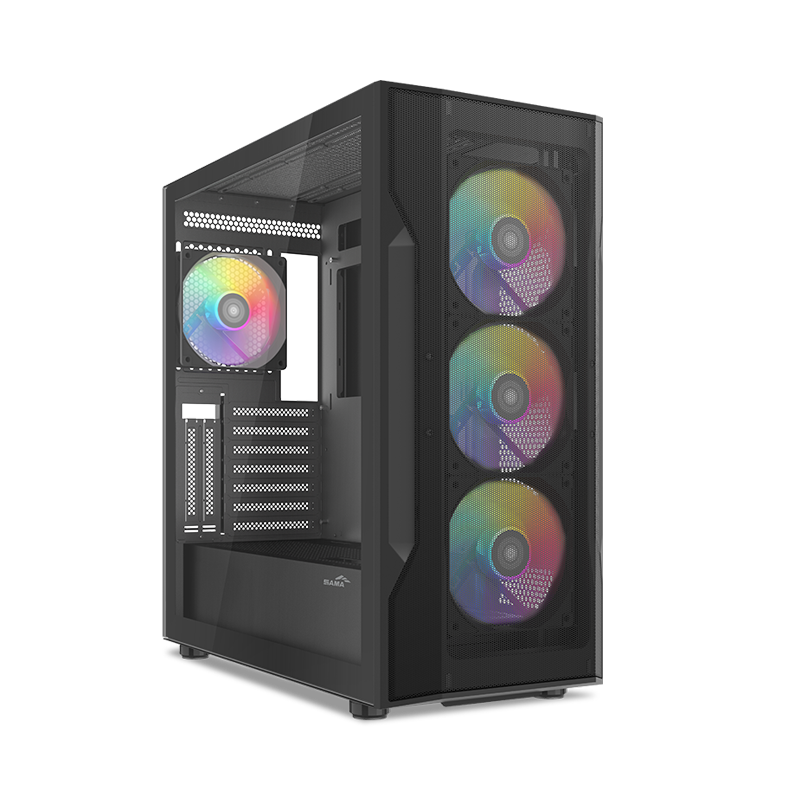

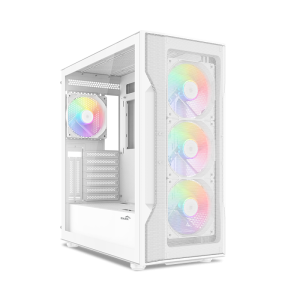

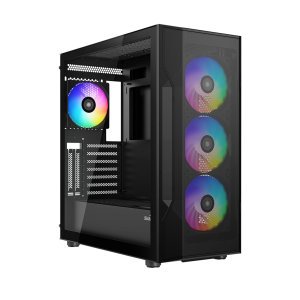

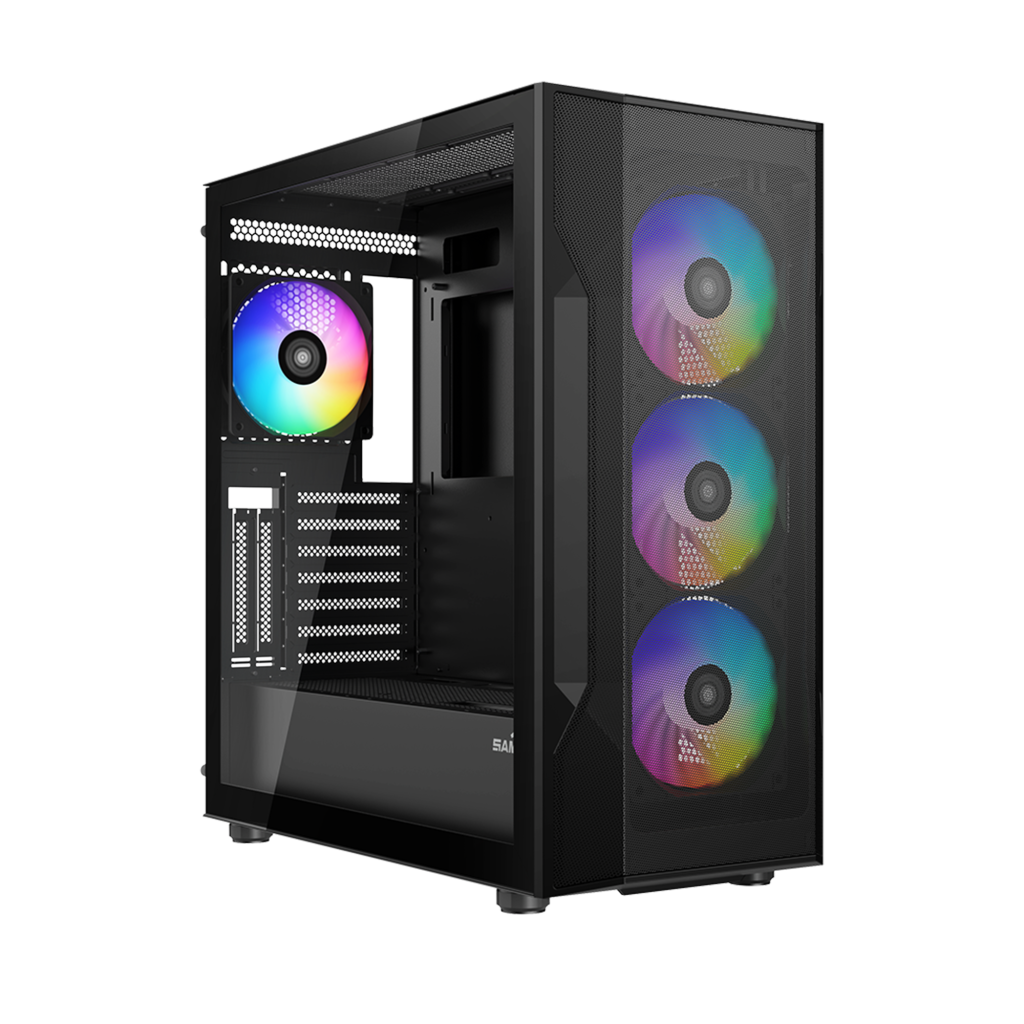

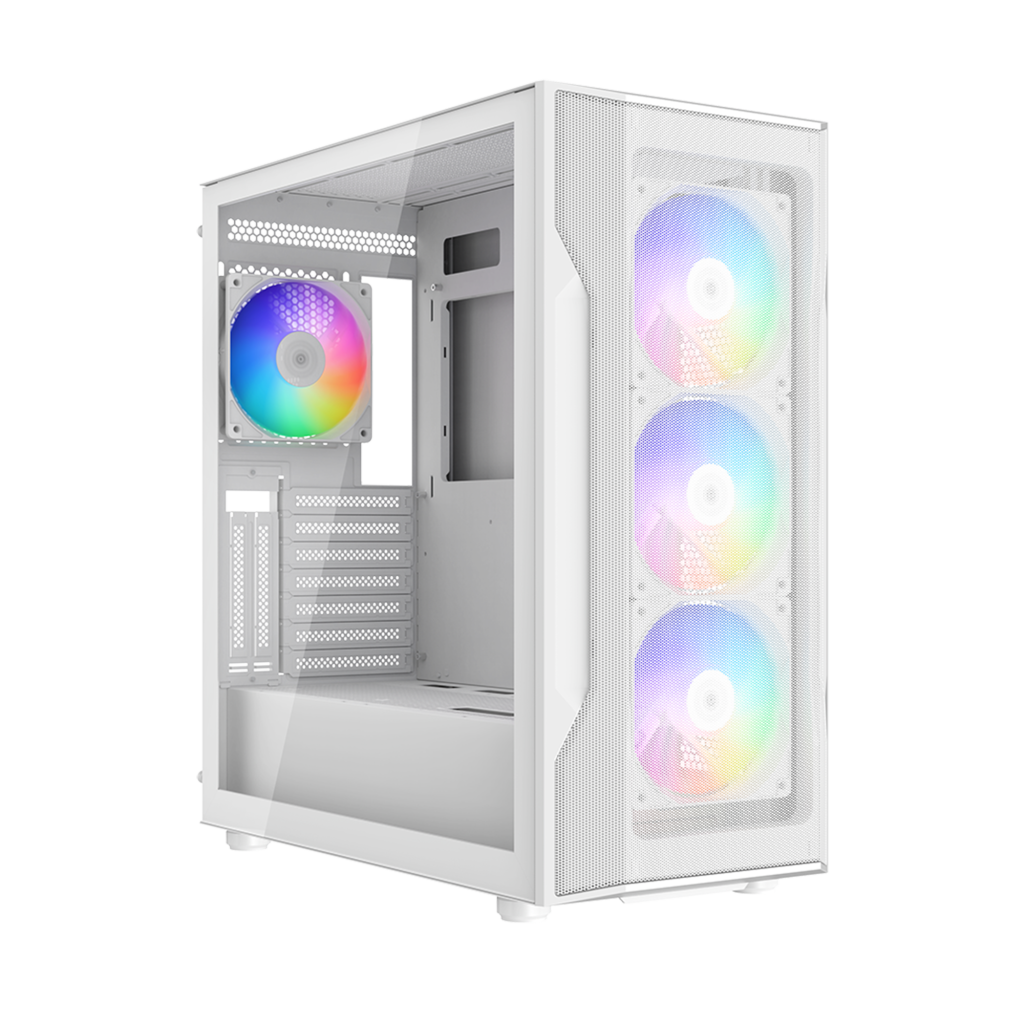

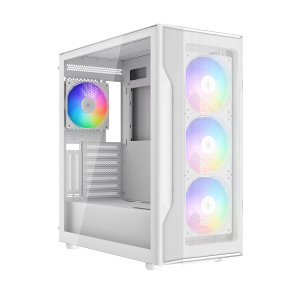

The S40 has a high-airflow mesh front panel and includes four pre-installed ARGB/PWM fans, offering efficient cooling and seamless lighting for your components.

color

#0a0000 | 1
#ffffff | 2

view specifications

image pack

product manual

Specifications

EAN		6930788450930 / 6930788450947
P/N		S40-BKAPA4X1-GL / S40-WHAPA4X1-GL
Dimensions		485×215×483mm (L×W×H)
Materials		SPCC, Tempered Glass, ABS
Motherboard Support		ATX, M-ATX, ITX
Expansion Slots		7+2 vertical slots
Max CPU Cooler Height		164mm
Max GPU Length		415mm
Power Supply Type		ATX, 220mm
Fan Support	Front	3×140mm / 3×120mm
	Top	3×120mm / 2×140mm
	Rear	1×120mm
	Bottom	3×120mm (PSU shroud)
	Side	2×120mm
Radiator Support	Front	360 / 280 / 240 / 140 / 120mm
	Top	360 / 280 / 240 / 140 / 120mm
	Rear	120mm
	Bottom	N/A
	Side	N/A
Pre-Installed Fans	Front	3×120mm ARGB PWM fans
	Rear	1×120mm ARGB PWM fan
	Bottom	None
Pre-Installed Fans Spec	Speed	600~1500RPM ± 10%
	Air flow	31.4dB
	Noise	30.6dB
	Air Pressure	1.51mm-H20
I/O Ports		USB 3.1 Type-C×1, USB 3.0×2, Audio/Mic×1, Power, LED
3.5" Drive Bays		3
2.5" Drive Bays		3
Net Weight		6.3kg
