S30

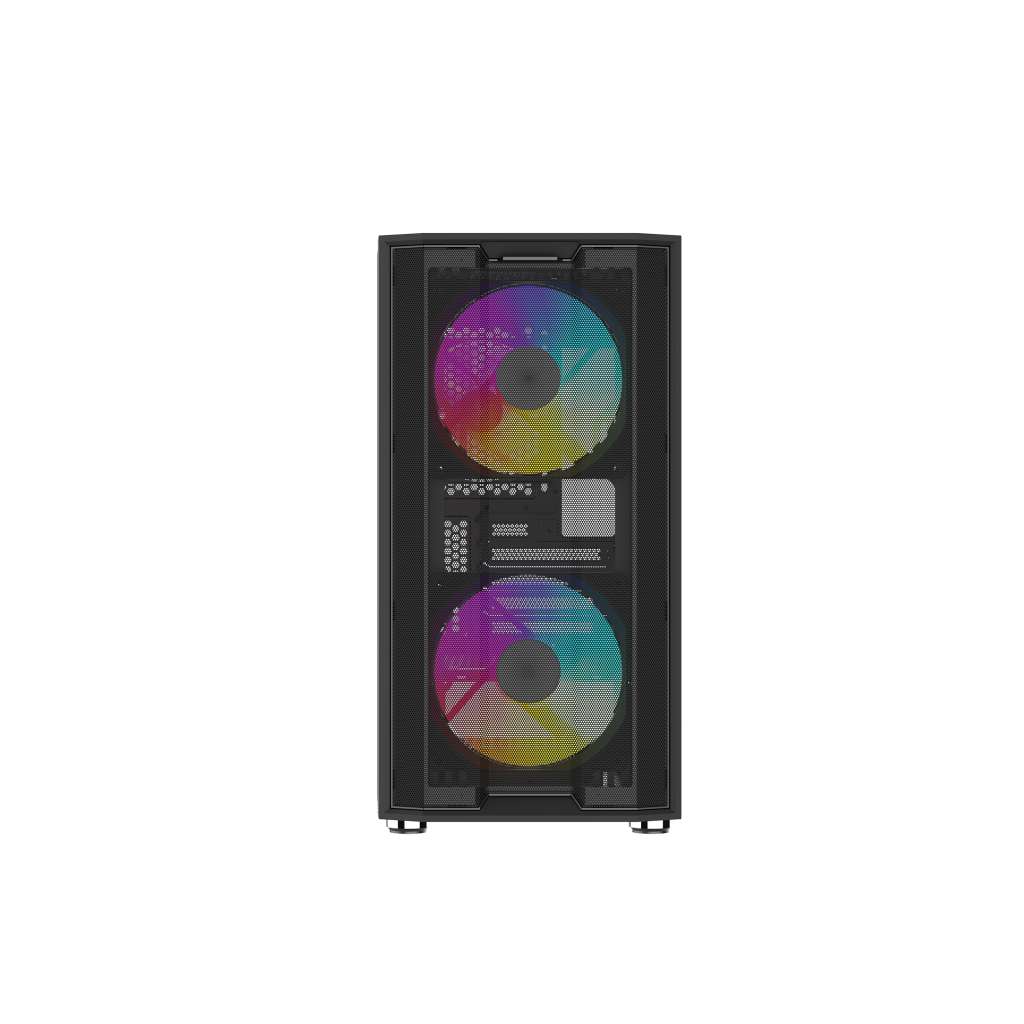

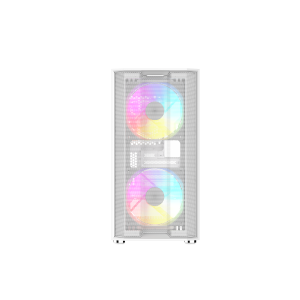

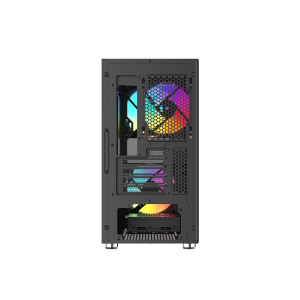

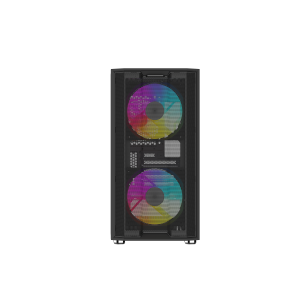

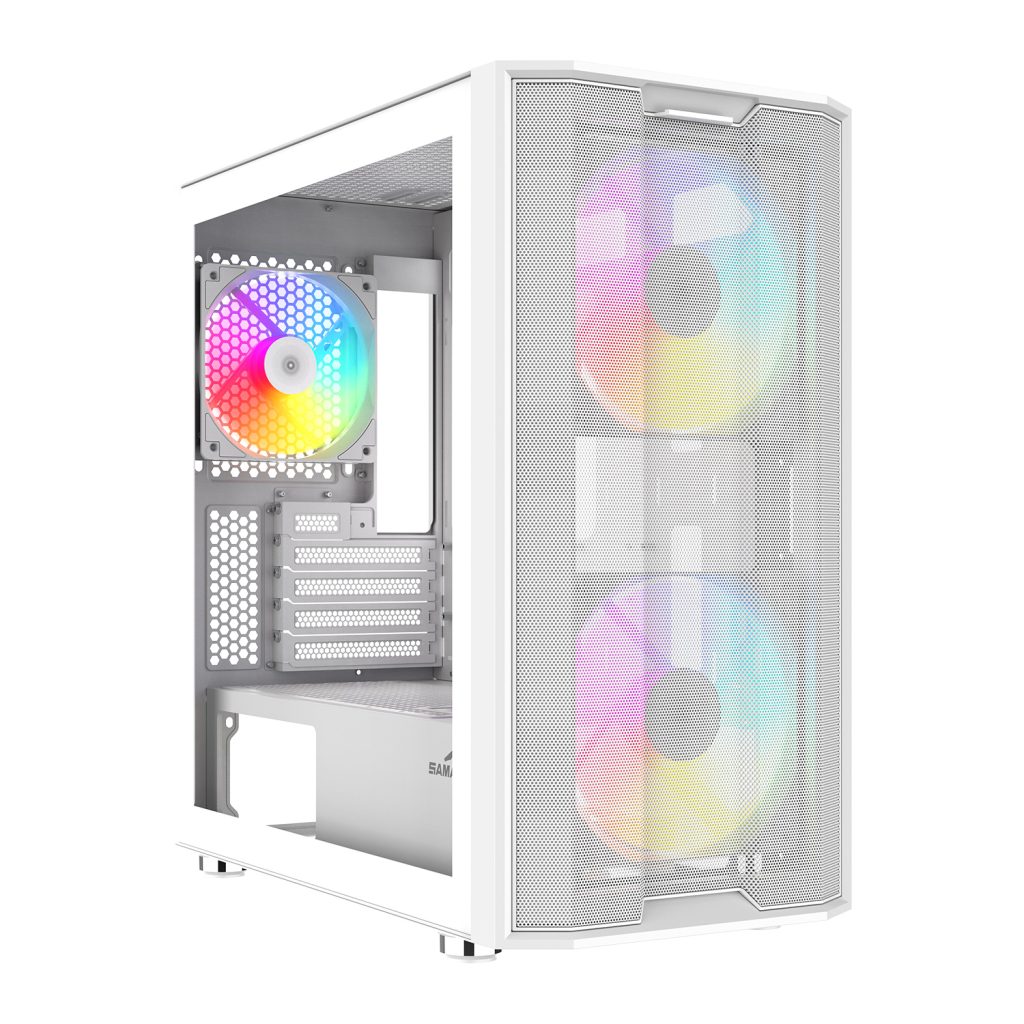

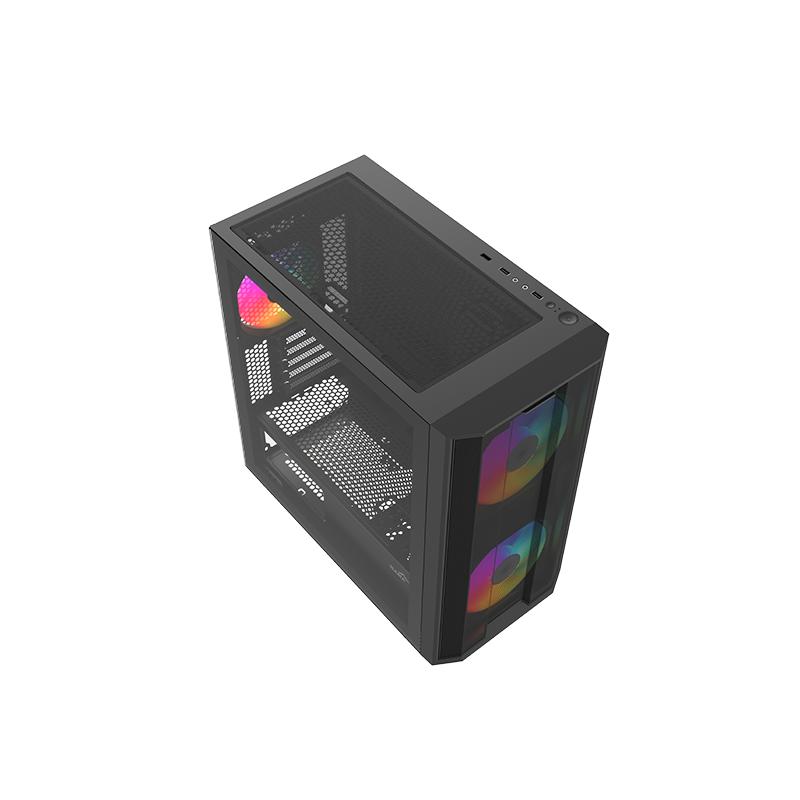

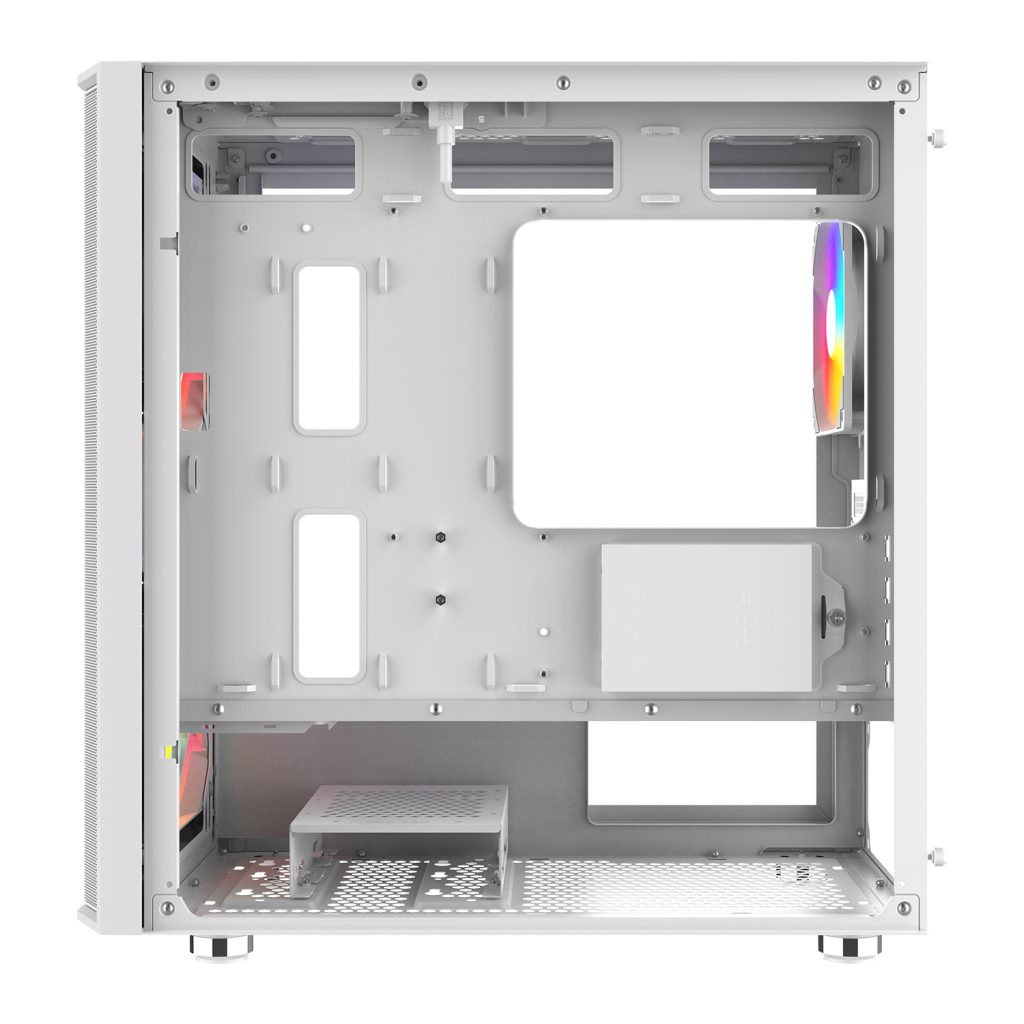

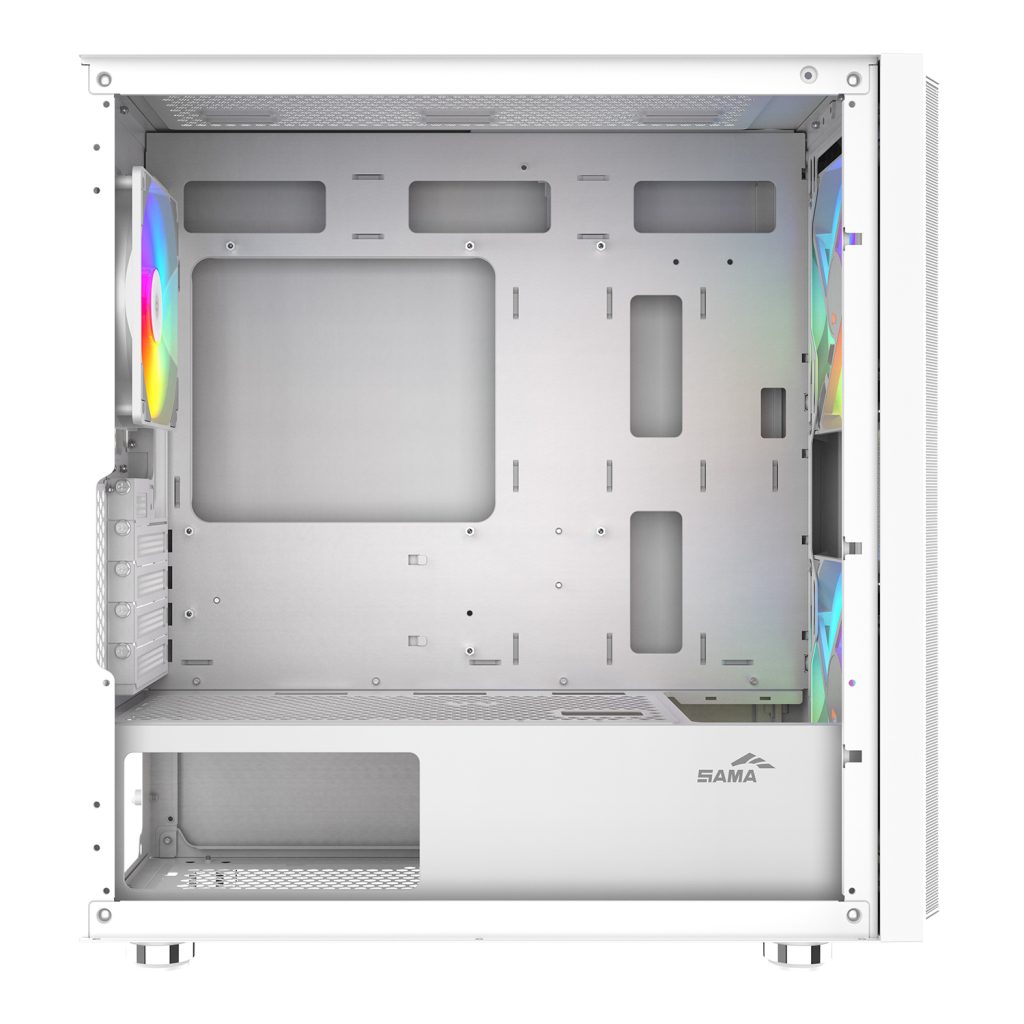

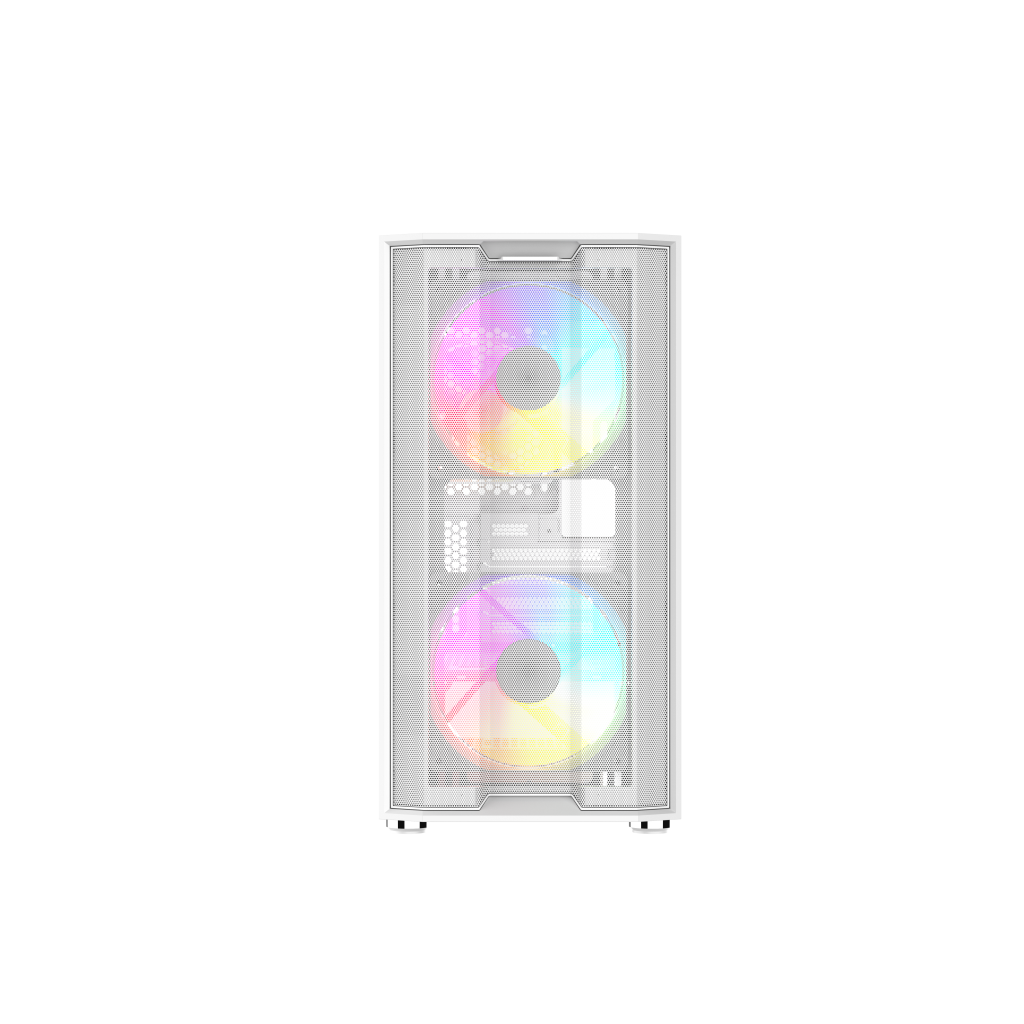

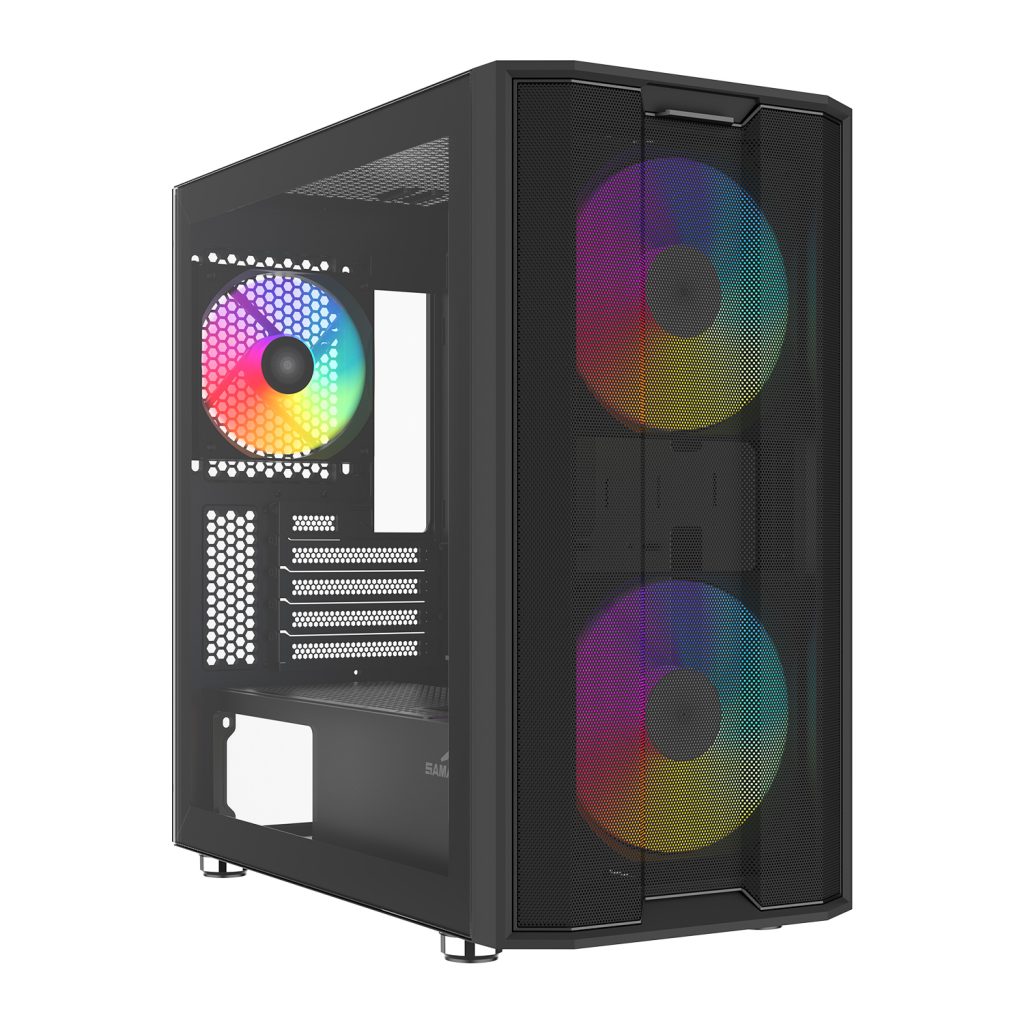

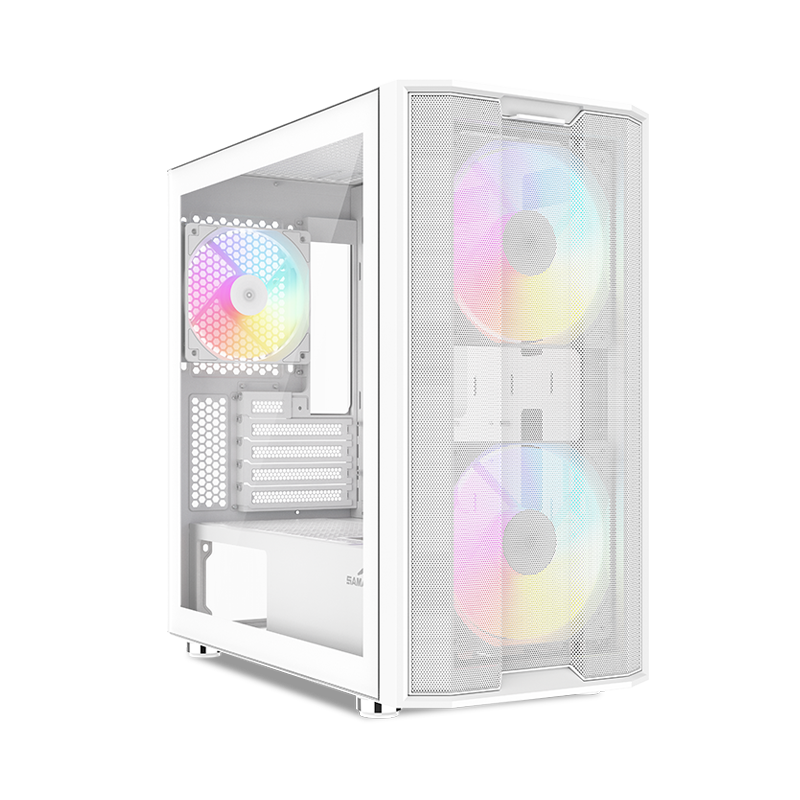

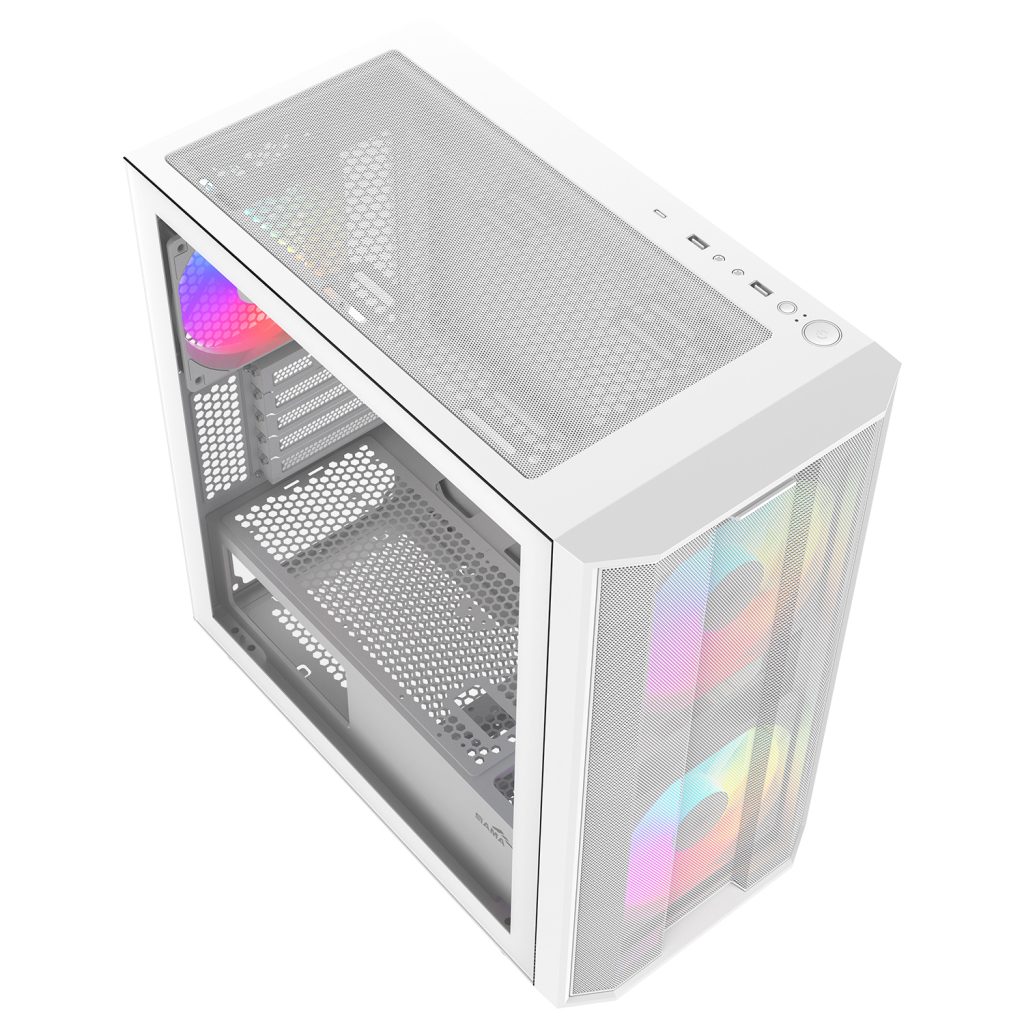

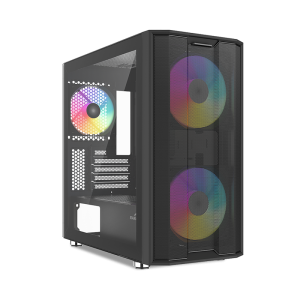

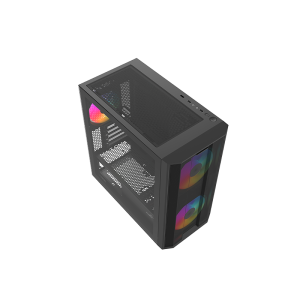

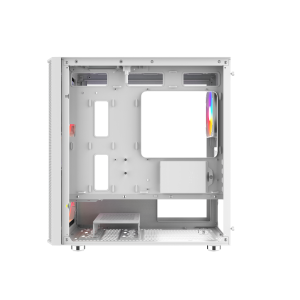

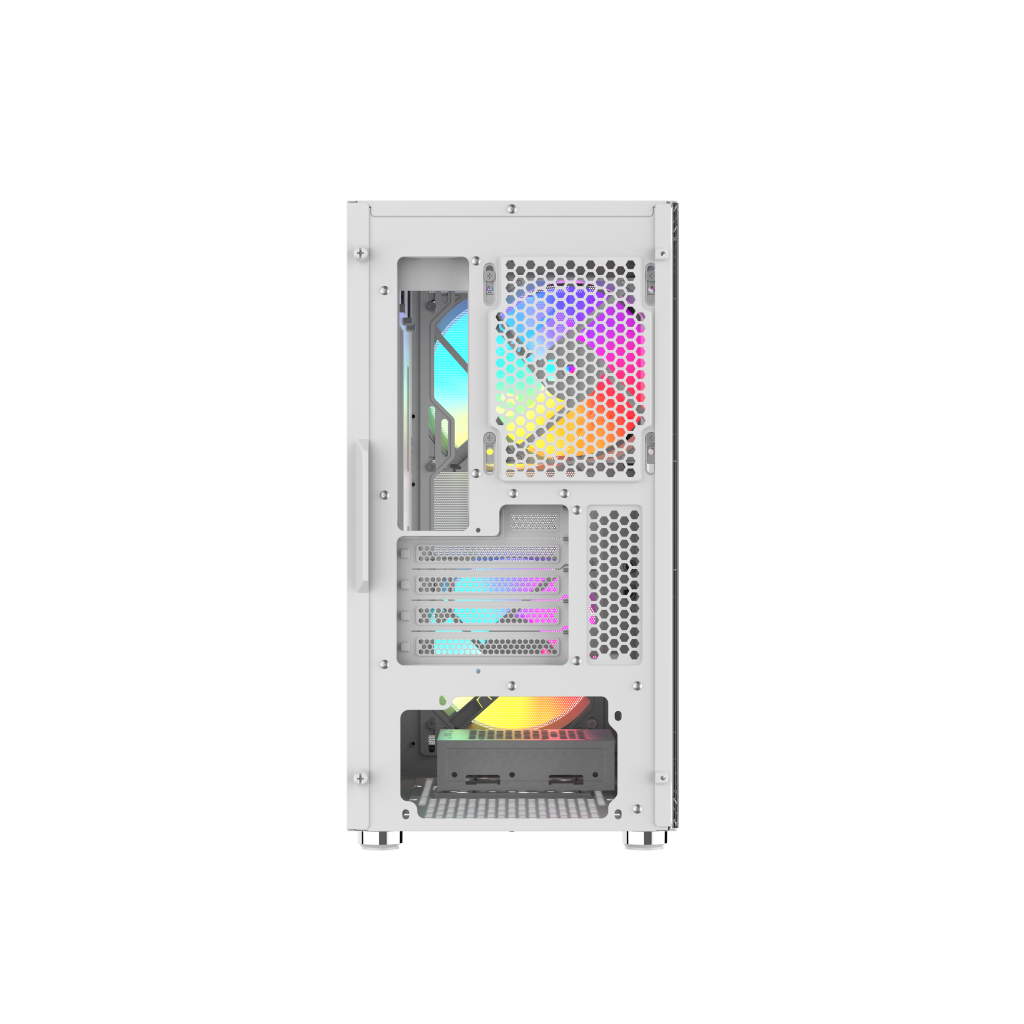

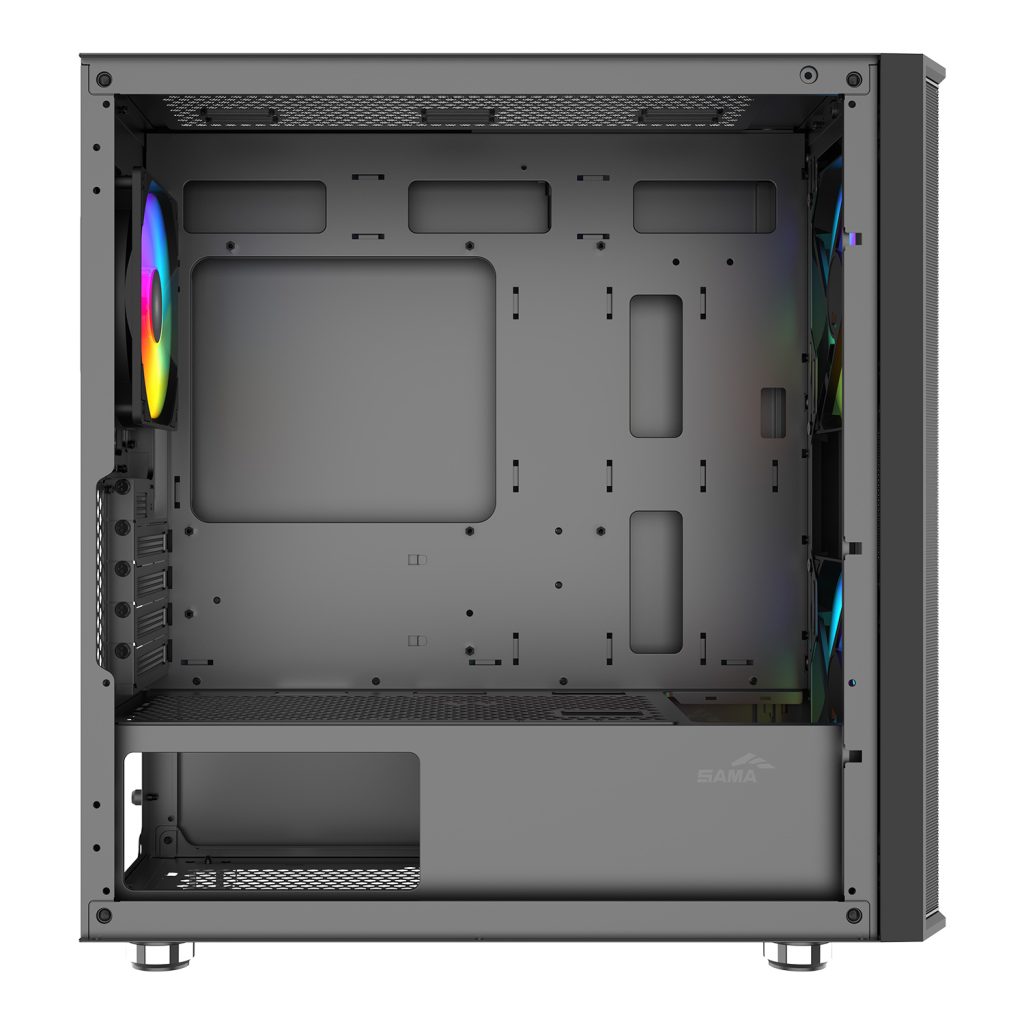

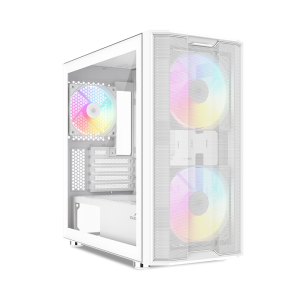

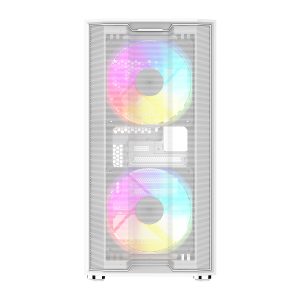

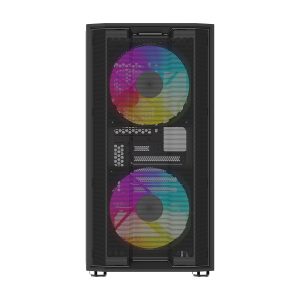

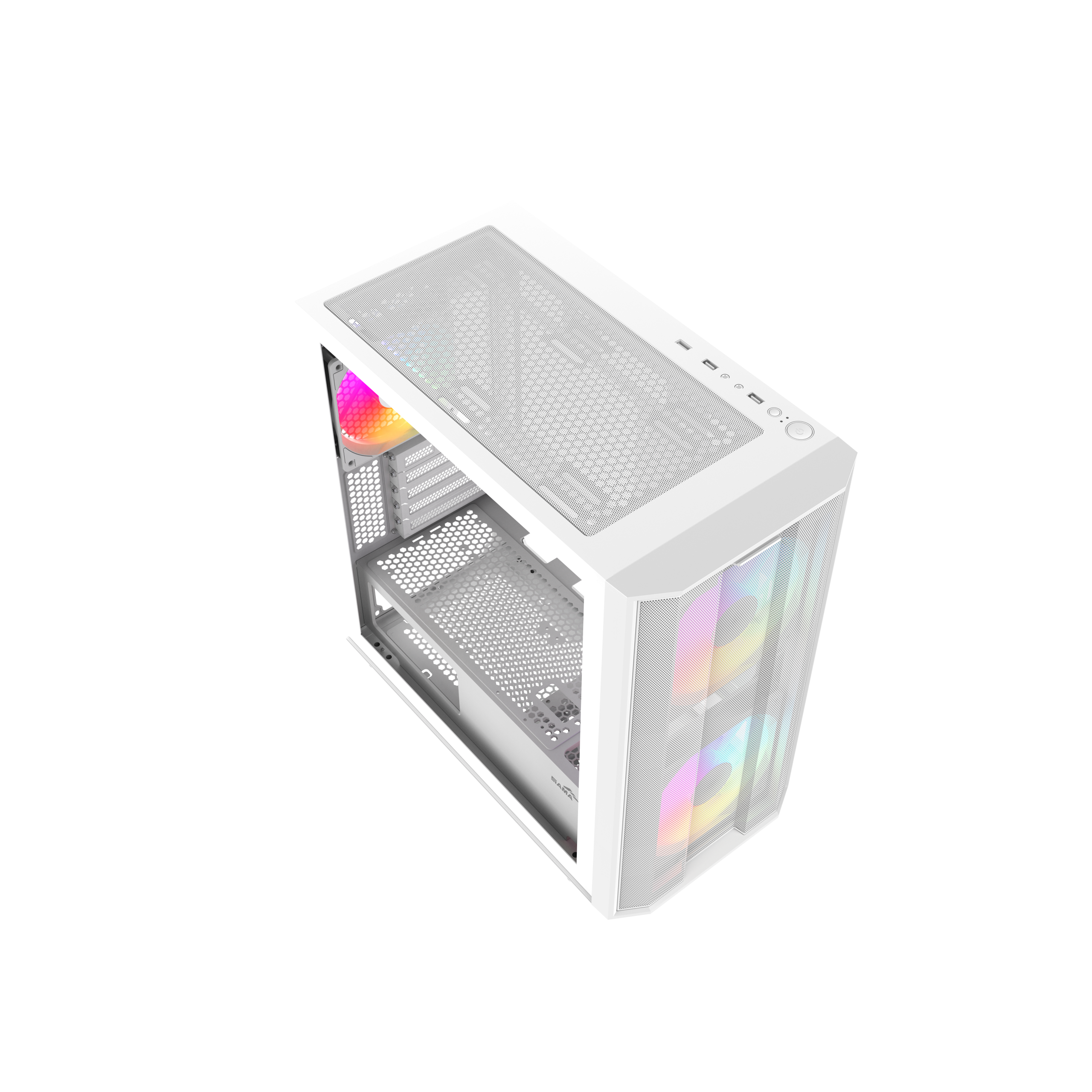

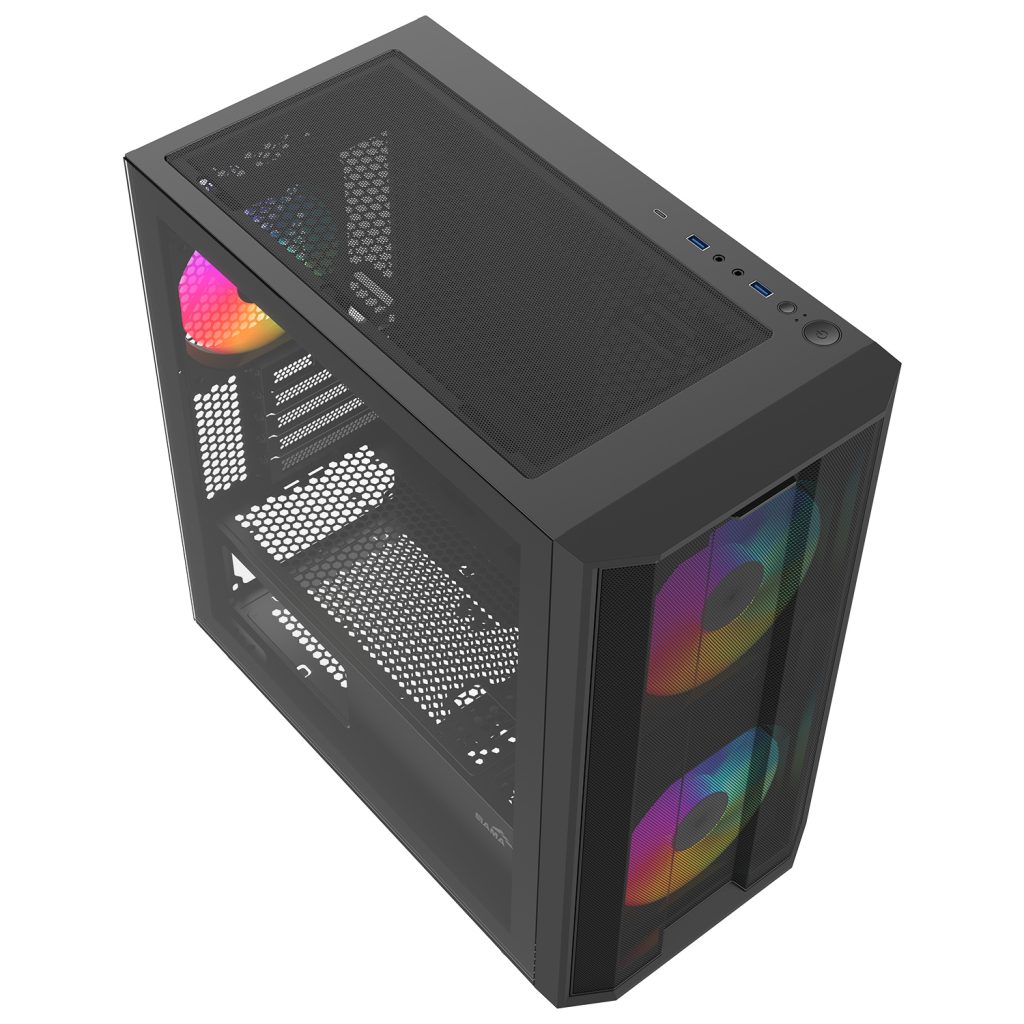

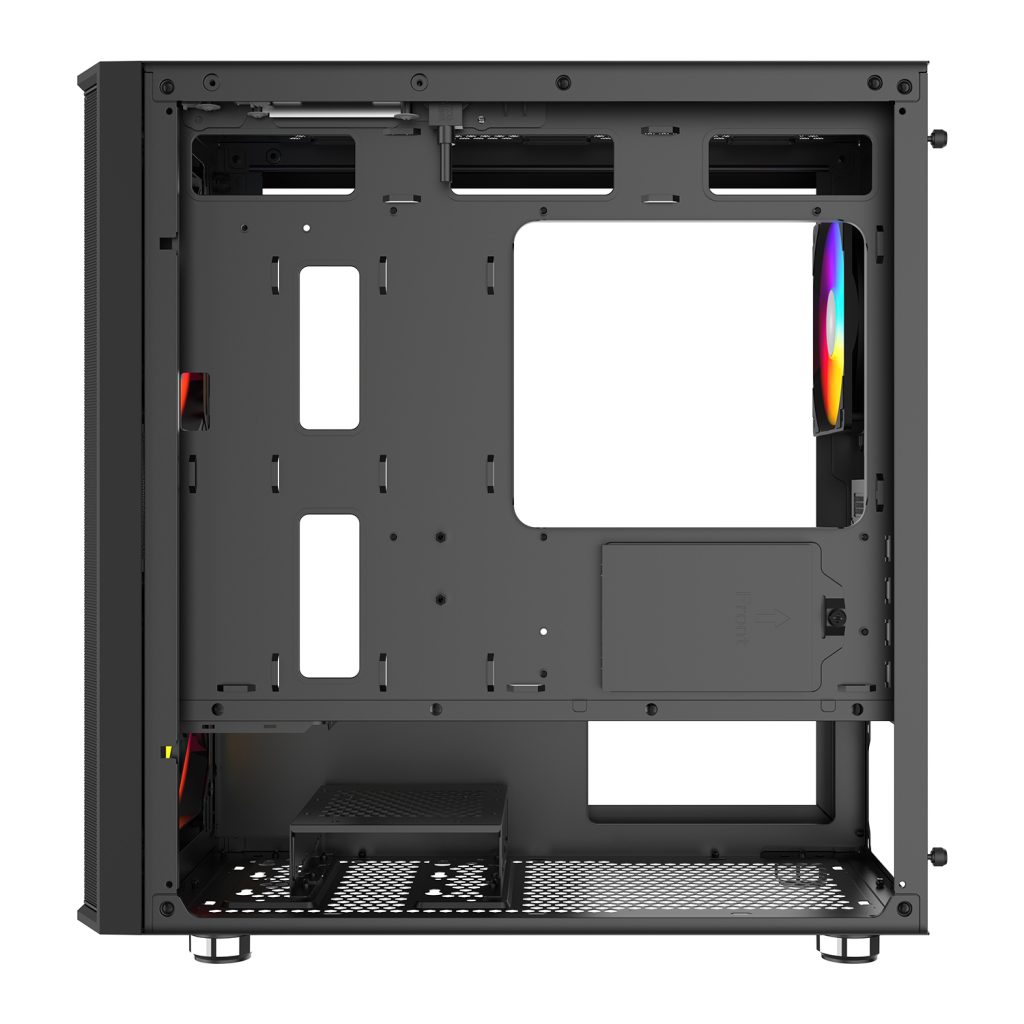

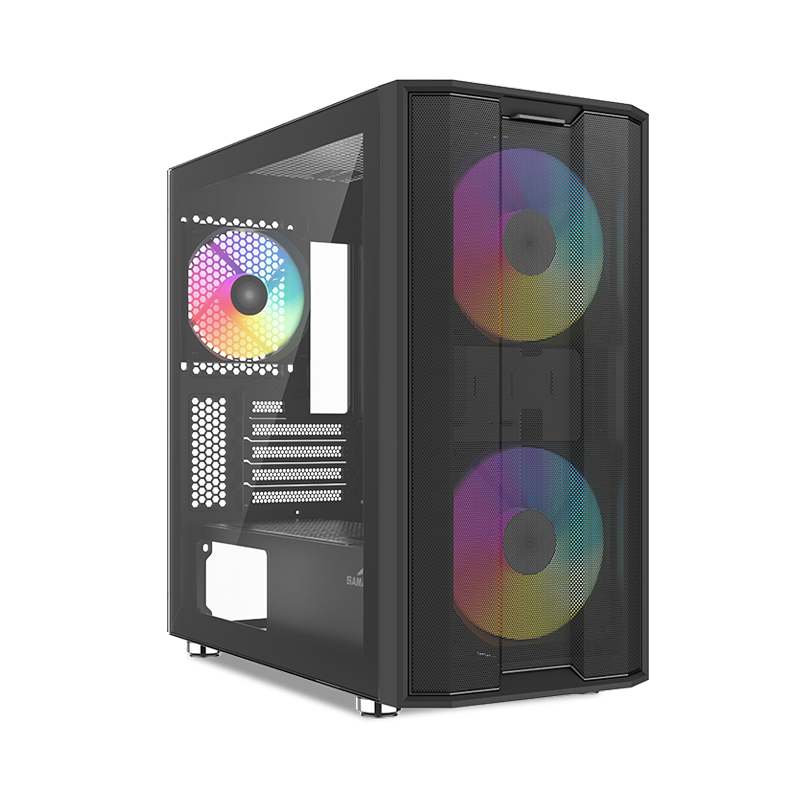

The S30 is a compact mATX case built with support for 350mm GPUs, 166mm air coolers, and a 280mm top radiator. A high-airflow mesh front panel and three pre-installed PWM/ARGB fans deliver strong intake while triple dust filters help keep the system clean with excellent airflow.

color

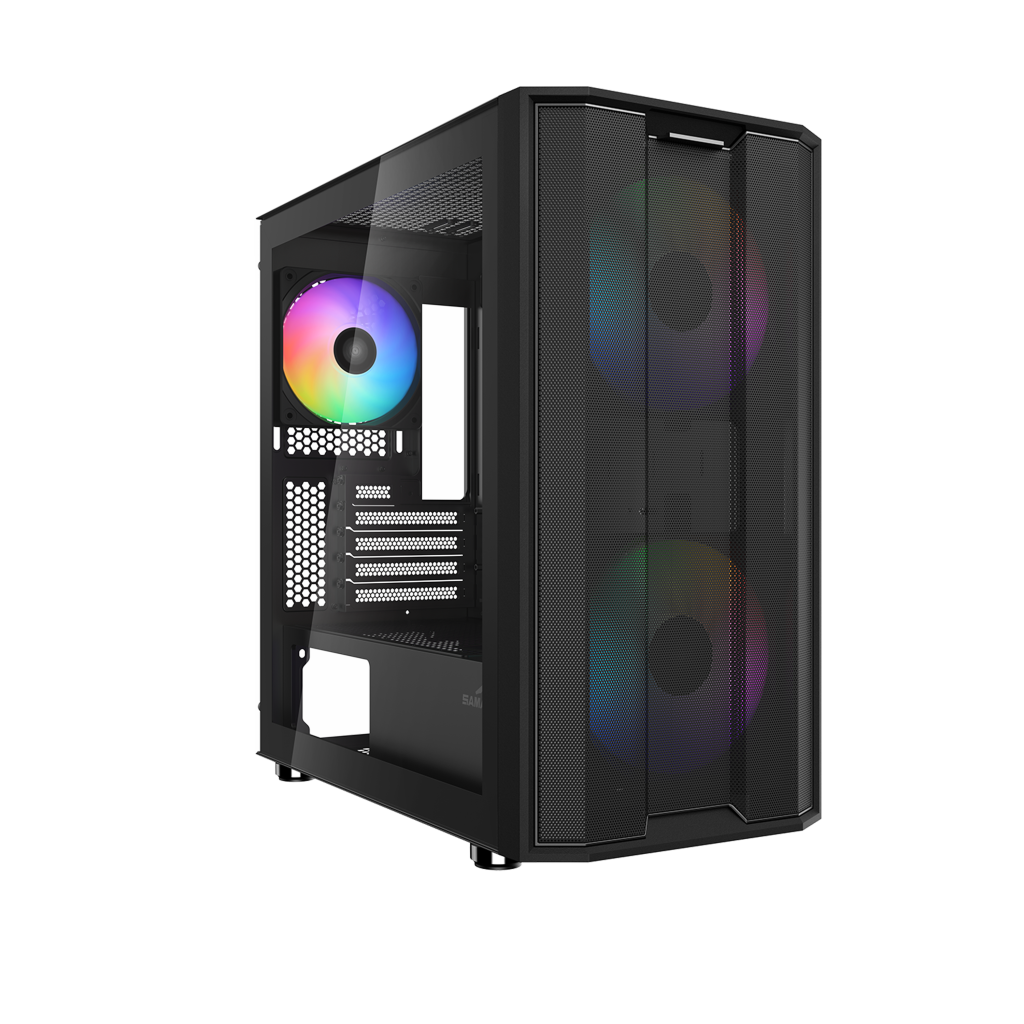

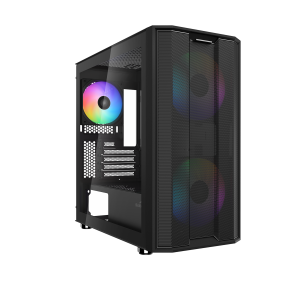

#000000 | 1

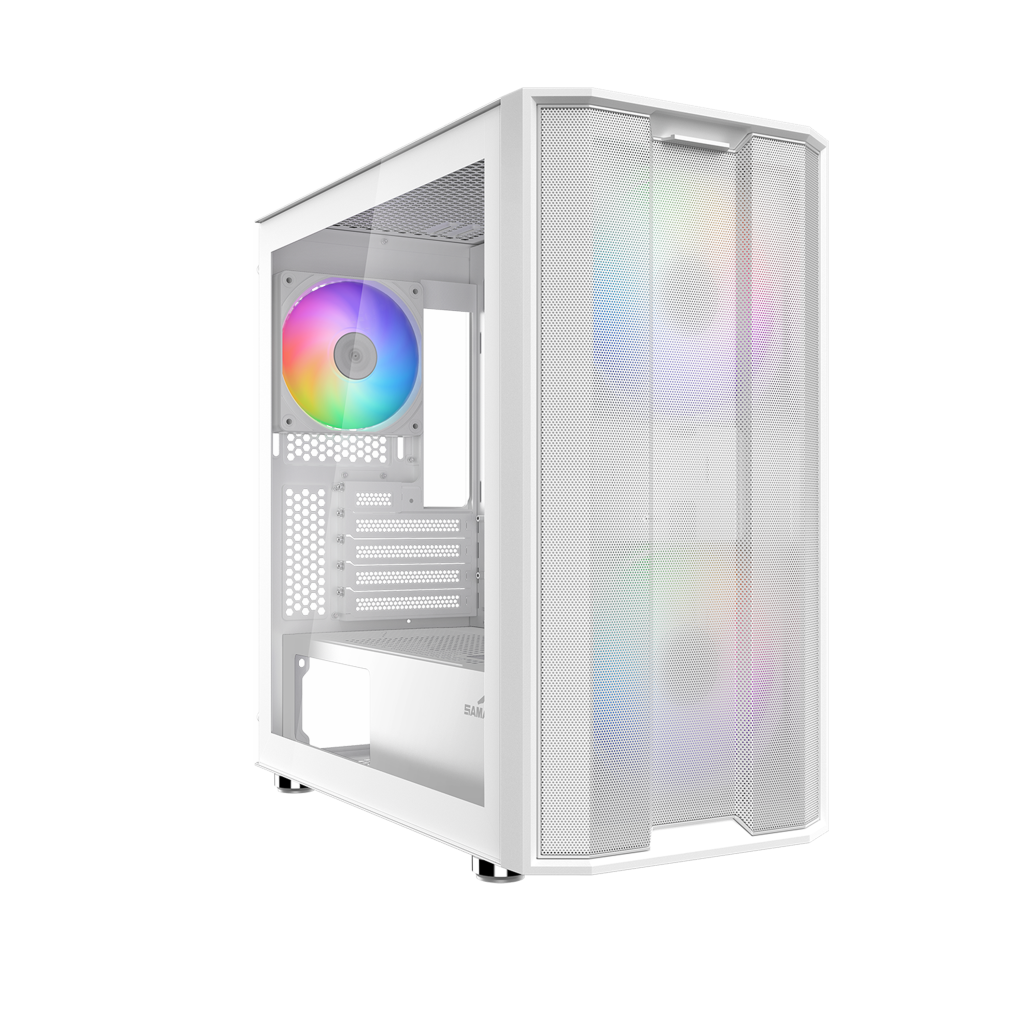

#ffffff | 2

view specifications

image pack

product manual

Specifications

EAN		6930788451302/ 6930788451319
P/N		S30-BKMPA3X1-GL / S30-WHMPA3X1-GL
Dimensions		429×215×422mm (L×W×H)
Materials		ABS+SPCC+Tempered Glass
Motherboard Support		M-ATX, ITX
Expansion Slots		4
Max CPU Cooler Height		166mm
Max GPU Length		350mm (Fan mounted inside: 330mm)
Power Supply Type		ATX, ≤200mm
Fan Support	Front	3×120mm / 2×140mm
	Top	2×120mm / 2×140mm
	Rear	1×120mm
	Bottom	2×120mm (PSU shroud)
	Side	N/A
Radiator Support	Front	360 / 280 / 240 / 120mm
	Top	280 / 240 / 120mm
	Rear	120mm
	Bottom	N/A
	Side	N/A
Pre-Installed Fans	Front	2×140mm ARGB PWM fans
	Rear	1×120mm ARGB PWM fan
	Bottom	None
Pre-Installed Fans Spec	Speed	600~1500RPM ± 10%
	Air flow	65.9CFM
	Noise	31.4dB
	Air Pressure	1.51mm-H20
I/O Ports		USB 3.1 Type-C×1, USB 3.0×1, Audio×1, Mic×1，Power×1，LED×1
3.5" Drive Bays		2
2.5" Drive Bays		2
Net Weight		5.7kg
