AlO Cooler

Q70

Introducing the SAMA Q70, a 360 AIO that features an LCD screen, marking the introduction of modular functionality to offer enhanced customization options.
Color
  • #ffffff
  • #000000
Product Manual SAMA Monitor Software
Amazon Newegg

SAMA Q70

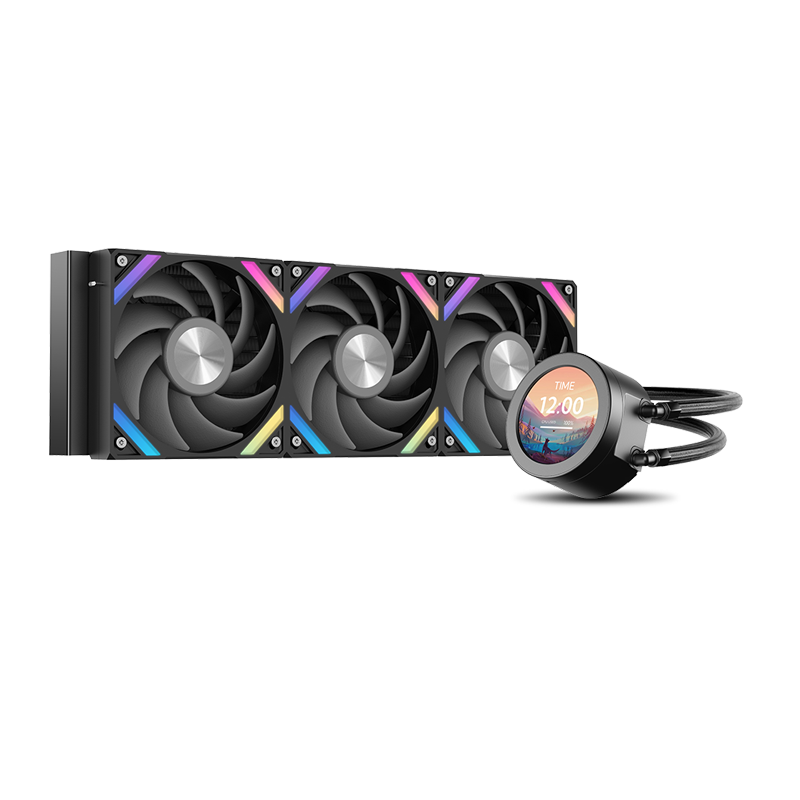

A 360 AIO that features an LCD screen, marking the introduction of modular functionality to offer enhanced customization options. It seamlessly blends high-performance cooling with a striking design, delivering an entirely new and dynamic PC cooling experience that caters to both aesthetics and efficiency.

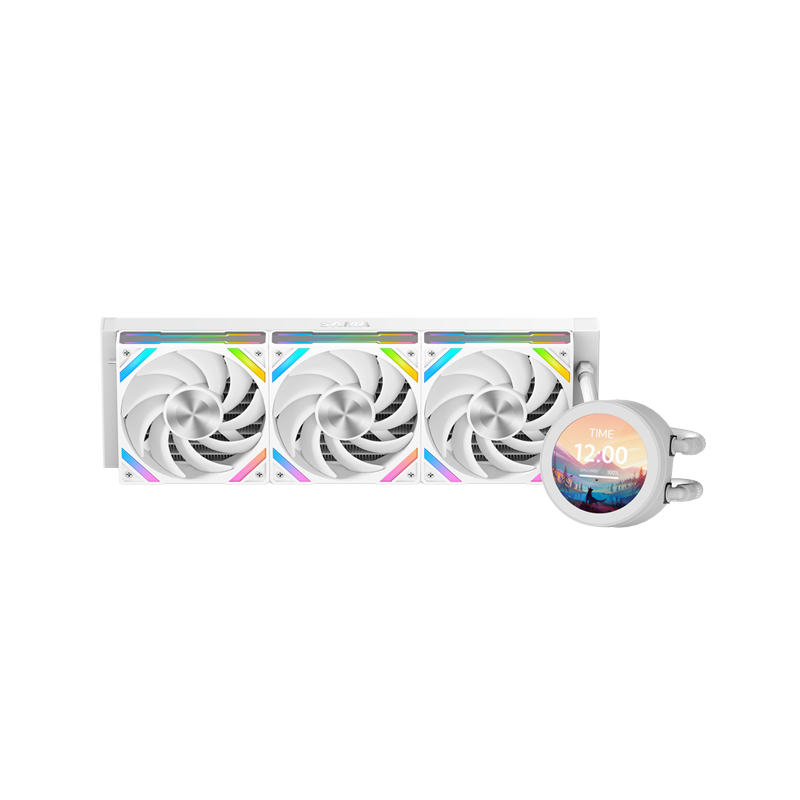

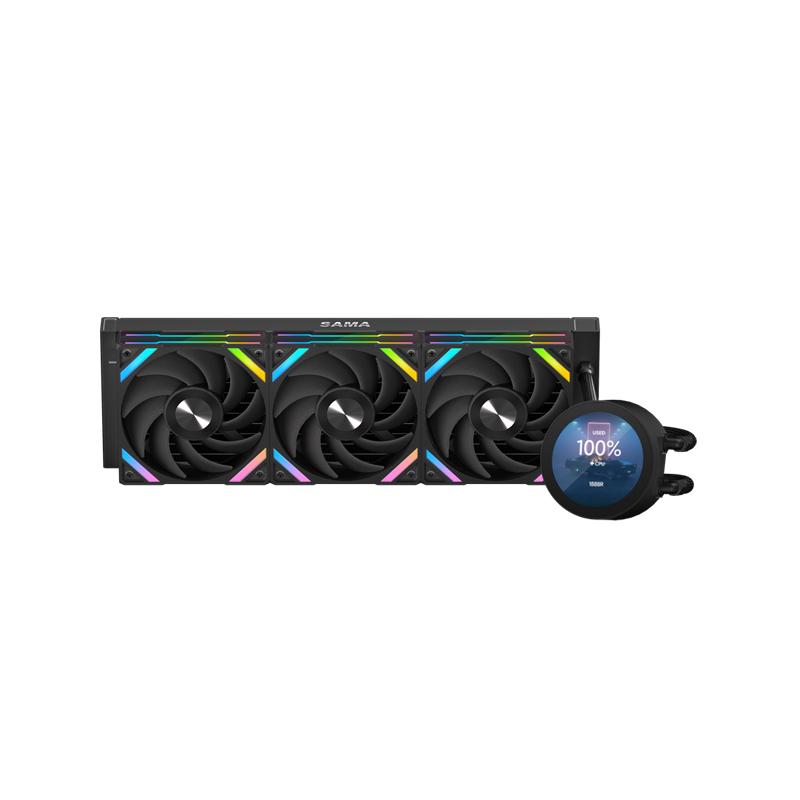

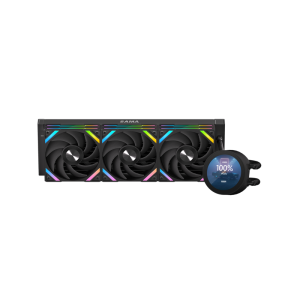

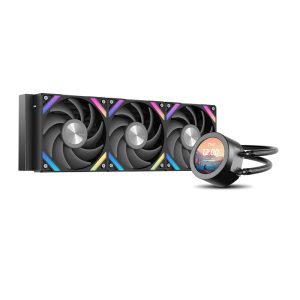

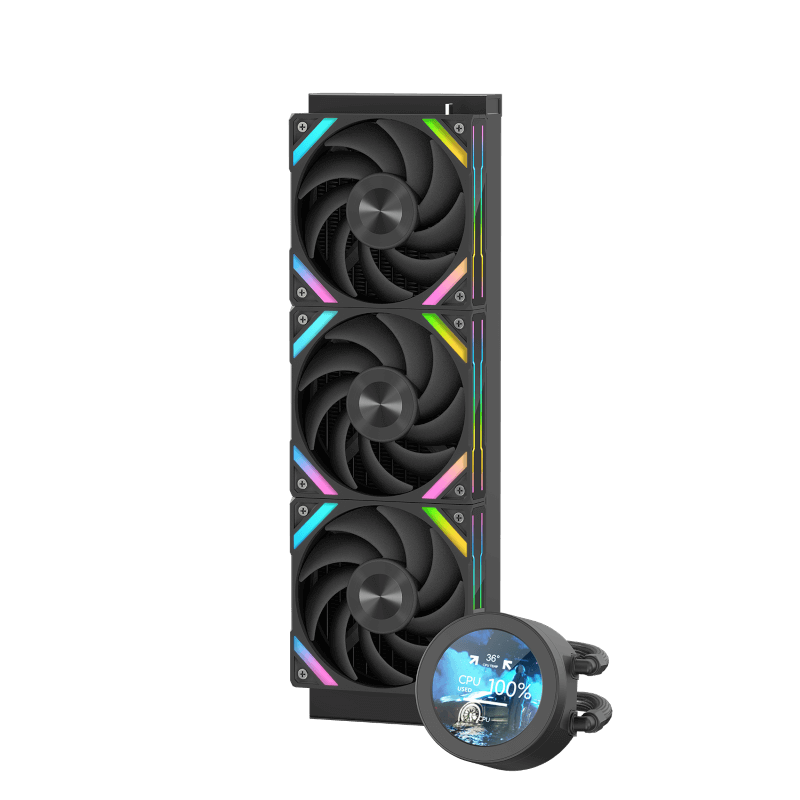

BLACK

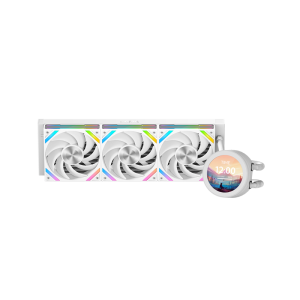

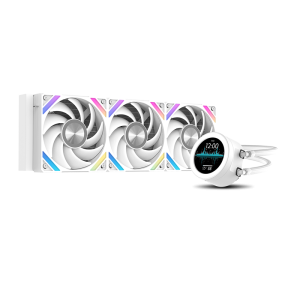

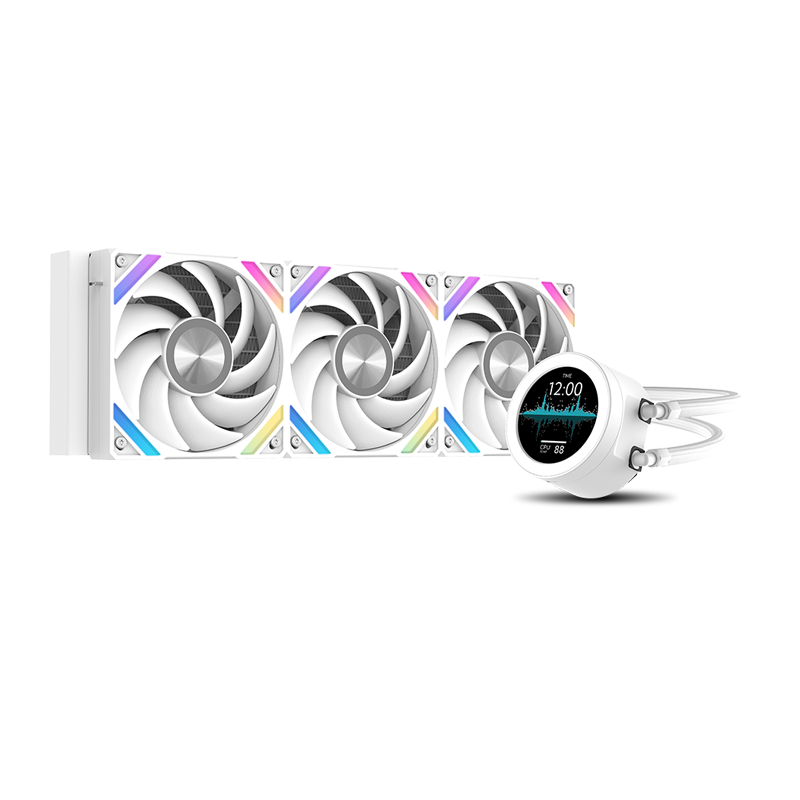

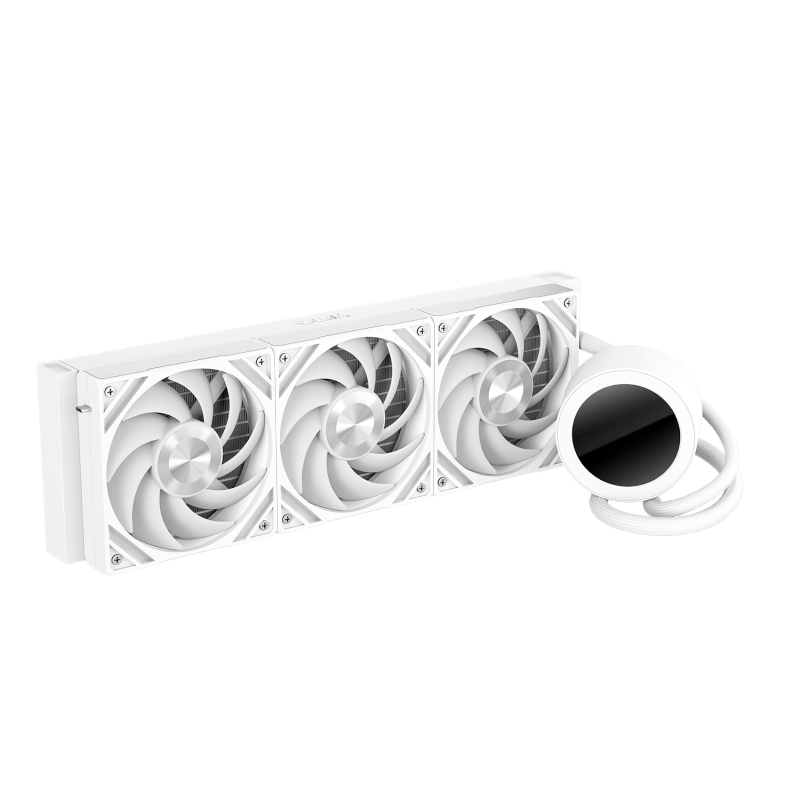

WHITE

AVAILABLE IN 2 COLORS

The SAMA Q70 is available in two sleek color options: black and white,allowing users to choose the perfect match for their build’s aesthetic. Whether you prefer a classic, understated look or a clean,modern style, the Q70 fits seamlessly into a variety of setups.
  • 2.8’’ LCD SCREEN
  • 480 x 480 Resolution
  • IPS Type Display
  • 500 nits Brightness

VISUALIZED EXPERIENCE

The LCD screen on the SAMA Q70 water block is fully customizable and can be controlled through SAMA Monitor software. With a wide array of multi-effects and personalization options, you can tailor the display to match your build’s style and showcase dynamic visuals for a truly unique experience.

INNOVATIVE MODULAR FUNCTION

The screen on the SAMA Q70 features a magnetic attachment structure, allowing it to be easily detached and mounted elsewhere in your setup.
This flexibility provides a variety of customization options, enabling youto position the screen for optimal visibility and style, adding a personalized touch to your build.

XT120 PRE-INSTALLED

The Q70 arrives equipped with SAMA XT120 fans pre-installed. These stylish fans delivers instant cooling performance while adding dynamic, vibrant lighting effects to enhance the visual appeal of your build.

  • LCP Blade
  • Type-C Daisy-Chaining
  • Fluid Dynamic Bearing
  • 28mm Thick Frame
Thickness: 1.5mm

THICK COPPER BASE

The cold plate of the SAMA Q70 features a thick copper base design, offering superior thermal performance. This design efficiently dissipates heat, ensuring the cooler can handle high temperatures with ease and maintain optimal performance even during intense workloads.
27mm

OPTIMIZED RADIATOR

The SAMA Q70 features a 27mm thick aluminum radiator,providing increased coolant capacity and a larger surface area for enhanced cooling efficiency. The 20mm thick internal water channels allow the coolant to exchange heat more effectively, delivering powerful and consistent cooling performance to keep your system running at optimal temperatures.

SEAMLESS CONTROL

Via SAMA Monitor, the display content on the Q70’s screen can be fully customized.
DOWNLOAD SOFTWARE
Users can monitor hardware information, upload images or videos, and choose from a variety of pre-set themes.

DUAL-PLATFORM READY

The SAMA Q70 is equipped with mounting sockets that are compatible with mainstream CPUs, ensuring easy installation across a wide range of systems.
  • INTEL
    • 2011
    • 115X
    • 1700
    • 1200
    • 1851
  • AMD
    • AM4
    • AM5

ACCESSORIES INCLUDED

The SAMA Q70’s screen can be mounted on specially designed accessories, allowing it to be displayed in unique and customizable ways.
120mm Fan Frame Bracket
Desktop Stand

Specifications
Model Q70 BK/WH Fan Included Fans:3pcs
Dimension:120×120×28mm
Bearing Type:Hydraulic bearing FDB
Speed:500-2600±10%RPM
Air Flow:86CFM（Max）
Air Pressure:3.7mmH2O
Fan Noise:≤35dB-A
Rated Voltage:DC 12V
Rated Current:0.35A
P/N Q70-BKWAYNO3-G
Q70-WHWAYNO3-G
CPU Socket Intel LGA:115X/1200/1700/20XX
AMD:AM5/AM4
Tube Length 380mm
Warranty 5 Years
Radiator Dimension:397×120×27mm
Material:Aluminum Fins
Pump Dimension:95×100.8×64.1mm(L×W×H)
Speed:2500RPM±10% PWM
Noise:≤35dB-A
Connector:3Pin
Rated Voltage:12 VDC
Rated Current:≤0.30 A
Power Consumption:≤3.6 W		 Fan LED Power Consumption:4.2W
Connector:2510- 4PIN
Type:A RGBConnector:ARGB 4P MALE
FEMALE CONNECTOR
Rated Current:0.72A
Power Consumption:≤3.6 W
