AlO Cooler

Q60

Featuring an LCD screen on its aluminum water block, the SAMA Q60 AIO introduces a new, visually immersive cooling experience.
Color
  • #ffffff
  • #0a0a0a
Product Manual SAMA Monitor Software
Amazon Newegg

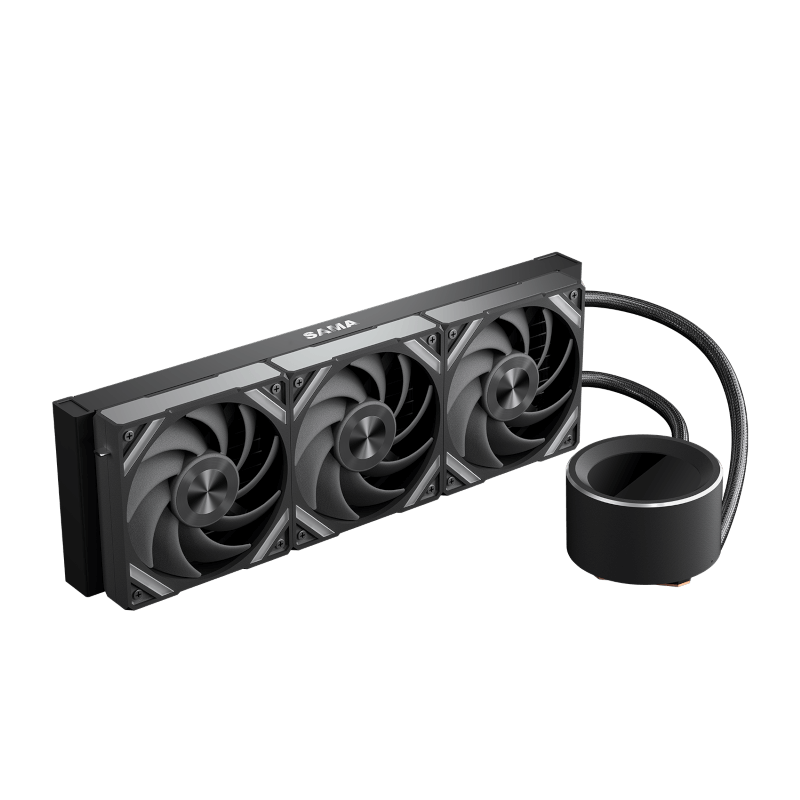

SAMA Q60

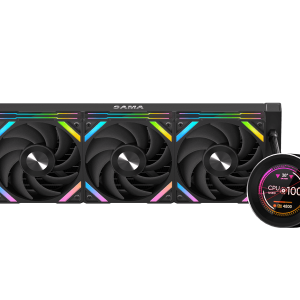

Featuring an LCD screen on its aluminum water block, the SAMA Q60 AIO introduces a new, visually immersive cooling experience. This innovative design not only enhances functionality but also adds a striking visual element to your build, combining high-performance cooling with modern aesthetics.

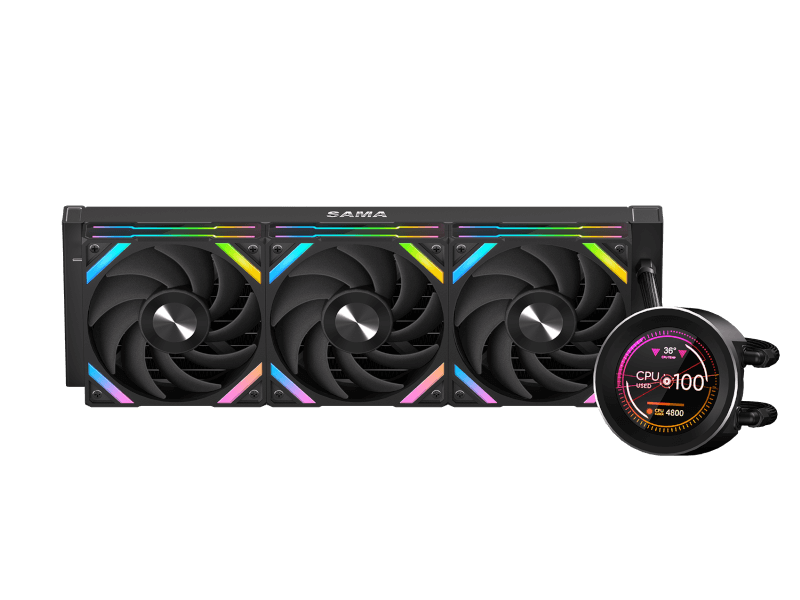

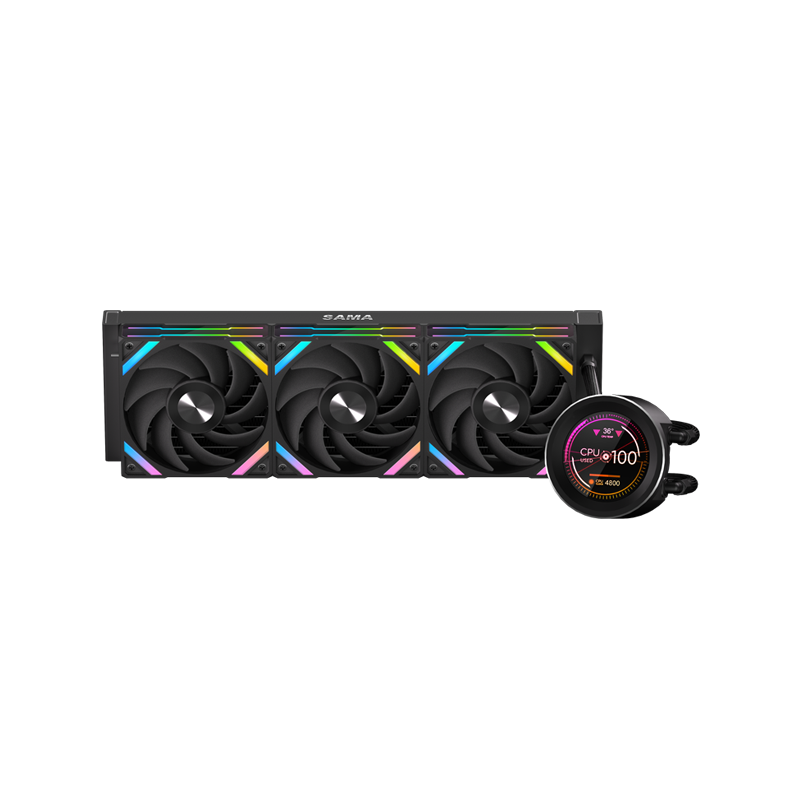

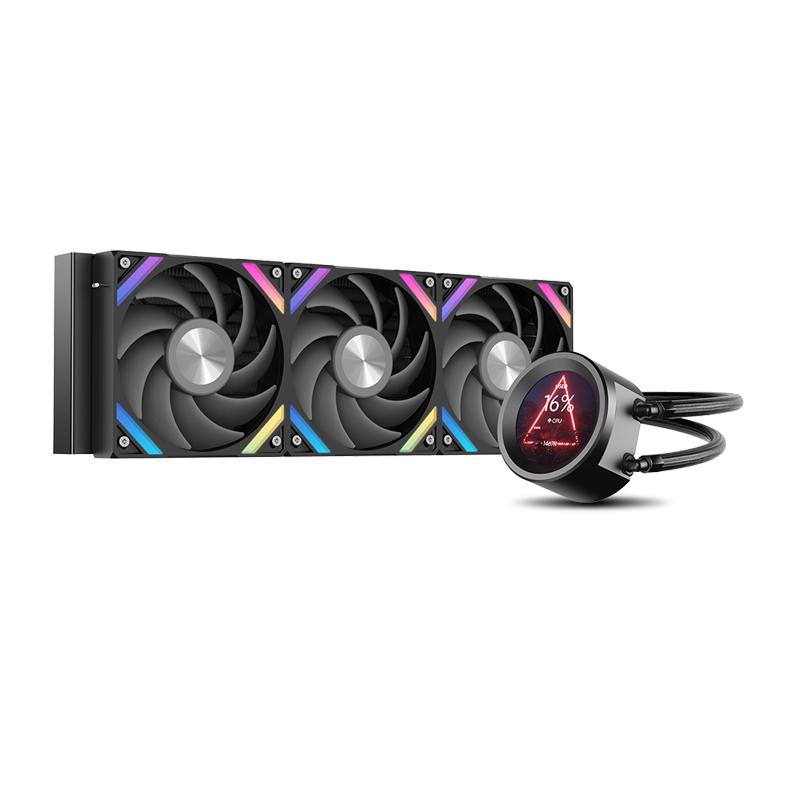

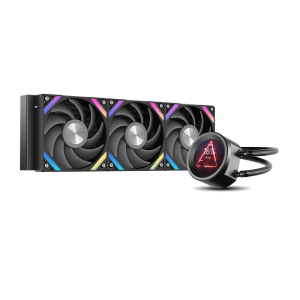

BLACK

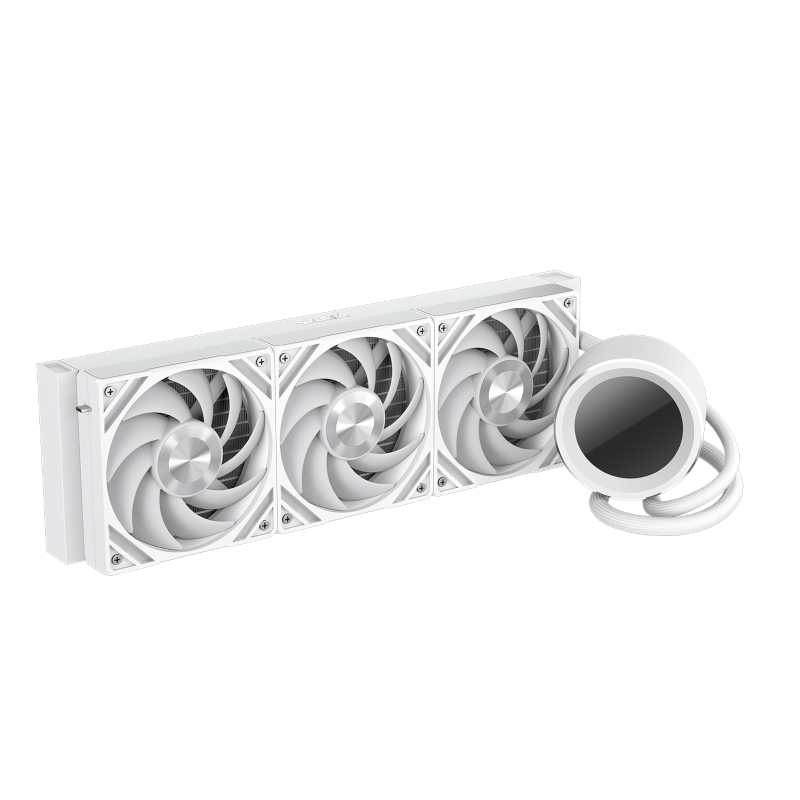

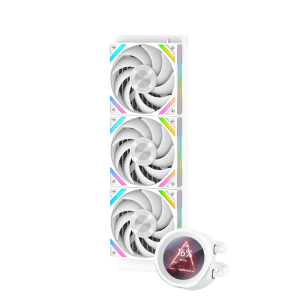

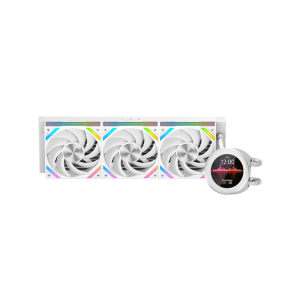

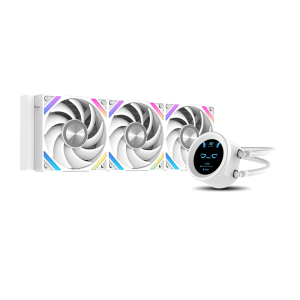

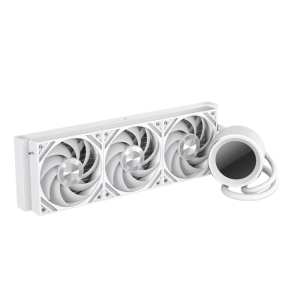

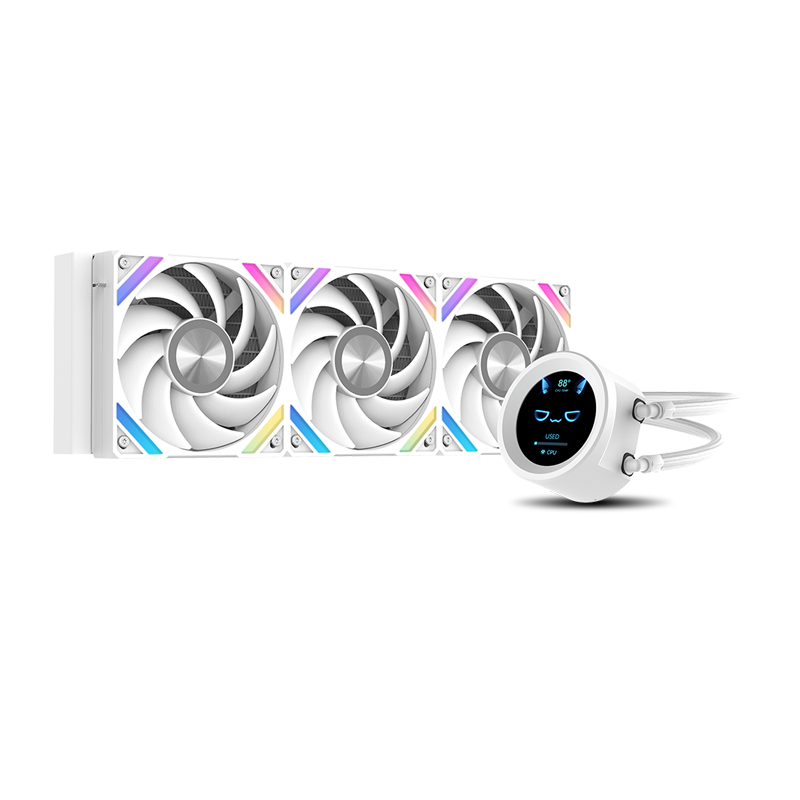

WHITE

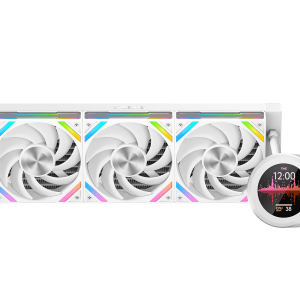

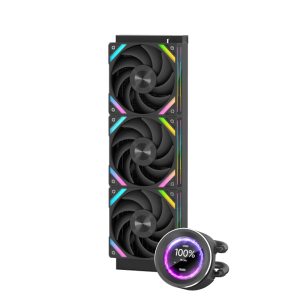

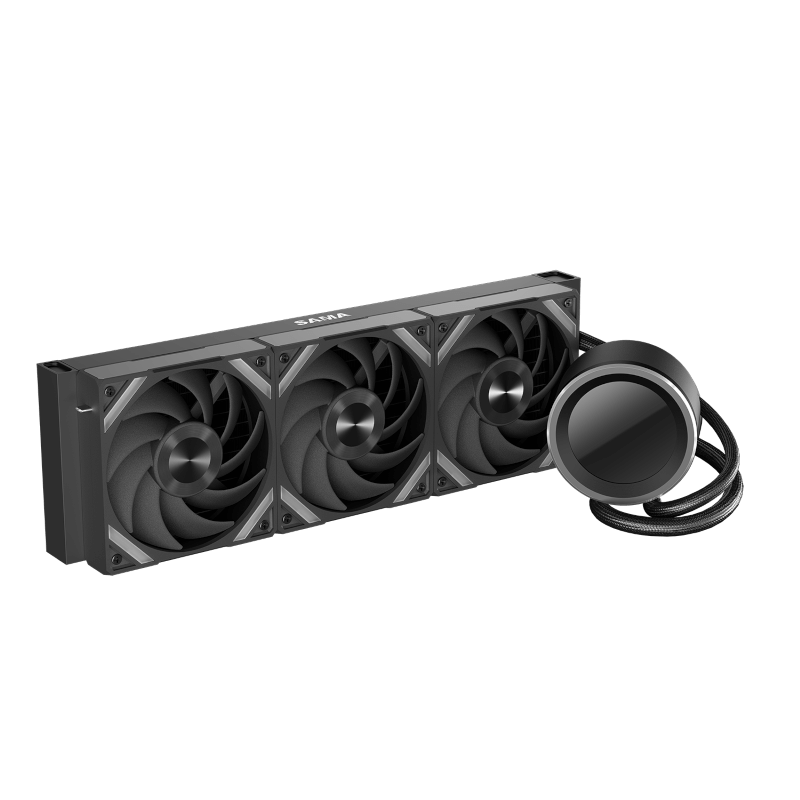

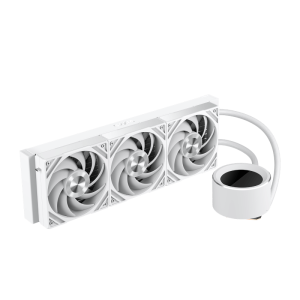

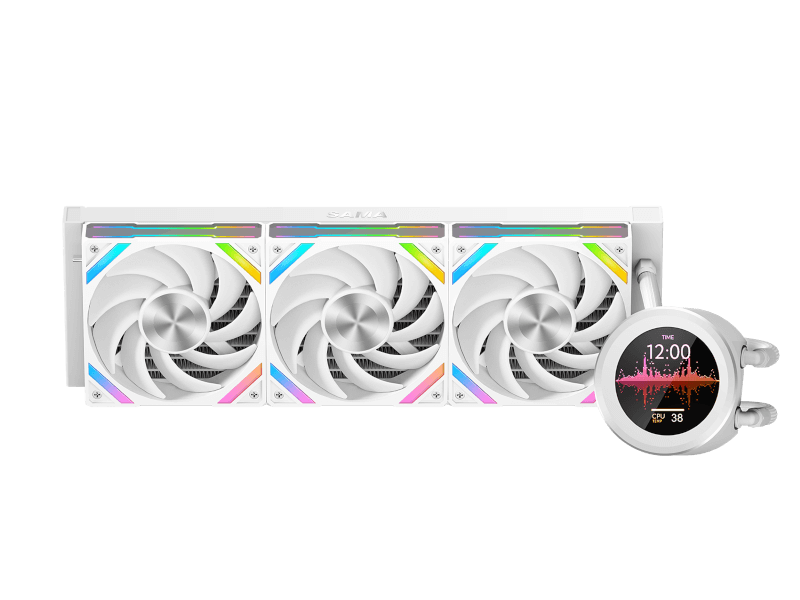

AVAILABLE IN 2 COLORS

The SAMA Q60 AIO is available in two color options: black and white, allowing you to choose the perfect match for your build’s aesthetic. Whether you prefer a sleek, subtle look or a clean, modern design, the Q60 fits seamlessly into any setup.

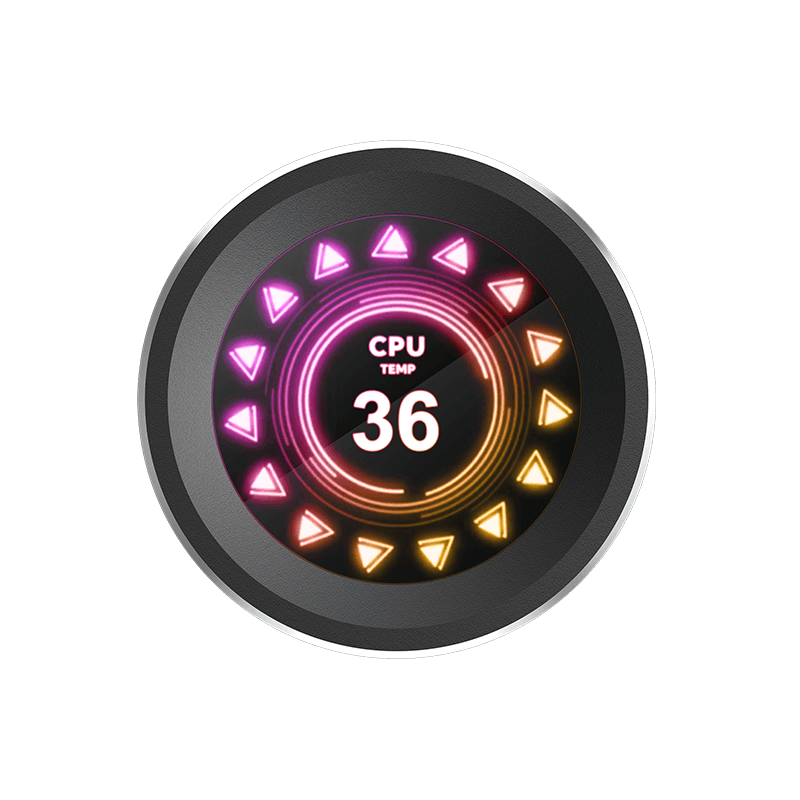

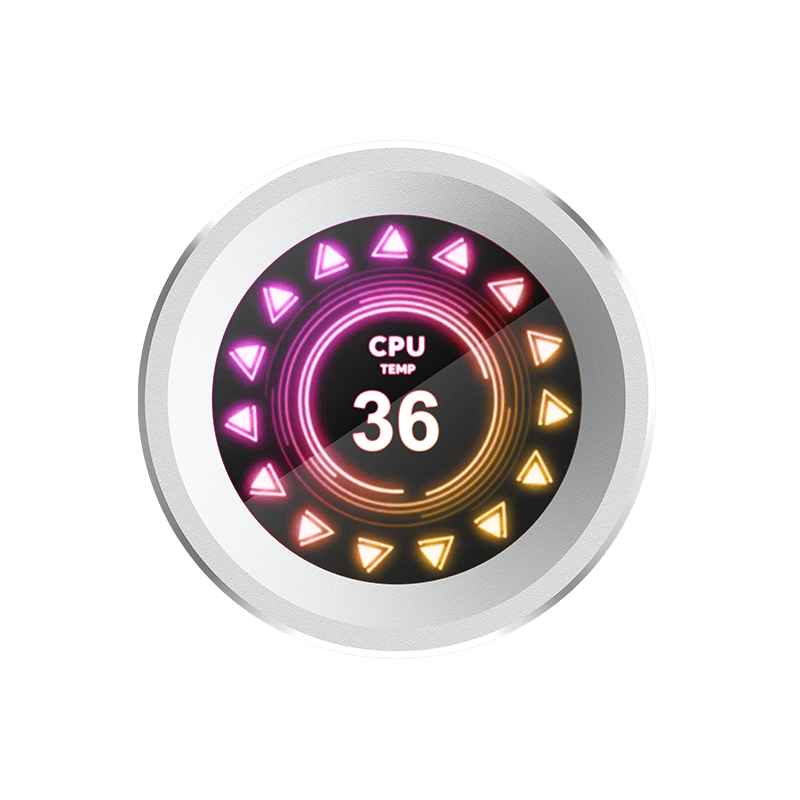

  • 2.8’’ LCD SCREEN
  • 480 x 480 Resolution
  • IPS Type Display
  • 500 nits Brightness

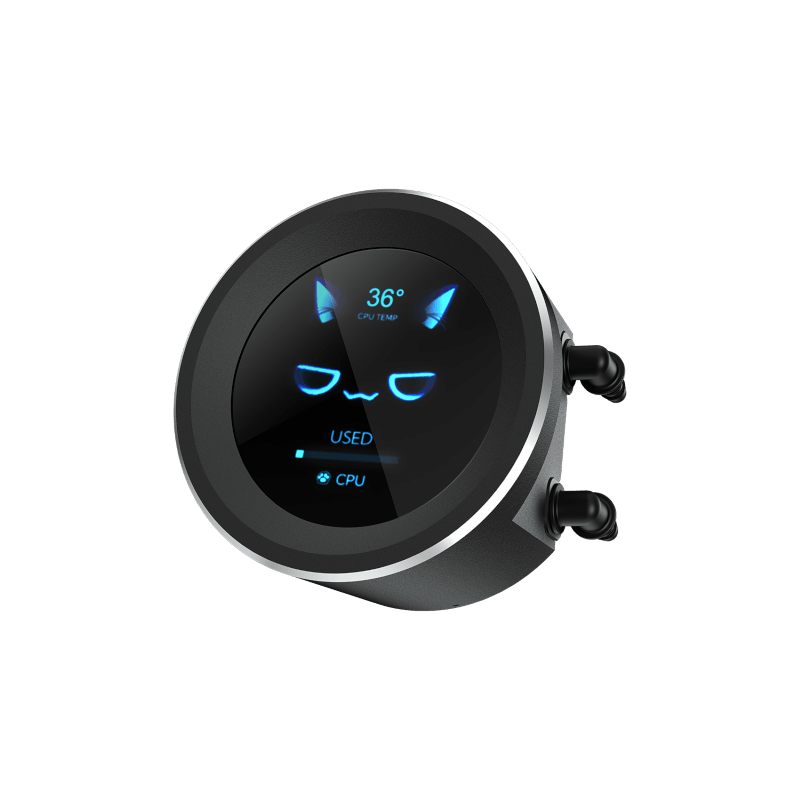

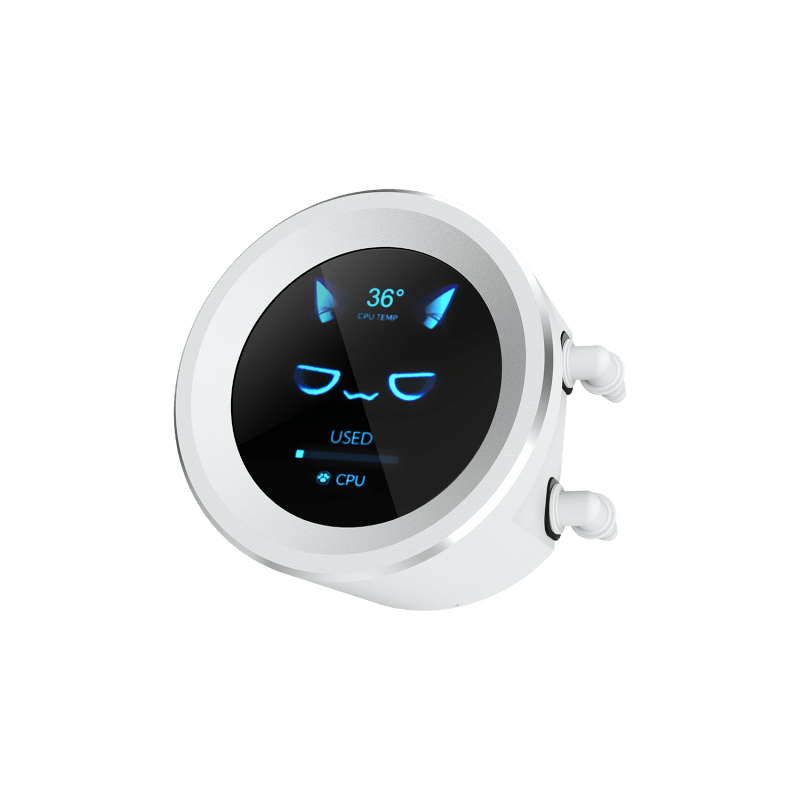

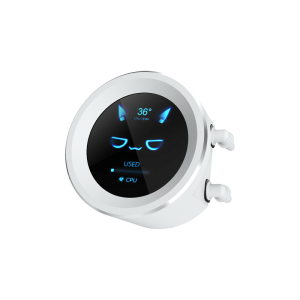

VISUALIZED COOLING

The LCD screen on the water block is fully customizable and can be controlled via the SAMA Monitor software. With a vast range of multi-effects and personalization options, you can adjust the display to reflect your build’s style, showcasing dynamic visuals and creating a truly unique and eye-catching experience.

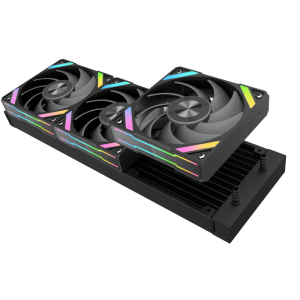

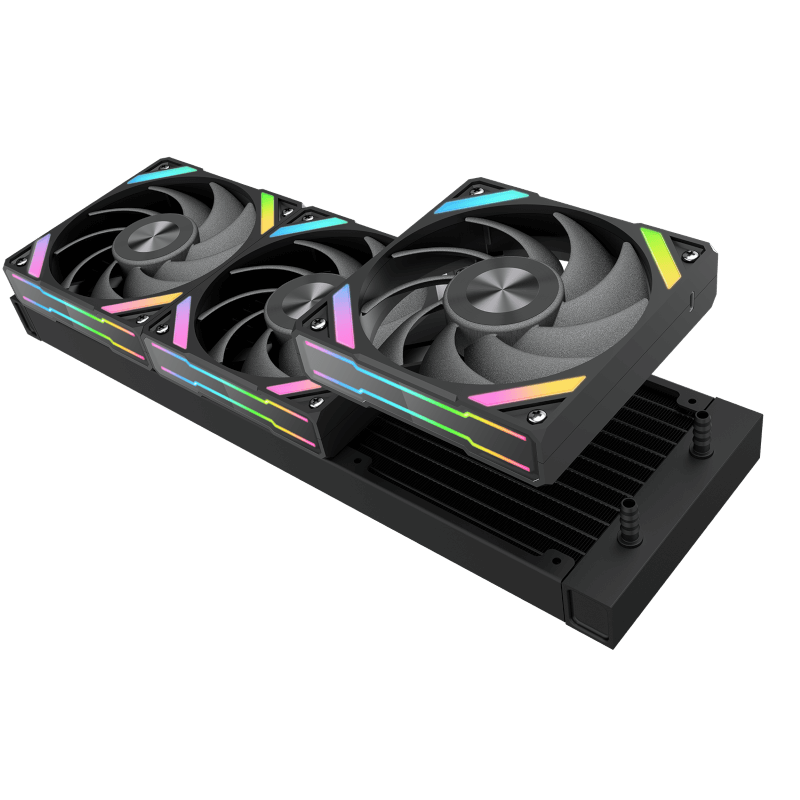

XT120 PRE-INSTALLED

The Q60 arrives equipped with SAMA XT120 fans pre-installed. These stylish fans delivers instant cooling performance while adding dynamic, vibrant lighting effects to enhance the visual appeal of your build.

  • LCP Blade
  • Type-C Daisy-Chaining
  • Fluid Dynamic Bearing
  • 28mm Thick Frame
Thickness: 1.5mm

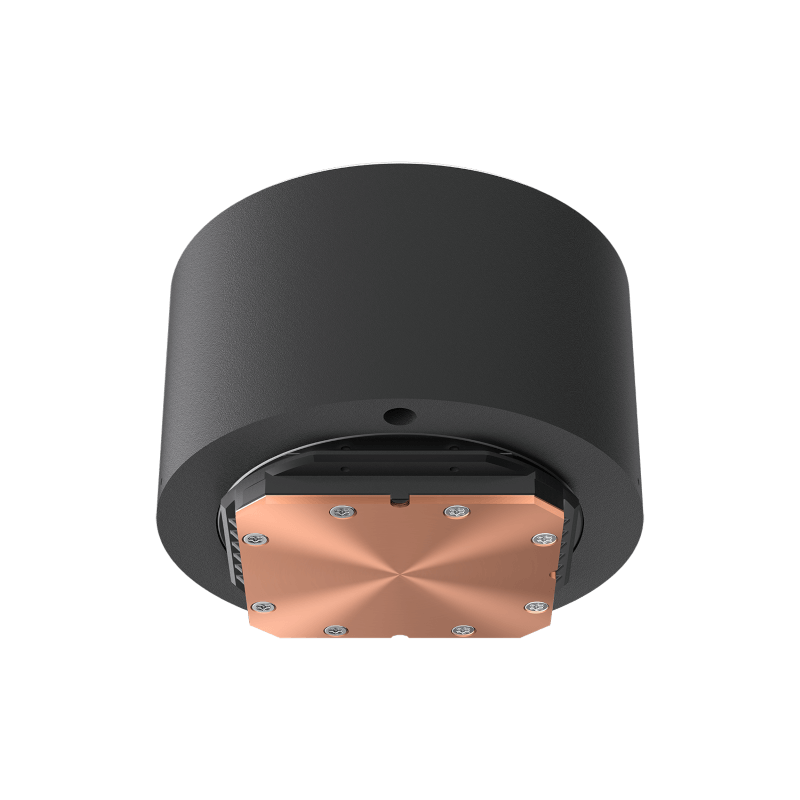

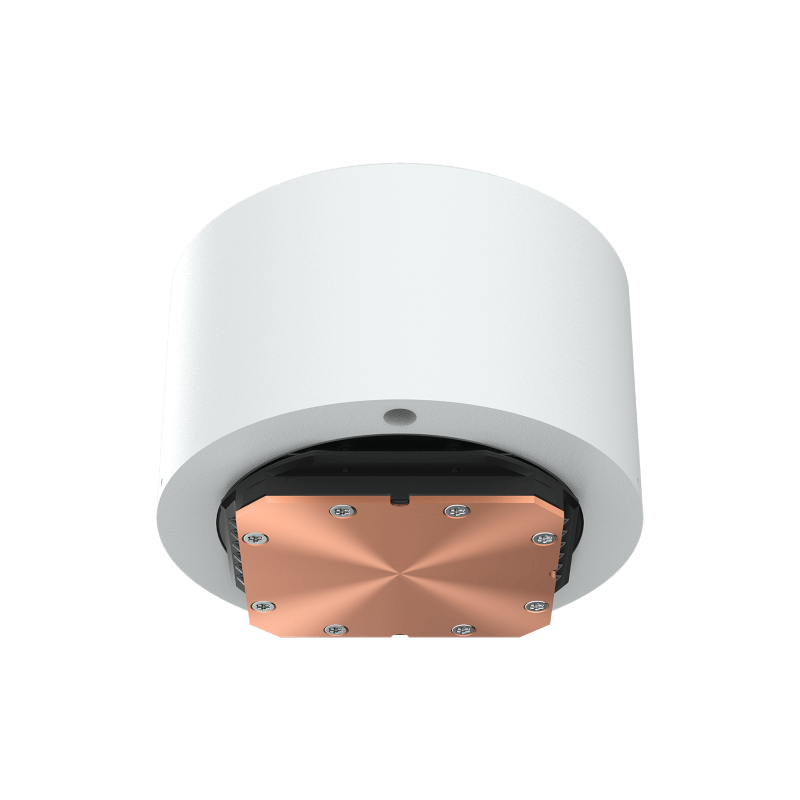

THICK COPPER BASE

The cold plate of the SAMA Q60 is designed with a thick copper base, providing exceptional thermal performance. This robust design enhances heat dissipation, allowing the cooler to effectively manage high temperatures and maintain optimal performance, even under demanding workloads.
27mm

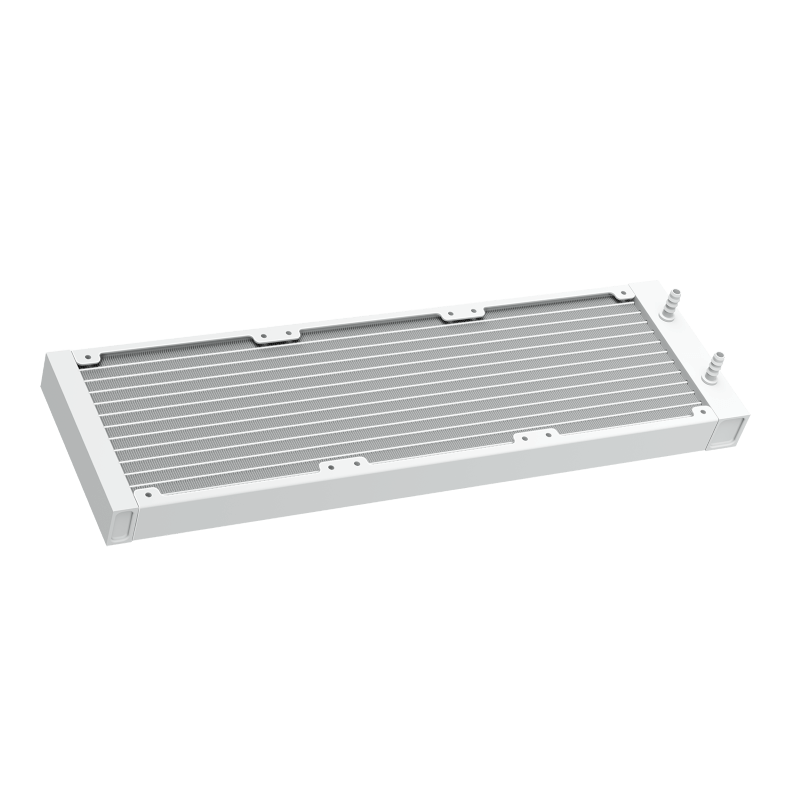

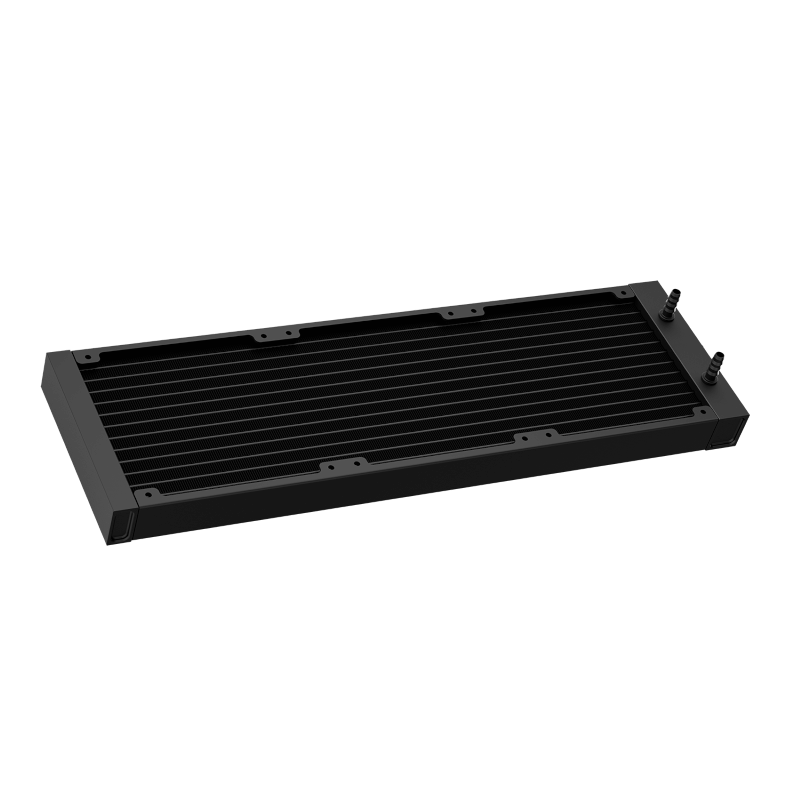

HIGH-PERFORMANCE RADIATOR

The SAMA Q60 is equipped with a 27mm thick aluminum radiator, offering increased coolant capacity and a larger surface area for improved cooling efficiency. Its 20mm thick internal water channels enable more effective heat exchange, delivering powerful and consistent cooling performance to ensure your system maintains optimal temperatures, even under heavy loads.

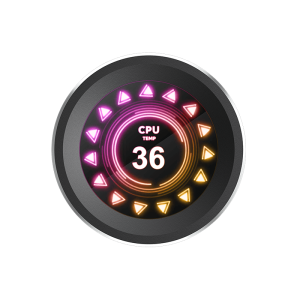

SEAMLESS CONTROL

Through SAMA Monitor, the display content on the Q60’s screen can be fully customized.
DOWNLOAD SOFTWARE
Users can monitor real-time hardware information, upload images or videos, and select from a range of pre-set themes, allowing for a personalized and dynamic visual experience tailored to their build.

DUAL-PLATFORM READY

The SAMA Q60 is equipped with mounting sockets that are compatible with mainstream CPUs, ensuring easy installation across a wide range of systems.
  • INTEL
    • 2011
    • 115X
    • 1700
    • 1200
    • 1851
  • AMD
    • AM4
    • AM5

Specifications
Model Q60 BK/WH Fan Included Fans:3pcs
Dimension:120×120×28mm
Bearing Type:Hydraulic bearing FDB
Speed:500-2600±10%RPM
Air Flow:83CFM（Max）
Air Pressure:2.6 mmH2O
Fan Noise:≤34.8dB-A
Rated Voltage:DC 12V
Rated Current:0.35A
P/N Q60-BKWAYNO3-G
Q60-WHWAYNO3-G
CPU Socket Intel LGA:115X/1200/1700/20XX
AMD:AM5/AM4
Tube Length 380mm
Warranty 5 Years
Radiator Dimension:397×120×27mm
Material:Aluminum Fins
Pump Dimension:95×100.8×64.1mm(L×W×H)
Speed:2500RPM±10% PWM
Noise:≤35dB-A
Connector:3Pin
Rated Voltage:12 VDC
Rated Current:≤0.30 A
Power Consumption:≤3.6 W		 Fan LED Power Consumption:4.2W
Connector:2510- 4PIN
Type:A RGB
Connector:ARGB 4P MALE
FEMALE CONNECTOR
Rated Current:0.72A
Power Consumption:≤3.6 W
