Power Supplies

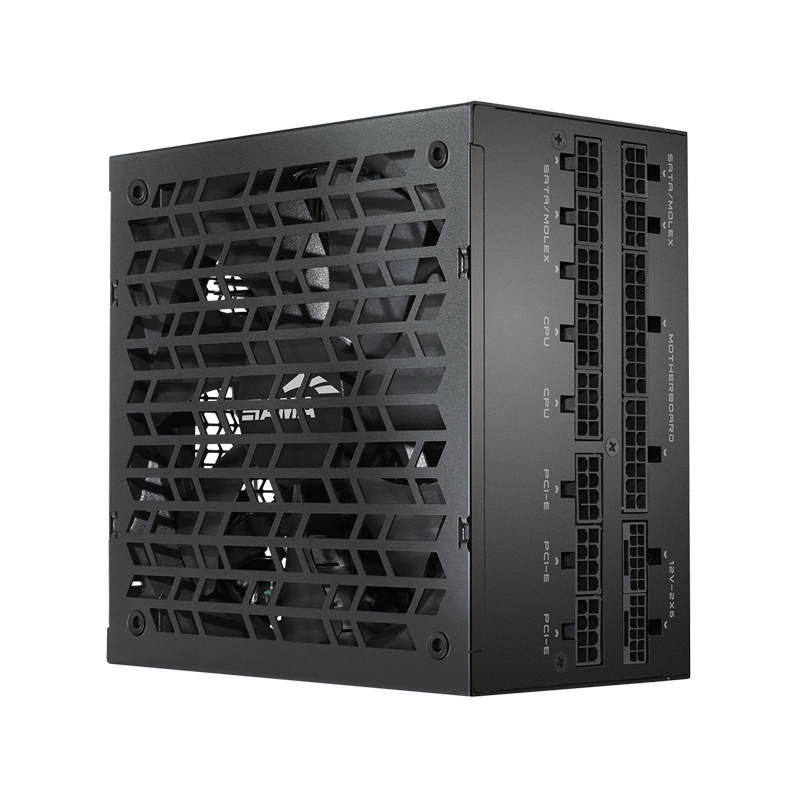

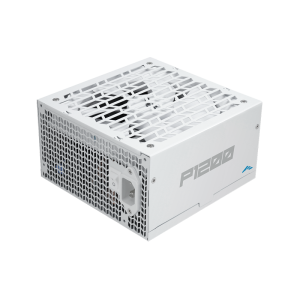

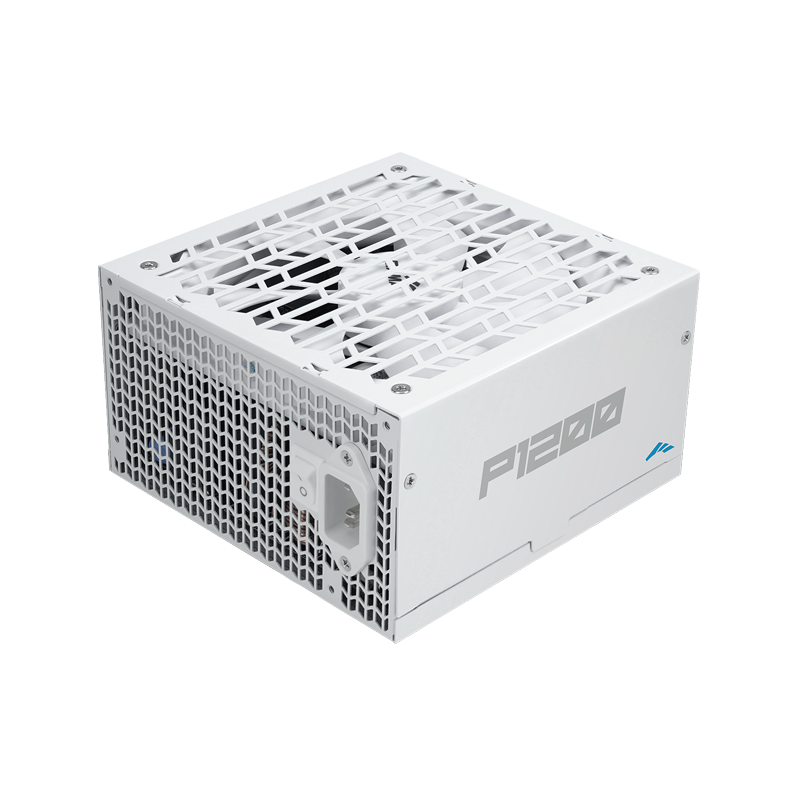

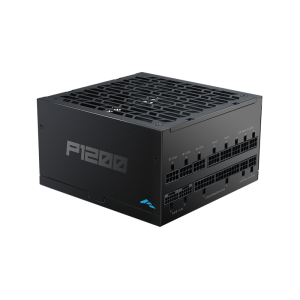

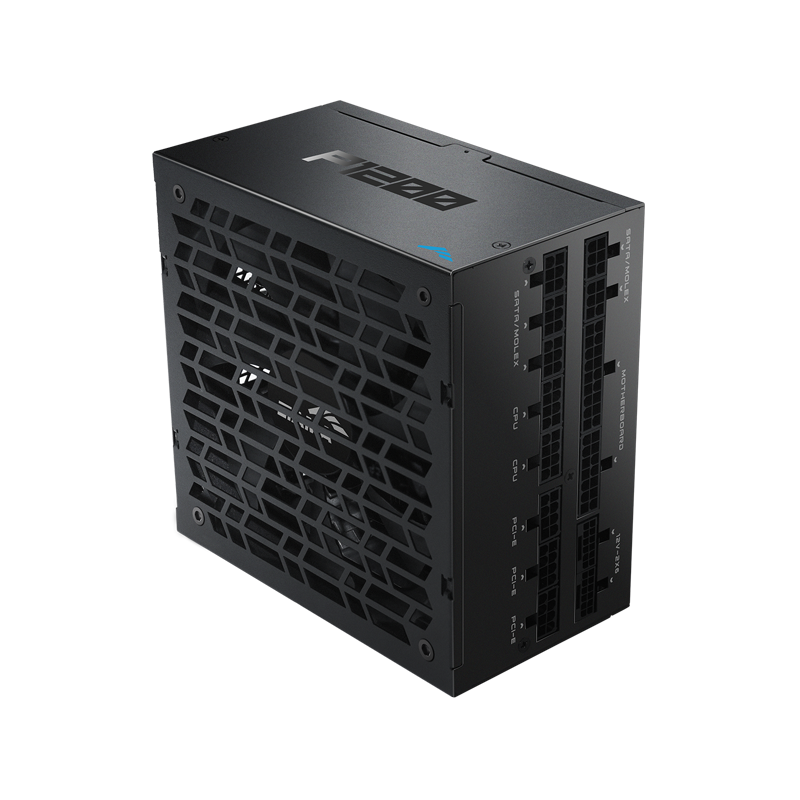

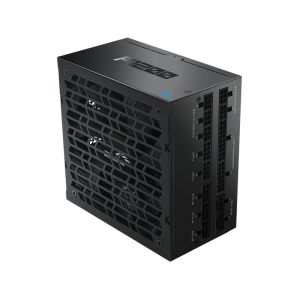

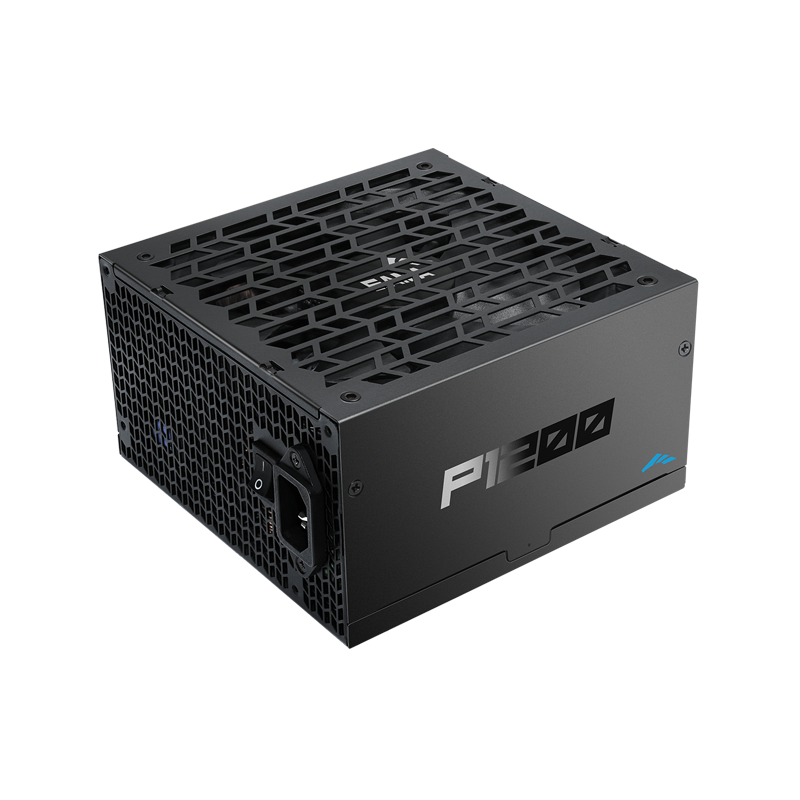

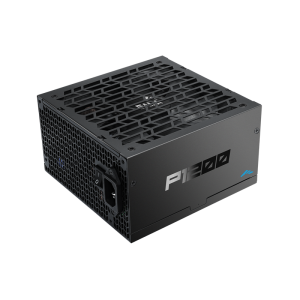

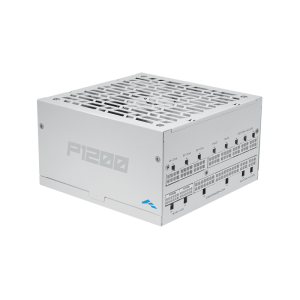

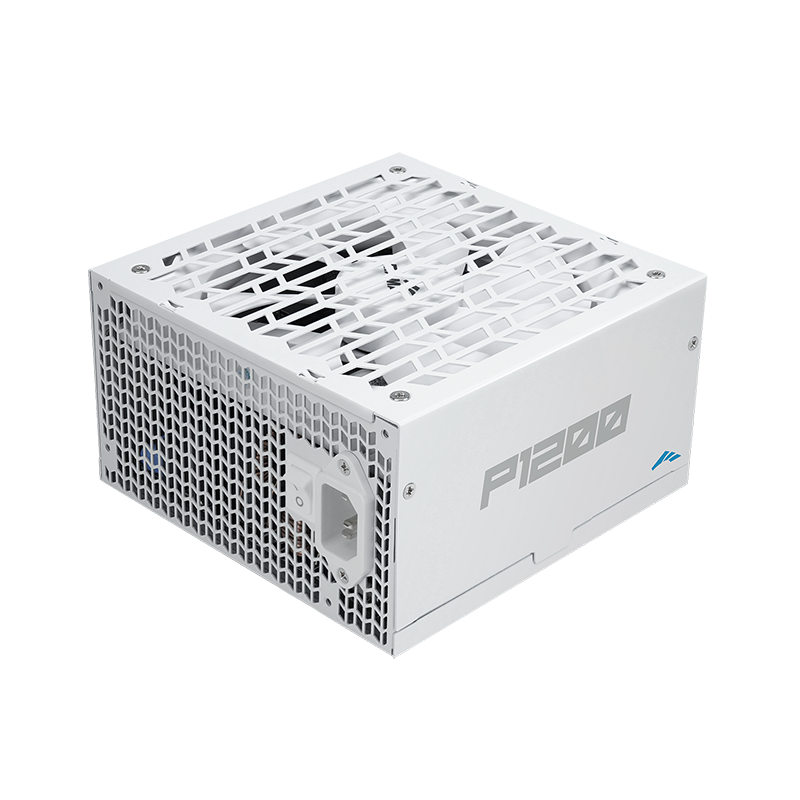

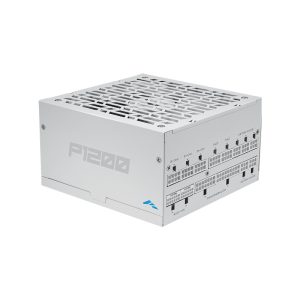

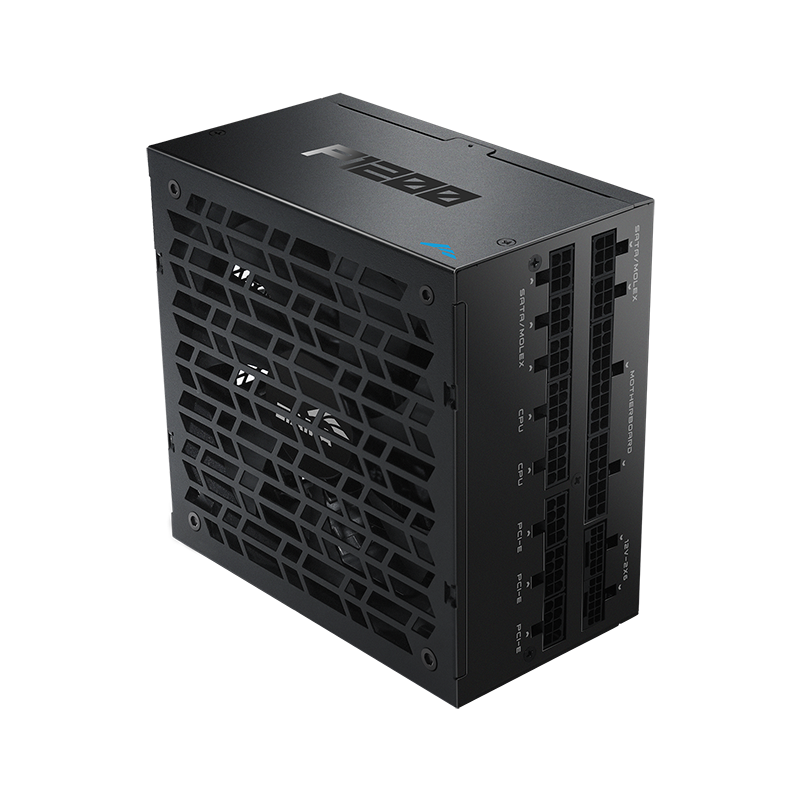

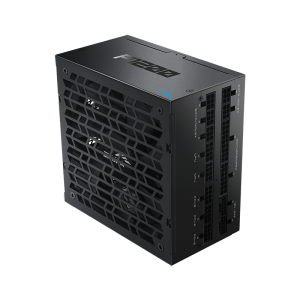

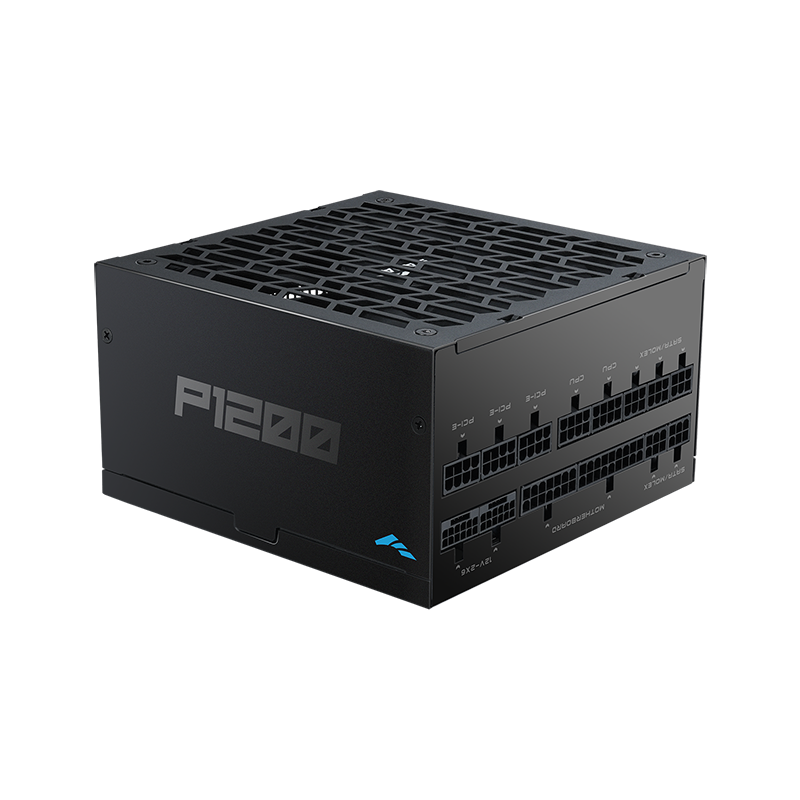

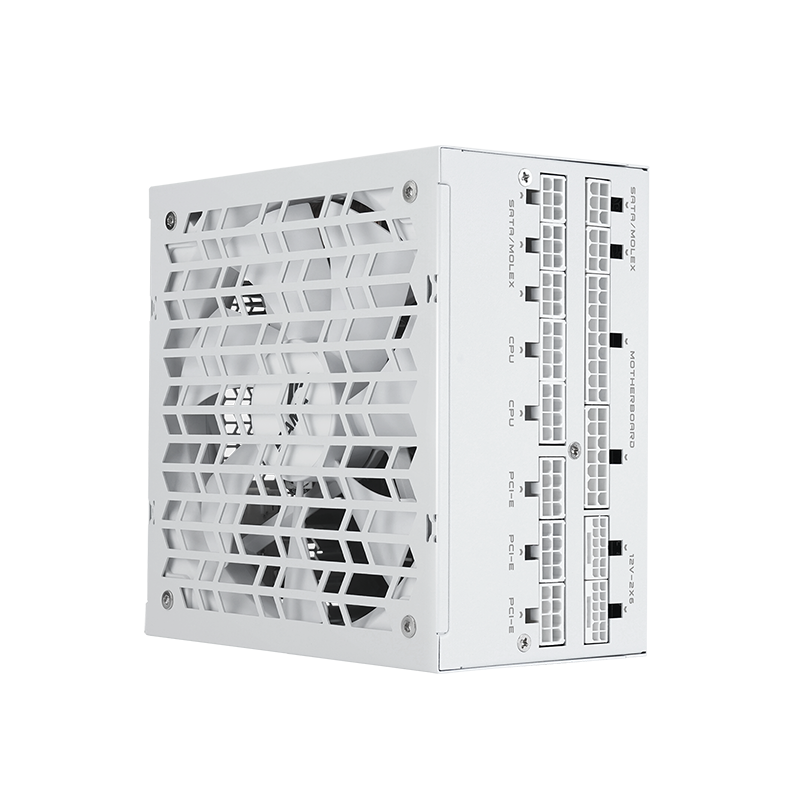

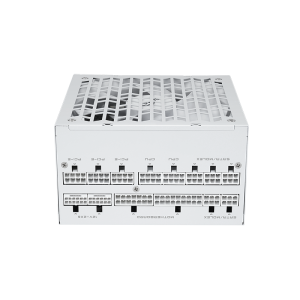

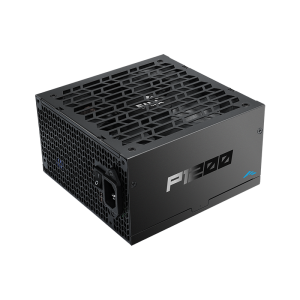

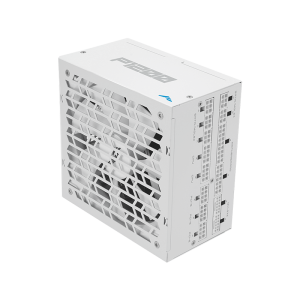

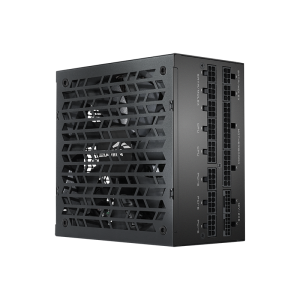

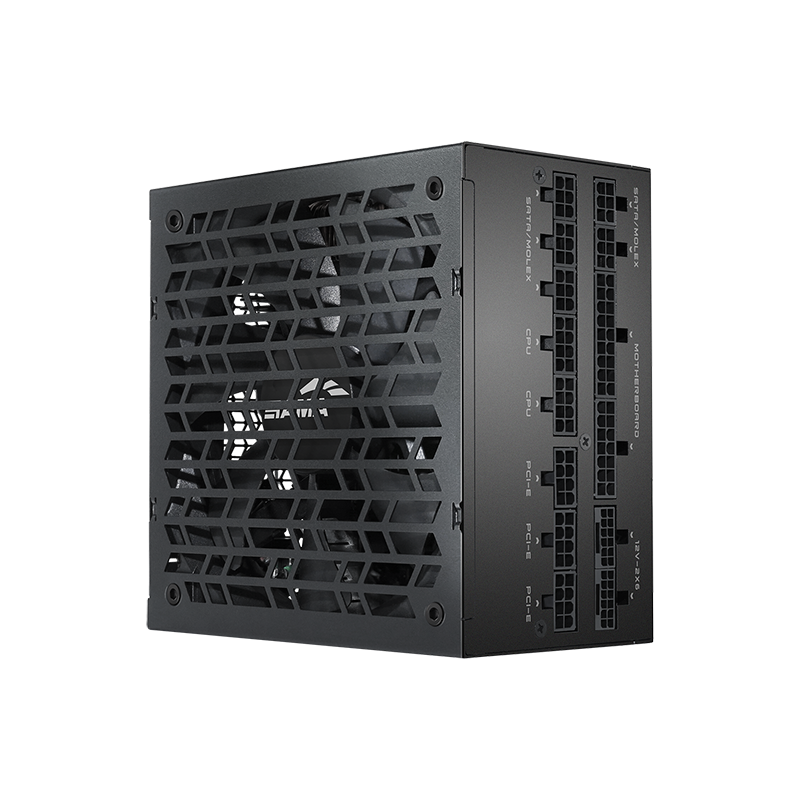

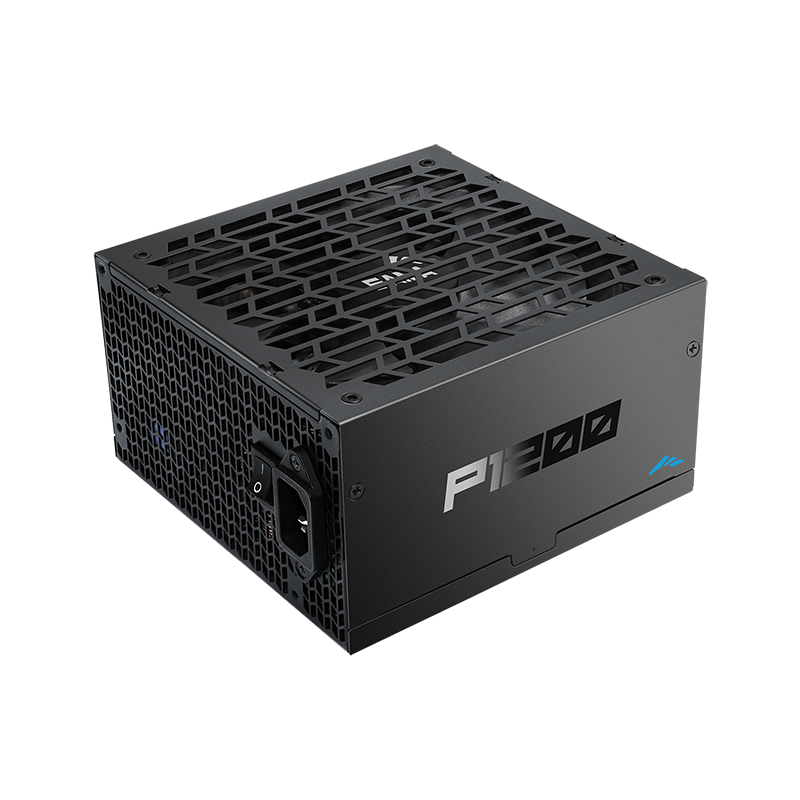

P1200

The P series offers versatile options in multiple configurations to meet various power needs and complement different component color schemes. This flexibility lets users choose the ideal PSU for both performance and aesthetic cohesion in their builds.

color

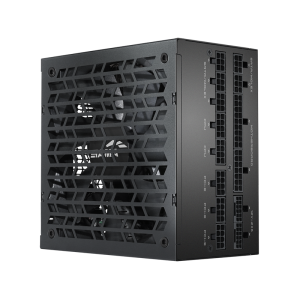

#000000 | 1

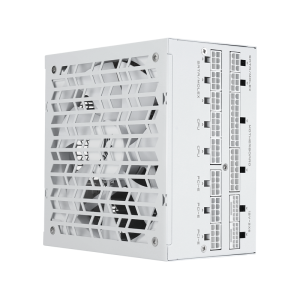

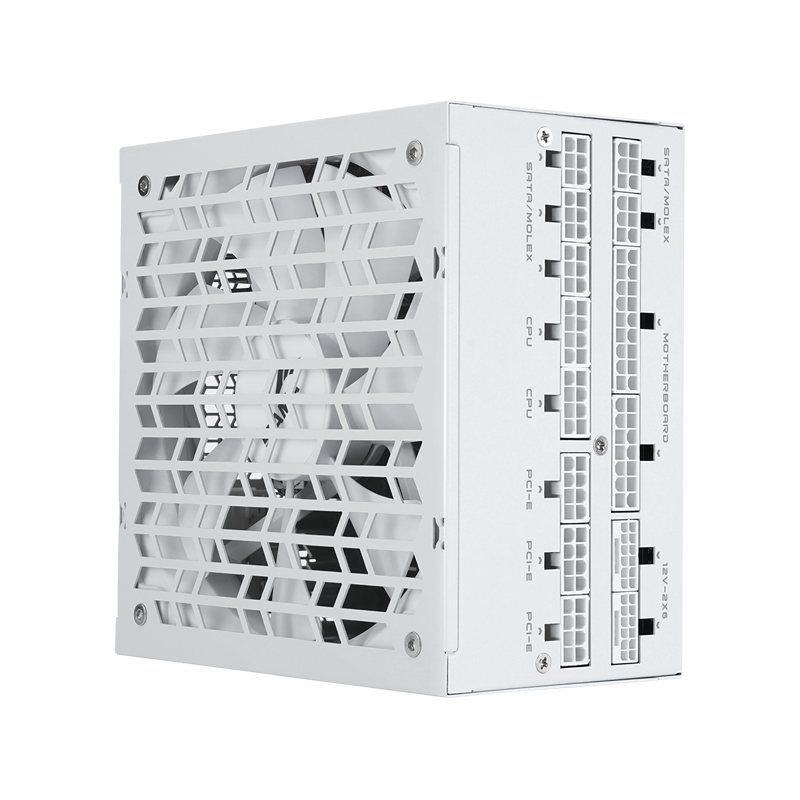

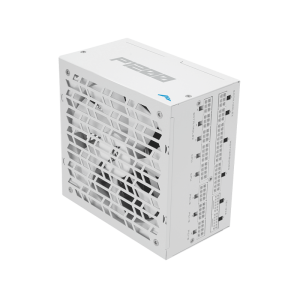

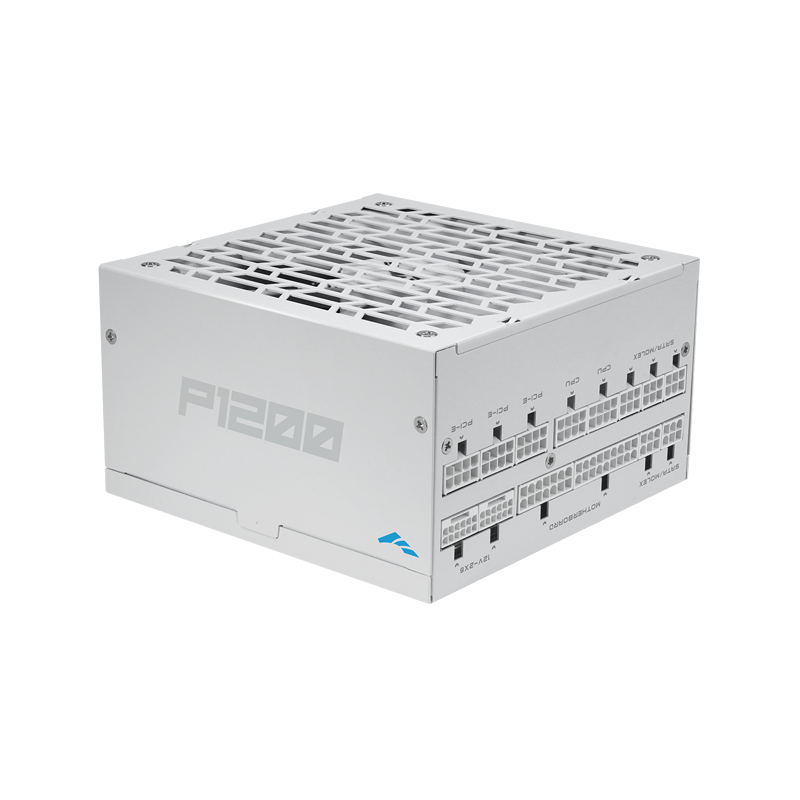

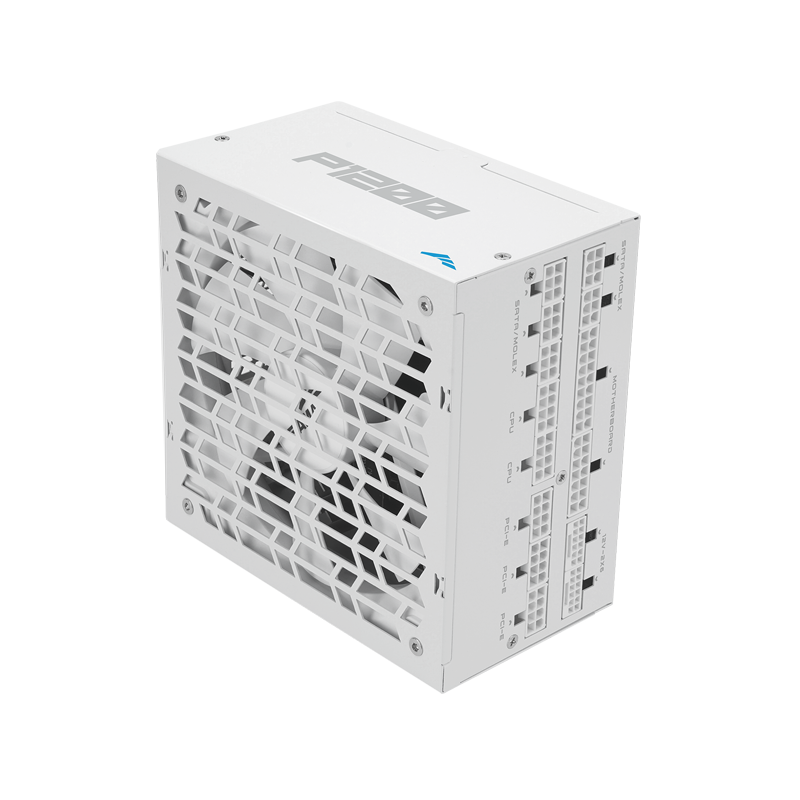

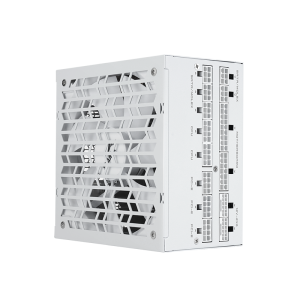

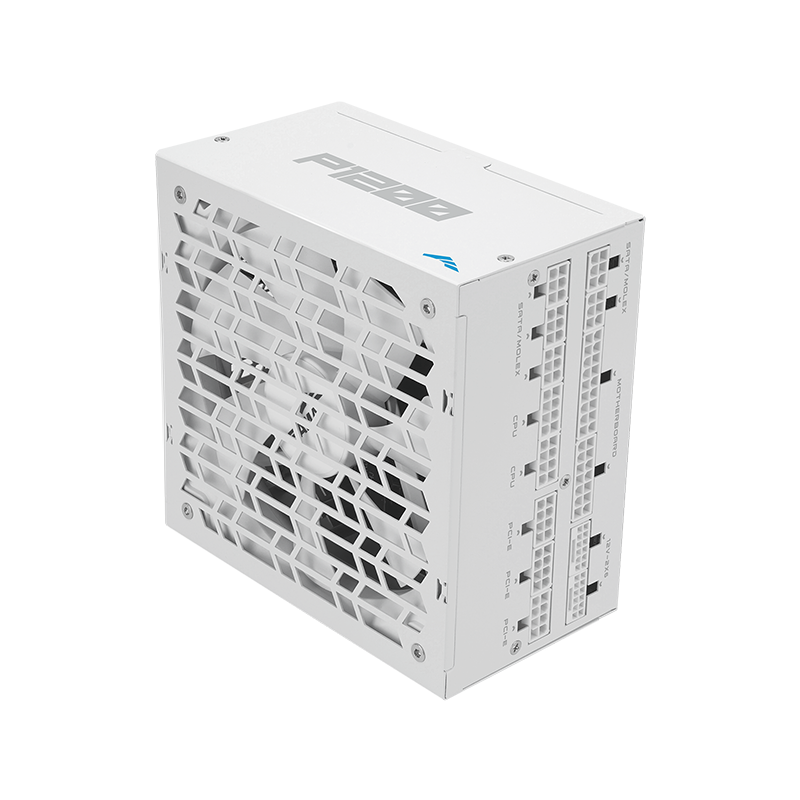

#ffffff | 2

view specifications

product manual

Specifications

Product Name	P1200	P1000	P850
Model Number	XPH1200-AP	XPH1000-AP	XPH850-AP
Output Power	1200W	1000W	850W
Form Factor	ATX 3.1
Modularity	Fully Modular
Dimensions	150 x 150 x 86mm (L×W×H)
Color	Black and White
80PLUS Certification	Platinum
Efficiency	>92% @ Typical Load (50% Load)
AC Input	100-240Vac
Fan Size	140mm
Fan Bearing	FDB
Capacitors	100% Japanese Capacitors
Operating Temperature	0-50°C
Protection	OTP / OCP / OPP / SCP / OVP / UVP / SIP/ NLO
Safety	CE / TUV / cTUVus / FCC / ICES / UKCA / EAC
Environmental Compliance	RoHS / WEEE / ErP 2014
MTBF	100,000 Hours

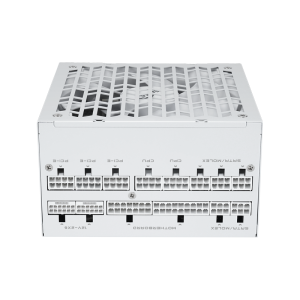

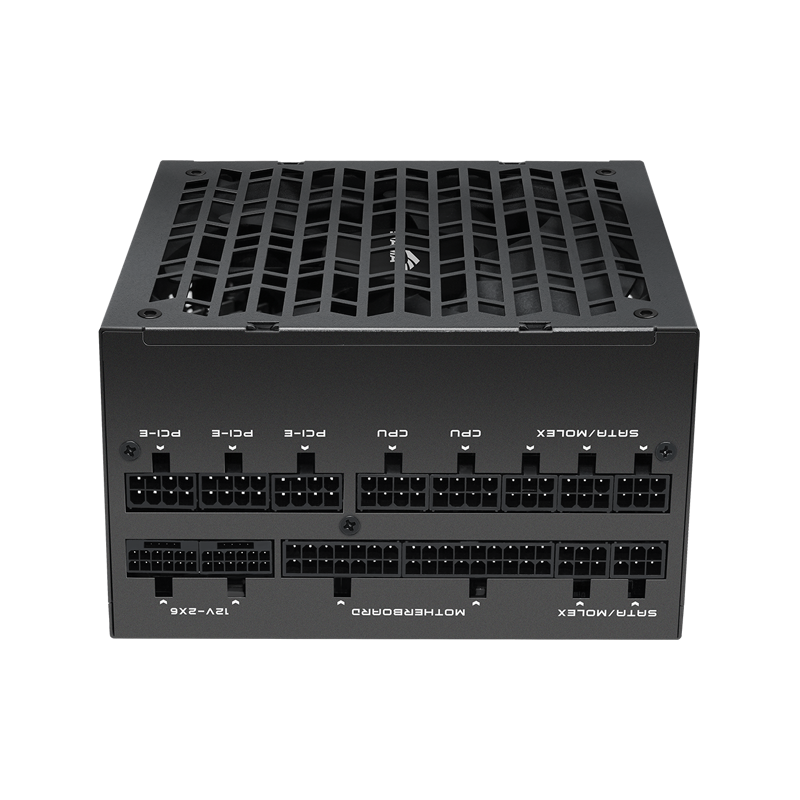

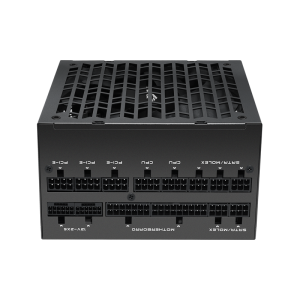

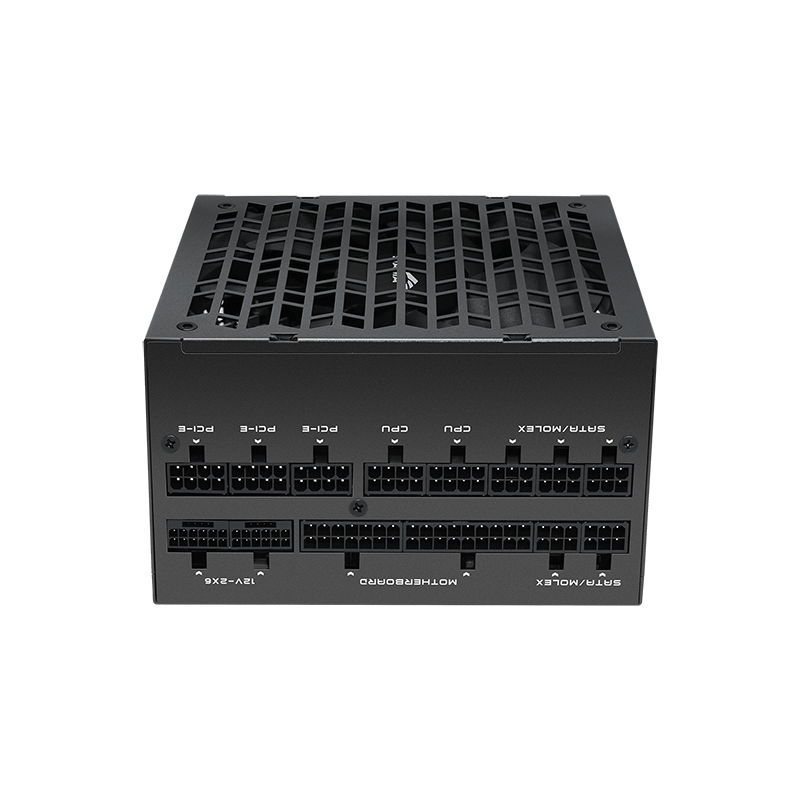

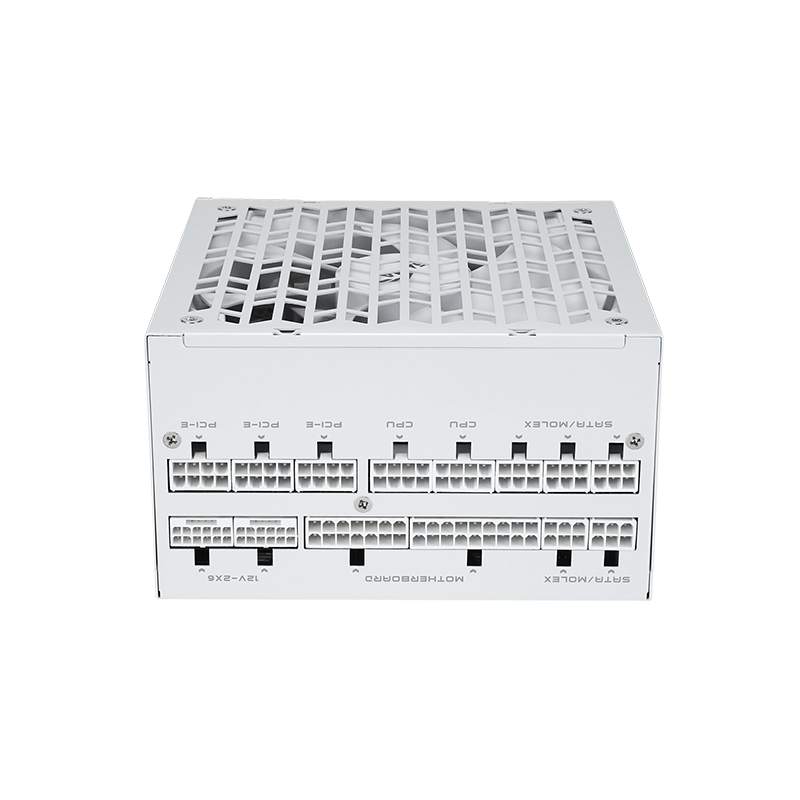

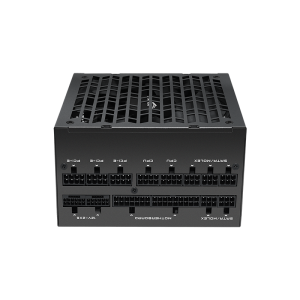

Connectors	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 2 SATA x 12 Molex 4 Pin x 4	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 8 Molex 4 Pin x 4
