ATX PSU

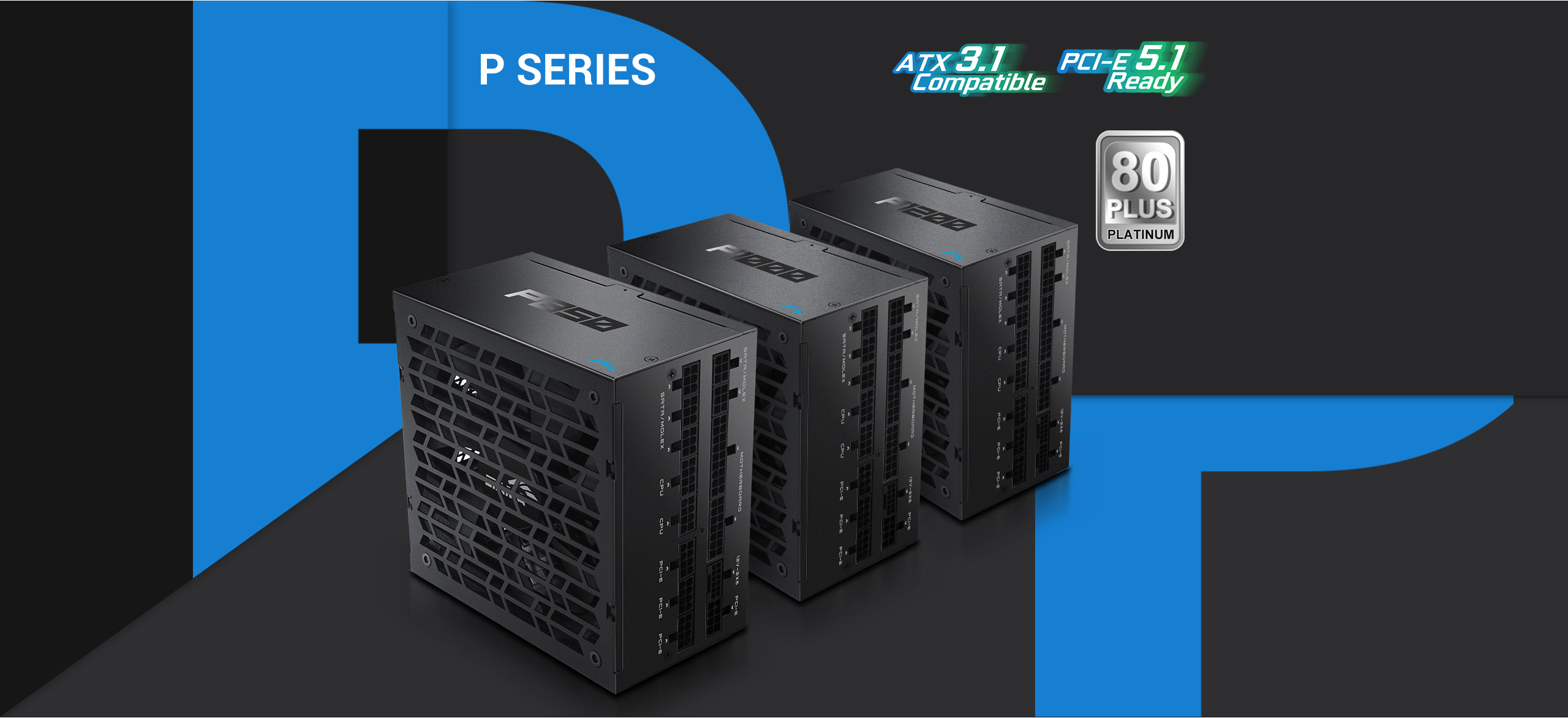

P Series

The P series is a fully modular power supply that offers flexible cable management for a cleaner, more organized build. It is 80 PLUS Platinum certified for high energy efficiency and complies with the ATX 3.1 standard for stable power delivery. Equipped with a native PCIe 5.1 connector and cable, it is fully compatible with the latest high-performance graphics cards, ensuring future-proof reliability.

Color

#000000
#ffffff

Model

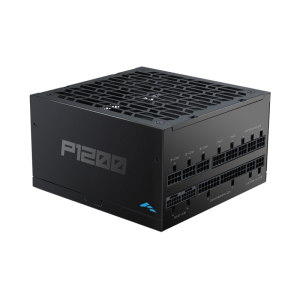

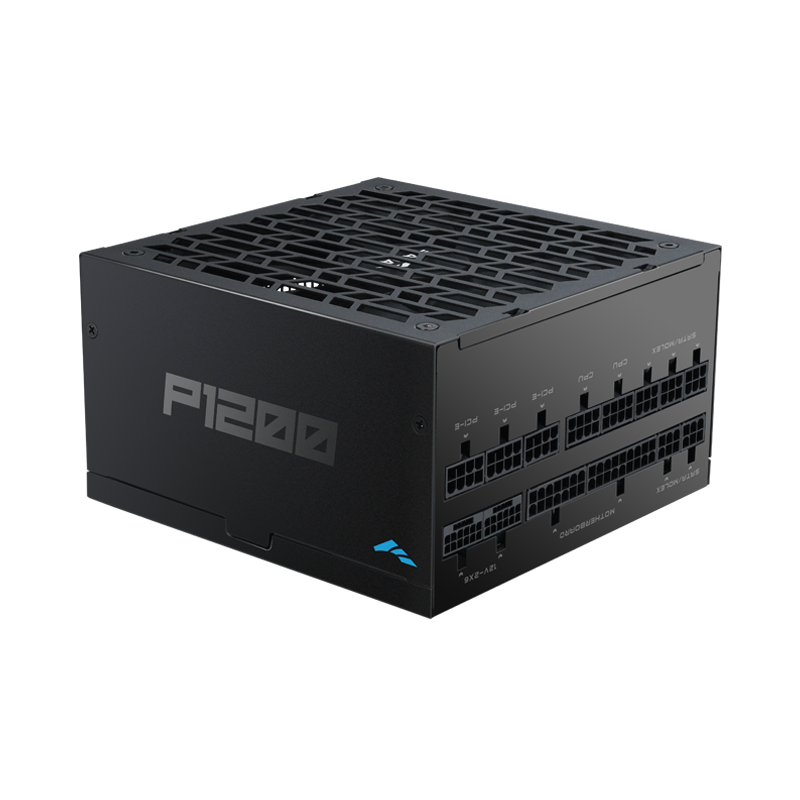

BLACK 1200W / 1000W / 850W

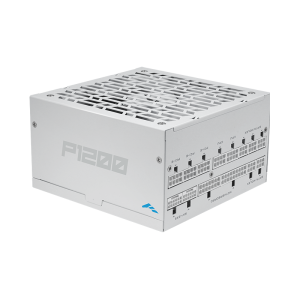

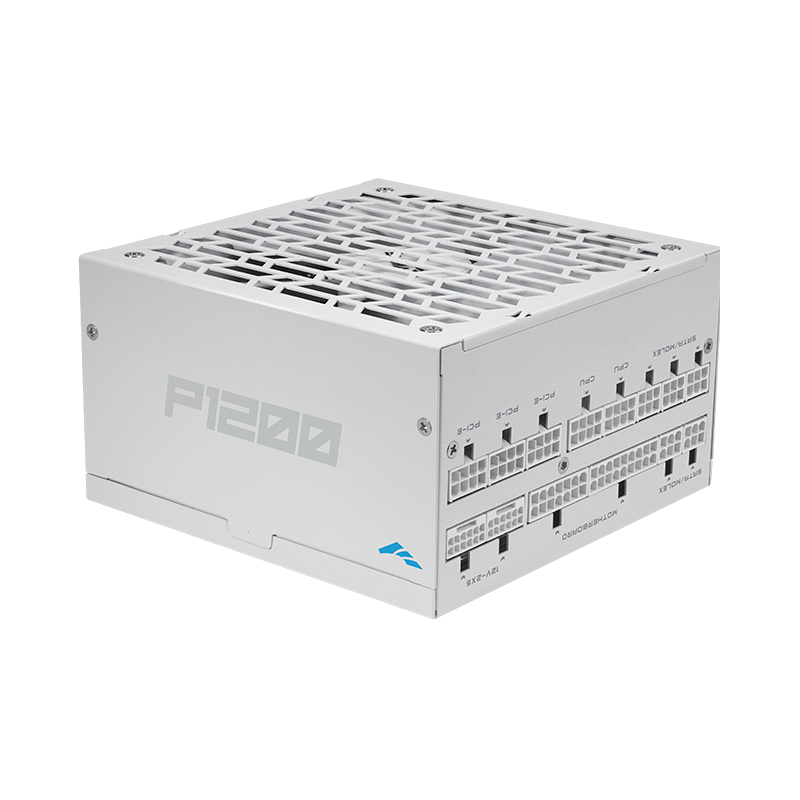

WHITE 1200W / 1000W / 850W

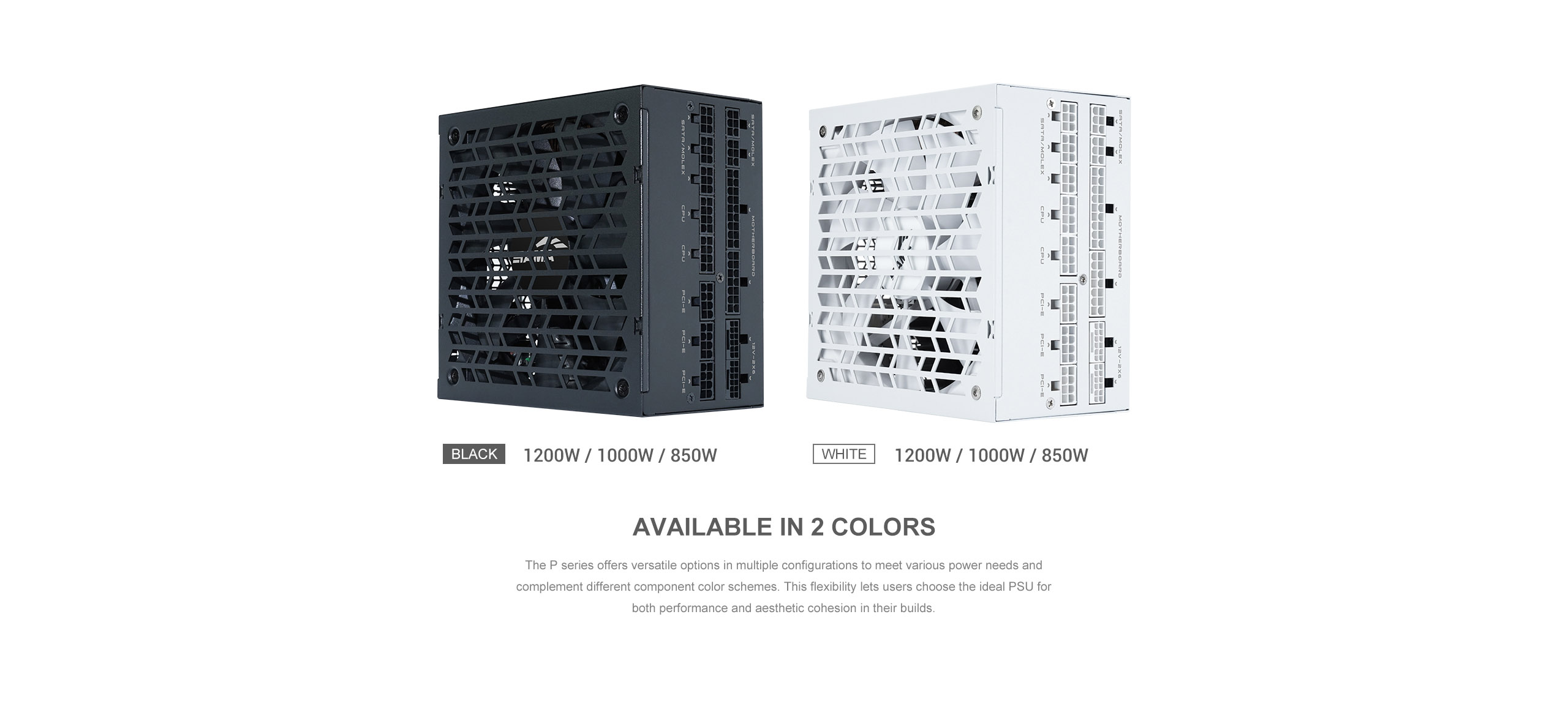

AVAILABLE IN 2 COLORS

The P series offers versatile options in multiple configurations to meet various power needs and complement different component color schemes. This flexibility lets users choose the ideal PSU for both performance and aesthetic cohesion in their builds.

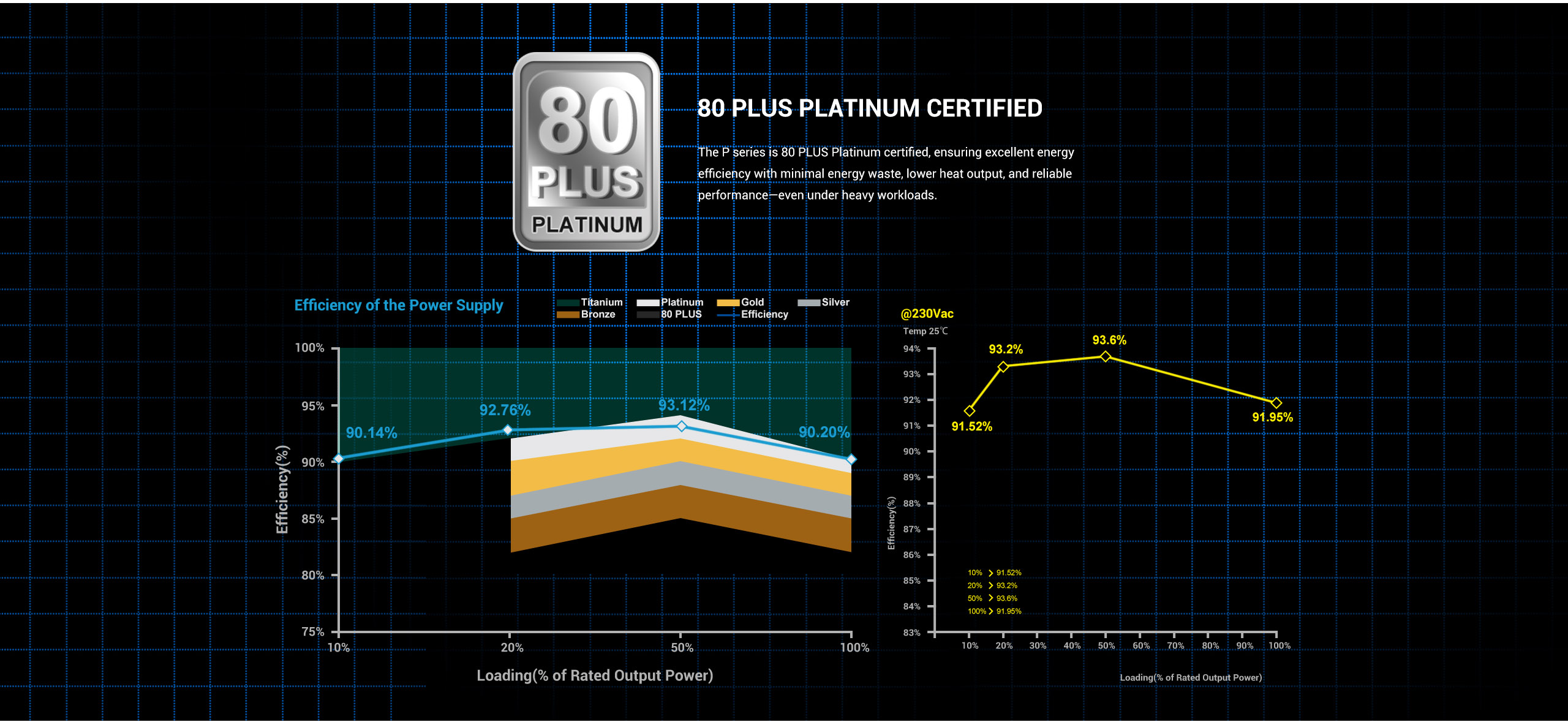

80 PLUS PLATINUM CERTIFIED

The P series is 80 PLUS Platinum certified, ensuring excellent energy efficiency with minimal energy waste, lower heat output, and reliable performance—even under heavy workloads.

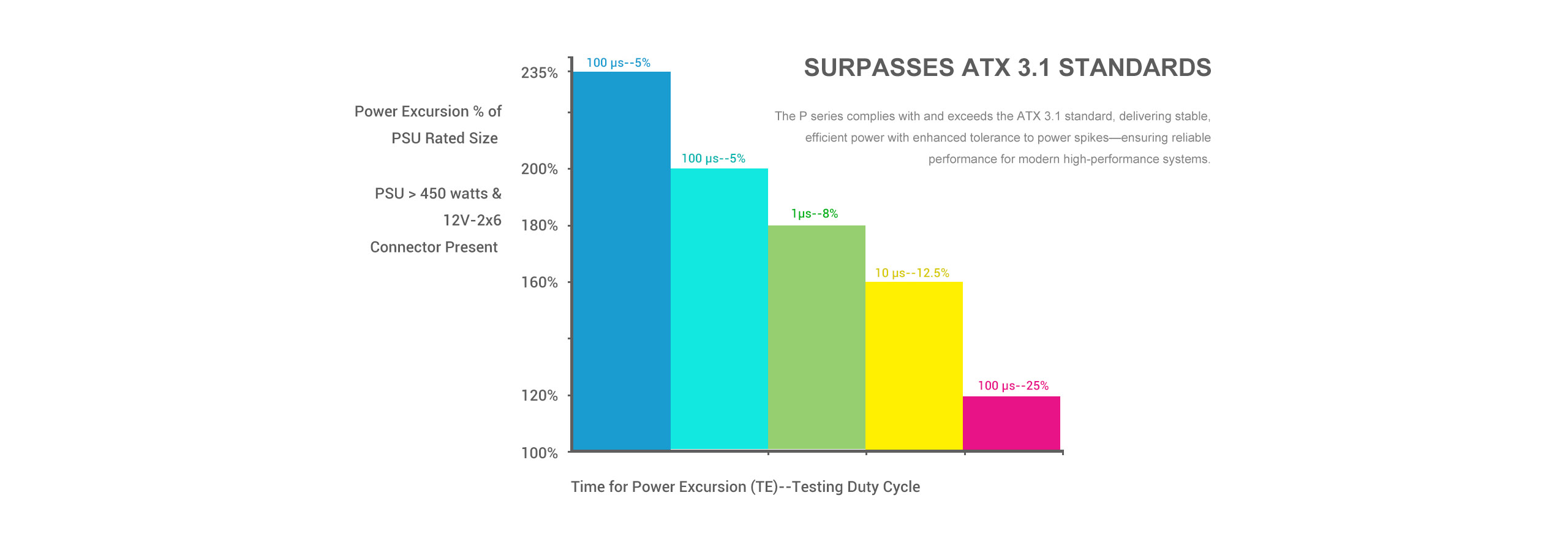

SURPASSES ATX 3.1 STANDARDS

The P series complies with and exceeds the ATX 3.1 standard, delivering stable, efficient power with enhanced tolerance to power spikes—ensuring reliable performance for modern high-performance systems.

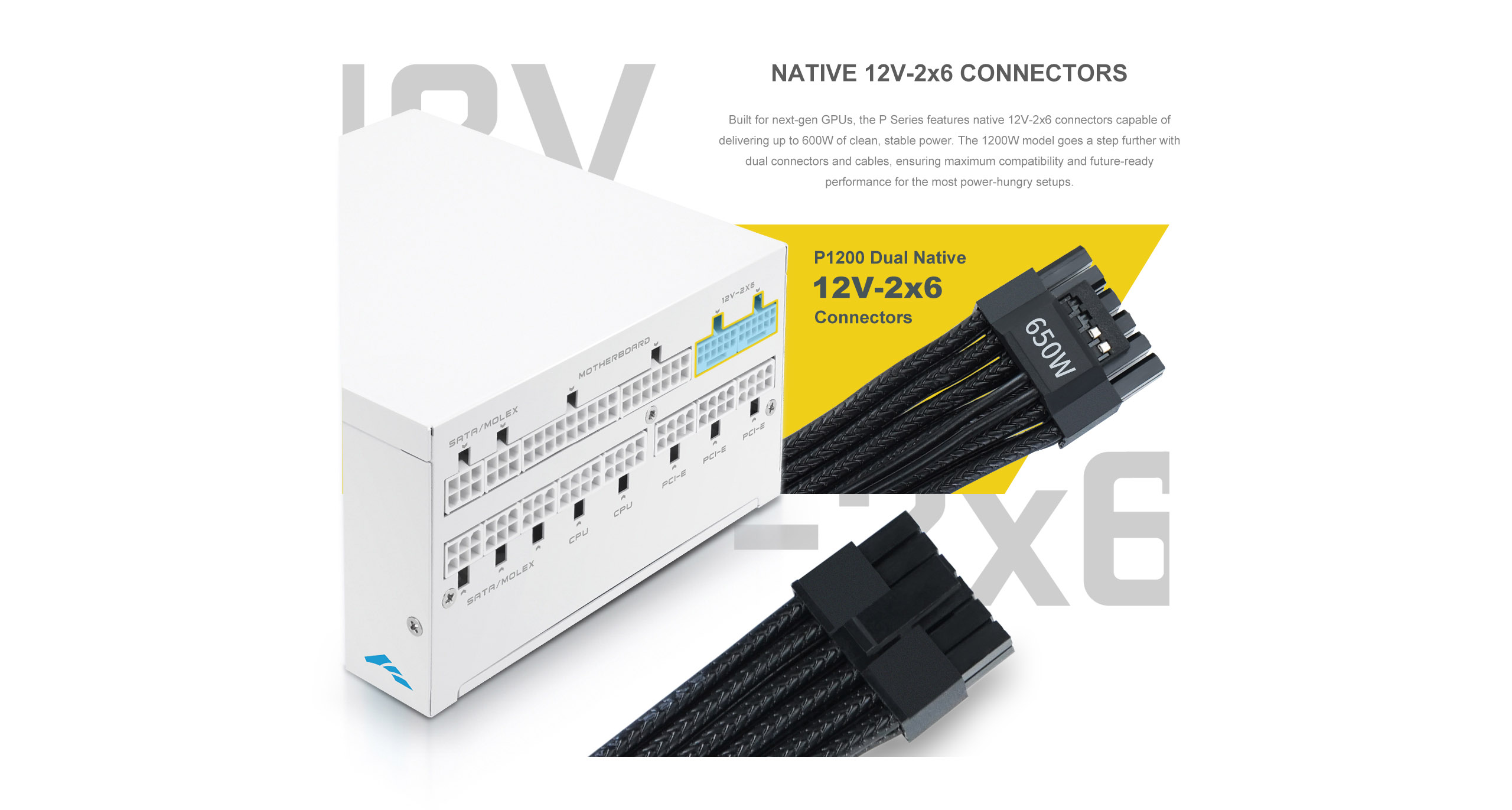

NATIVE 12V-2x6 CONNECTOR

Built for next-gen GPUs, the P Series features native 12V-2x6 connectors capable of delivering up to 600W of clean, stable power. The 1200W model goes a step further with dual connectors and cables, ensuring maximum compatibility and future-ready performance for the most power-hungry setups.

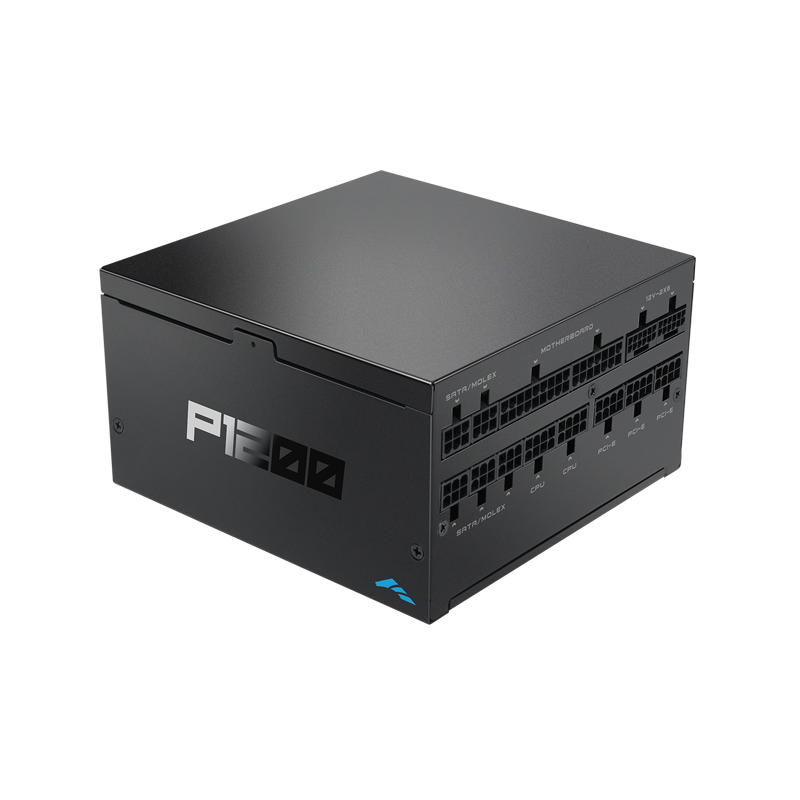

P1200 Dual Native 12V-2x6 Connectors

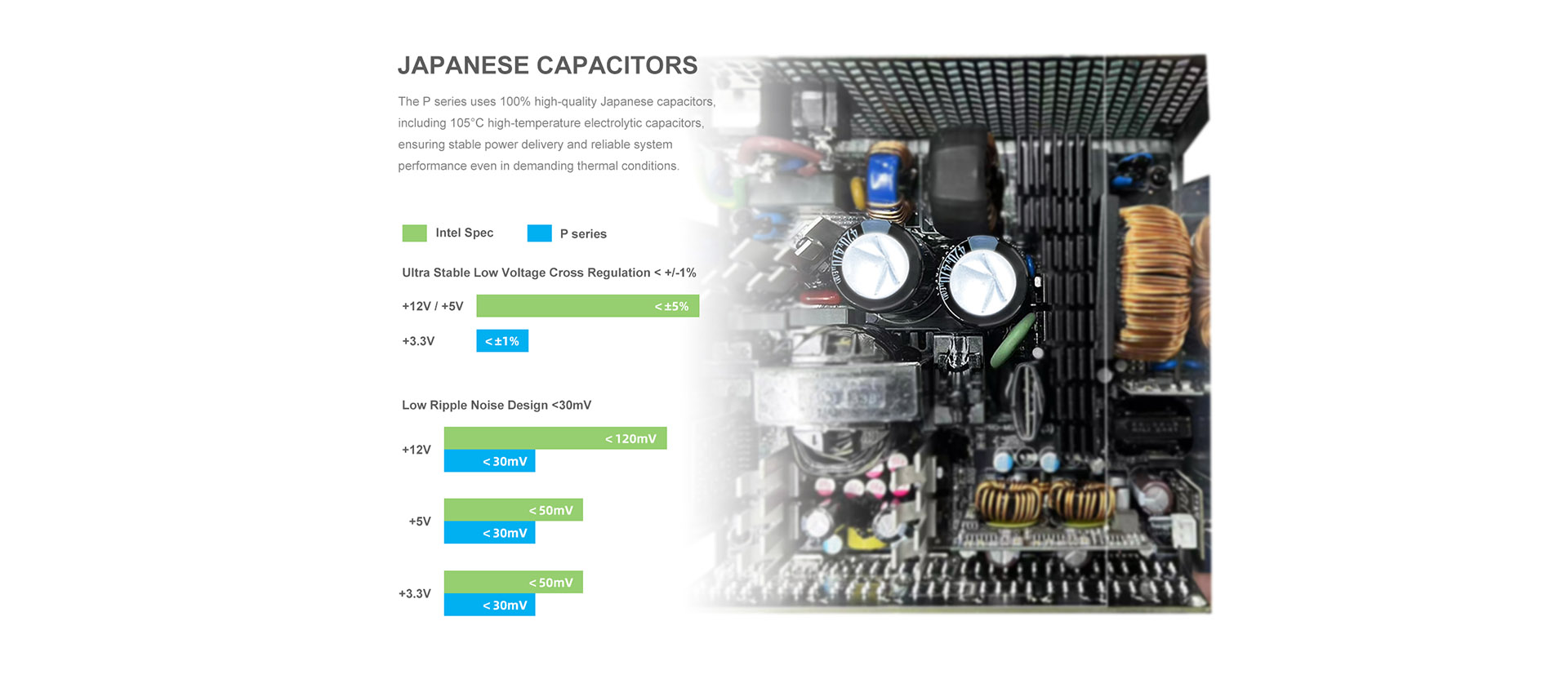

JAPANESE CAPACITORS

The P series uses 100% high-quality Japanese capacitors, including 105°C high-temperature electrolytic capacitors, ensuring stable power delivery and reliable system performance even in demanding thermal conditions.

Tight Load Regulation

The P series has superior load regulation <+/-1%, exceeding the Intel ATX3.1 standard, this advanced design achieves stable voltage delivery, enhances power supply efficiency, and improves the performance and reliability of sensitive electronic devices.

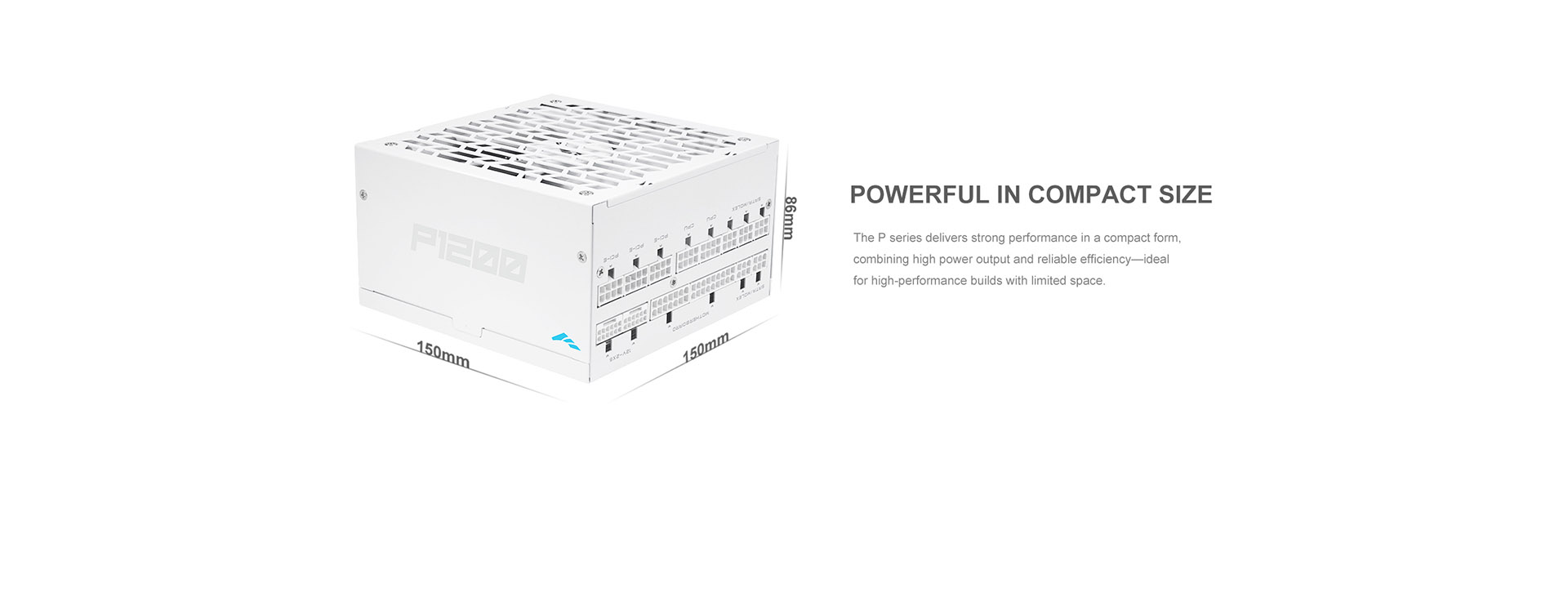

POWERFUL IN COMPACT SIZE

The P series delivers strong performance in a compact form, combining high power output and reliable efficiency—ideal for high-performance builds with limited space.

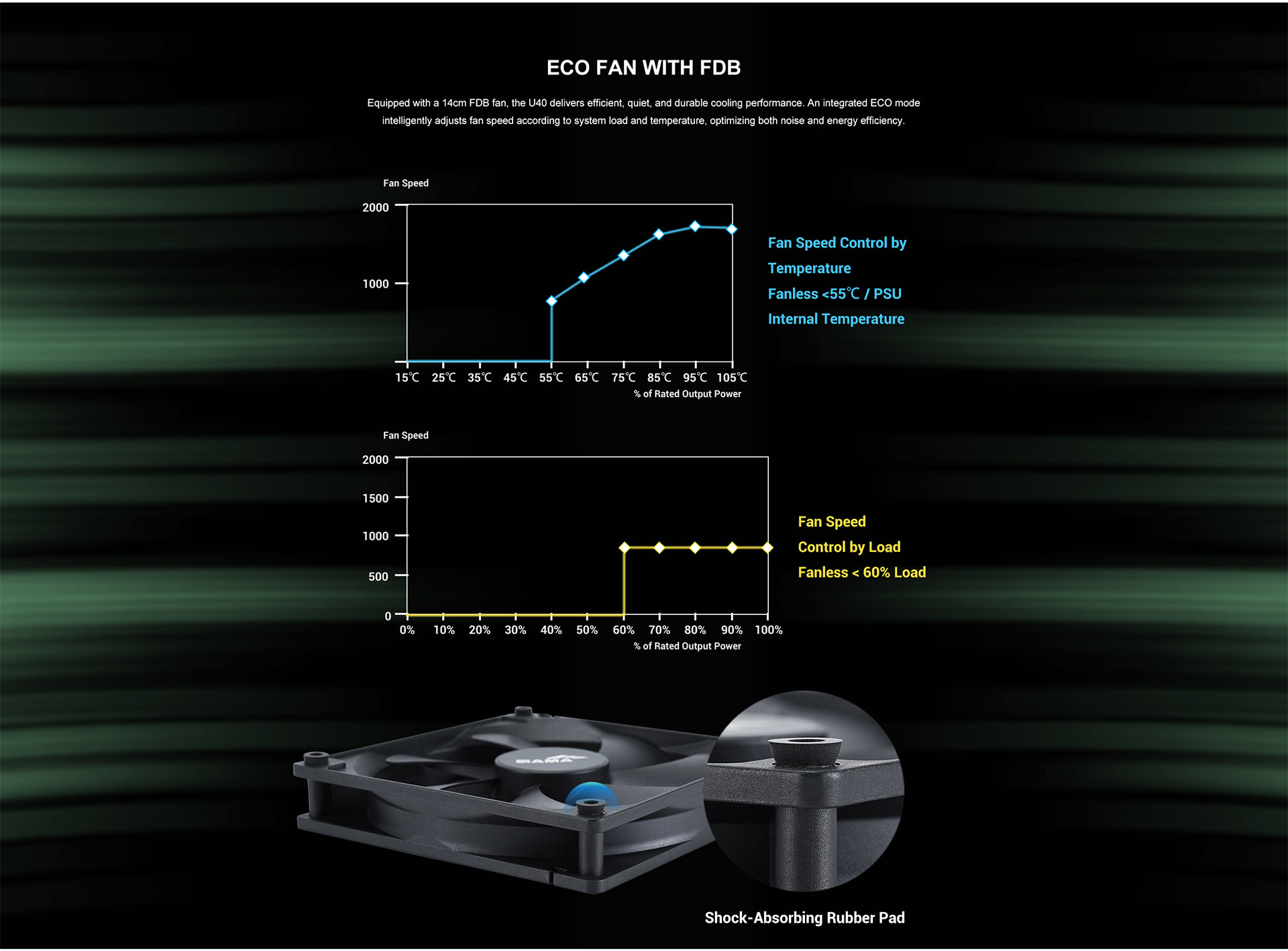

ECO 140mm FDB FAN

The P series features a 140mm ECO fan with Fluid Dynamic Bearings (FDB), designed for quiet operation, longevity, and efficient cooling. This advanced fan technology helps maintain optimal temperatures, reducing noise levels and enhancing overall reliability during extended use.

Fan Speed Control by
Temperature
Fanless < 55℃ / PSU
Internal Temperature

Fan Speed
Control by Load
Fanless < 60% Load

SMALL DETAILS FOR SILENT POWER SUPPLY

Each corner of cooling fan is equipped with circular shock-absorbing rubber pads, its design is stable, which can not only suppress the vibration of the fan, but also reduce the wind cutting sound of the fan.

Shock-Absorbing Rubber Pad

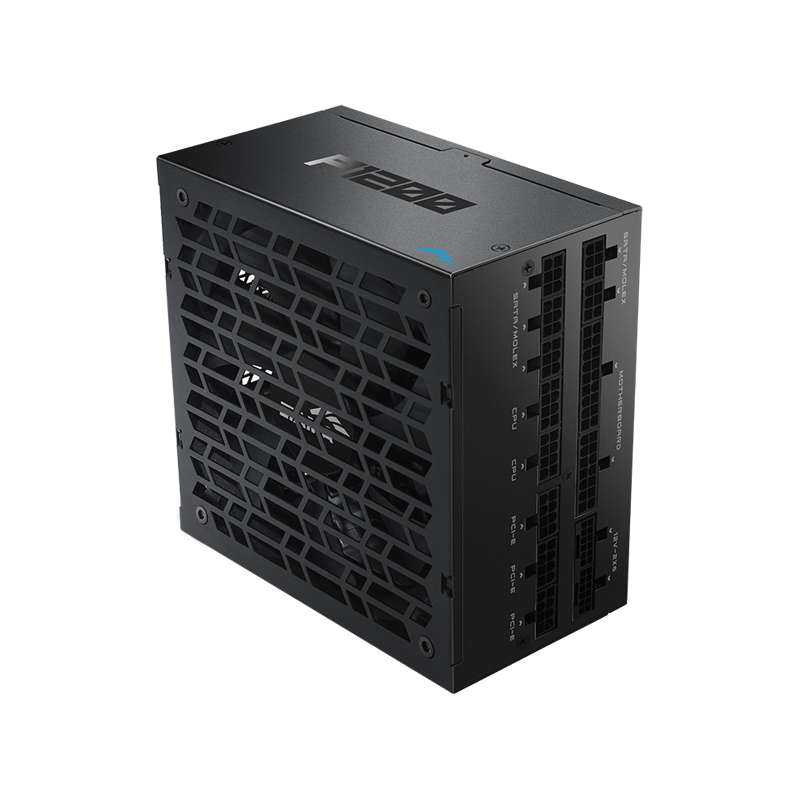

FULLY MODULAR

The fully modular P Series lets you use only the cables you need, minimizing clutter for a cleaner, more organized build.

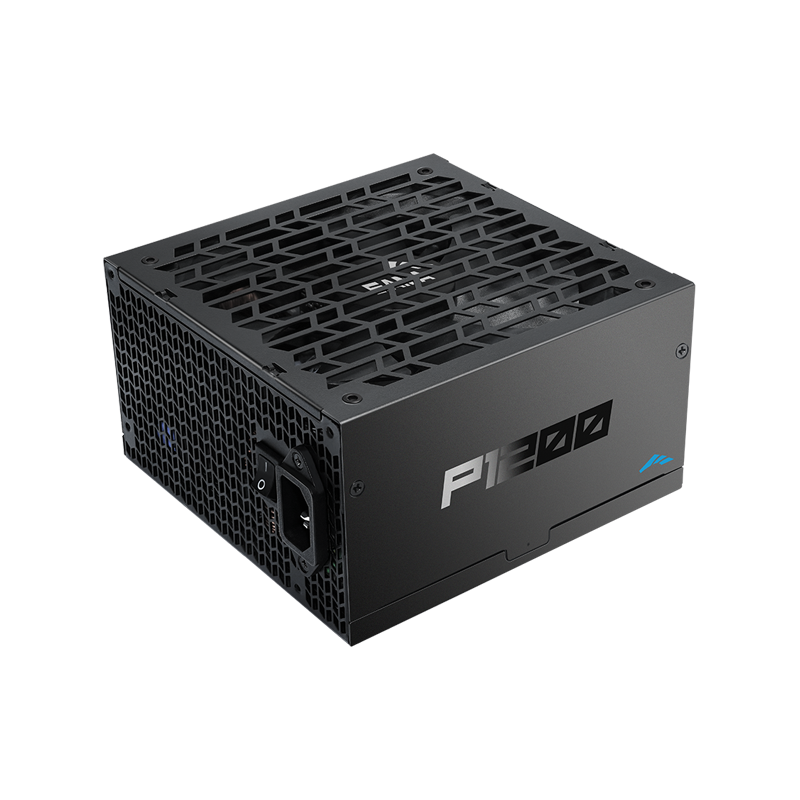

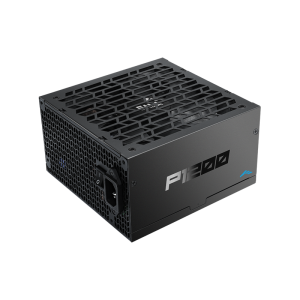

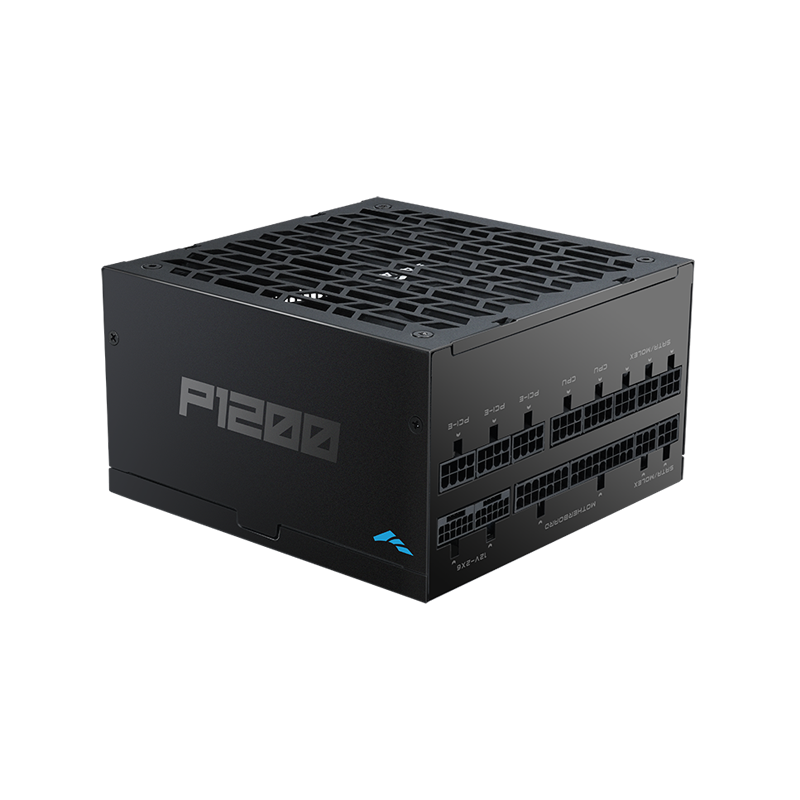

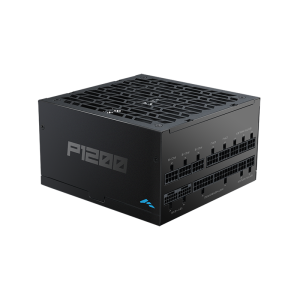

P1200
P1000
P850

MULTIPLE PROTECTIOONS

The P Series includes all essential safety protections: Over Power, Over Voltage, Under Voltage, Over Current, Over Temperature, Short Circuit, Surge & Inrush Protection, and No Load Protection. These features ensure system stability and protect critical components from damage and interference.

10-YEAR WARRANTY

Crafted with high-quality materials, the SAMA P Series ensures superior performance and durability. Backed by a 10-year warranty, it offers long-term reliability and peace of mind.

Specifications

Product Name	P1200	P1000	P850
Model	XPH1200-AP	XPH1000-AP	XPH850-AP
Output Power	1200W	1000W	850W
Form Factor	ATX 3.1
Modularity	Fully Modular
Dimensions	150 x 150 x 86mm (L×W×H)
Color	Black and White
80PLUS Certification	Platinum
Efficiency	>92% @ Typical Load (50% Load)
AC Input	100-240Vac
Fan Size	140mm
Fan Bearing	FDB
Capacitors	100% Japanese Capacitors
Operating Temperature	0-50°C
Protection	OTP / OCP / OPP / SCP / OVP / UVP / SIP/ NLO
Safety	CE / TUV / cTUVus / FCC / ICES / UKCA / EAC
Environmental Compliance	RoHS / WEEE / ErP 2014
MTBF	100,000 Hours
Connectors	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 2 SATA x 12 Molex 4 Pin x 4	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 8 Molex 4 Pin x 4
