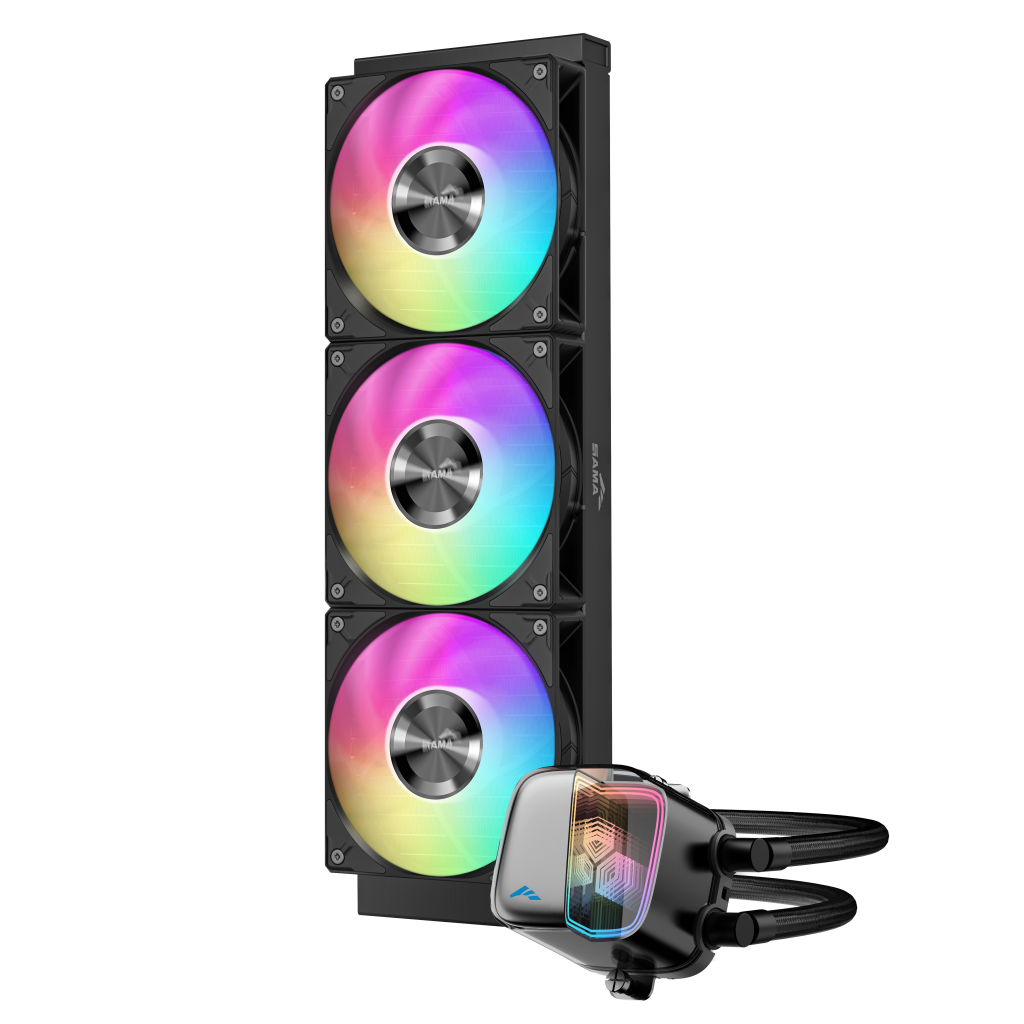

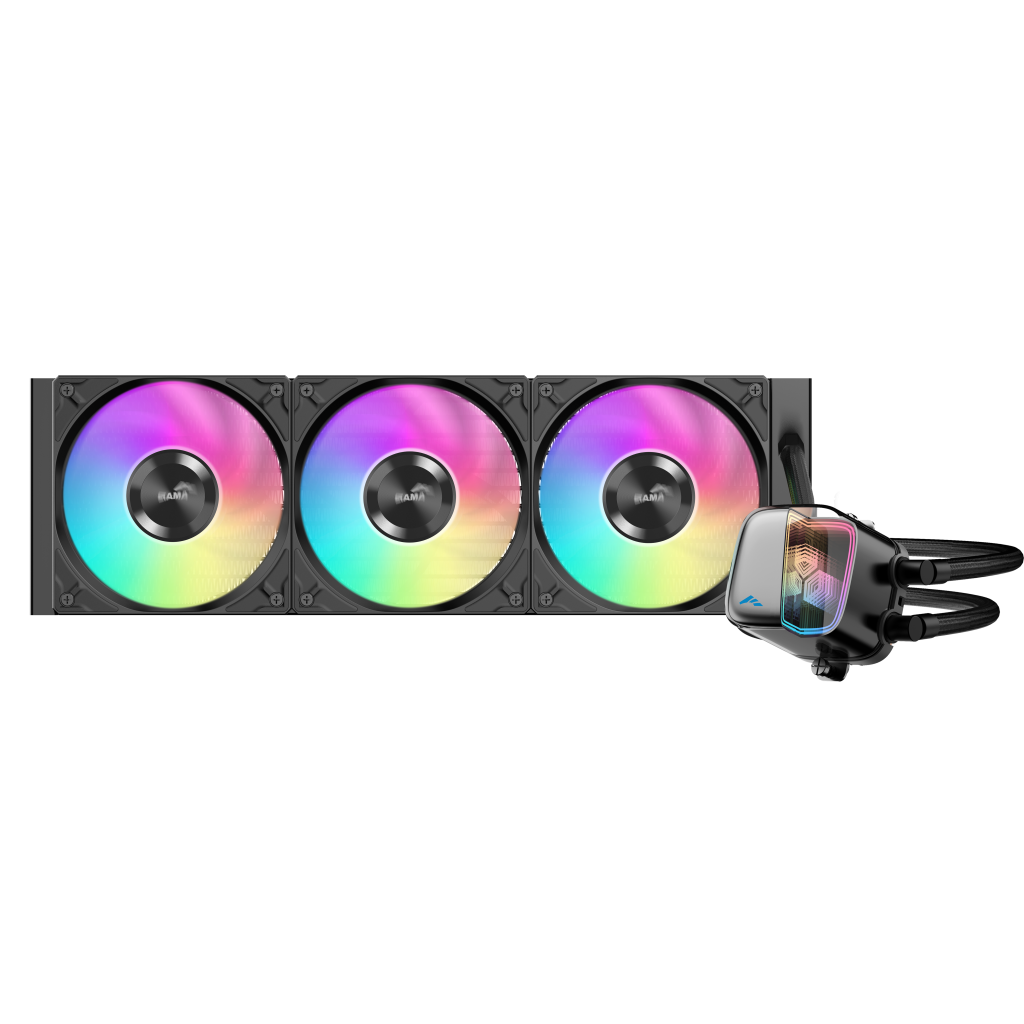

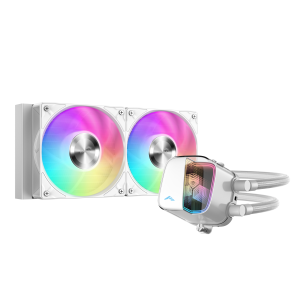

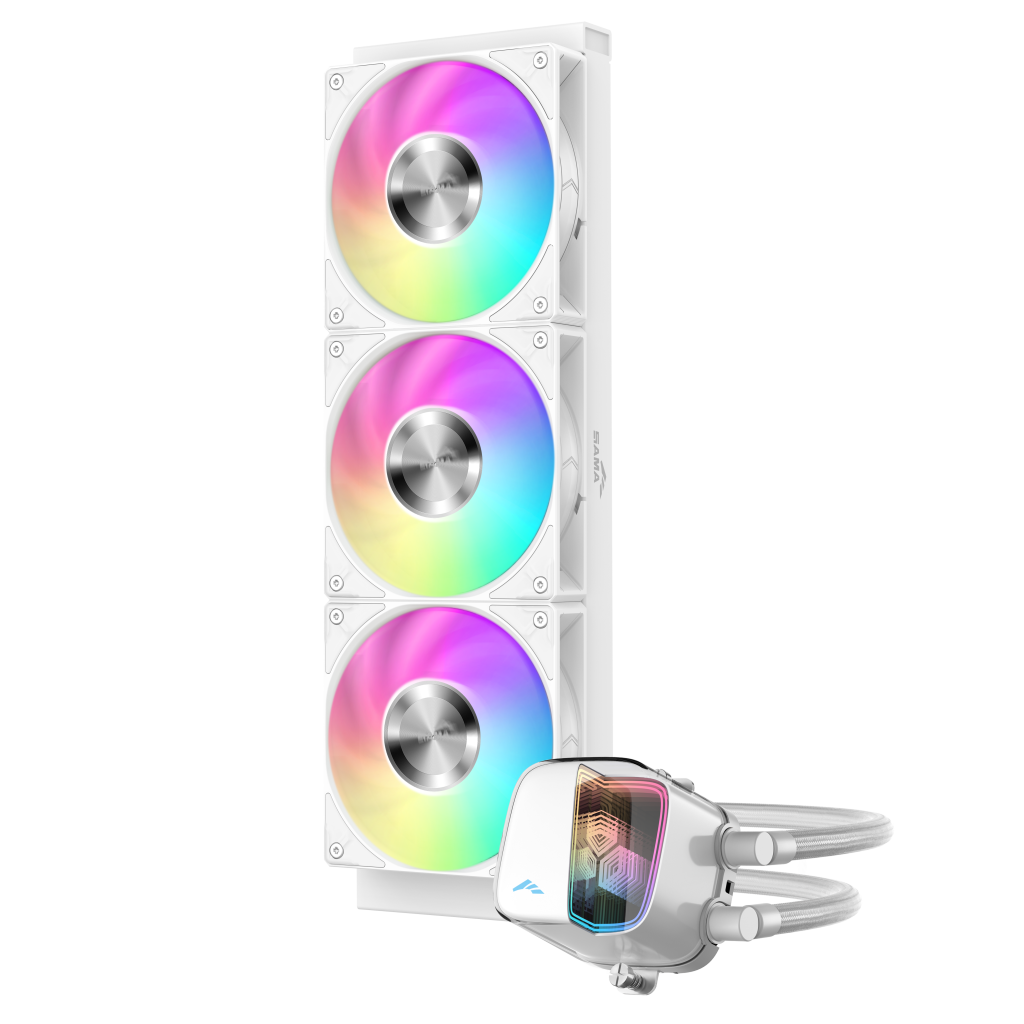

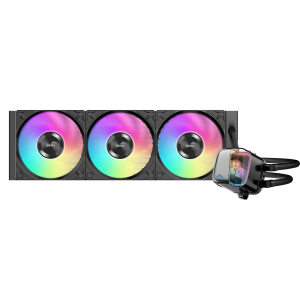

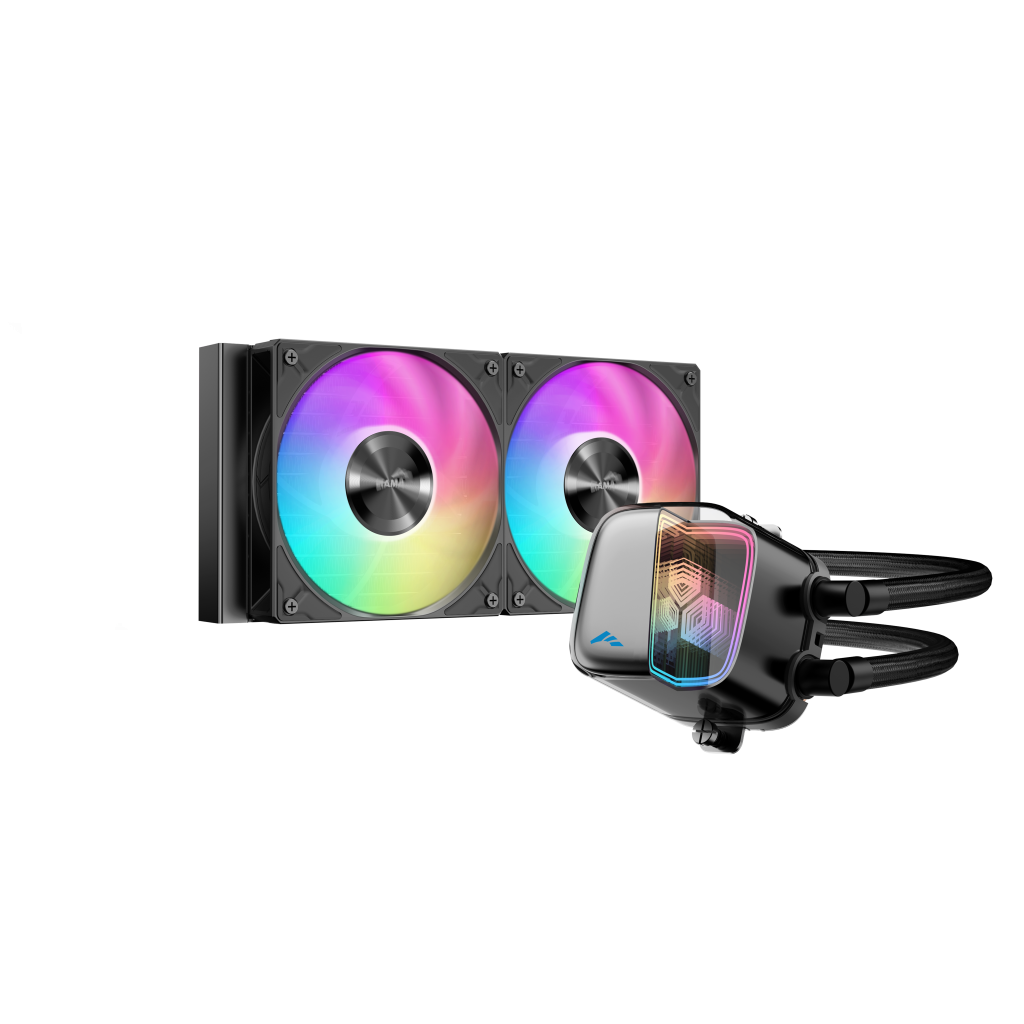

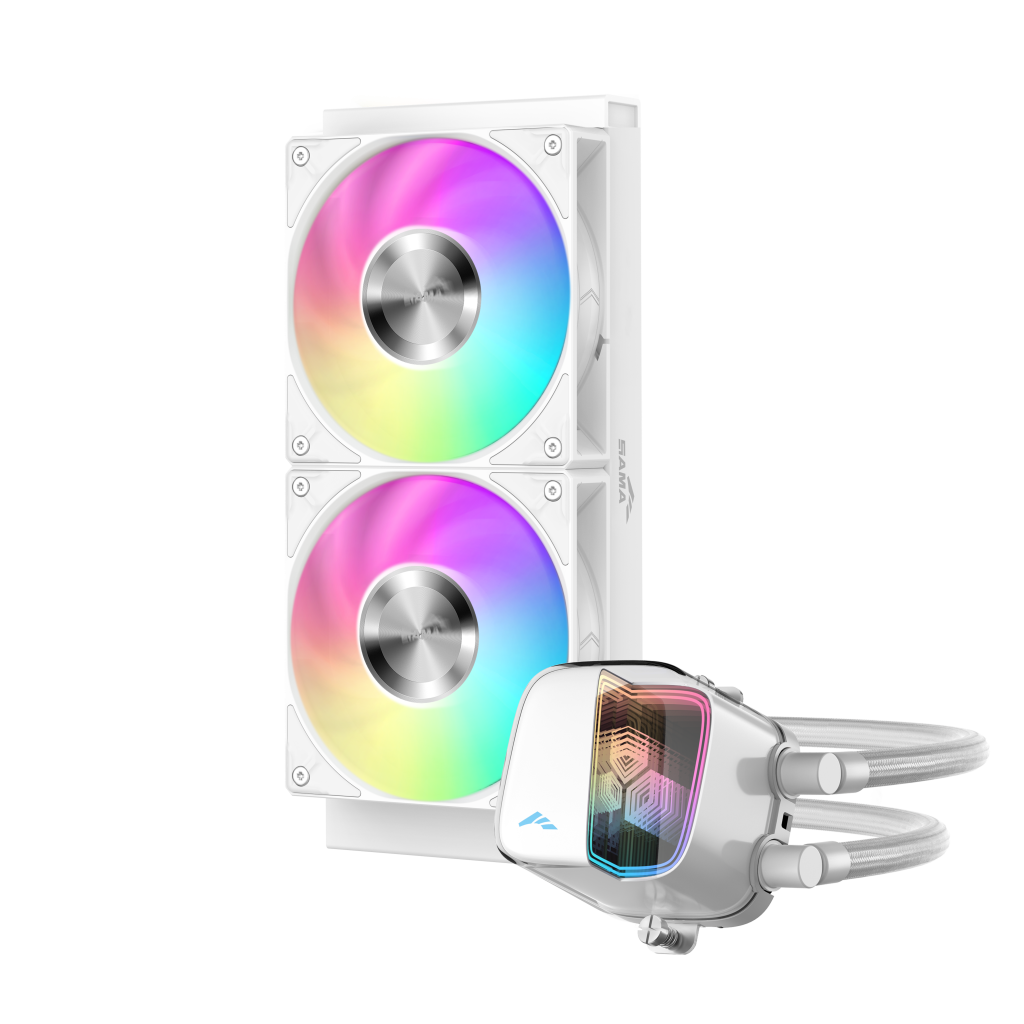

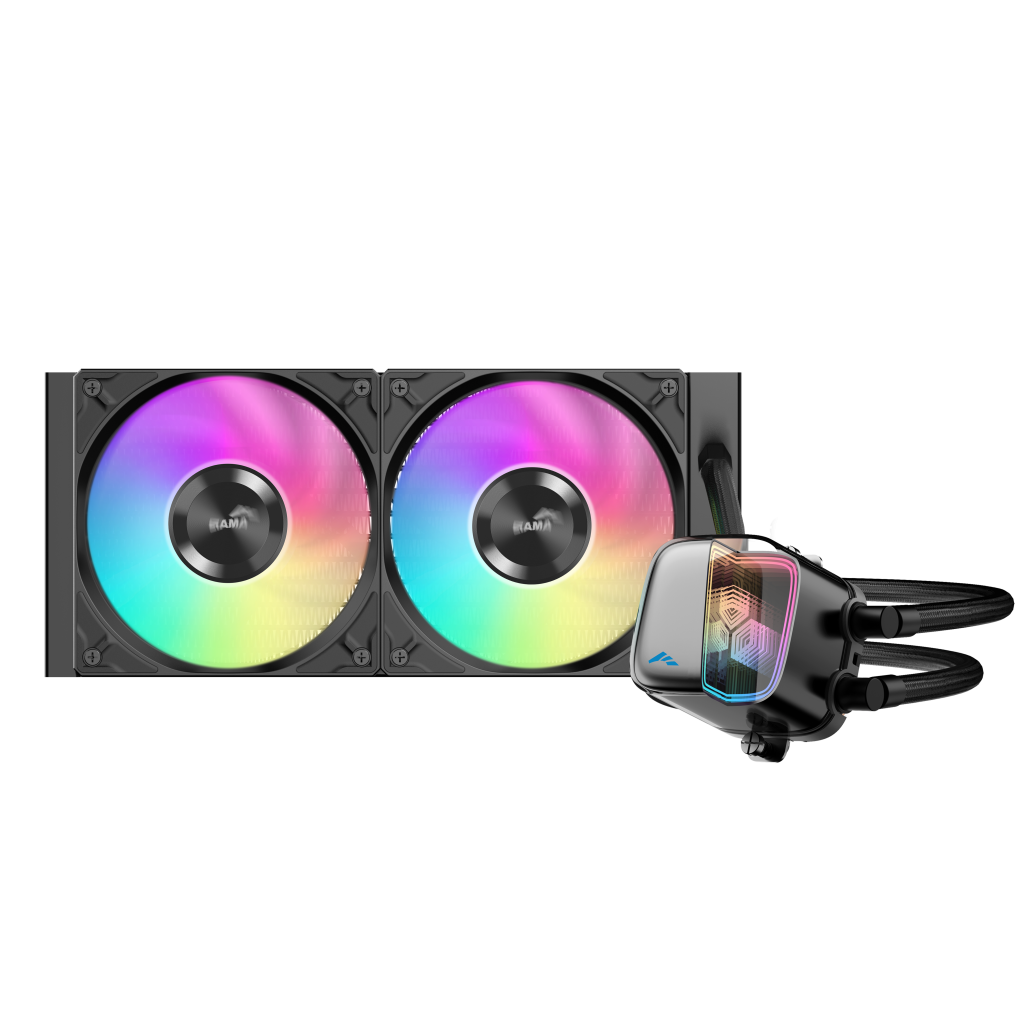

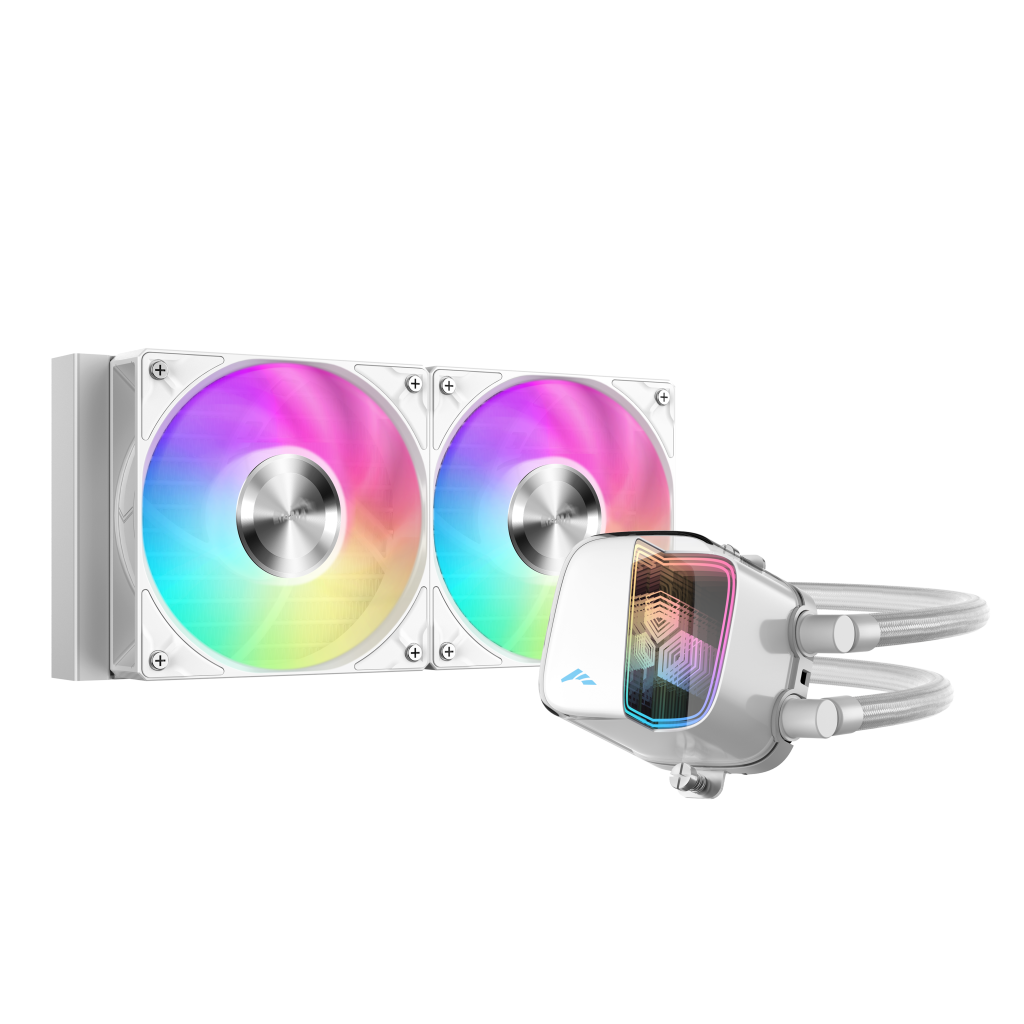

L70

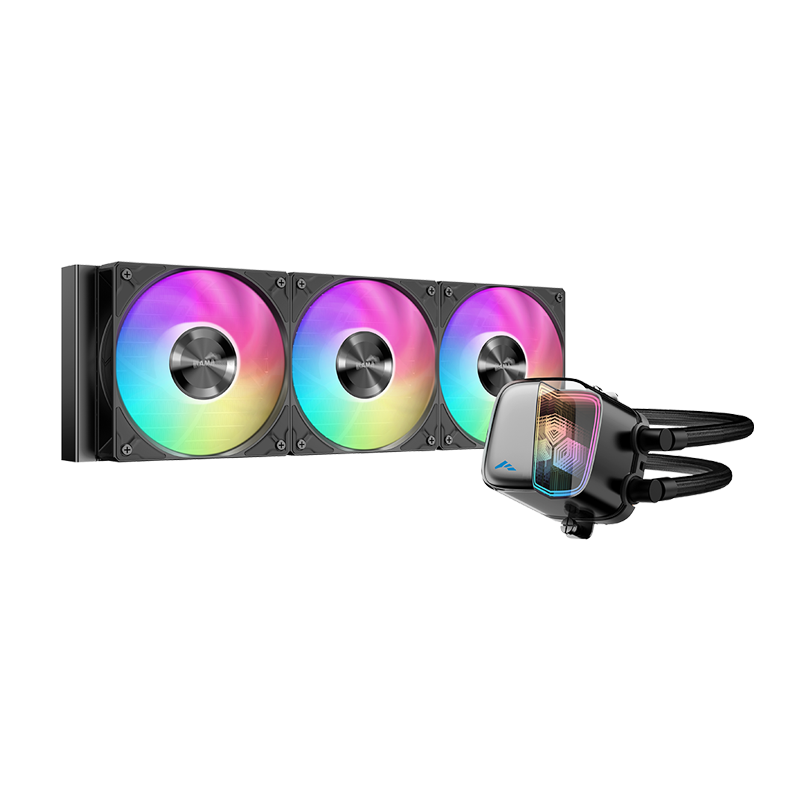

Experience advanced cooling with the SAMA L70 AIO: a high-performance ceramic pump and 28mm-thick fans ensure excellent thermal efficiency, while its acrylic water block with chamfered infinity mirror delivers vivid, multi-layered ARGB lighting for both power and style.

Color

#000000
#ffffff

Specifications

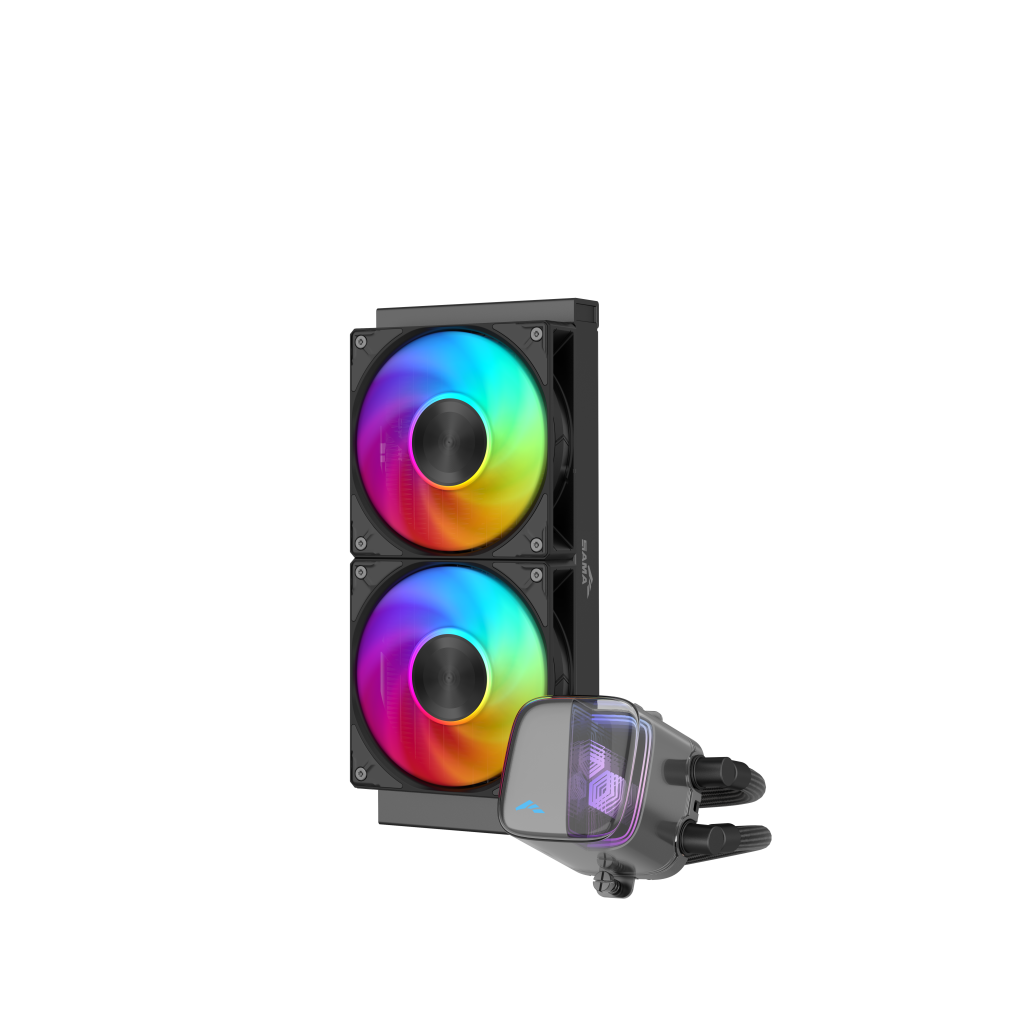

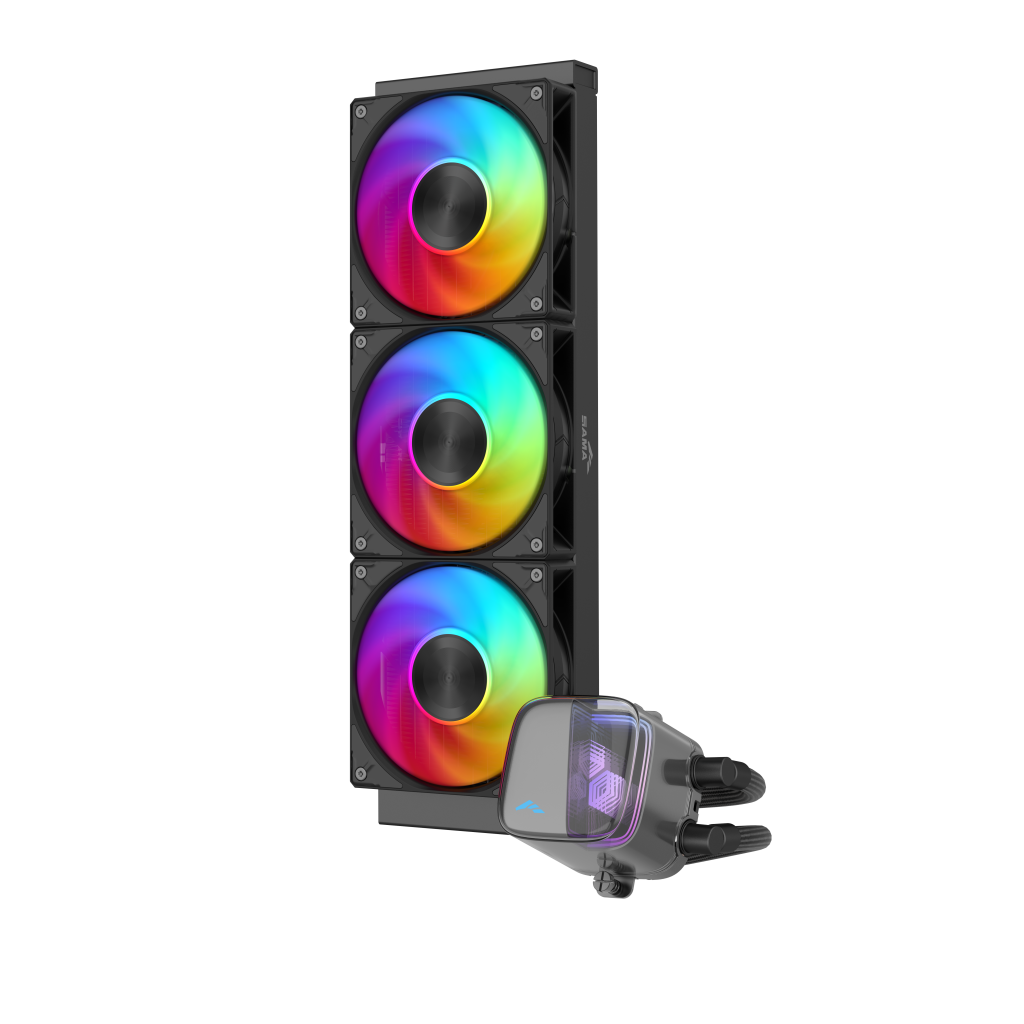

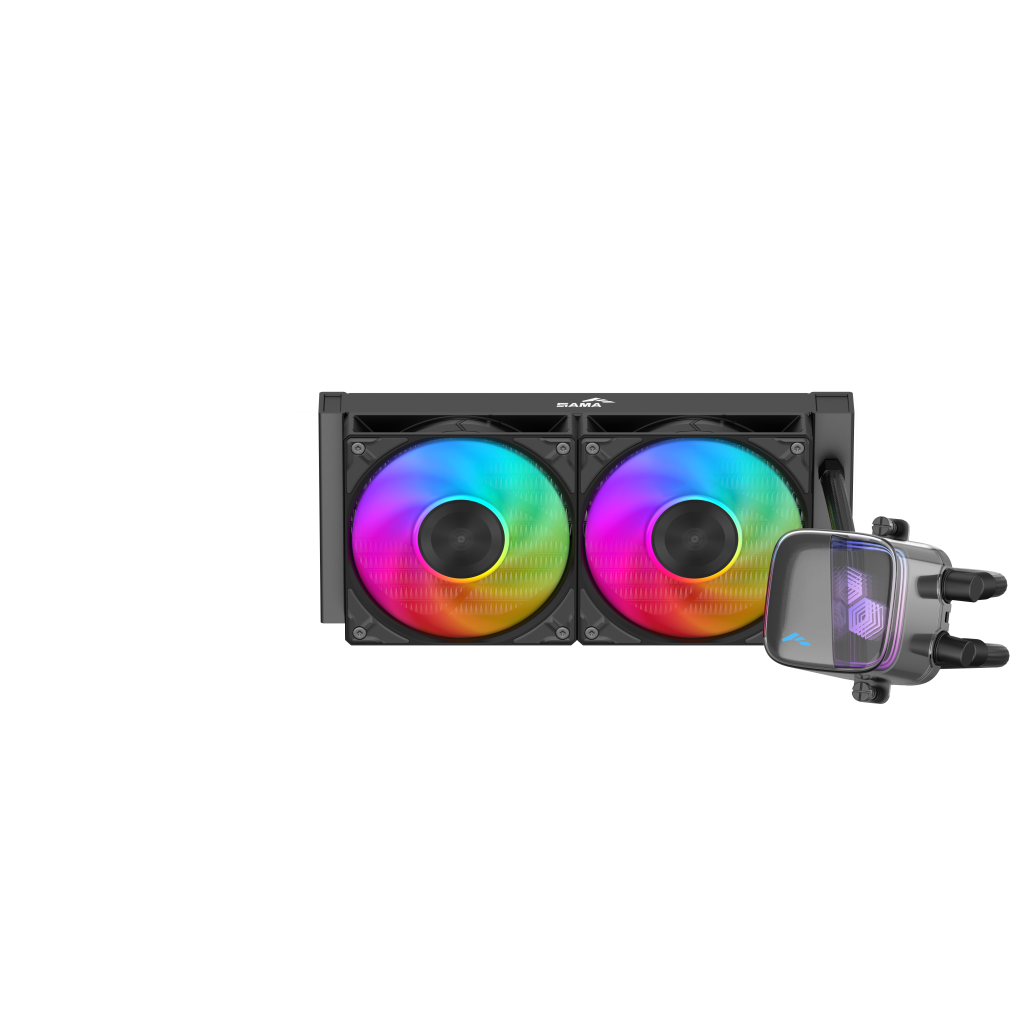

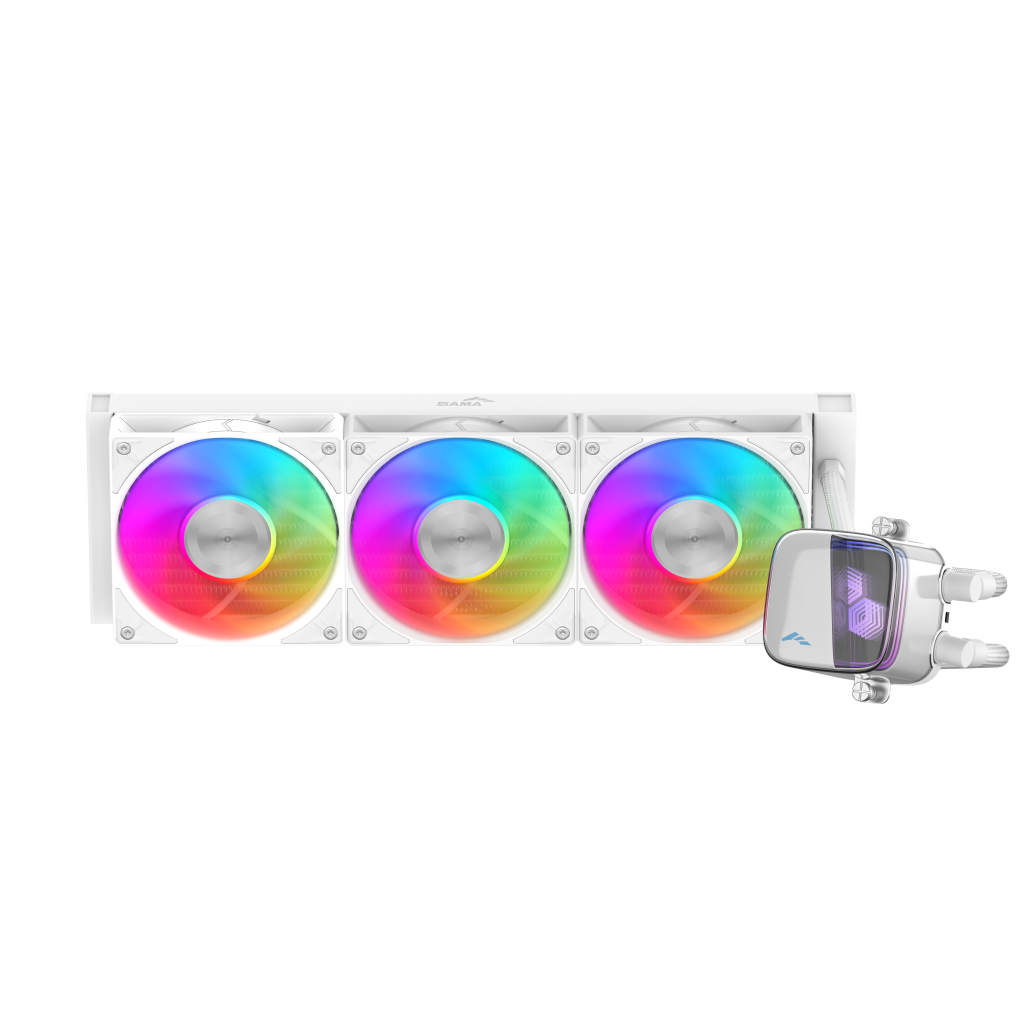

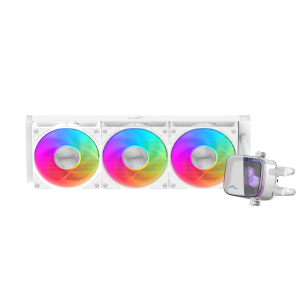

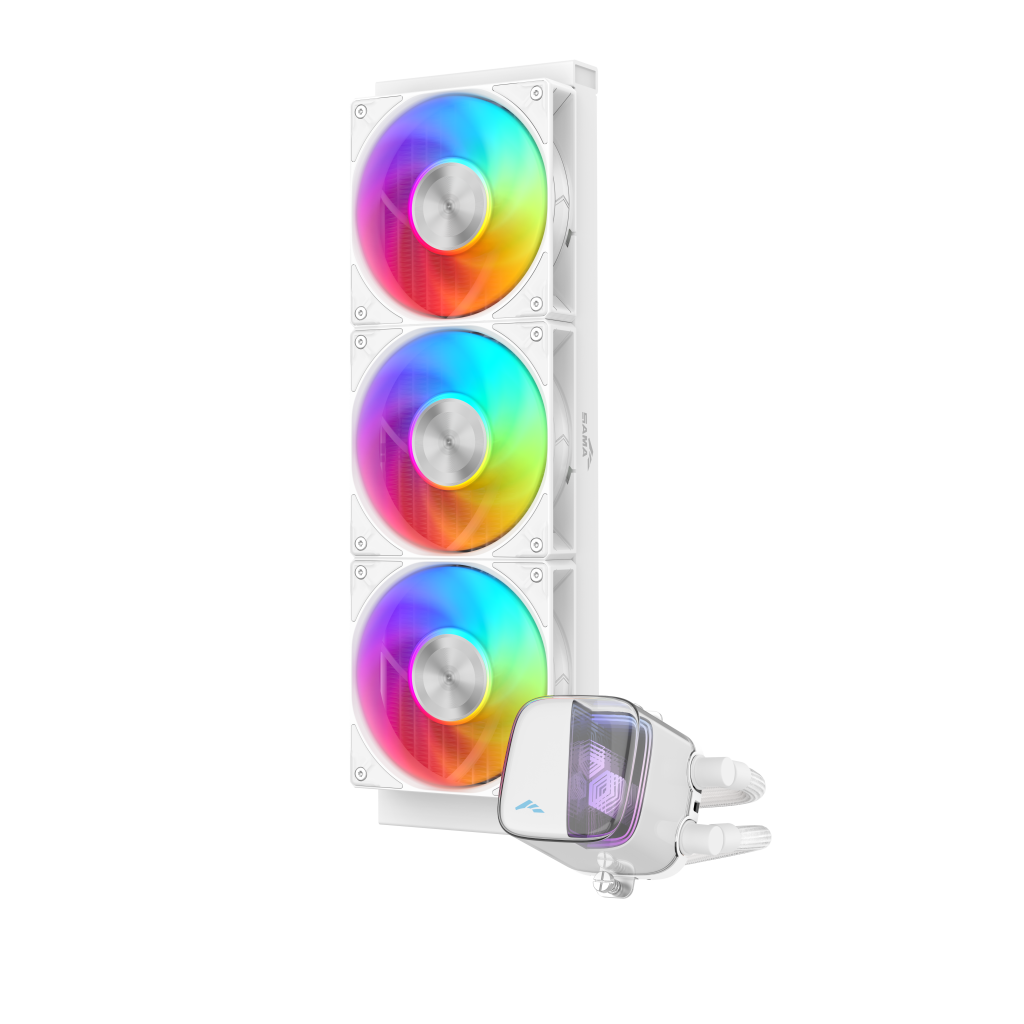

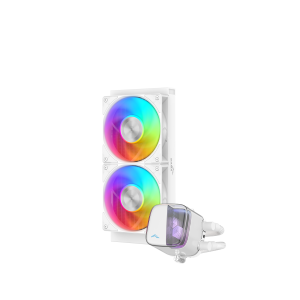

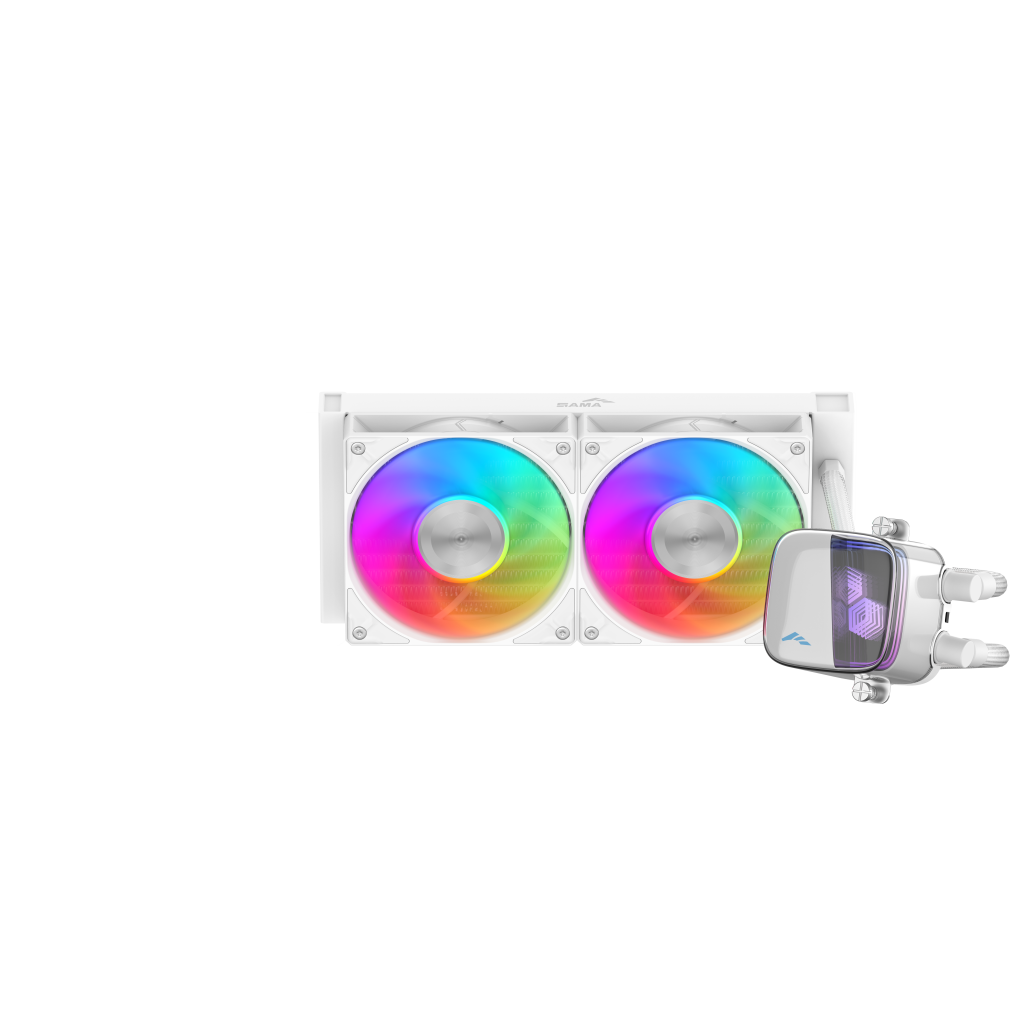

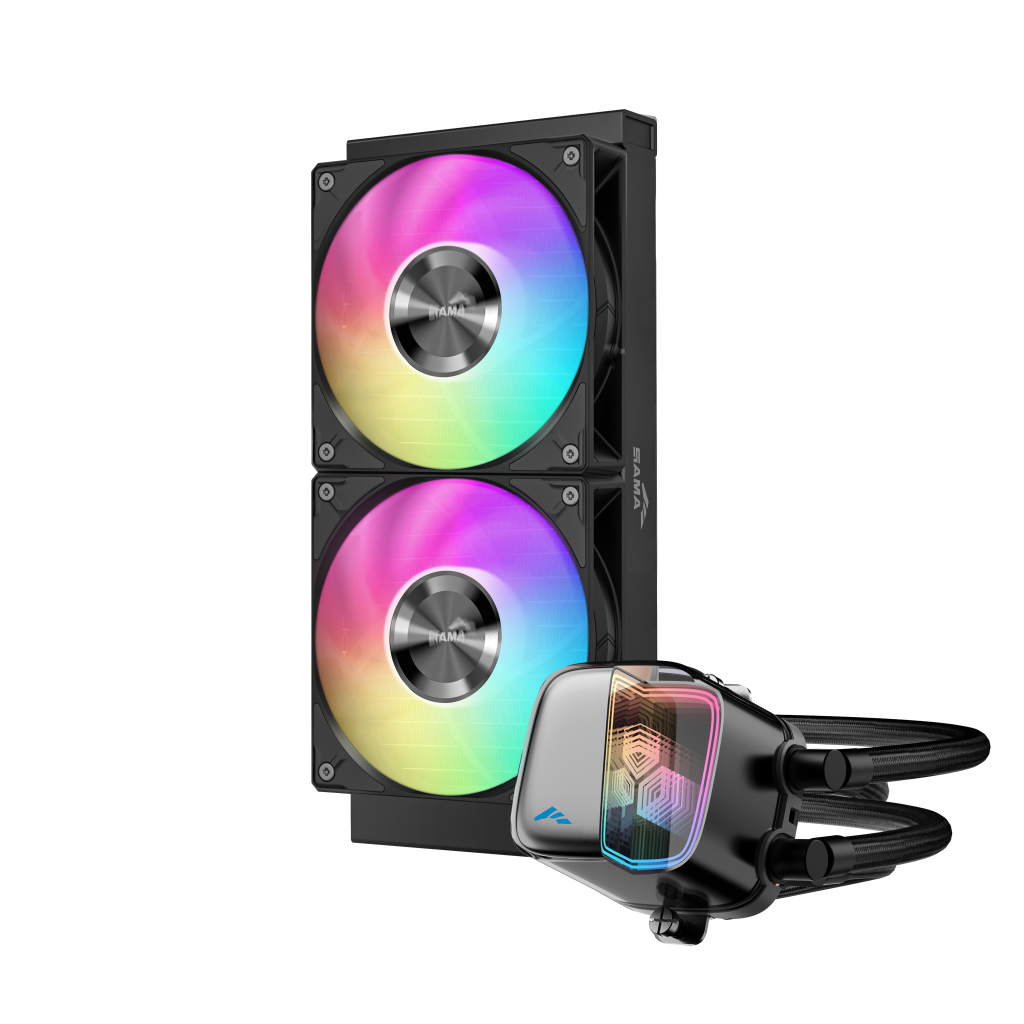

Model	L70 360BK/WH	Model	L70 240BK/WH
CPU Socket	Intel LGA:115X/1200/1700/1851 AMD:AM5/AM4	CPU Socket	Intel LGA:115X/1200/1700/1851 AMD:AM5/AM4
Tube Length	400mm	Tube Length	400mm
Warranty	3 Years	Warranty	3 Years
Radiator	Dimension:397×120×27mm Material:Aluminum	Radiator	Dimension:277×120×27mm Material:Aluminum
Pump	Dimension:73×73×66mm(L×W×H) Speed:2000~3000RPM±10% PWM Connector:12V-4Pin Rated Voltage:12 VDC Max Current:0.42 A	Pump	Dimension:73×73×66mm(L×W×H) Speed:2000~3000RPM±10% PWM Connector:12V-4Pin Rated Voltage:12 VDC Max Current:0.42 A
Fan	Included Fans:3pcs Dimension:120×120×28mm Bearing Type:Hydraulic bearing Speed:800-2200±10%RPM Air Flow:72.3CFM（Max） Air Pressure:2.85 mmH2O Fan Noise:≤28dB-A Rated Voltage:DC 12V Max Current:0.35A Connector:4PIN PWM	Fan	Included Fans:2pcs Dimension:120×120×28mm Bearing Type:Hydraulic bearing Speed:800-2200±10%RPM Air Flow:72.3CFM（Max） Air Pressure:2.85 mmH2O Fan Noise:≤28dB-A Rated Voltage:DC 12V Max Current:0.35A Connector:4PIN PWM
Fan LED	Type:ARGB Connector:5V-3Pin Max Current:0.2A	Fan LED	Type:ARGB Connector:5V-3Pin Max Current:0.2A
Pump LED	Type:ARGB Connector:5V-3Pin Max Current:0.3A	Fan LED	Type:ARGB Connector:5V-3Pin Max Current:0.3A

Cases
- Full-Tower
- Mid-Tower
  - S40
  - V40
  - V50
  - V60
  - Z60
  LEARN MORE

  The SAMA S40 case, equipped with a large mesh front panel and four pre-installed high-performance ARGB fans, provides powerful cooling performance while displaying stunning lighting effects.

  Dimensions: 485×215×483mm (L×W×H)

  Motherboard Support: ATX, M-ATX, ITX

  Power Supply Type: ATX (Maximum Length: 220mm)

  LEARN MORE

  The SAMA V40 case boasts dual tempered glass panels, offering a stunning 270° panoramic view that beautifully displays the interior components of your build.

  Dimensions: 453×235×450mm (L×W×H)

  Motherboard Support: ATX, M-ATX, ITX, Back-connect ATX/M-ATX

  Power Supply Type: ATX, (Maximum Length: 265mm)

  LEARN MORE

  Blending practicality with aesthetics, the SAMA V50 takes PC case design to a new level. With two tempered glass panels and a removable pillar, it offers a seamless 270° view to showcase your build beautifully.

  Dimensions: 441×235×501mm (L×W×H)

  Motherboard Support: ATX, M-ATX, ITX, Back-connect ATX/M-ATX

  Power Supply Type: ATX, (Maximum Length: 250mm)

  LEARN MORE

  The SAMA V60 case showcases a stylish dual-chamber design, featuring an elegantly curved front panel for an appealing, modern look. The right-side panel is equipped with two large mesh sections, enhancing airflow and enabling compatibility with up to 10 fans for impressive cooling power. This combination of aesthetics and high-performance functionality makes the V60 case a perfect choice for a build that prioritizes both visual appeal and cooling efficiency.

  Dimensions: 475×285×398mm (L×W×H)

  Motherboard Support: ATX, M-ATX, ITX, Back-connect ATX/M-ATX

  Power Supply Type: ATX, (Maximum Length: 210mm)

  LEARN MORE

  The SAMA Z60 case elevates functionality with an elegant design, featuring two authentic walnut strips on the front panel for a touch of natural warmth that complements your living space.

  Dimensions: 480×235×496mm (L×W×H)

  Motherboard Support: EEB, E-ATX (≤277mm), ATX, M-ATX, ITX, Back-connect ATX

  Power Supply Type: ATX (Maximum length: 250mm / 160mm with HDD cage installed)
- Small Form-Factor
Cooling
- AlO Cooling
  - L70
  - L50
  - Q60
  - Q70
  - L Series
  LEARN MORE

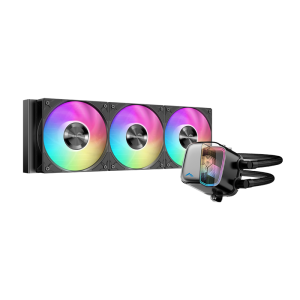

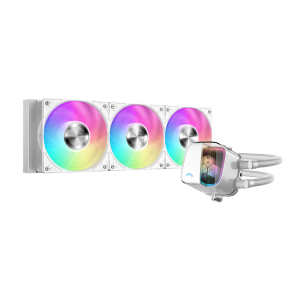

  Experience advanced cooling with the SAMA L70 AIO: a high-performance ceramic pump and 28mm-thick fans ensure excellent thermal efficiency, while its acrylic water block with chamfered infinity mirror delivers vivid, multi-layered ARGB lighting for both power and style.

  Dimensions: 485×215×483mm (LxWxH)

  Support Platform: Intel LGA:115X/1200/1700/1851 AMD:AM5/AM4

  Fan Dimensions: 120 x 120 x 28mm

  LEARN MORE

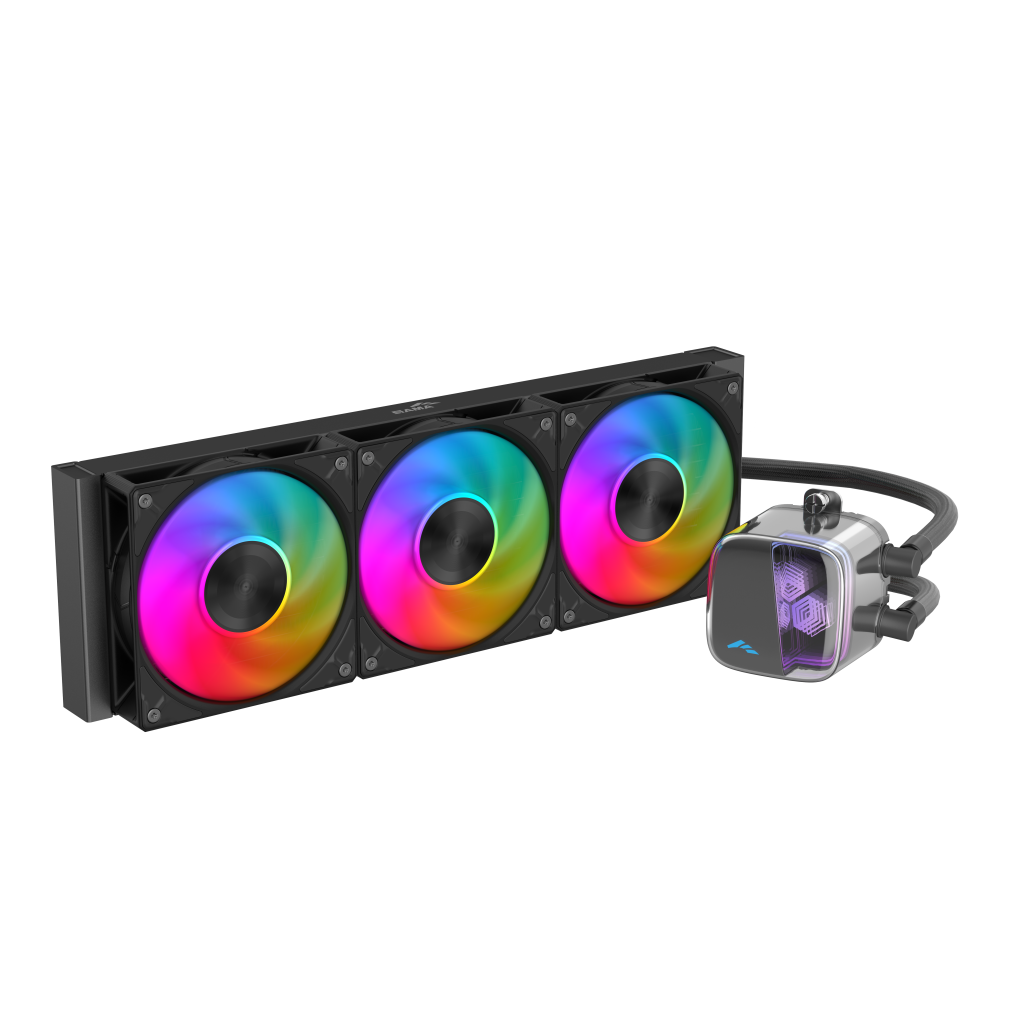

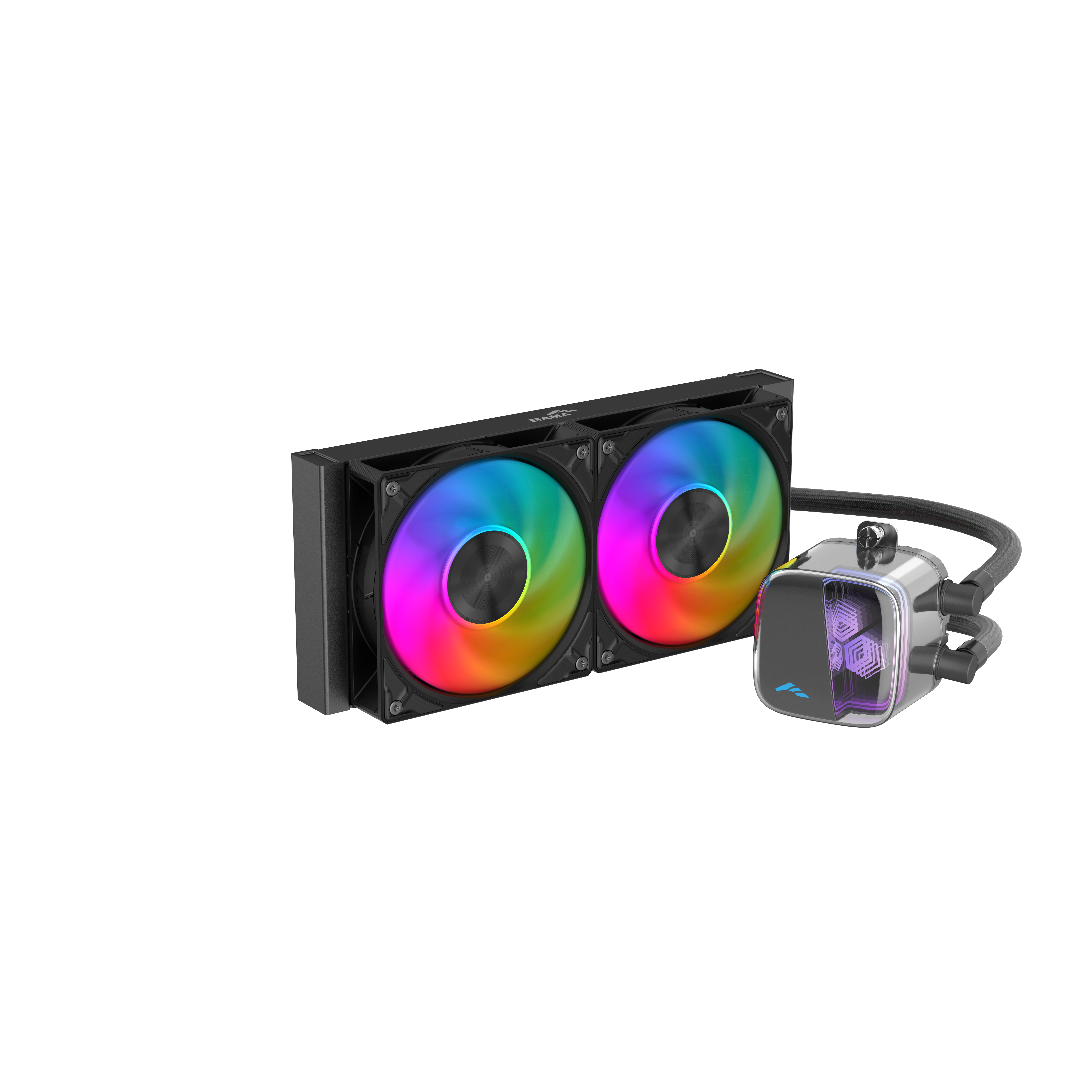

  Introducing the SAMA L50 AIO: equipped with a self-developed high-performance pump and 28mm-thick fans for exceptional cooling. Its dot-matrix water block with infinity mirror effect delivers stunning ARGB lighting—blending high-level performance with bold aesthetics.
