Home / AlO Cooling / L50
AlO Cooling

L50

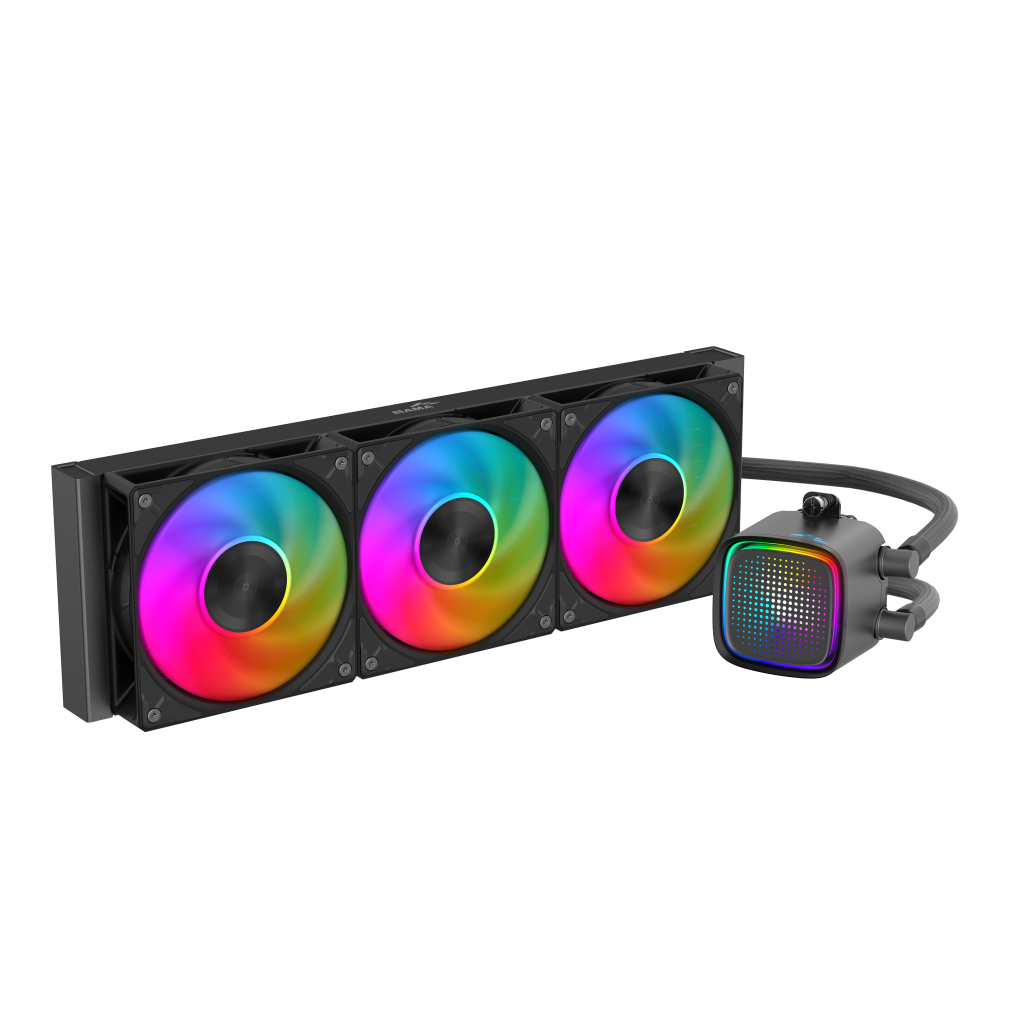

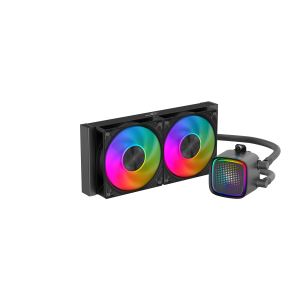

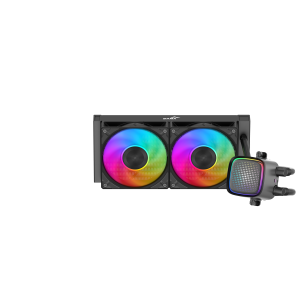

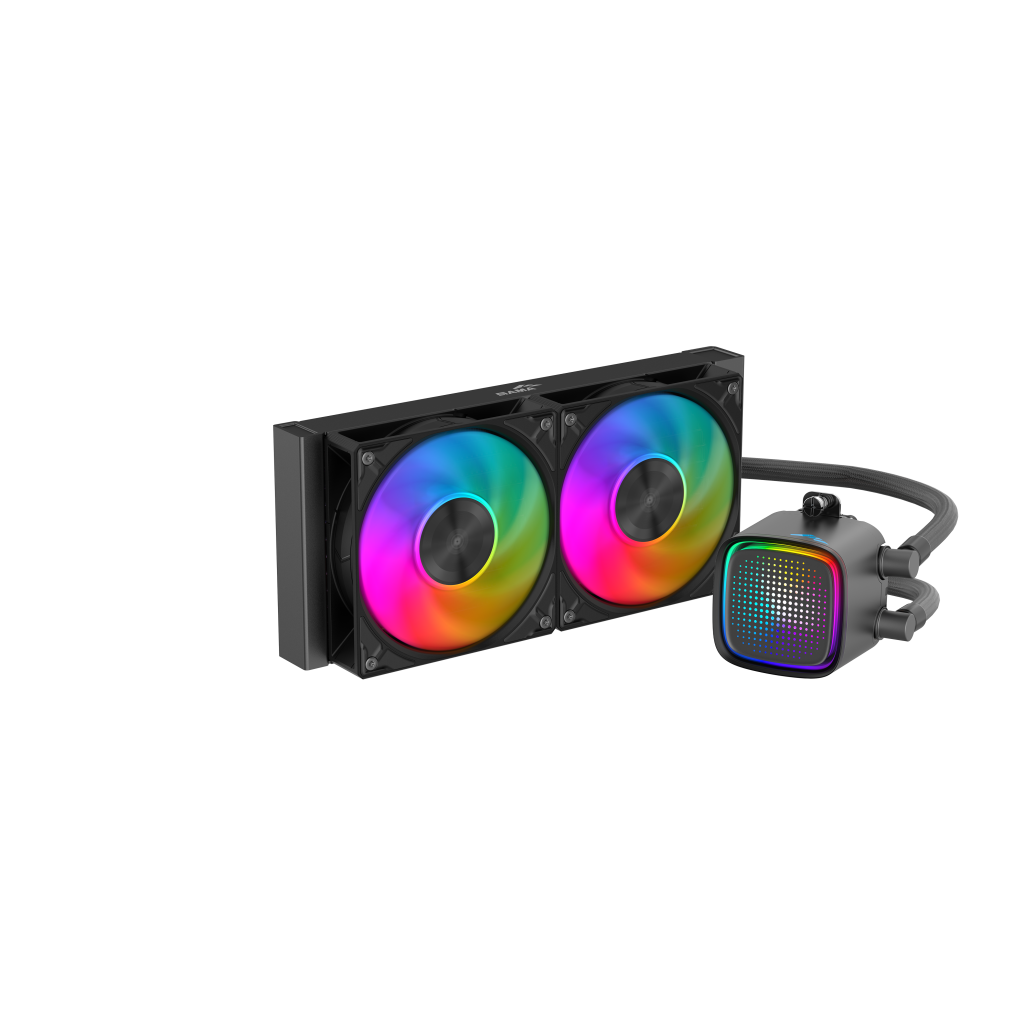

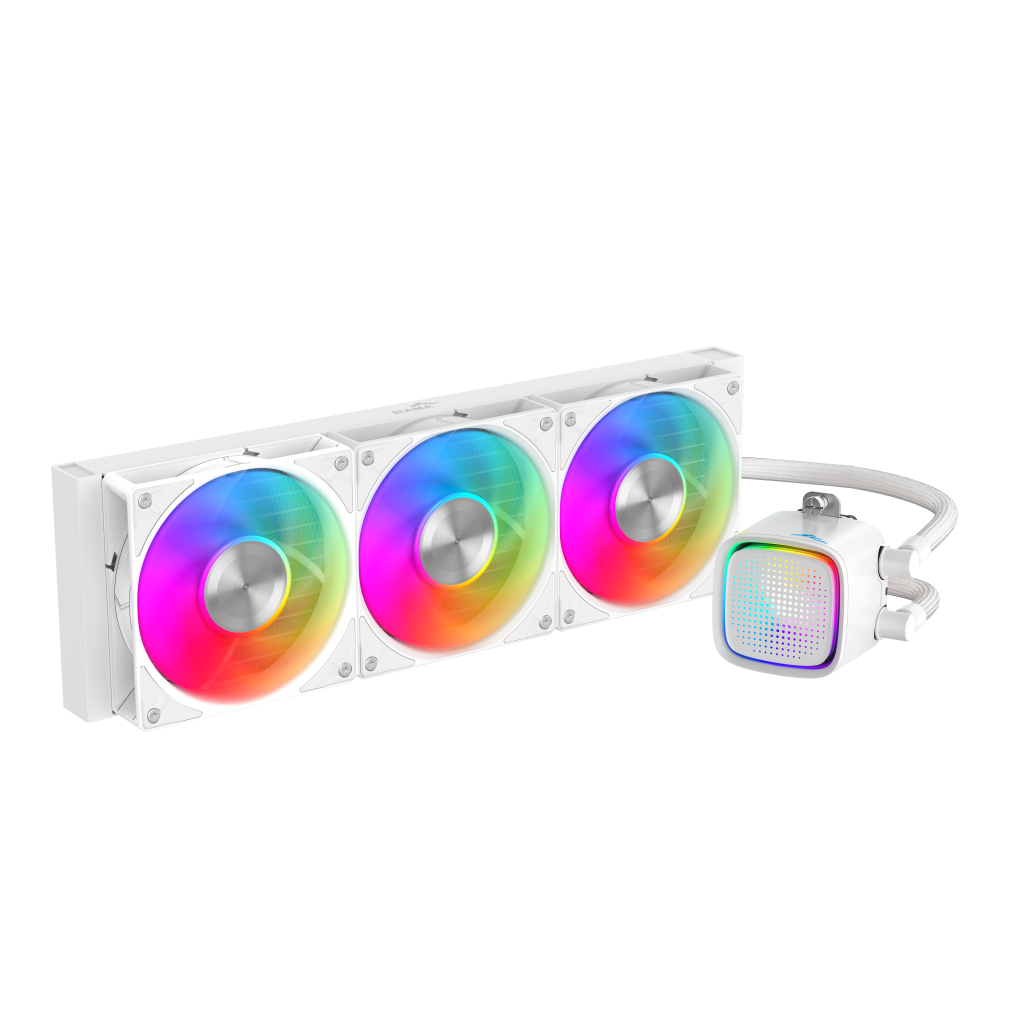

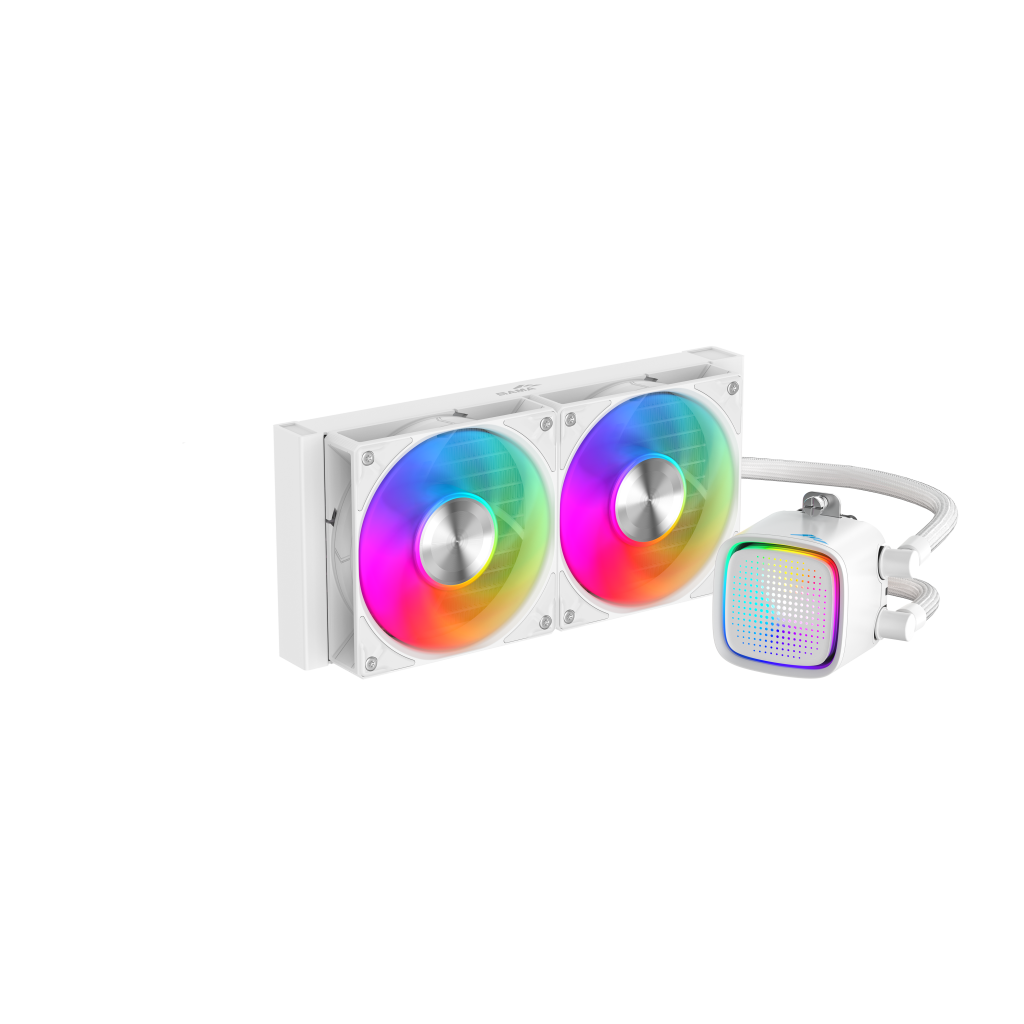

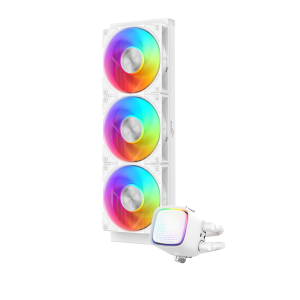

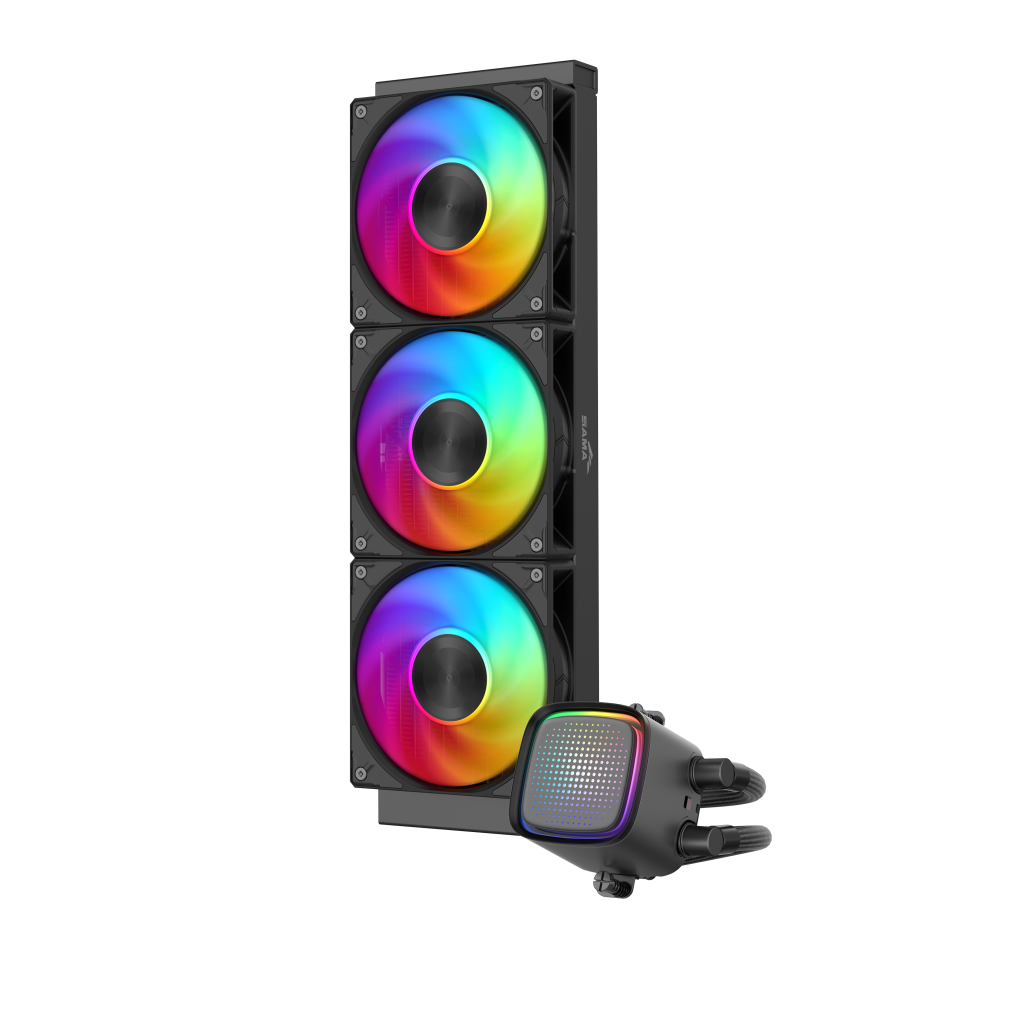

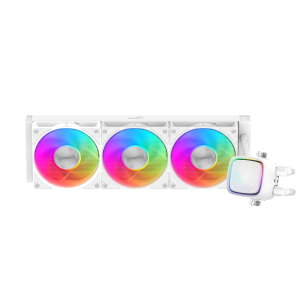

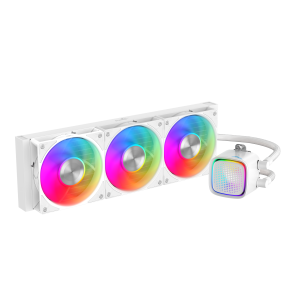

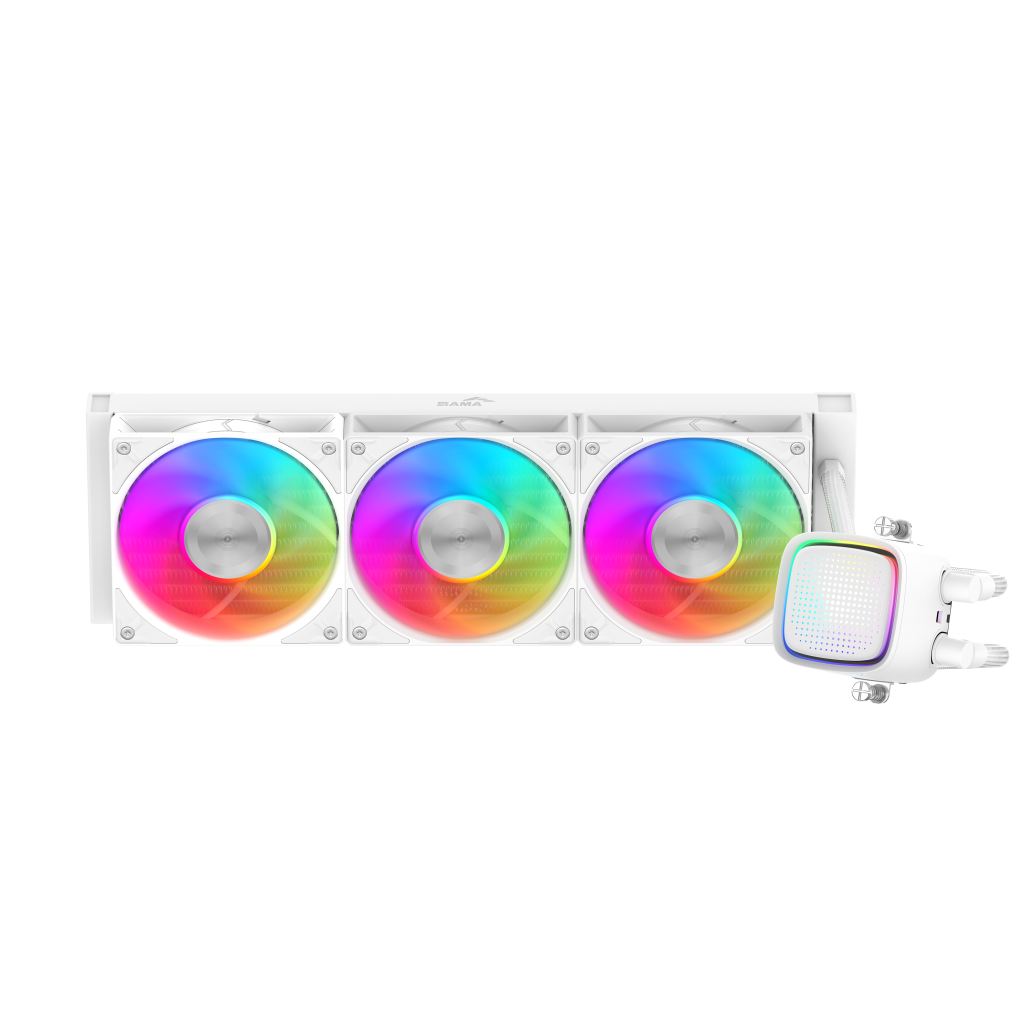

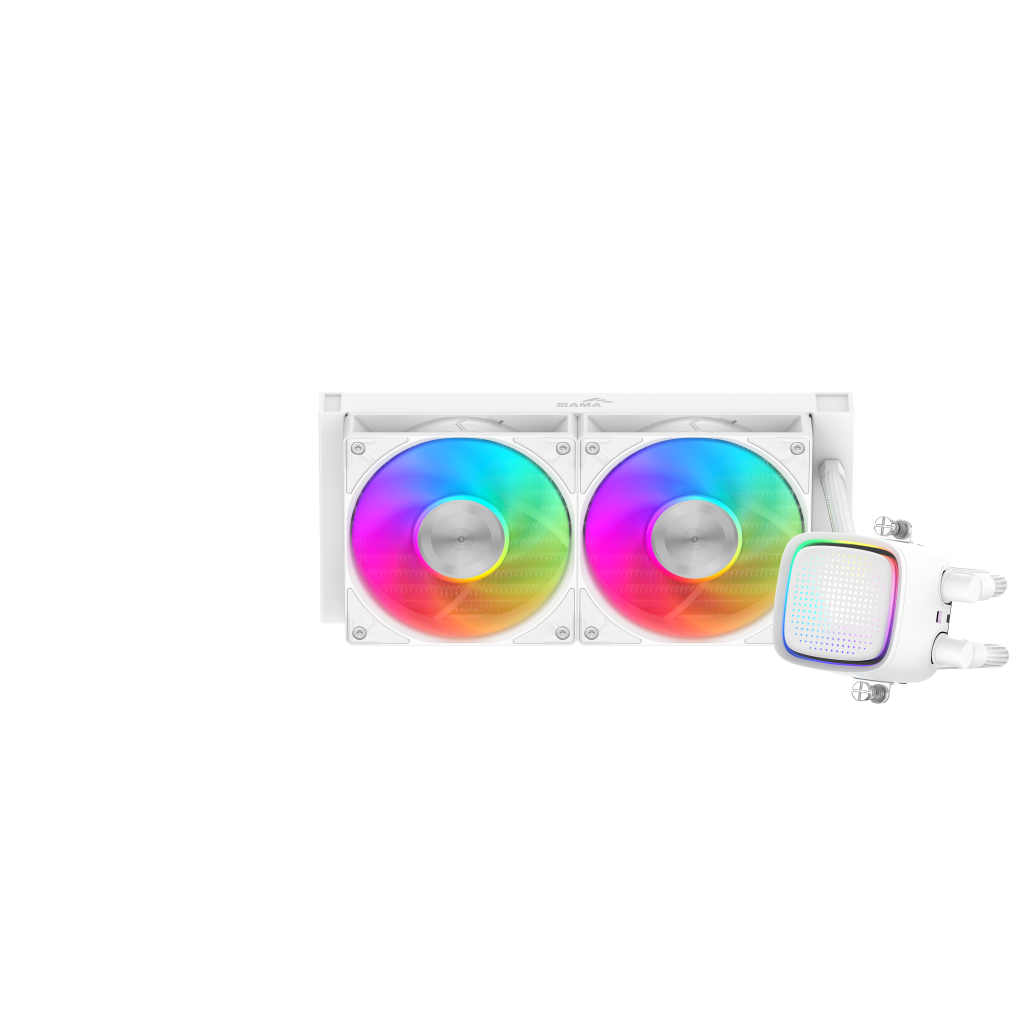

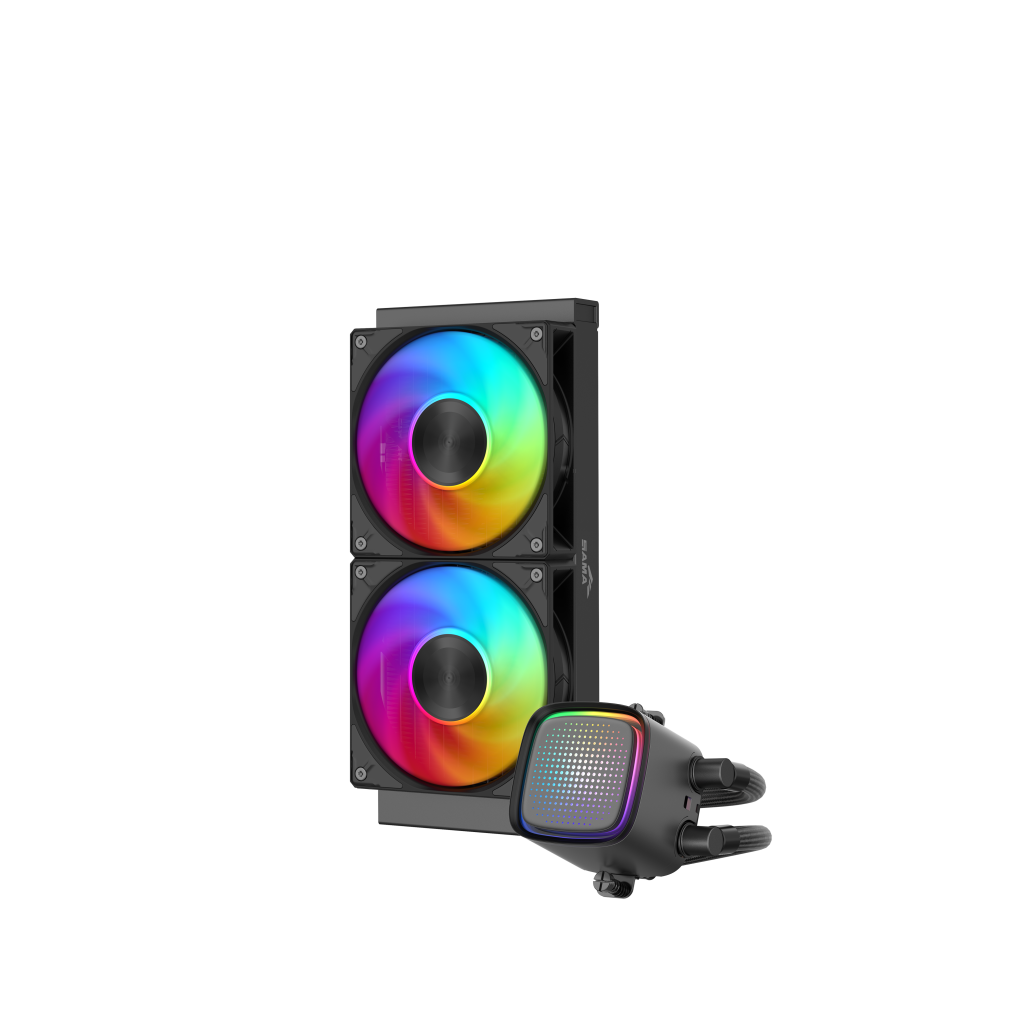

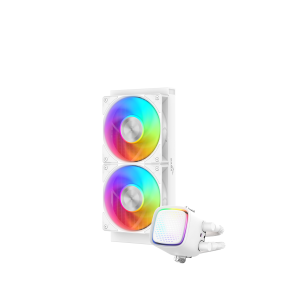

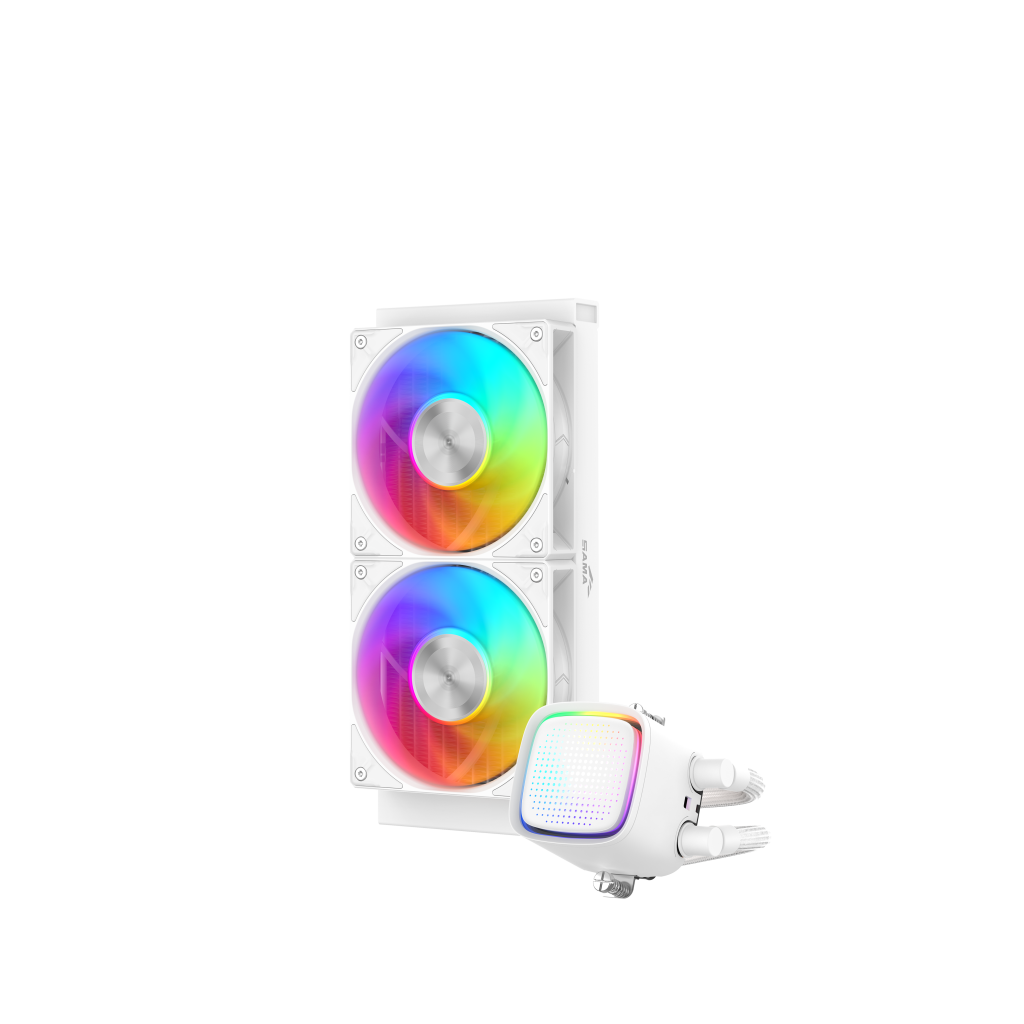

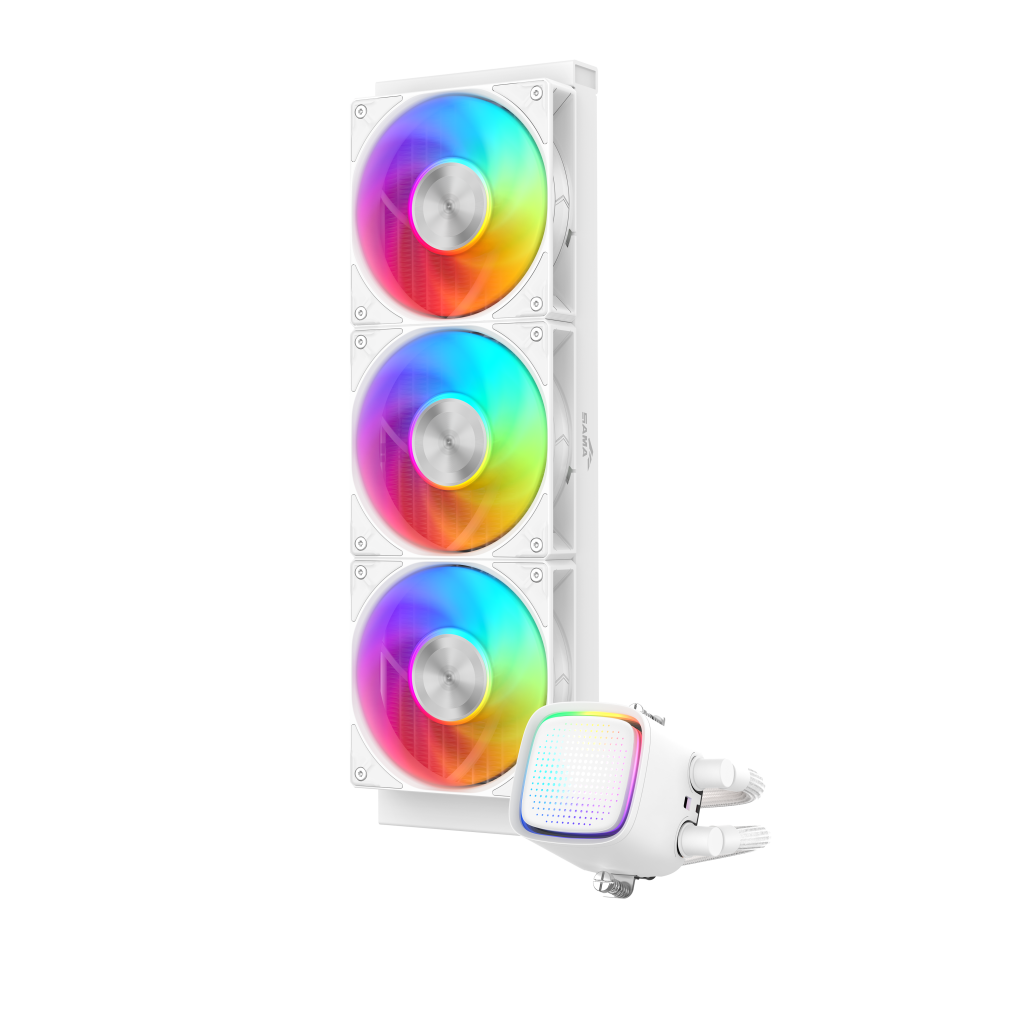

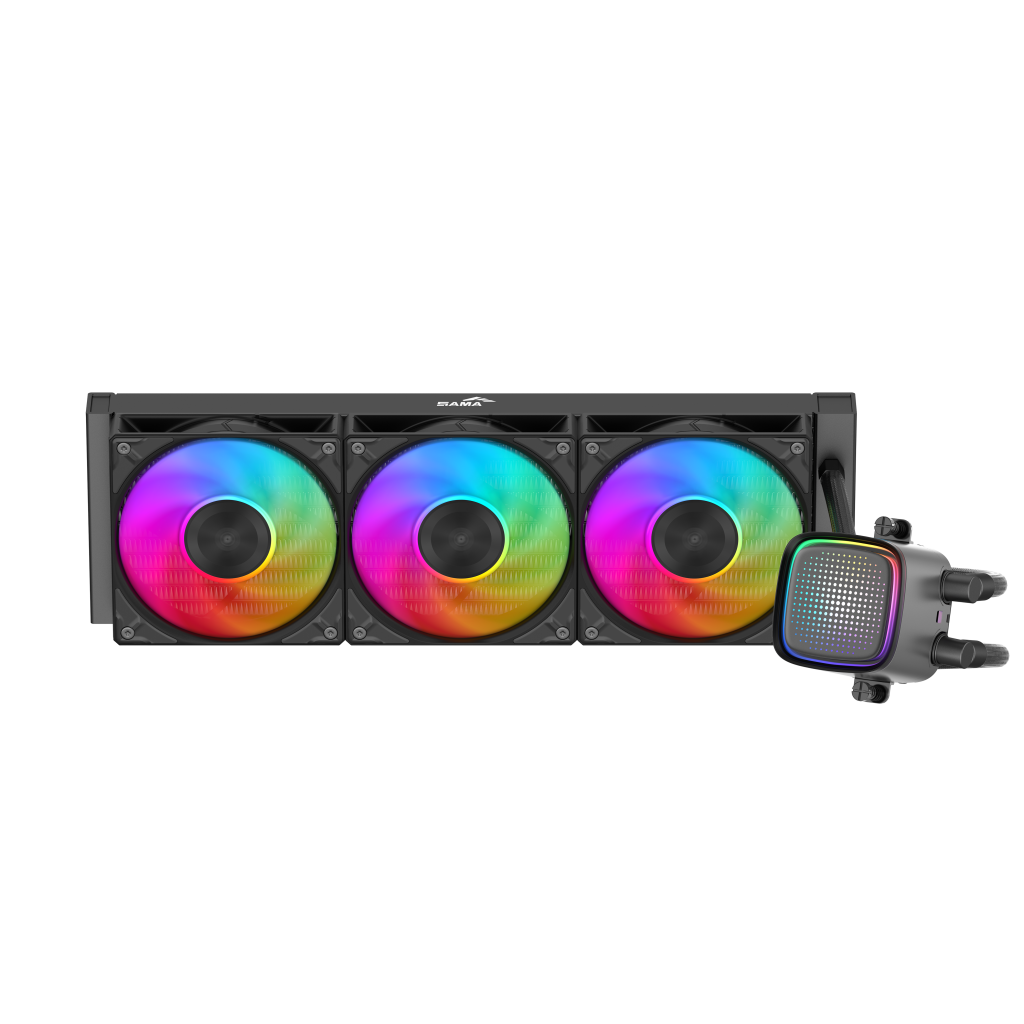

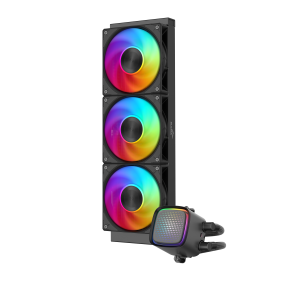

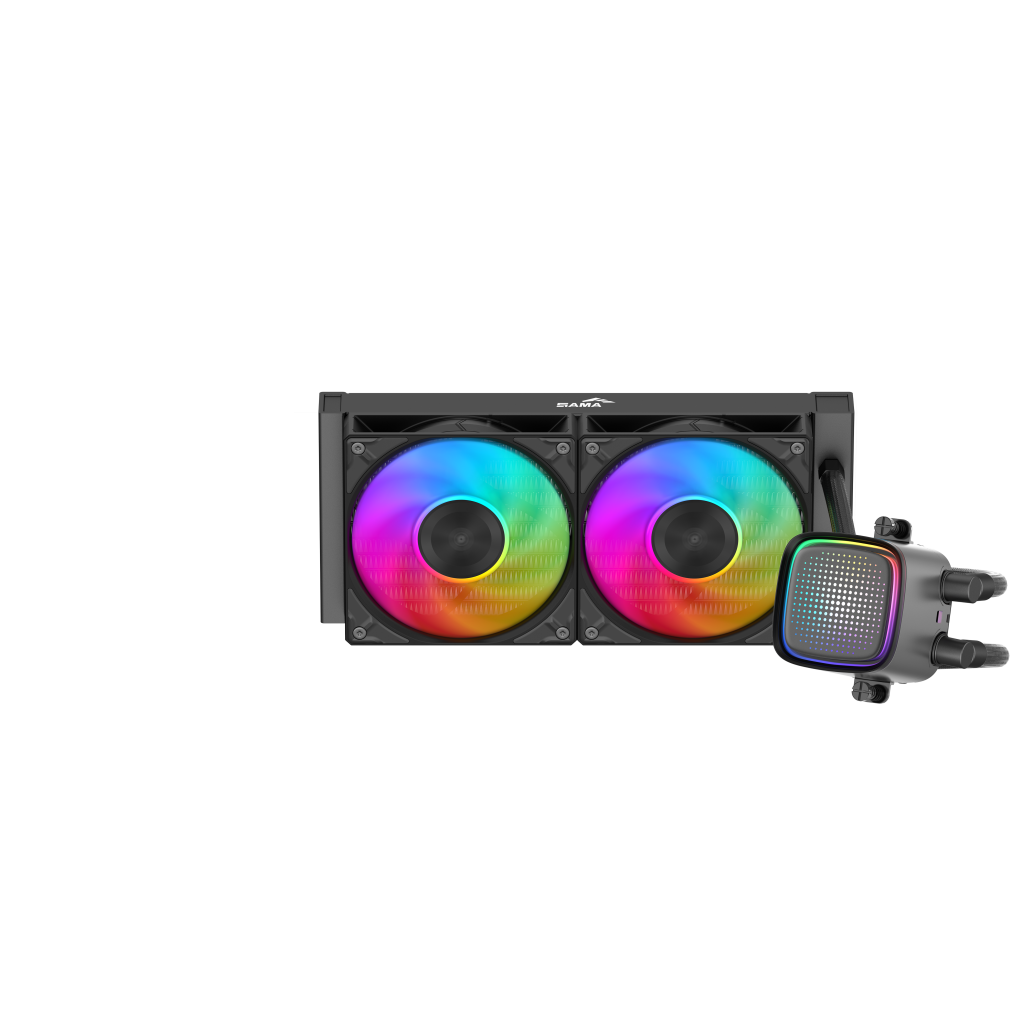

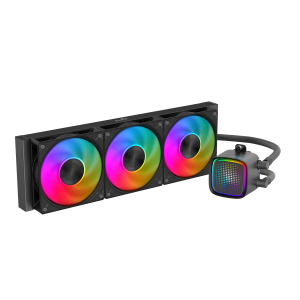

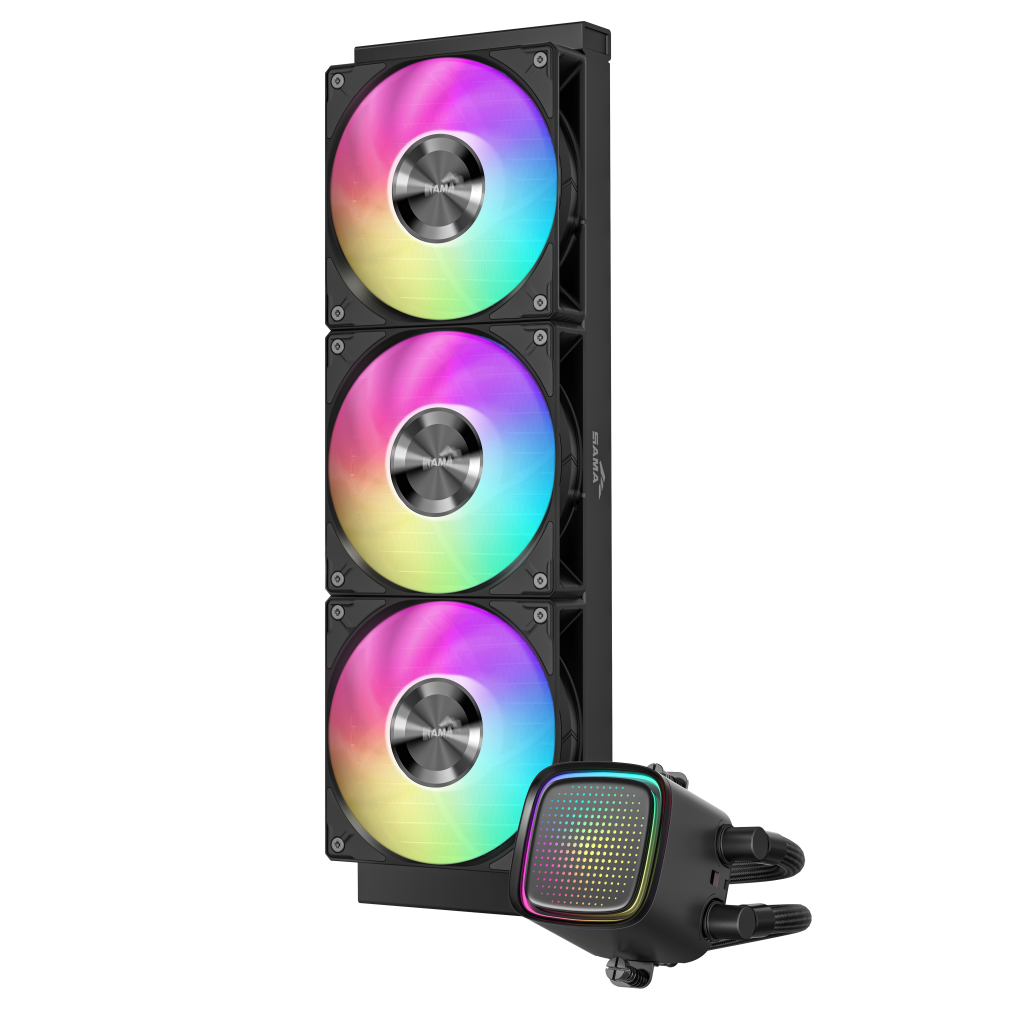

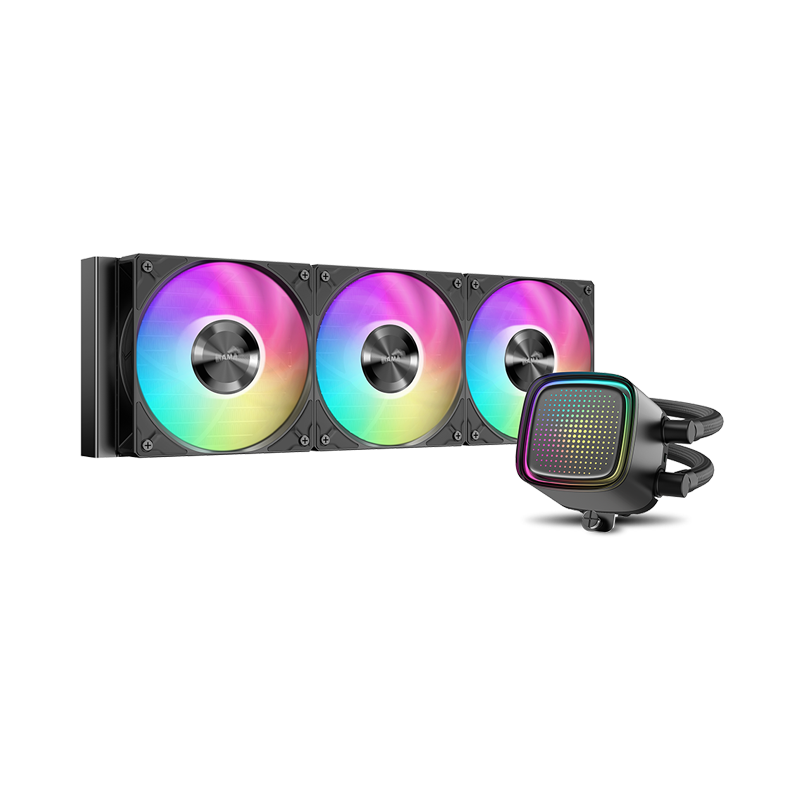

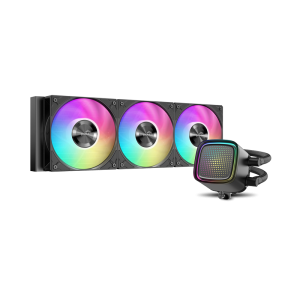

The L50 AIO combines an in-house designed high-performance pump with 28mm-thick ARGB fans to deliver strong thermal headroom for modern CPUs. Its dot-matrix water block paired with an infinity mirror effect adds layered ARGB depth, balancing showcase aesthetics with sustained cooling performance.
color
  • #000000 | 1

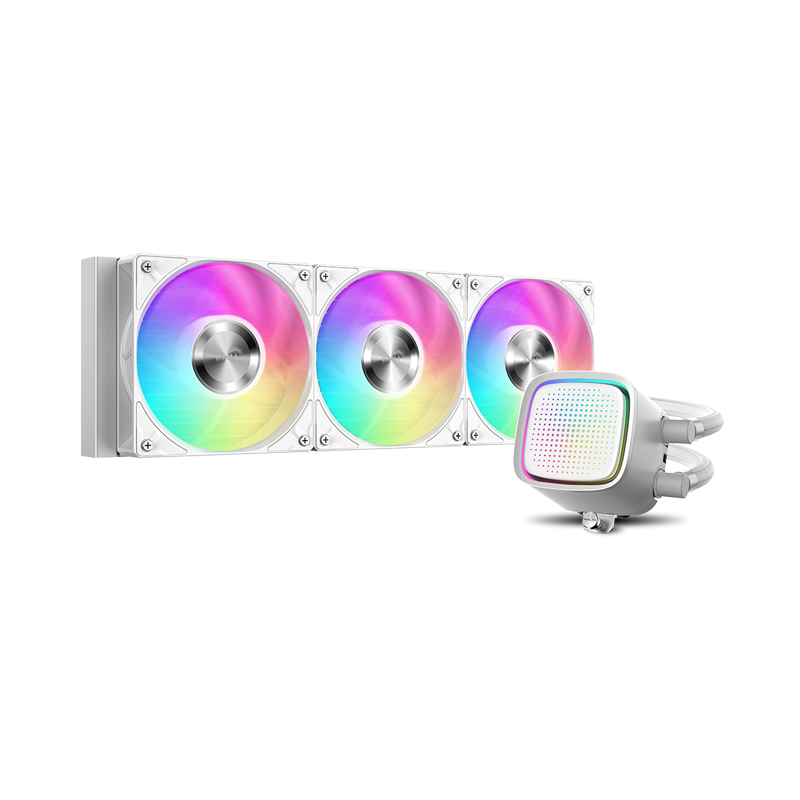

  • #ffffff | 2
view specifications
image pack
product manual
Specifications

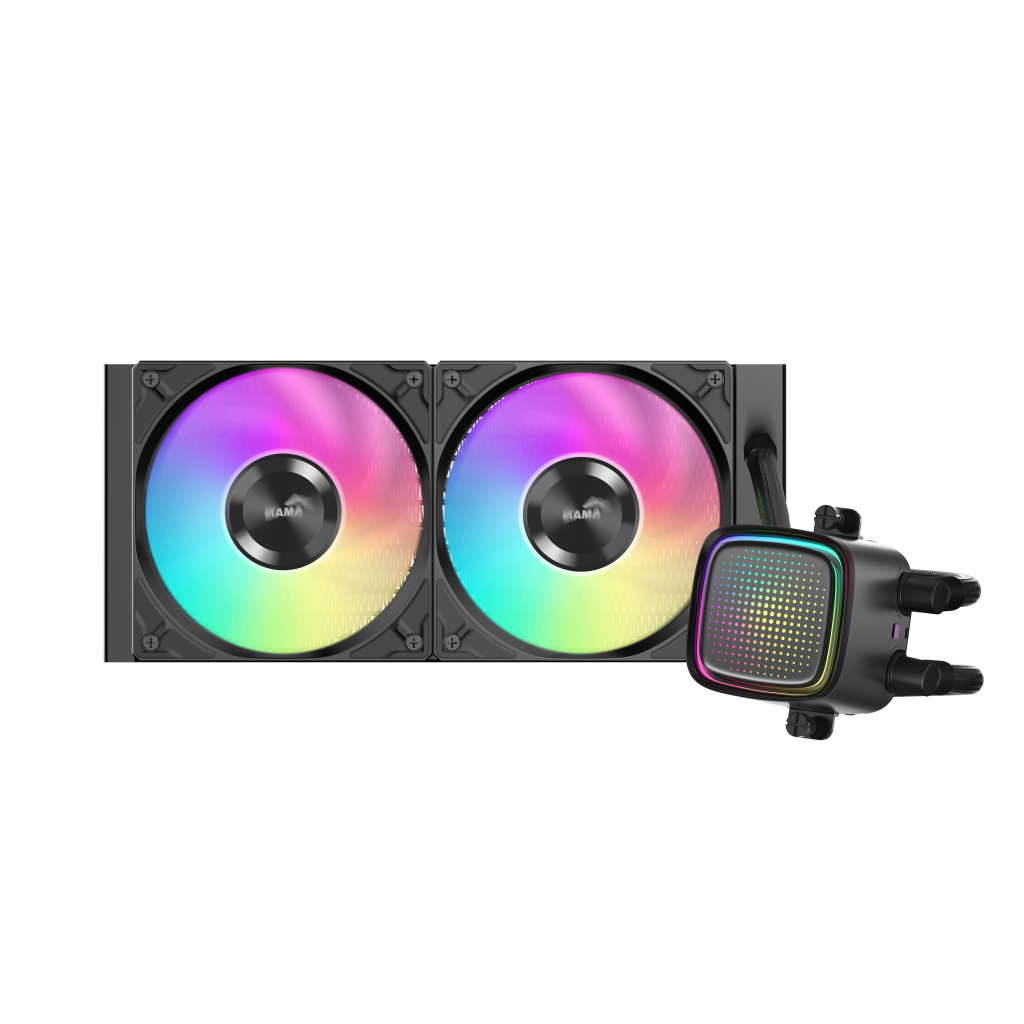

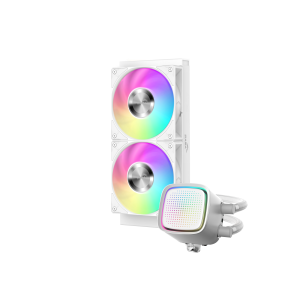

Model L50 360BK/WH Model L50 240BK/WH
CPU Socket Intel LGA:115X/1200/1700/1851
AMD:AM5/AM4		 CPU Socket Intel LGA:115X/1200/1700/1851
AMD:AM5/AM4
Tube Length 400mm Tube Length 400mm
Warranty 3 Years Warranty 3 Years
Radiator Dimension:397×120×27mm
Material:Aluminum		 Radiator Dimension:277×120×27mm
Material:Aluminum
Pump Dimension:73×73×66mm(L×W×H)
Speed:2000~3000RPM±10% PWM
Connector:12V-4Pin
Rated Voltage:12 VDC
Max Current:0.42 A		 Pump Dimension:73×73×66mm(L×W×H)
Speed:2000~3000RPM±10% PWM
Connector:12V-4Pin
Rated Voltage:12 VDC
Max Current:0.42 A
Fan Included Fans:3pcs
Dimension:120×120×28mm
Bearing Type:Hydraulic bearing
Speed:800-2200±10%RPM
Air Flow:72.3CFM（Max）
Air Pressure:2.85 mmH2O
Fan Noise:≤28dB-A
Rated Voltage:DC 12V
Max Current:0.35A
Connector:4PIN PWM		 Fan Included Fans:2pcs
Dimension:120×120×28mm
Bearing Type:Hydraulic bearing
Speed:800-2200±10%RPM
Air Flow:72.3CFM（Max）
Air Pressure:2.85 mmH2O
Fan Noise:≤28dB-A
Rated Voltage:DC 12V
Max Current:0.35A
Connector:4PIN PWM
Fan LED Type:ARGB
Connector:5V-3Pin
Max Current:0.2A		 Fan LED Type:ARGB
Connector:5V-3Pin
Max Current:0.2A
Pump LED Type:ARGB
Connector:5V-3Pin
Max Current:0.3A		 Fan LED Type:ARGB
Connector:5V-3Pin
Max Current:0.3A
