AlO Cooler

L Series

The SAMA L Series AIO features a water block topped with a fully reflective cap, creating a vibrant RGB lighting effect that enhances the visual appeal of your build.
Color
  • #ffffff
  • #000000
Product Manual
Amazon Newegg

SAMA L Series AIO

Features a water block topped with a fully reflective cap, creating a vibrant RGB lighting effect that enhances the visual appeal of your build. Paired with a high-performance aluminum radiator, it seamlessly combines practicality with striking aesthetics, ensuring efficient cooling alongside a dynamic, eye-catching look.

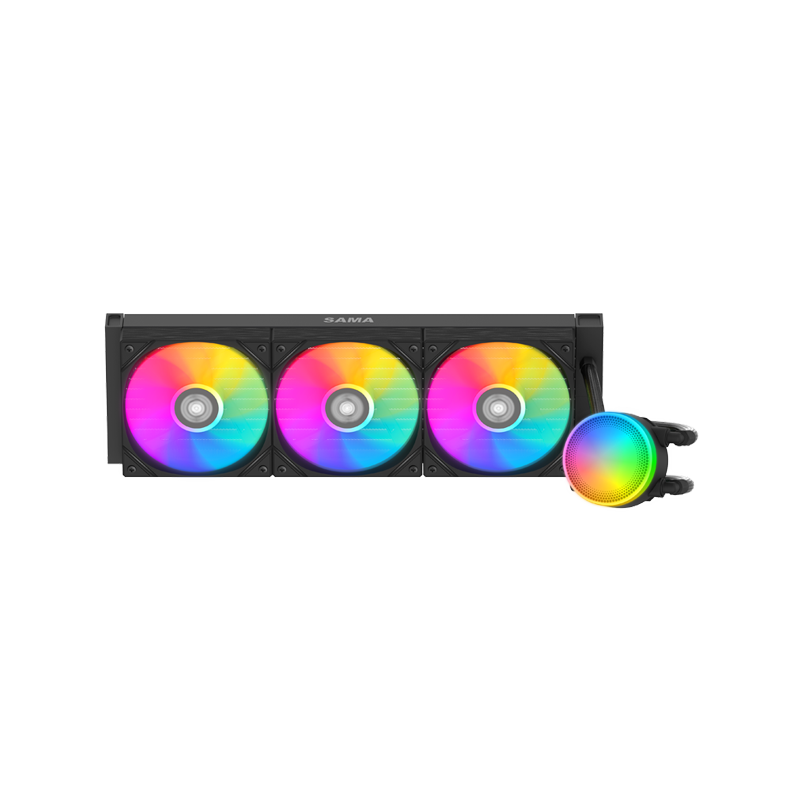

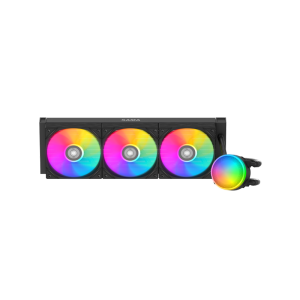

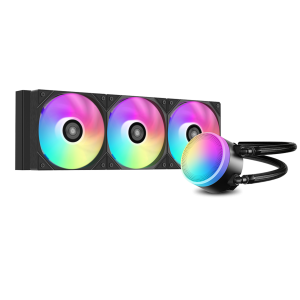

  • L60 BLACK

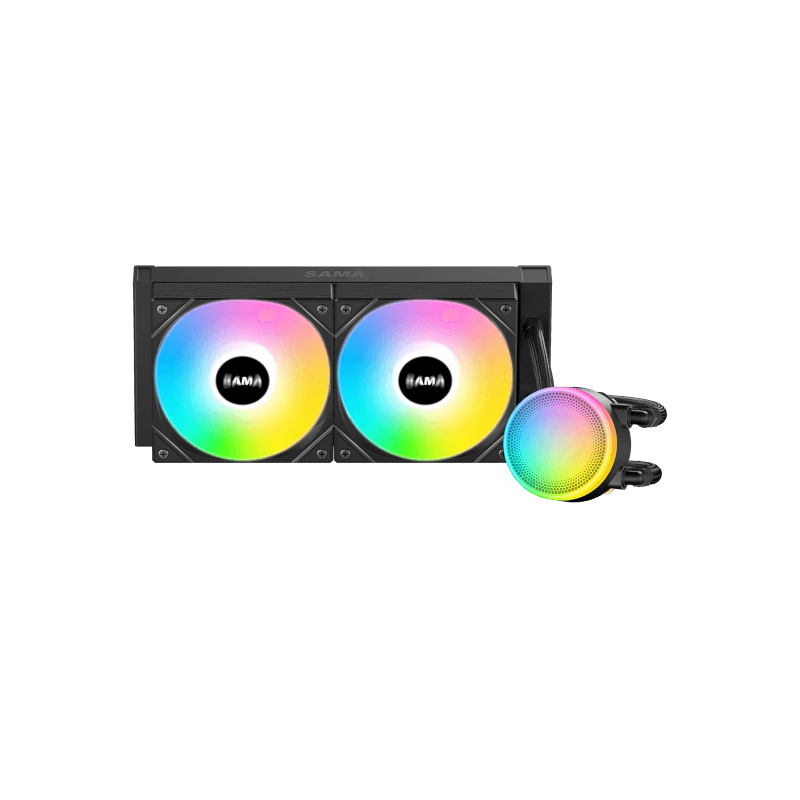

  • L40 BLACK

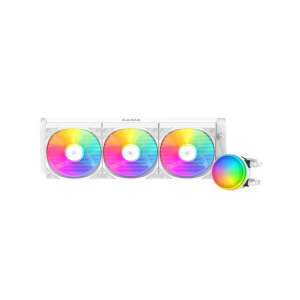

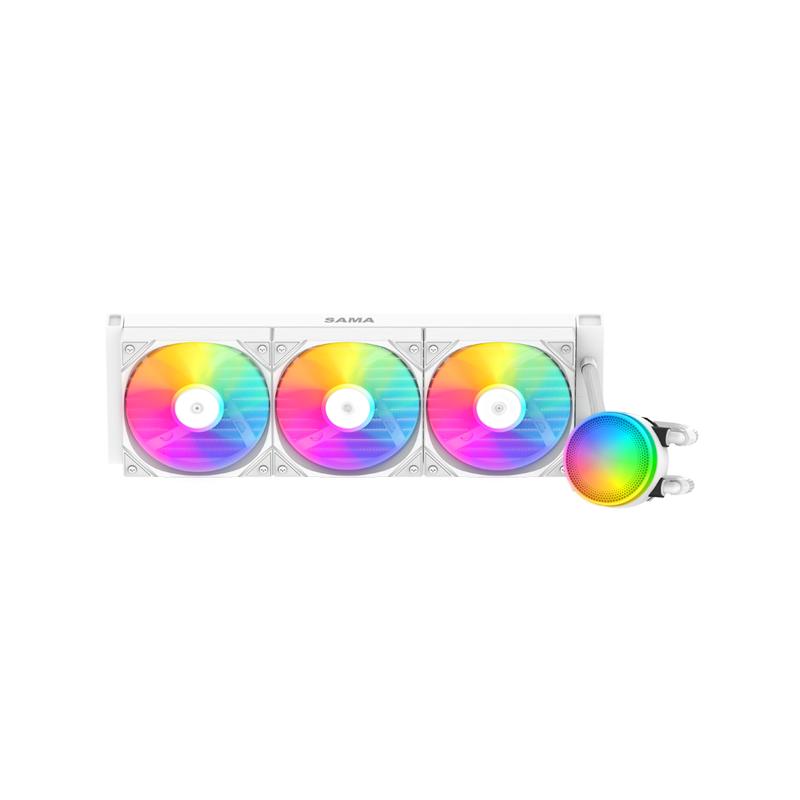

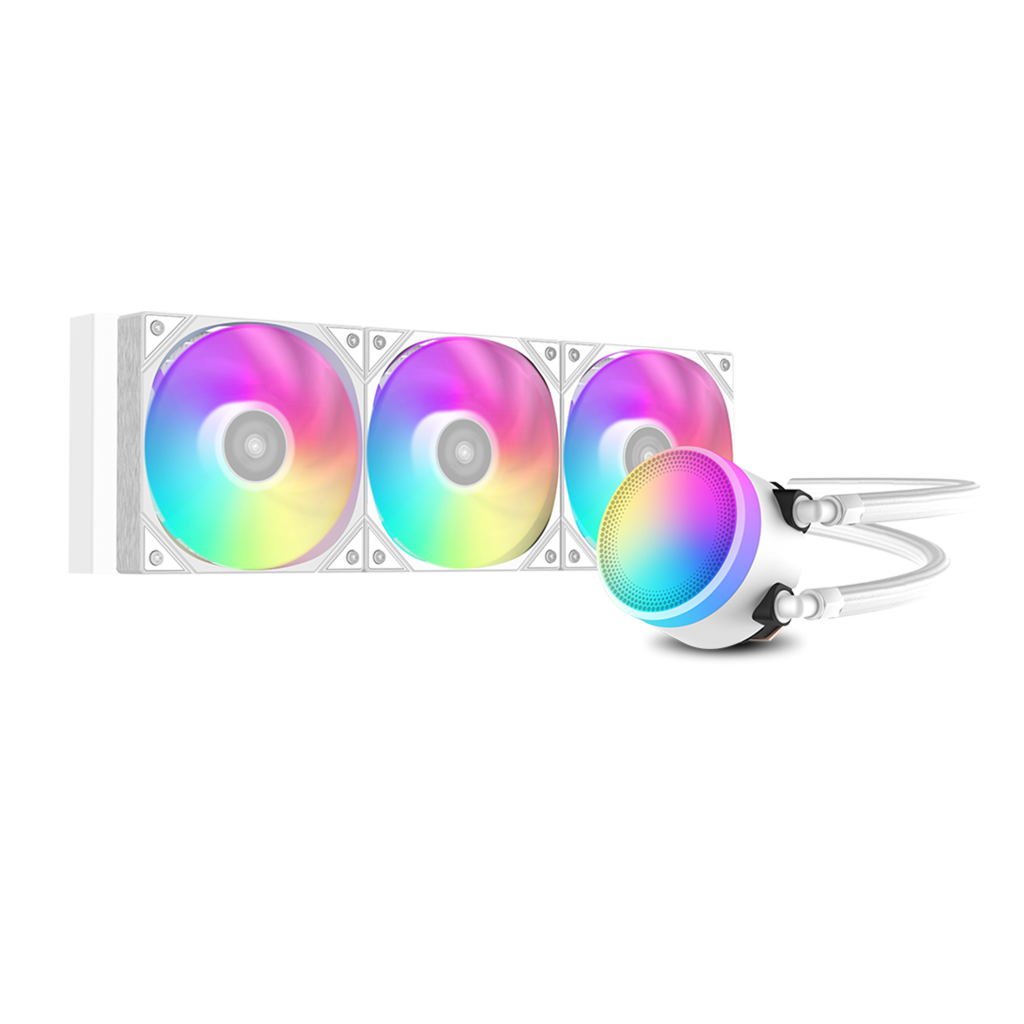

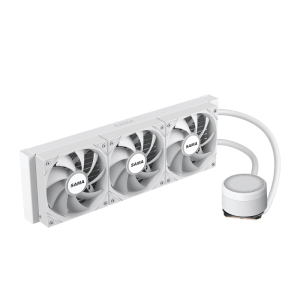

  • L60 WHITE
  • L40 WHITE

AVAILABLE IN 2 SIZES/COLORS

The SAMA L series AIO offers two size options—360mm and 240mm—available in two sleek colors: black and white. This variety ensures a perfect fit for different system sizes and aesthetic preferences, providing both performance and style for your build.

STUNNING WATER BLOCK CAP

The water block of the L series features a fully reflective cap that delivers vibrant and vivid lighting effects, adding a stunning visual element to your build. This design enhances both the aesthetic appeal and the dynamic lighting experience of your system.

PRE-INSTALLED FANS

The L Series comes equipped with pre-installed PWM ARGB fans featuring Fluid Dynamic Bearings (FDB). These high- performance fans provide immediate andefficient cooling while adding vibrant, dynamic lighting effects, enhancing both the functionality and visual appeal of your build.
  • L60:
  • L40:
Thickness: 1.5mm

THICK COPPER BASE

The cold plate of the L series features a thick copper base, providing excellent thermal performance. This design efficiently dissipates heat, allowing the cooler to manage high temperatures effortlessly and maintain peak performance even during intense workloads.

27mm

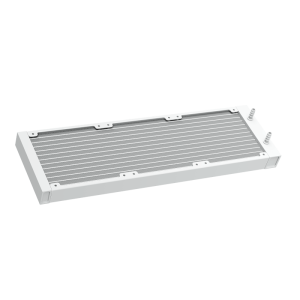

OPTIMIZED RADIATOR

The L Series includes a 27mm thick aluminum radiator, offering increased coolant capacity andan expanded surface area for improved cooling efficiency. With20mm thick internalwater channels, the radiator enables efficientheat exchange,delivering powerful and consistent cooling tomaintain optimal system temperatures even during demanding tasks.
  • INTEL
    • 1366
    • 115X
    • 2011
    • 1200
    • 1700
    • 1851
  • AMD
    • AM4
    • AM5

DUAL-PLATFORM READY

The L Series is equipped with mounting sockets compatible with mainstream CPUs, ensuring straightforward installation across various systems. This broad compatibility makes it easy to integrate the cooler into different setups, regardless of CPU brand or model.
Specifications
Model L60 BK/WH Model L40 BK/WH
P/N L60-BKWAYXO3-G
L60-WHWAYXO3-G		 P/N L40-BKWAYXO2-G
L40-WHWAYXO2-G
CPU Socket Intel LGA:115X/1200/1700/1851/20XX
AMD:AM5/AM4		 CPU Socket Intel LGA:115X/1200/1700/1851/20XX
AMD:AM5/AM4
Tube Length 380mm Tube Length 380mm
Warranty 3 Years Warranty 3 Years
Radiator Dimension:397×120×27mm
Material:Aluminum Fins		 Radiator Dimension:277×120×27mm
Material:Aluminum Fins
Pump Dimension:74×89×52mm(L×W×H)
Speed:2500RPM±10% PWM
Noise:≤30dB-A
Connector:4Pin
Rated Voltage:12 VDC
Rated Current:≤0.30 A
Power Consumption:≤3.6 W		 Pump Dimension:74×89×52mm(L×W×H)
Speed:2500RPM±10% PWM
Noise:≤30dB-A
Connector:4Pin
Rated Voltage:12 VDC
Rated Current:≤0.30 A
Power Consumption:≤3.6 W
Fan Included Fans:3pcs
Dimension:120×120×25mm
Bearing Type:Hydraulic bearing
Speed:800-2000±10%RPM
Air Flow:83CFM（Max）
Air Pressure:2.6 mmH2O
Fan Noise:≤34.8dB-A
Rated Voltage:DC 12V
Rated Current:0.35A
Power Consumption:4.2W
Connector:4PIN PWM		 Fan Included Fans:2pcs
Dimension:120×120×25mm
Bearing Type:Hydraulic bearing
Speed:800-2000±10%RPM
Air Flow:83CFM（Max）
Air Pressure:2.6 mmH2O
Fan Noise:≤34.8dB-A
Rated Voltage:DC 12V
Rated Current:0.35A
Power Consumption:4.2W
Connector:4PIN PWM
Fan LED Type:A RGB
Connector:ARGB 4PMale/Female Connector
Rated Current:0.28A
Power Consumption:≦1.4 W		 Fan LED Type:A RGB
Connector:ARGB 4PMale/Female Connector
Rated Current:0.28A
Power Consumption:≦1.4 W
Pump LED Type:A RGB
Connector:ARGB 4PMale/Female Connector
Rated Current:0.29A
Power Consumption:≦1.45 W		 Fan LED Type:A RGB
Connector:ARGB 4PMale/Female Connector
Rated Current:0.29A
Power Consumption:≦1.45 W
