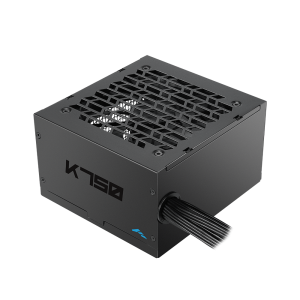

| Product Name | K650 | K750 | K850 |
| Model Number | BTX-650-1BA2 | BTX-750-1BA2 | EPS-850-1BA2 |
| Output Power | 650W | 750W | 850W |
| Net Weight (Body+Non Moaular Cable) | 1.26kg | 1.30kg | 1.36kg |
| Form Factor | ATX 2.52 | ||
| Modularity | Non-Modular | ||
| Dimensions | 140 x 150 x 86mm (L×W×H) | ||
| Color | Black | ||
| 80PLUS Certification | Bronze | ||
| Efficiency | >85% Under Typical Load (50% Load) | ||
| AC Input | 100-240Vac | ||
| Fan Size | 120mm | ||
| Fan Bearing | Sleeve Fan | ||
| Fan Bearing | 100-240VAC | ||
| Operating Temperature | 0-40°C | ||
| Protection | UVP / OVP / OCP / OPP / NLP / SCP | ||
| Safety | CB / CE / TUV / cTUVus / FCC / ICES / UKCA / EAC | ||
| Environmental Compliance | RoHS / WEEE / ErP 2014 | ||
| MTBF | 100,000 Hours | ||
| Topology | APFC + Half-Bridge LLC + SR + DC-DC | ||
| Connectors | 1x MB ATX 24Pin 550mm 1x CPU (4+4)Pin+(4+4)Pin 700+150mm 1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm 2x (SATA+SATA+SATA+Molex) 450+150+150+150mm |
1x MB ATX 24Pin 550mm 1x CPU (4+4)Pin+(4+4)Pin 700+150mm 2x PCI-E (6+2)Pin+(6+2)Pin 550+150mm 2x (SATA+SATA+SATA+Molex) 450+150+150+150mm |
1x MB ATX 24Pin 550mm 1x CPU (4+4)Pin+(4+4)Pin 700+150mm 2x PCI-E (6+2)Pin+(6+2)Pin 550+150mm 2x (SATA+SATA+SATA+Molex) 450+150+150+150mm |
