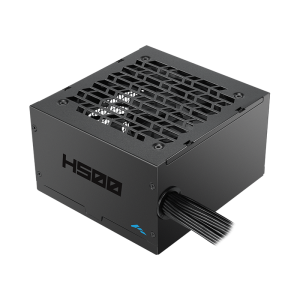

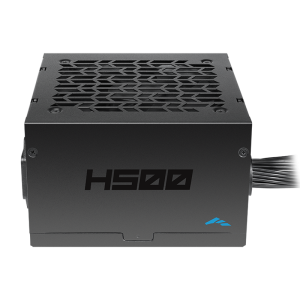

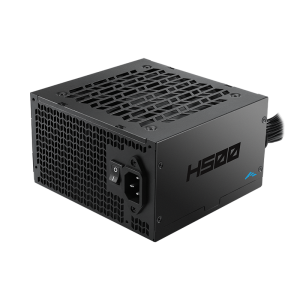

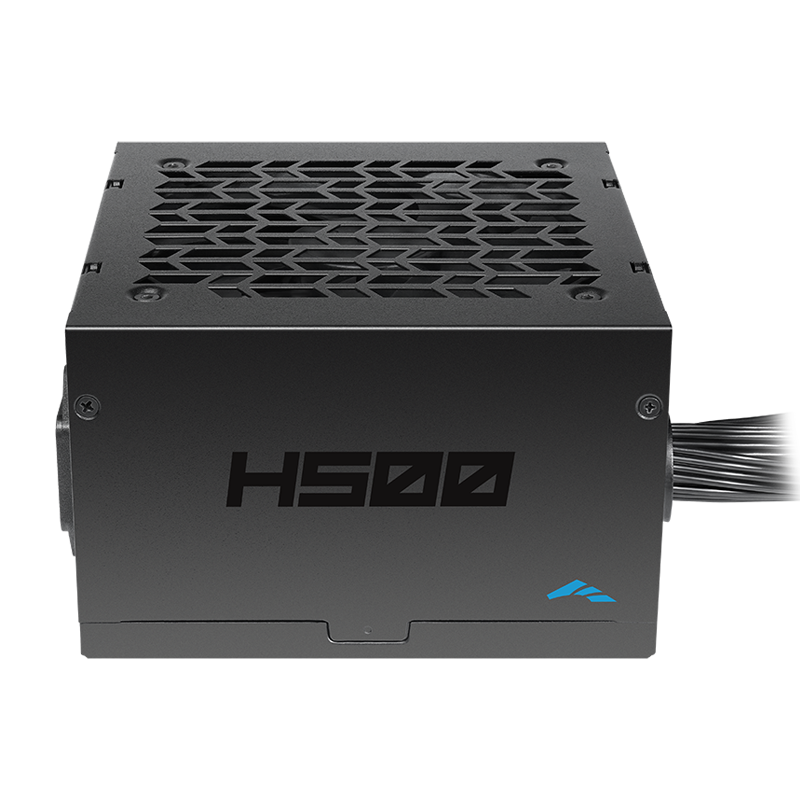

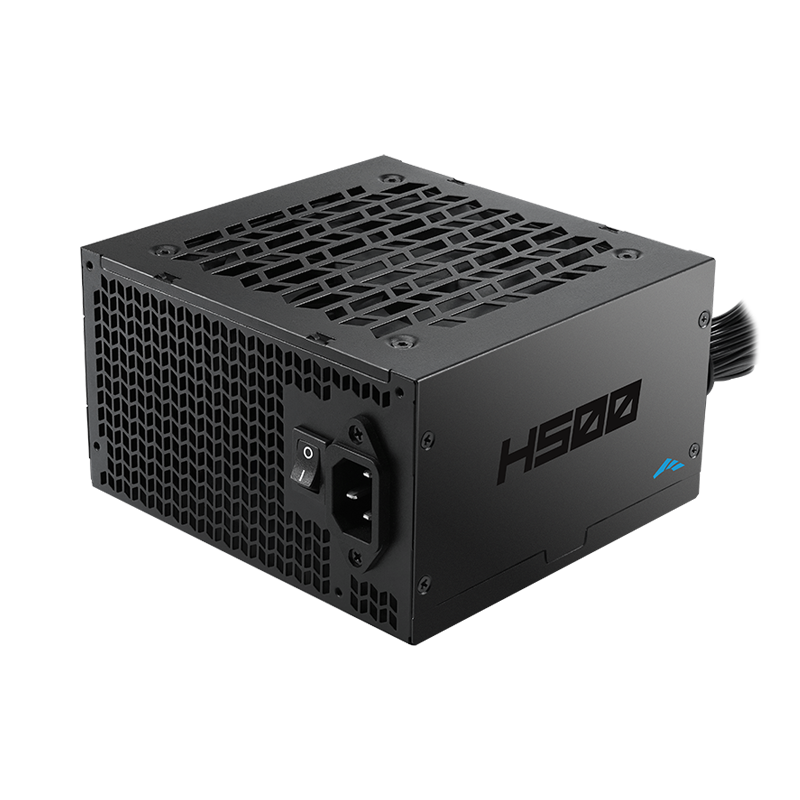

H500

The H Series delivers reliable, stable power for gaming PCs. It features a single +12V rail to ensure consistent GPU and CPU performance, along with a DC-to-DC design for precise regulation of the +3.3V and +5V rails. Certified to 80 PLUS 230V EU standards, it minimizes heat waste. A quiet 120mm fan provides effective cooling under load while balancing efficiency and voltage stability.

color

view specifications

image pack

Specifications

Product Name	H500	H600	H700
Model Number	CTX-500-SW-S	BTX-600-SW-S	XKE-700BTK-S
Output Power	500W	600W	700W
Net Weight (Body+Non Moaular Cable)	1.20kg	1.25kg	1.31kg
Form Factor	ATX 2.52
Modularity	Non-Modular
Dimensions	140 x 150 x 86mm (L×W×H)
Color	Black
80PLUS Certification	80PLUS 230V EU Standard
Efficiency	>85% Under Typical Load (50% Load)
AC Input	100-240Vac

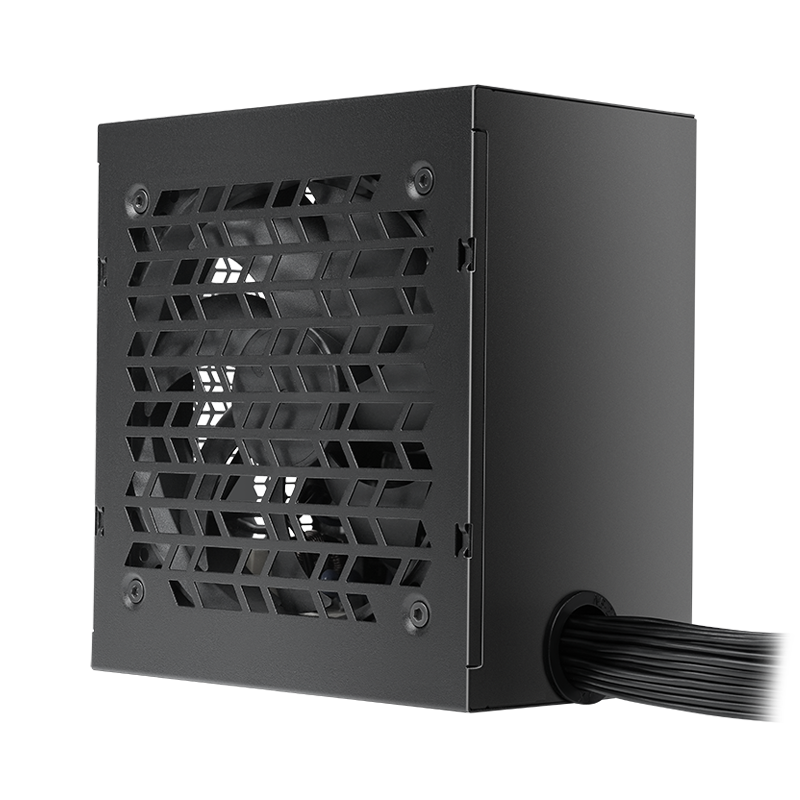

Fan Size	120mm
Fan Bearing	Sleeve Fan
Fan Bearing	100-240VAC
Operating Temperature	0-30°C
Protection	OPP / SCP / OVP / UVP / NLO
Safety	CE / TUV / CB / UKCA / EAC
Environmental Compliance	RoHS / WEEE / ErP 2014
MTBF	100,000 Hours
Topology	APFC + SR + DC-DC
Connectors	1x MB ATX 24Pin 550mm 1x CPU (4+4)Pin 600mm 1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm 1x (SATA+SATA+SATA+SATA) 450+150+150+150mm 1x (Molex+Molex+Molex+Molex) 450+150+150+150mm	1x MB ATX 24Pin 550mm 1x CPU (4+4)Pin+(4+4)Pin 600+150mm 1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm 1x (SATA+SATA+SATA+SATA) 450+150+150+150mm 1x (Molex+Molex+Molex+Molex) 450+150+150+150mm	1x MB ATX 24Pin 550mm 1x CPU (4+4)Pin+(4+4)Pin 600+150mm 1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm 1x (SATA+SATA+SATA+SATA) 450+150+150+150mm 1x (Molex+Molex+Molex+Molex) 450+150+150+150mm
