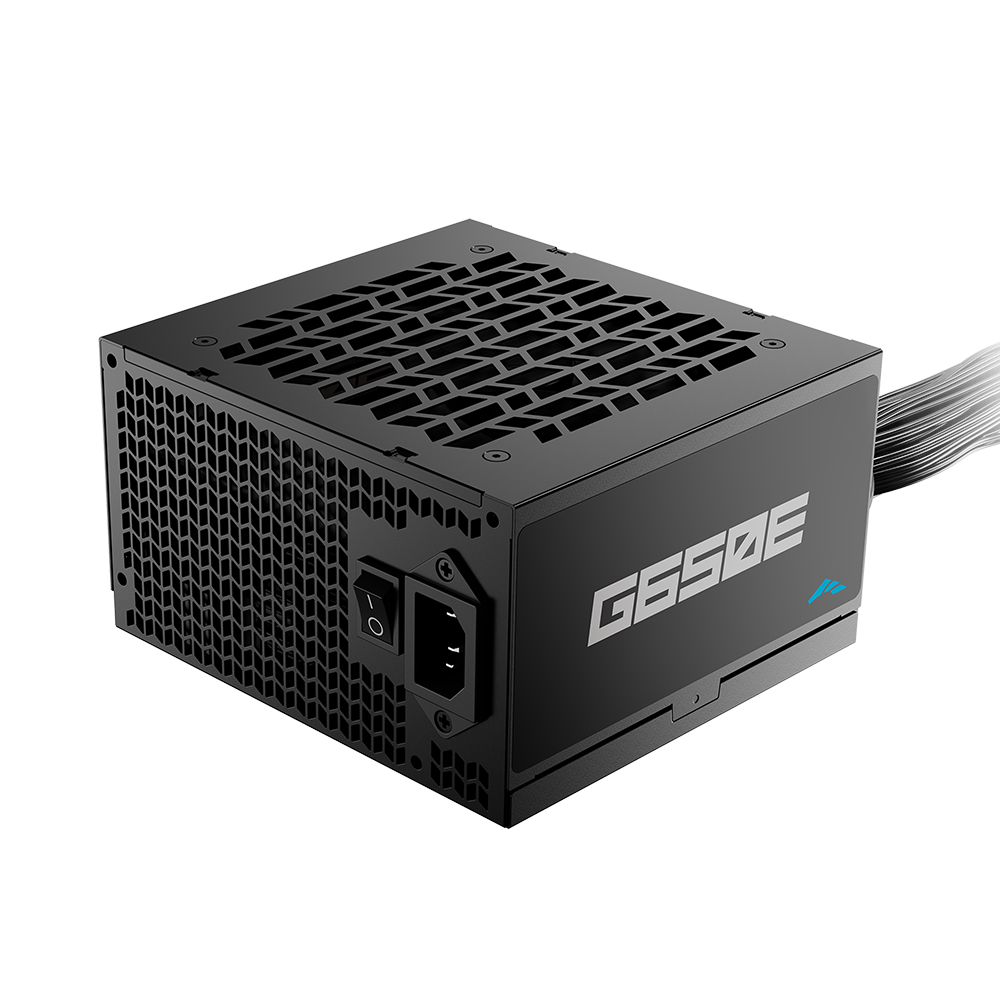

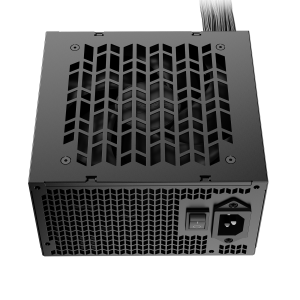

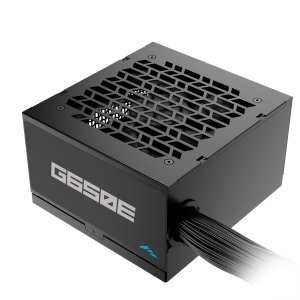

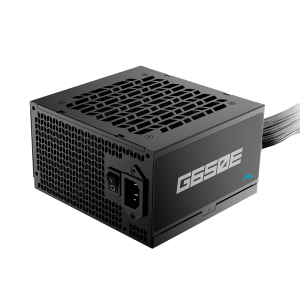

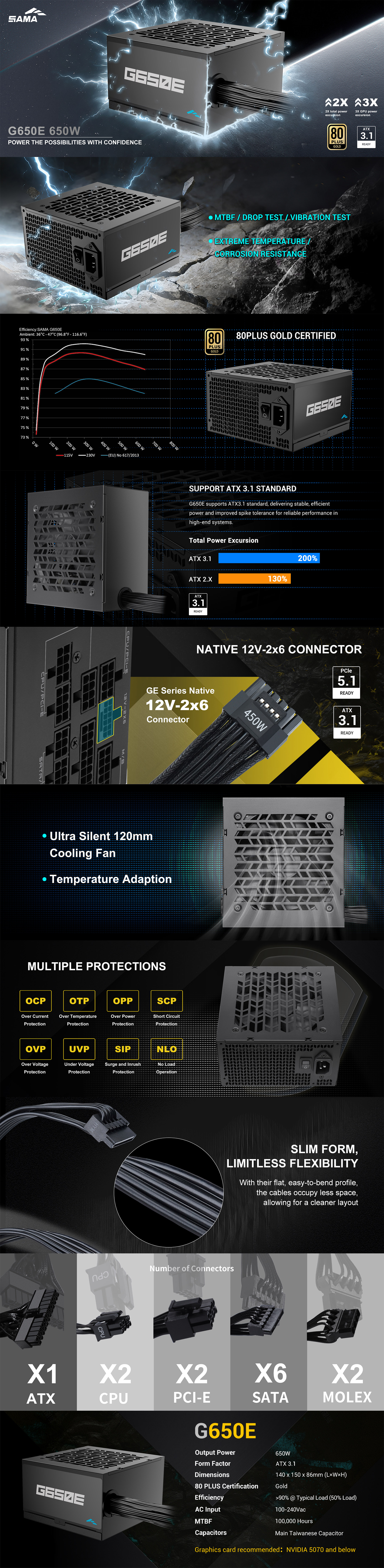

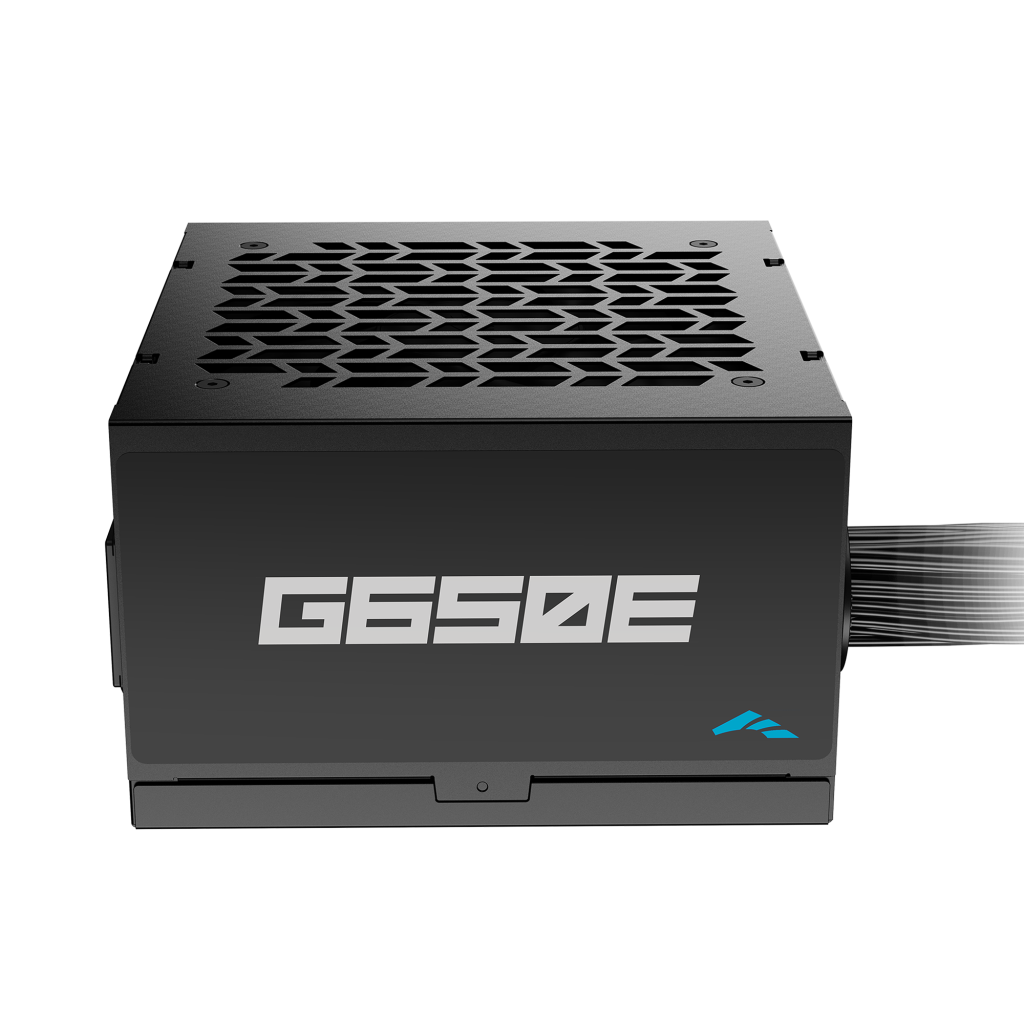

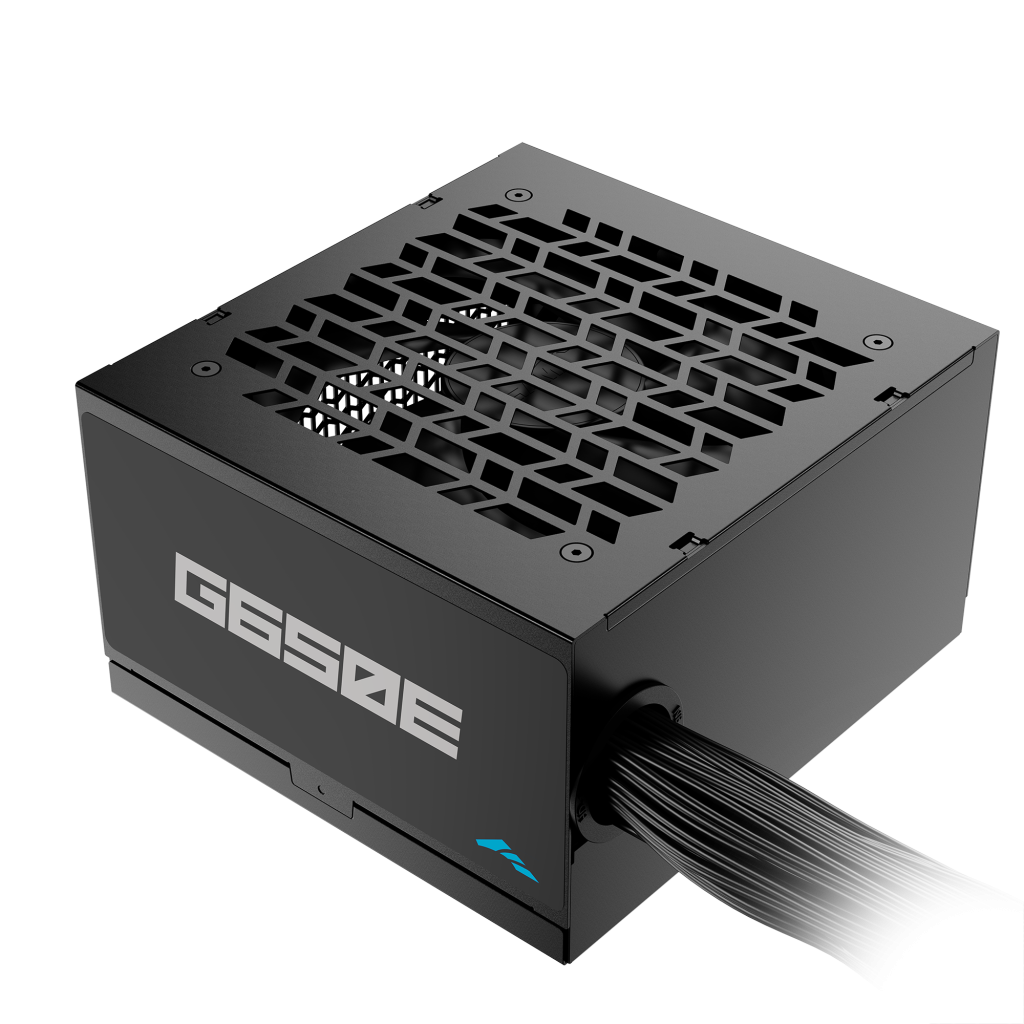

| Product Name | G650E | G850E | / |
| Model Number | HAT-650yzB1-GA | HAT-850yzB1-GA | / |
| Output Power | 650W | 850W | / |
| Net Weight (Body+Non Moaular Cable) | 1.4kg | 1.6kg | / |
| Form Factor | ATX 3.1 | ||
| Modularity | Non-Modular | ||
| Dimensions | 140 x 150 x 86mm (L×W×H) | ||
| Color | Black | ||
| 80PLUS Certification | Gold | ||
| Efficiency | >90% Under Typical Load (50% Load) | ||
| AC Input | 100-240Vac | ||

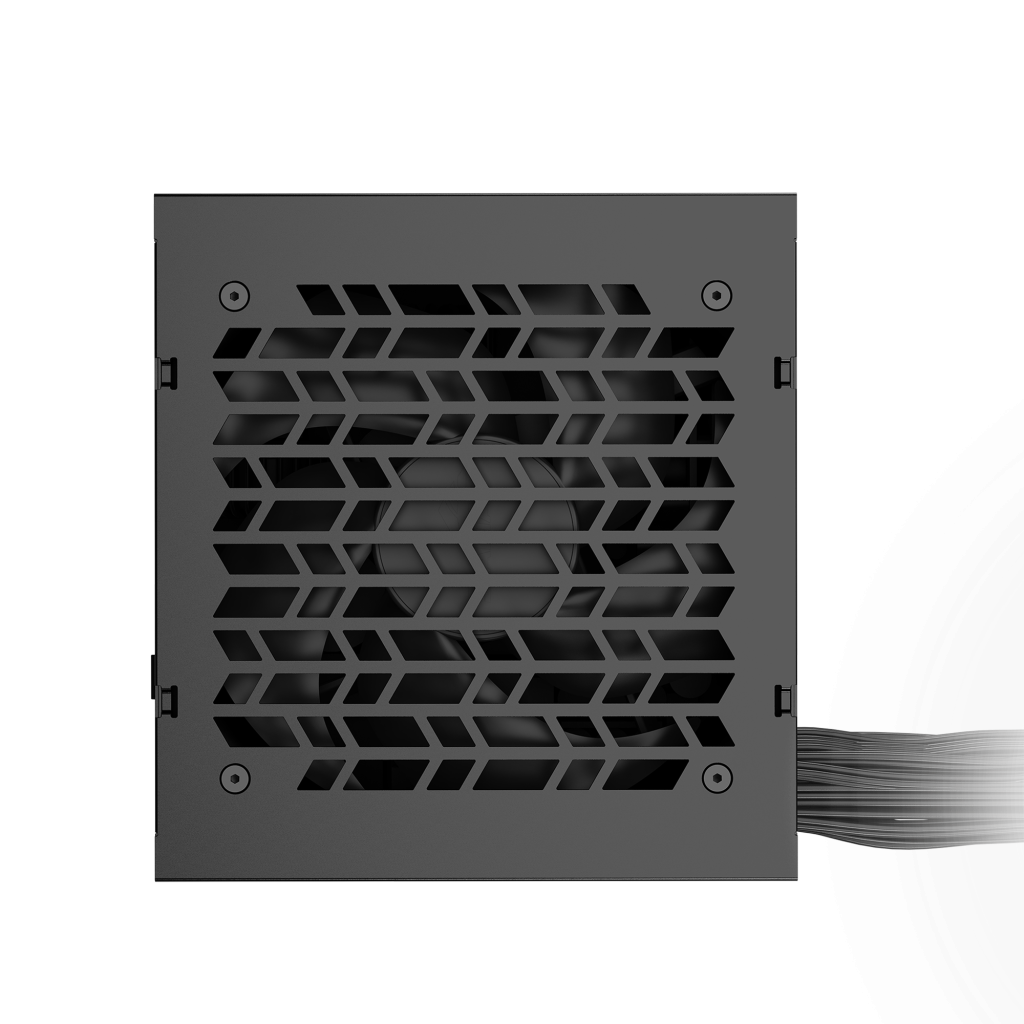

| Fan Size | 120mm | ||
| Fan Bearing | Sleeve Fan | ||
| Operating Temperature | 0-40°C | ||
| Protection | OTP /OCP /OPP /SCP / OVP /UVP / SIP / NLO | ||
| Safety | CE / TUV / cTUVus / FCC / ICES / UKCA / EAC | ||
| Environmental Compliance | RoHS / WEEE / ErP 2014 | ||
| MTBF | 100,000 Hours | ||
| Topology | APFC + Half-Bridge LLC + SR + DC-DC | ||
| Connectors | 1x MB ATX 20+4Pin 550mm 1x CPU(4+4)Pin+(4+4)Pin 600+150mm 1xPC|-E(6+2)Pin+(6+2)Pin 550+150mm 2x(SATA+SATA+SATA+Molex 4Pin)450+150+150+150mm |
1x MB ATX20+4Pin 550mm 1xCPU(4+4)Pin+(4+4)Pin 600+150mm 1xPC|E(6+2)Pin+(6+2)Pin 550+150mm 1xPCI-E(6+2)Pin 600mm 1x12V-2x6(12+4)Pin 600mm 2x(SATA+SATA+SATA+Molex)450+150+150+150mm |
/ |
