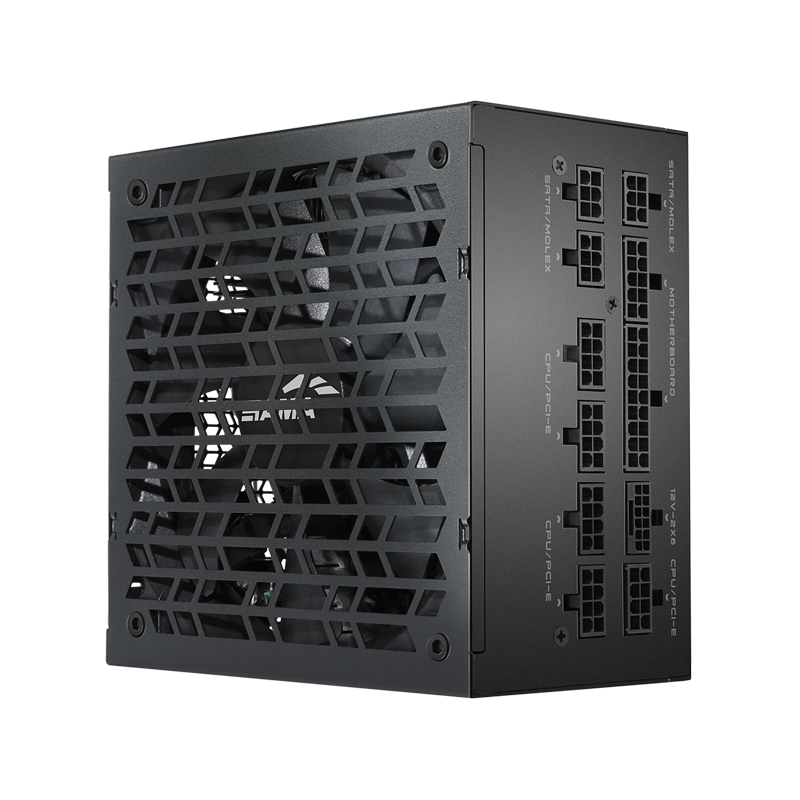

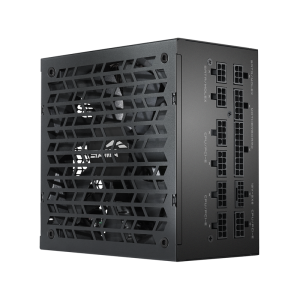

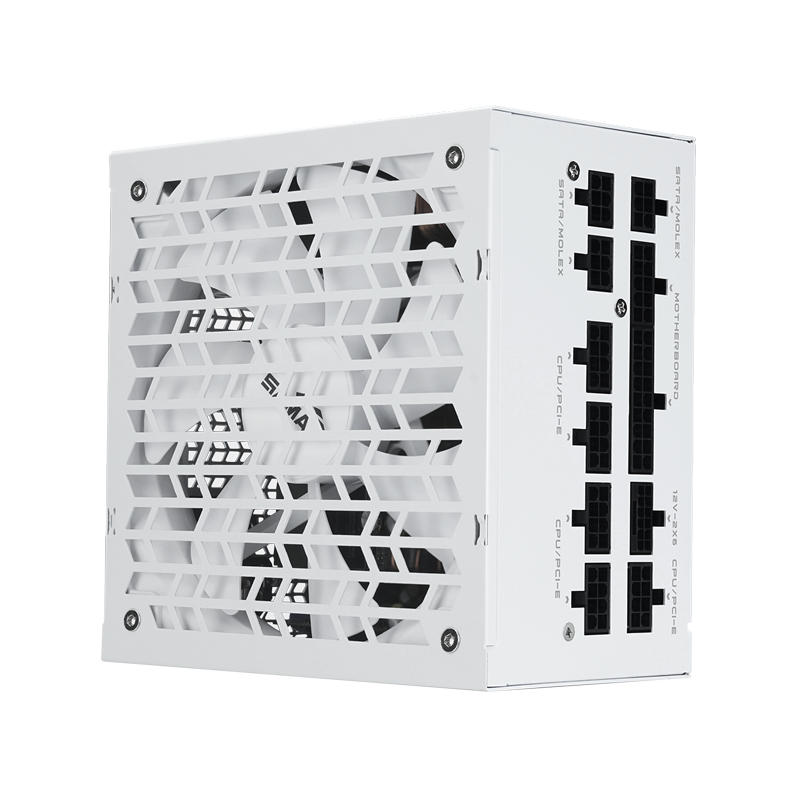

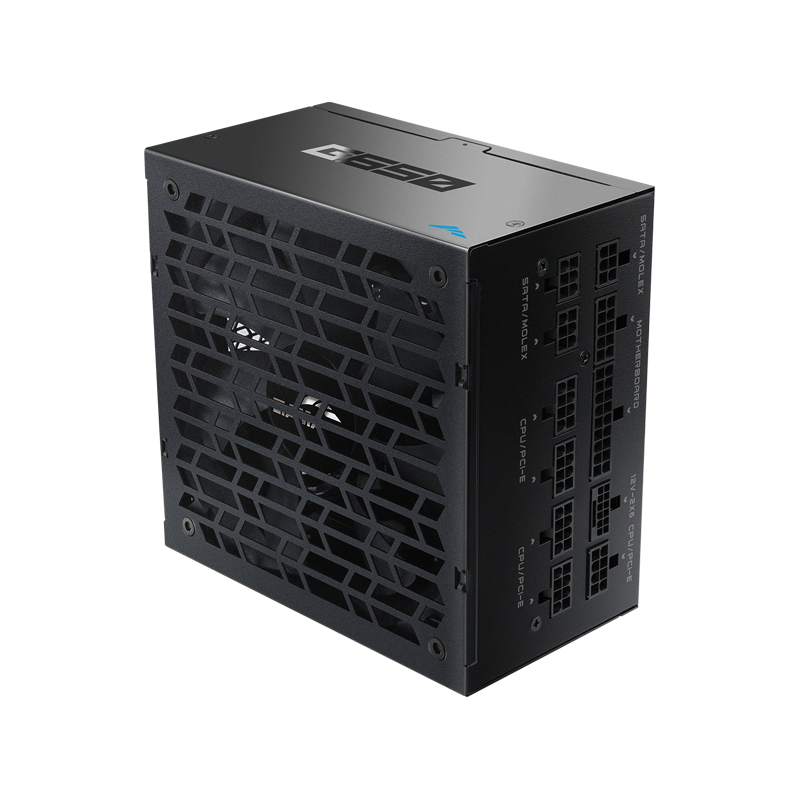

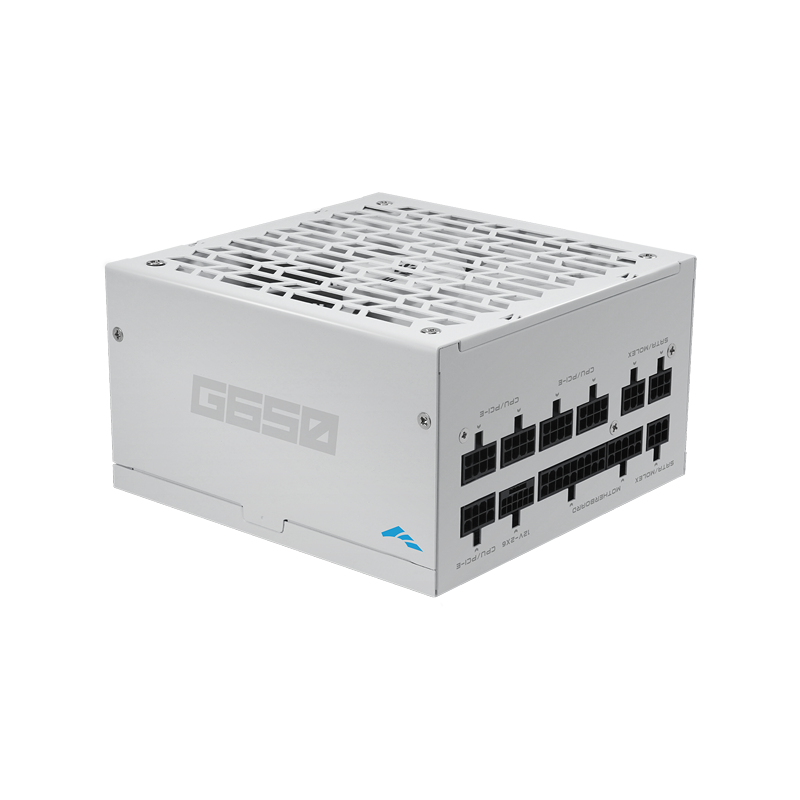

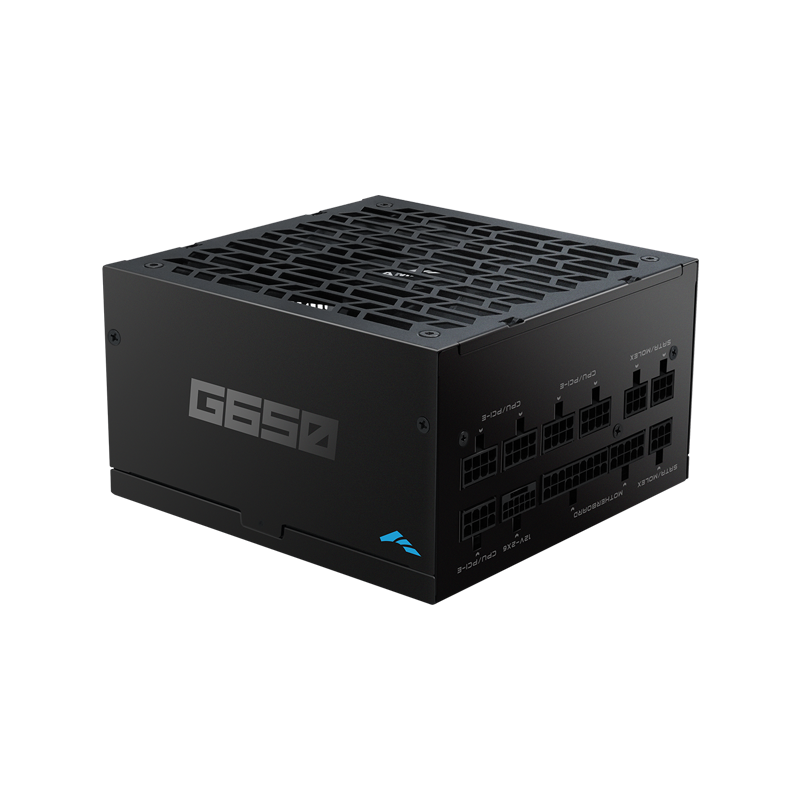

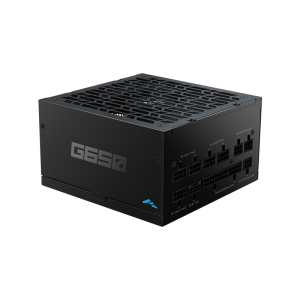

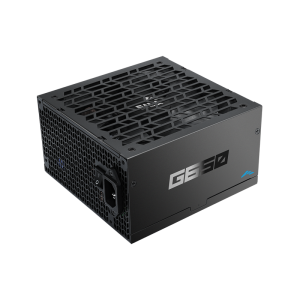

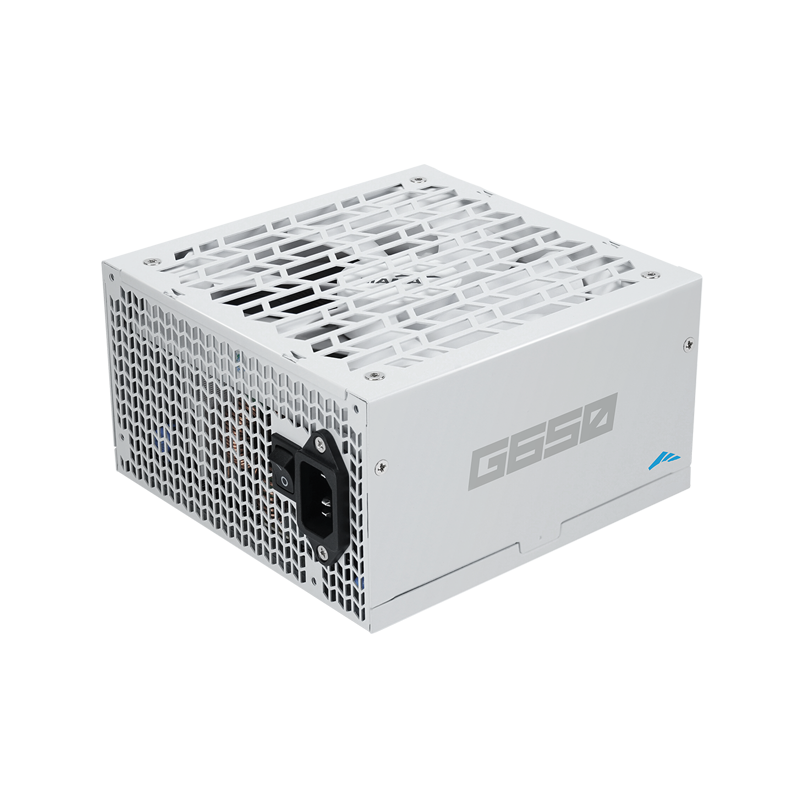

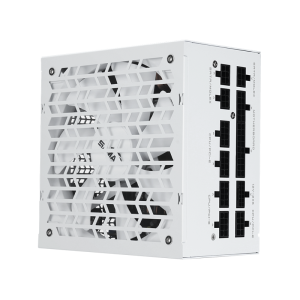

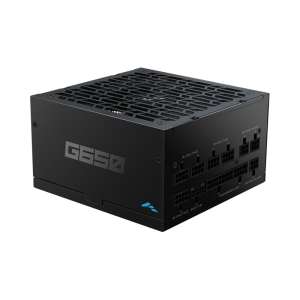

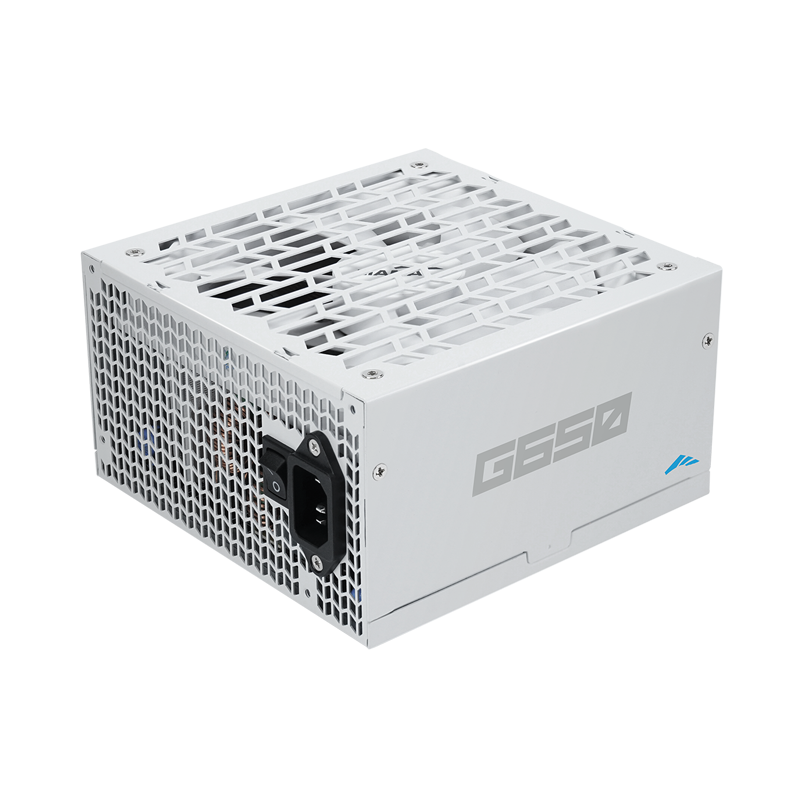

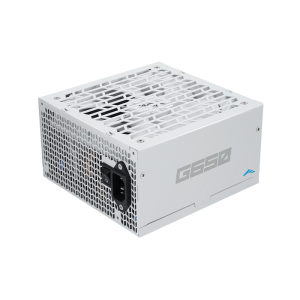

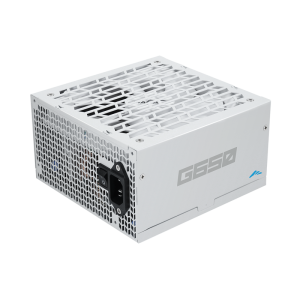

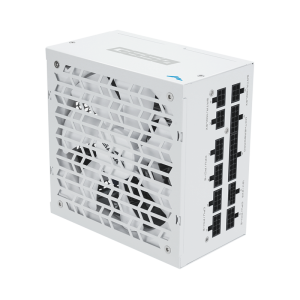

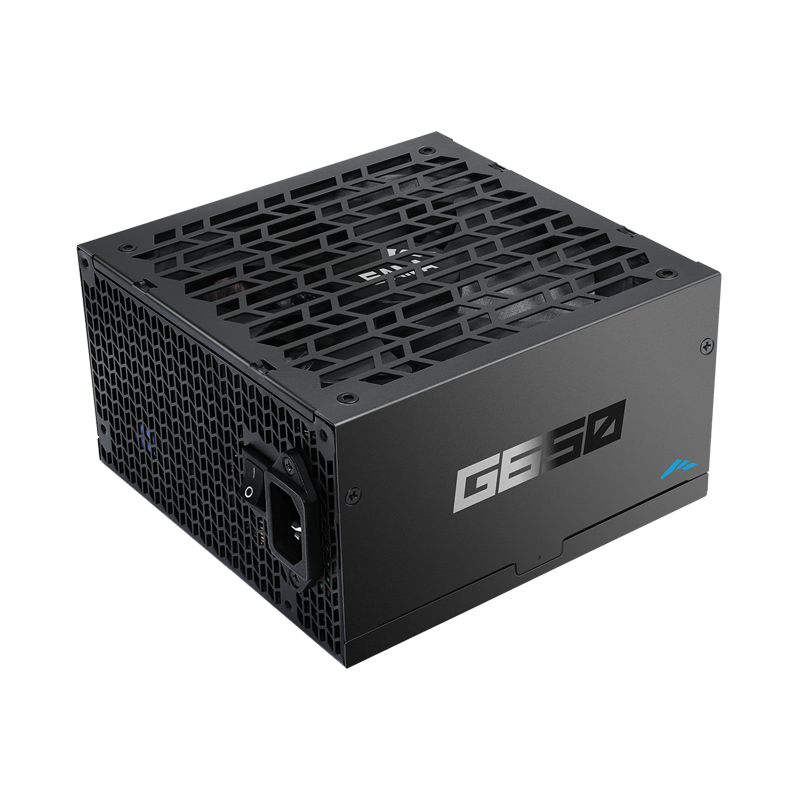

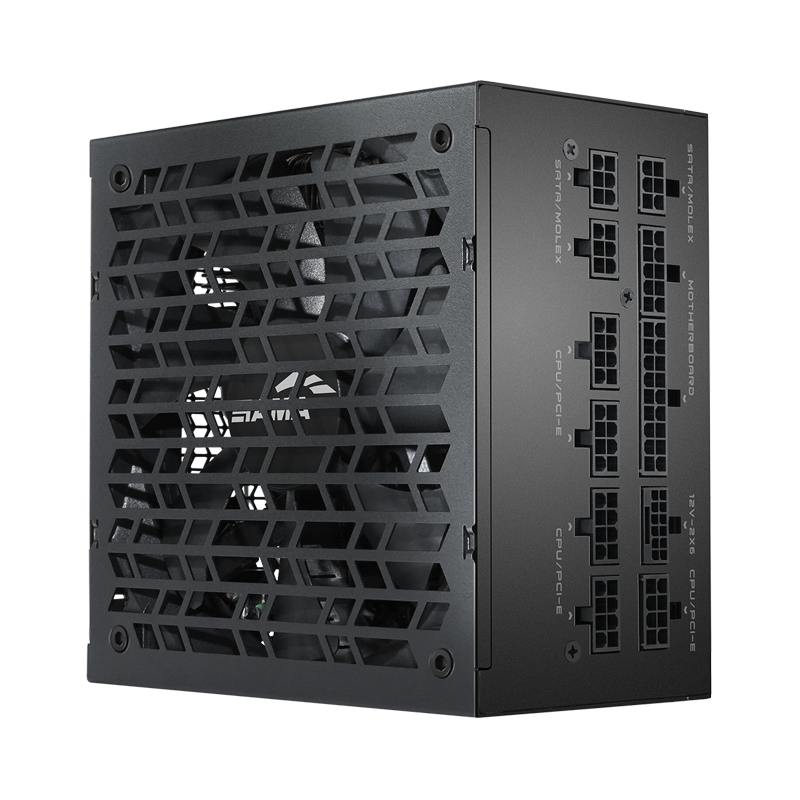

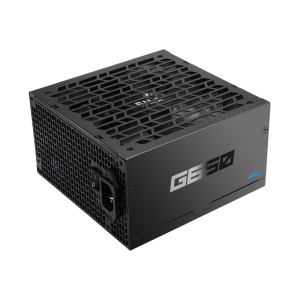

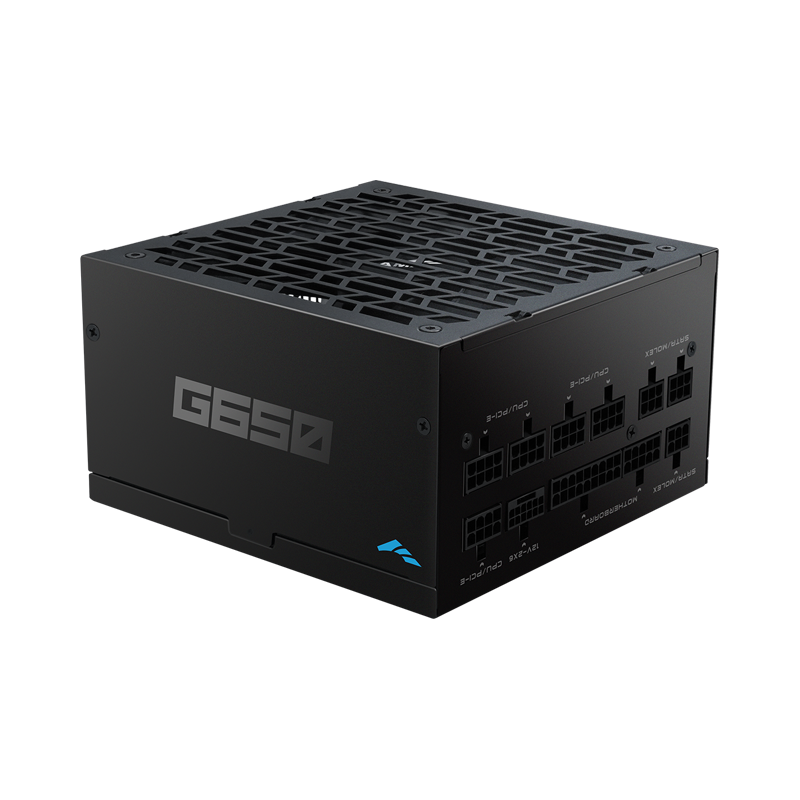

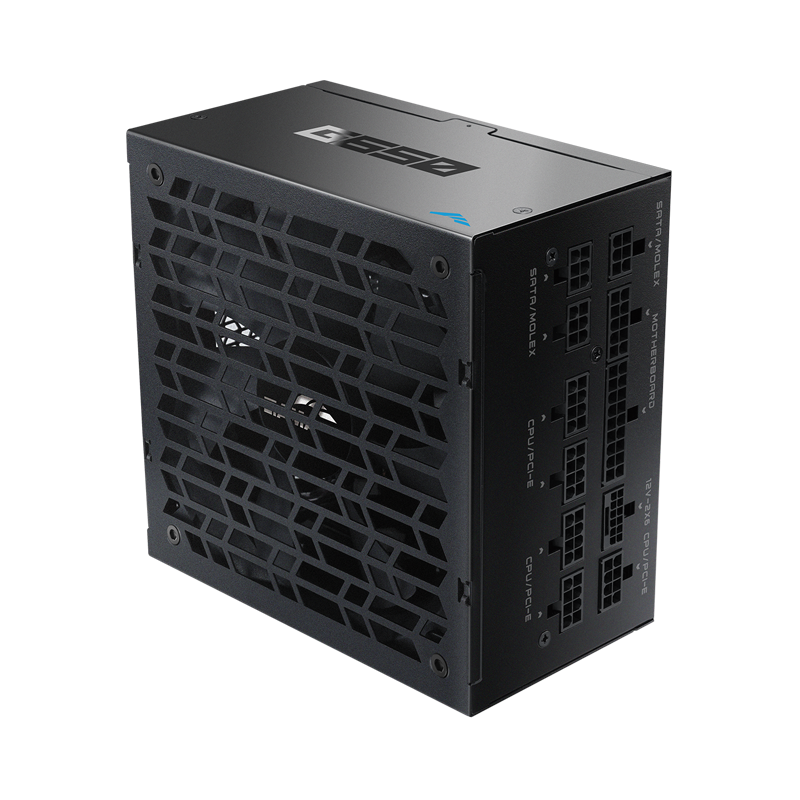

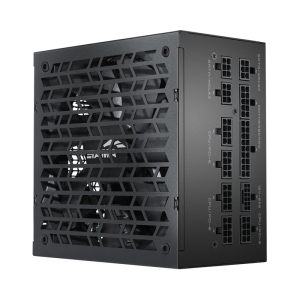

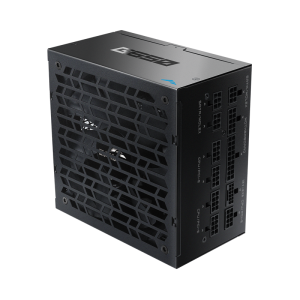

G650

The G Series is a fully modular PSU built for clean cable routing and streamlined installs. 80 PLUS Gold efficiency reduces wasted power and heat, while ATX 3.1 compliance helps maintain stable regulation under modern transient loads. A native PCIe 5.1 12V-2x6 (600W) connector and cable provides direct, spec-aligned power for today’s high-performance graphics cards for long-term compatibility and reliability.

color

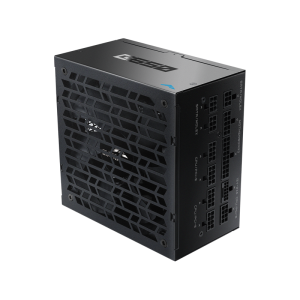

#000000 | 1

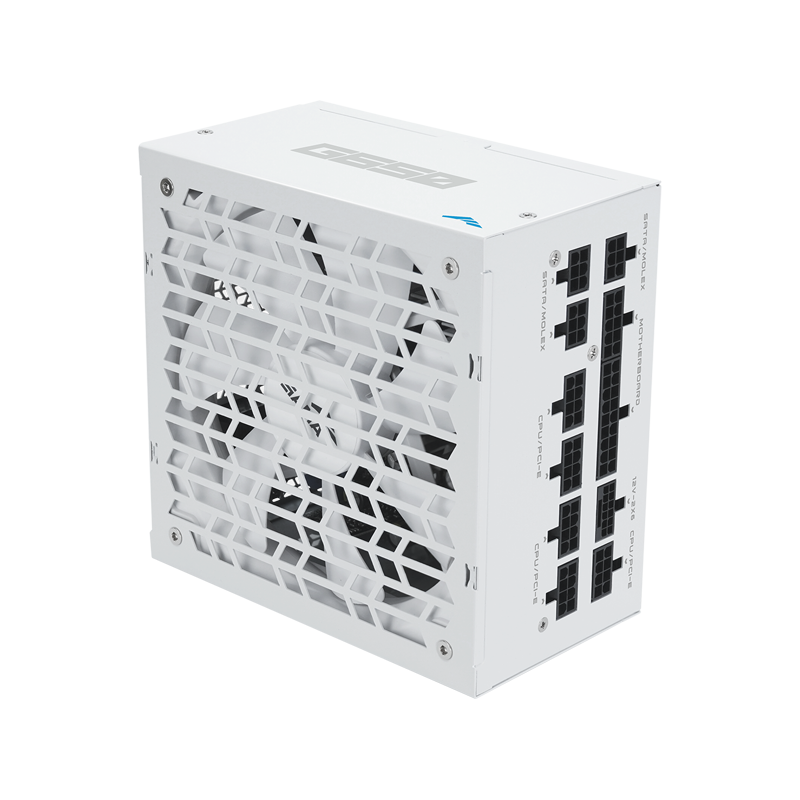

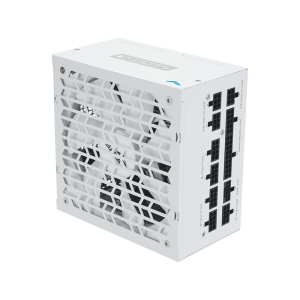

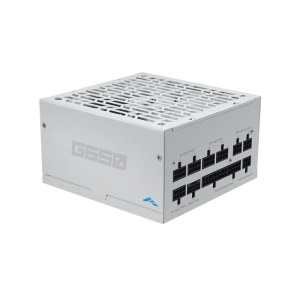

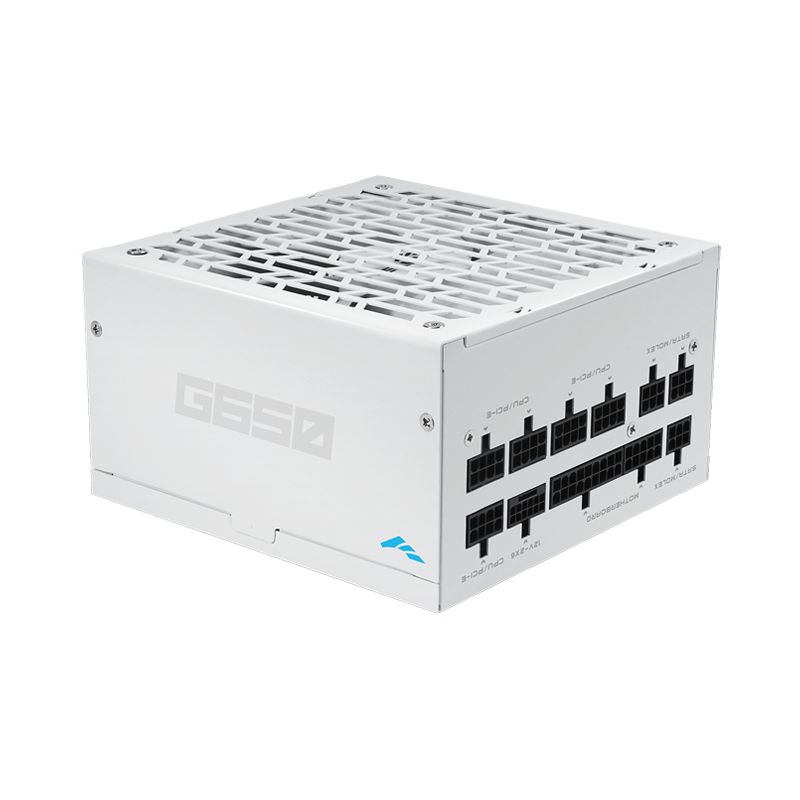

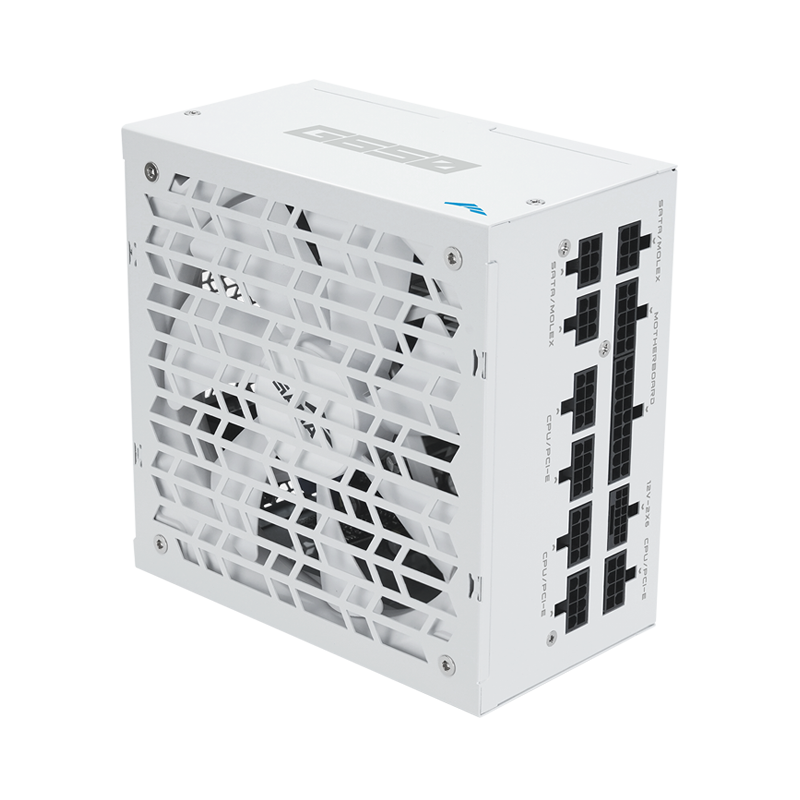

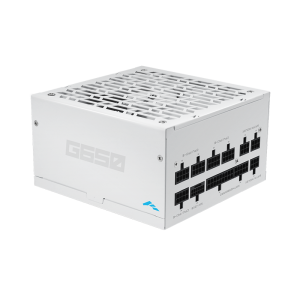

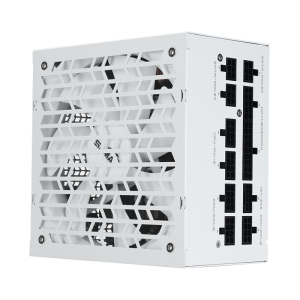

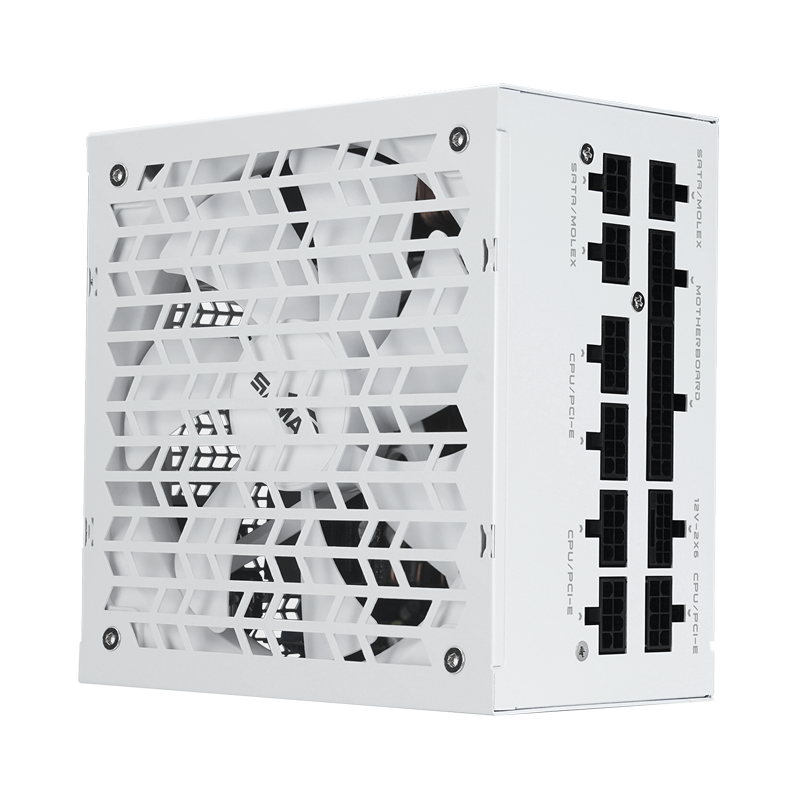

#ffffff | 2

view specifications

image pack

product manual

Specifications

Product Name	G1000	G850	G750	G650
Model Number	HAT-1000yzB2G	HAT-850yzB1G	HAT-750yzB1G	HAT-650yzB1G
Output Power	1000W	850W	750W	650W
Form Factor	ATX 3.1
Modularity	Fully Modular
Dimensions	150 x 150 x 86mm (L×W×H)
Color	Black and White
80PLUS Certification	Gold
Efficiency	>90% @ Typical Load (50% Load)
AC Input	100-240Vac
Fan Size	140mm
Fan Bearing	FDB
Capacitors	Main Japanese Capacitor
Operating Temperature	0-50°C
Protection	OTP / OCP / OPP / SCP / OVP / UVP / SIP/ NLO
Safety	CE / TUV / cTUVus / FCC / ICES / UKCA / EAC
Environmental Compliance	RoHS / WEEE / ErP 2014
MTBF	100,000 Hours

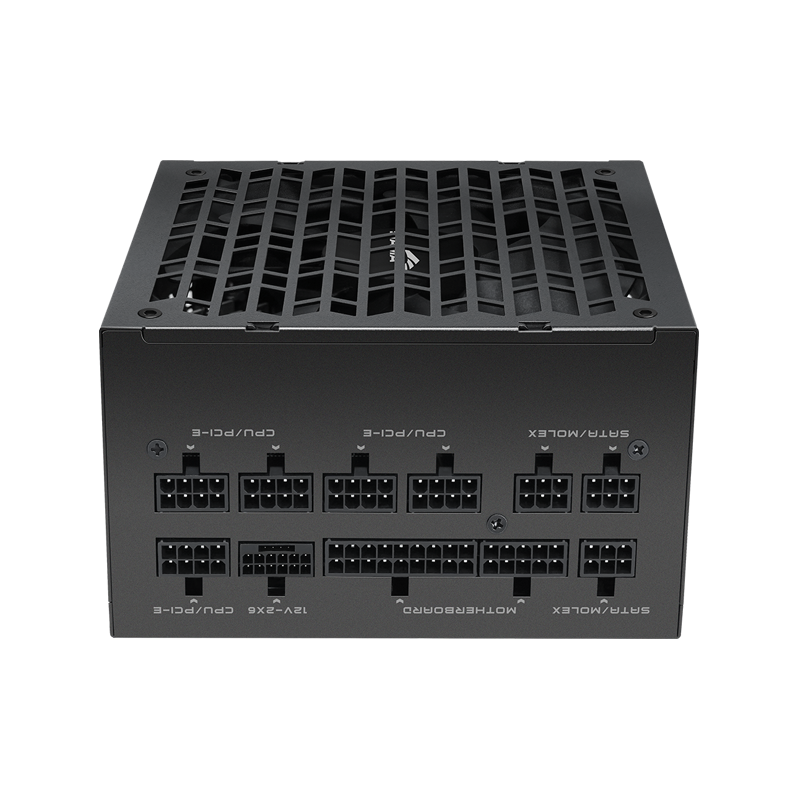

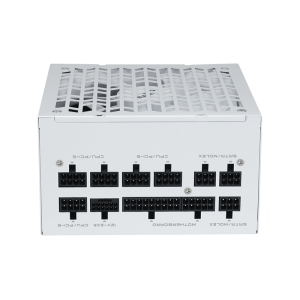

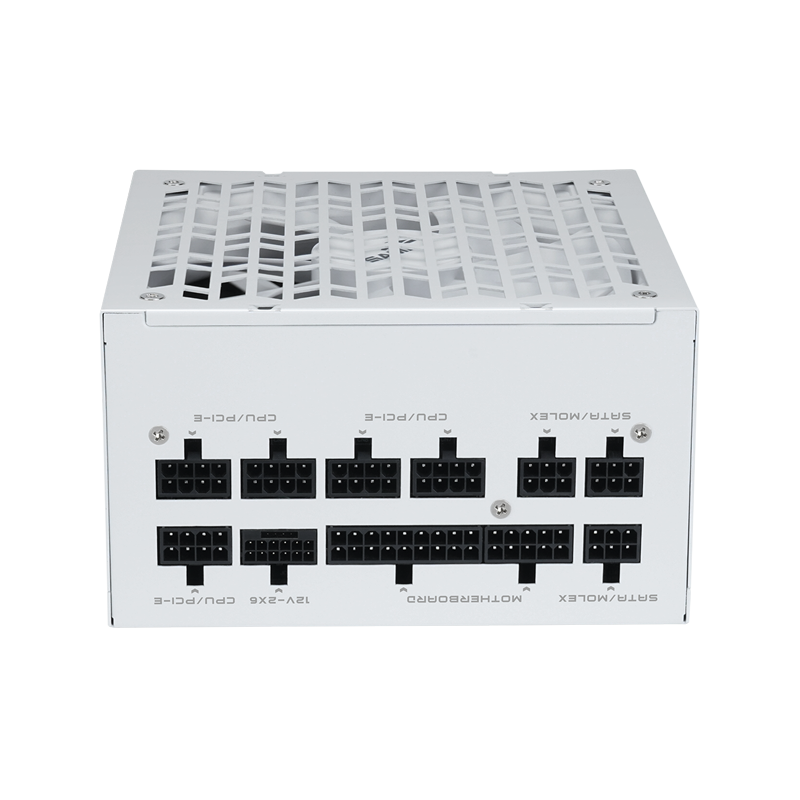

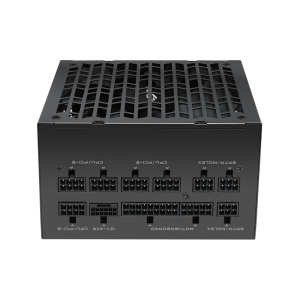

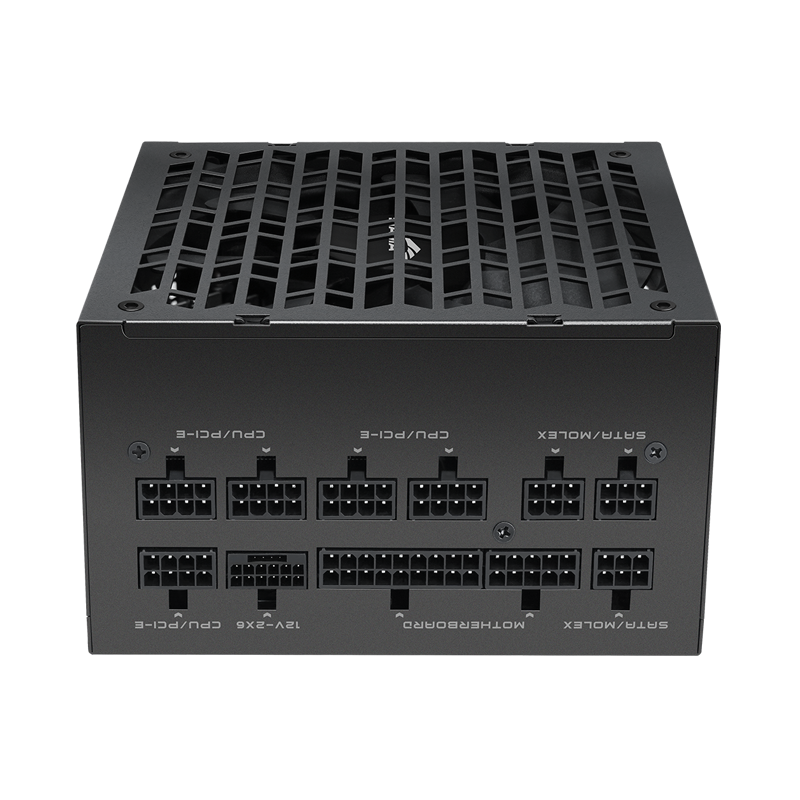

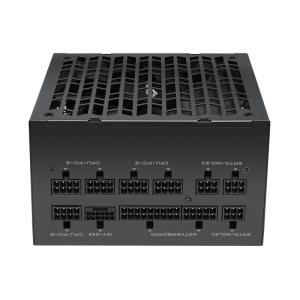

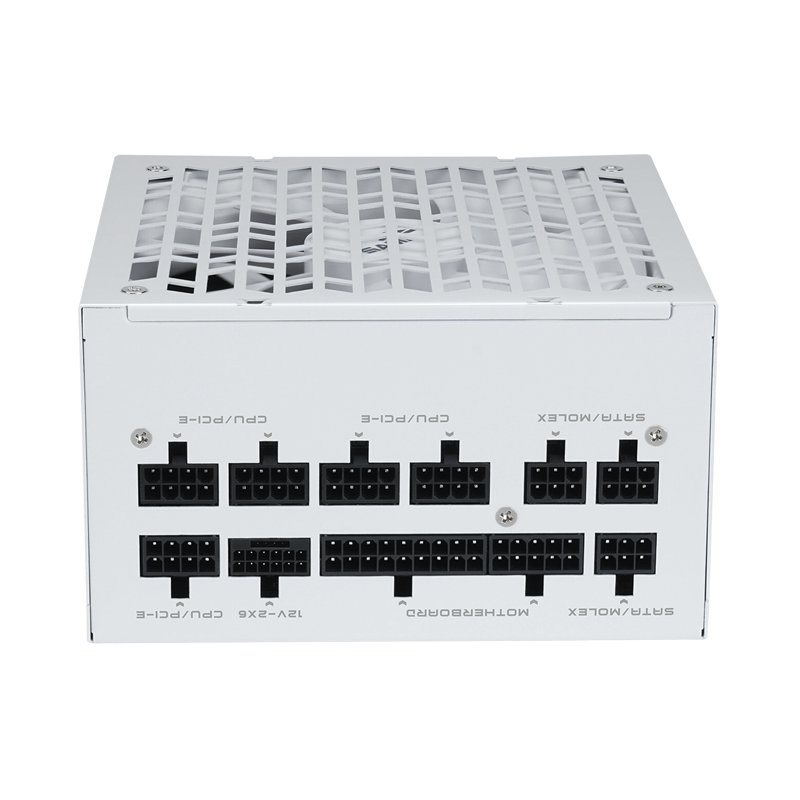

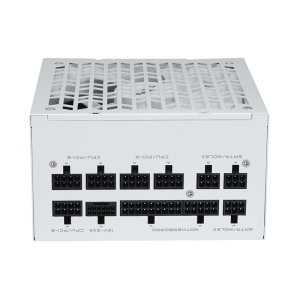

Connectors	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 8 Molex 4 Pin x 4	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 6 Molex 4 Pin x 2	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 6 Molex 4 Pin x 2	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 2 12V-2x6 (12+4) Pin x 1 SATA x 6 Molex 4 Pin x 2
