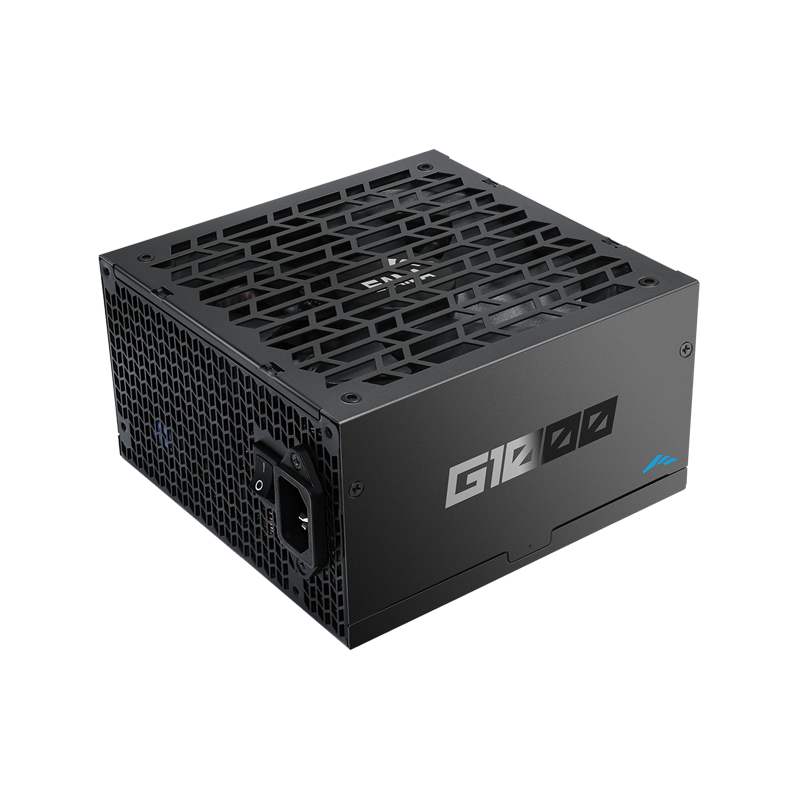

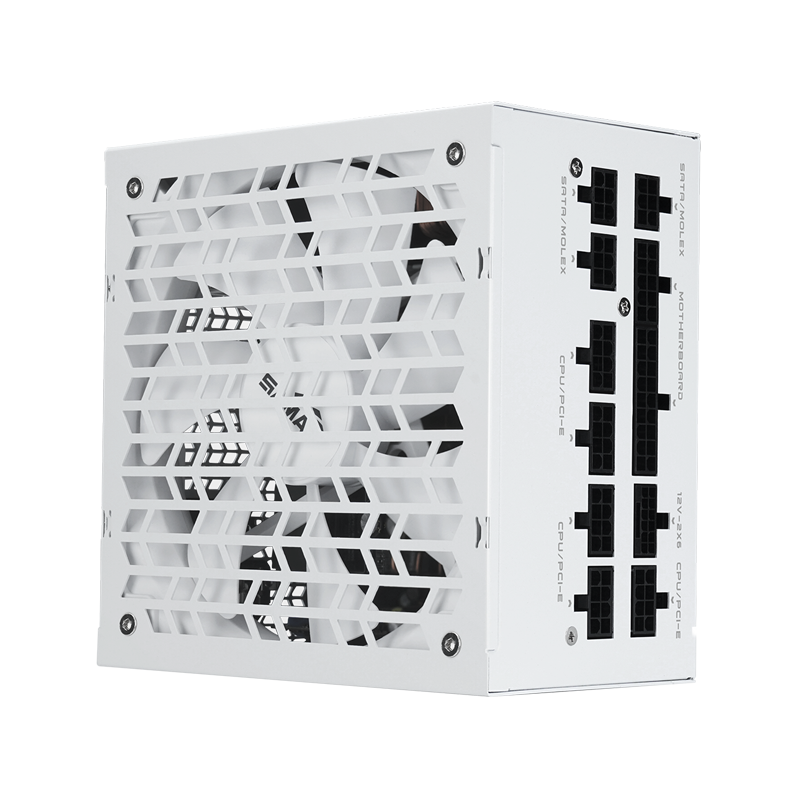

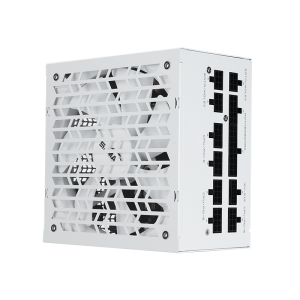

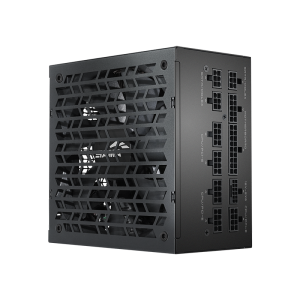

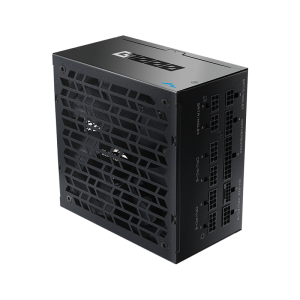

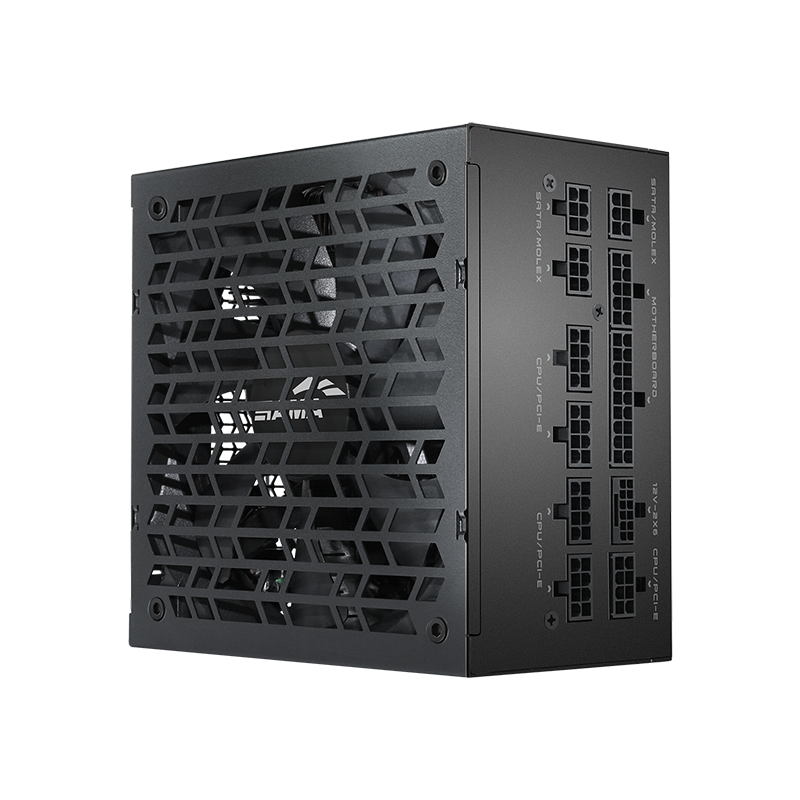

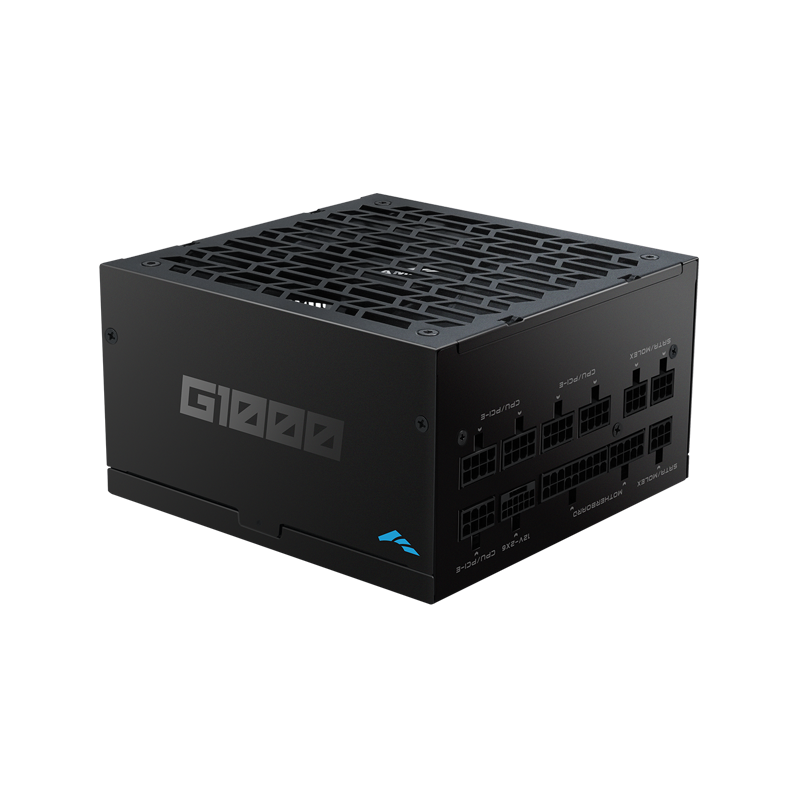

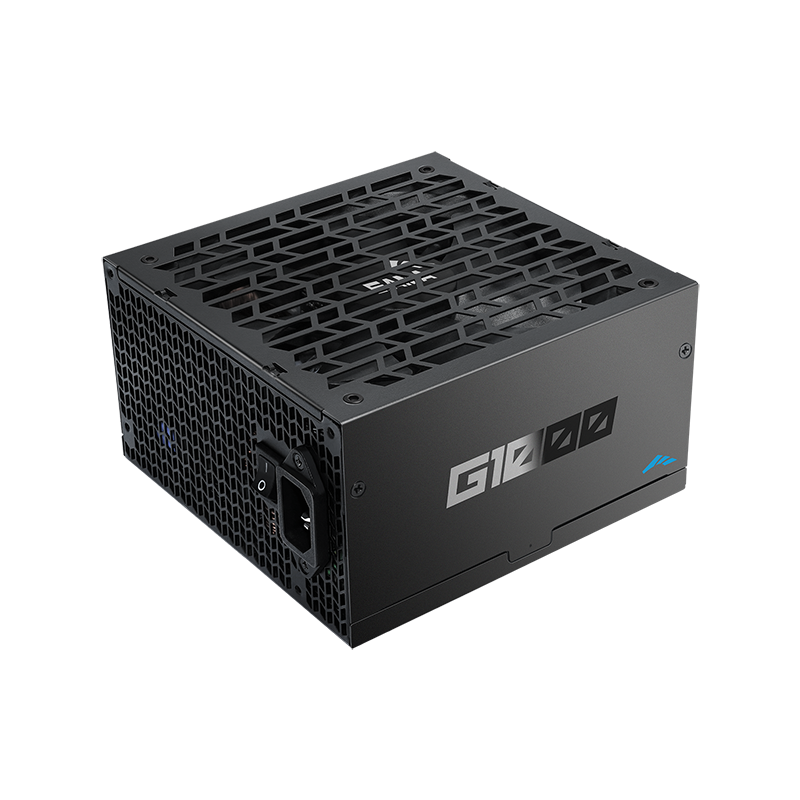

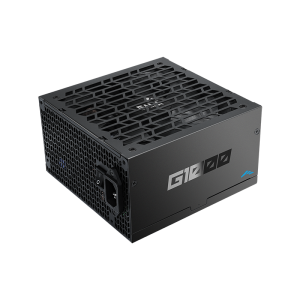

G1000

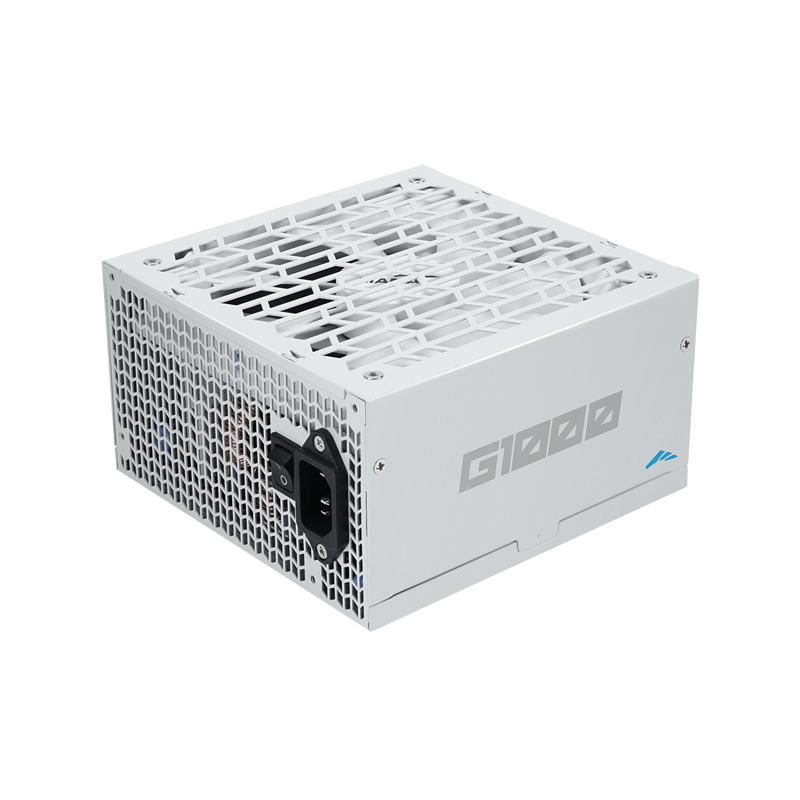

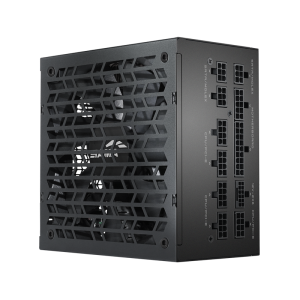

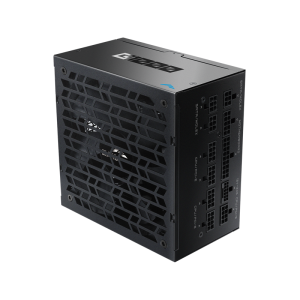

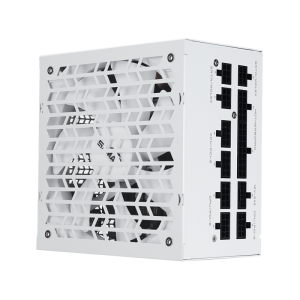

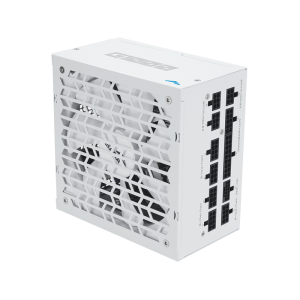

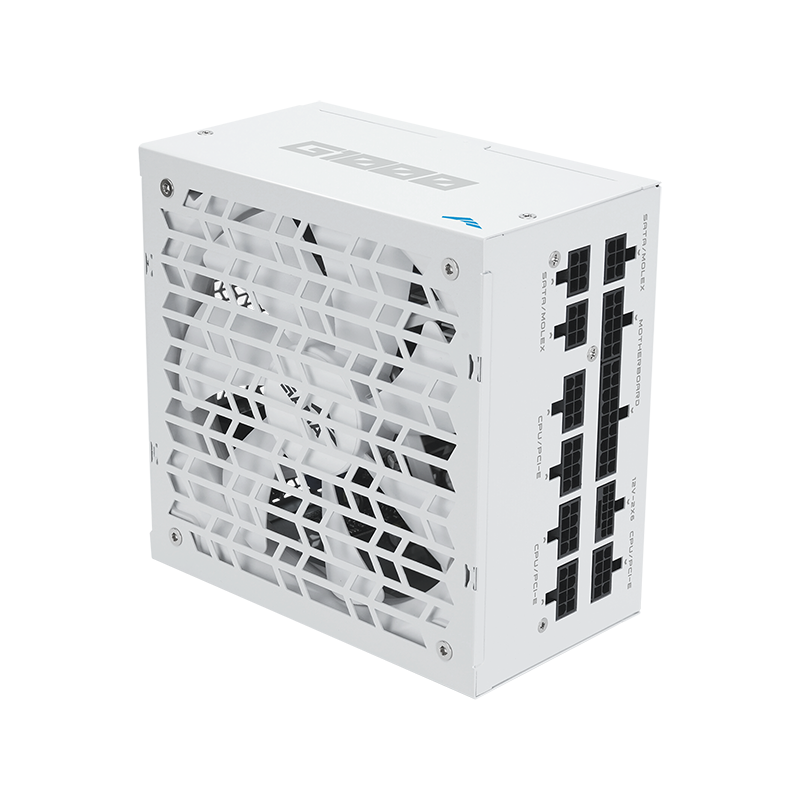

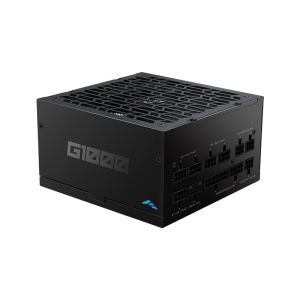

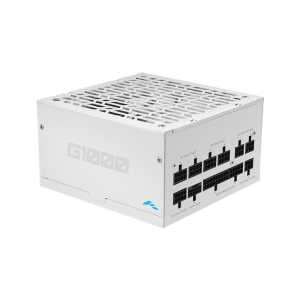

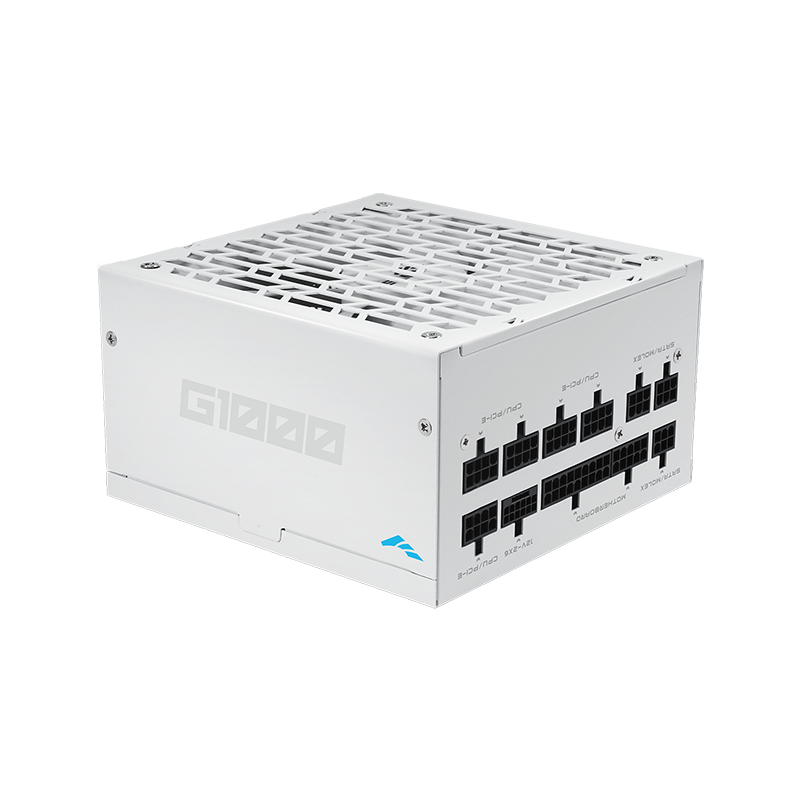

The SAMA G series PSU is a fully modular power supply, offering flexible cable management for a cleaner, more organized build. It is 80 PLUS Gold certified for high energy efficiency, complies with the ATX 3.1 standard for stable power delivery, and comes equipped with a native PCIe 5.1 connector and cable—ensuring full compatibility with the latest high-performance graphics cards and long-term reliability.

color

#000000 | 1
#ffffff | 2

view specifications

product manual

Specifications

Product Name	G1000	G850	G750	G650
Model Number	HAT-1000yzB2G	HAT-850yzB1G	HAT-750yzB1G	HAT-650yzB1G
Output Power	1000W	850W	750W	650W
Form Factor	ATX 3.1
Modularity	Fully Modular
Dimensions	150 x 150 x 86mm (L×W×H)
Color	Black and White
80PLUS Certification	Gold
Efficiency	>90% @ Typical Load (50% Load)
AC Input	100-240Vac
Fan Size	140mm
Fan Bearing	FDB
Capacitors	Main Japanese Capacitor
Operating Temperature	0-50°C
Protection	OTP / OCP / OPP / SCP / OVP / UVP / SIP/ NLO
Safety	CE / TUV / cTUVus / FCC / ICES / UKCA / EAC
Environmental Compliance	RoHS / WEEE / ErP 2014
MTBF	100,000 Hours

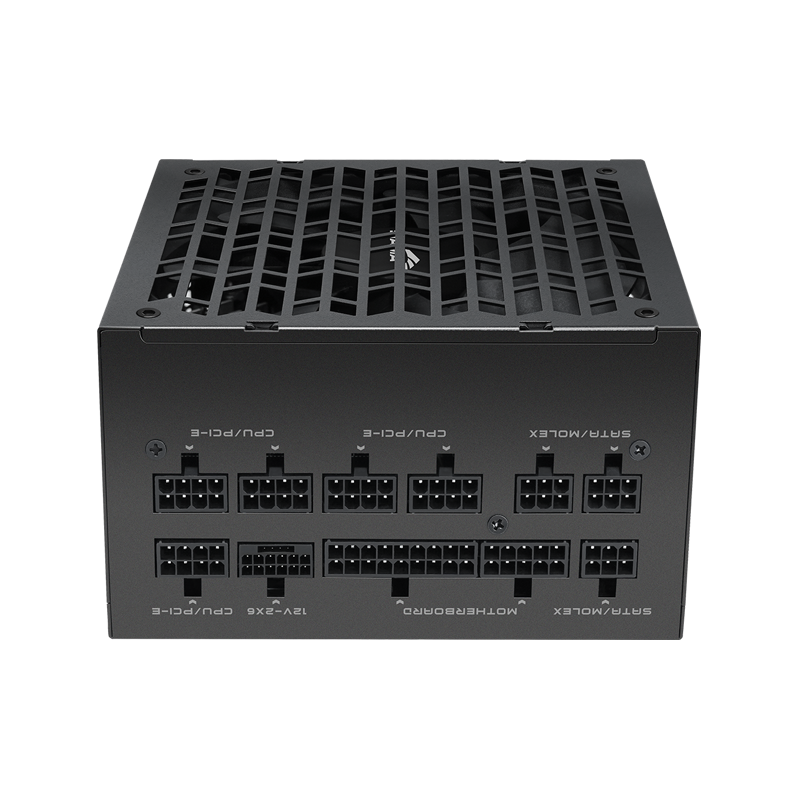

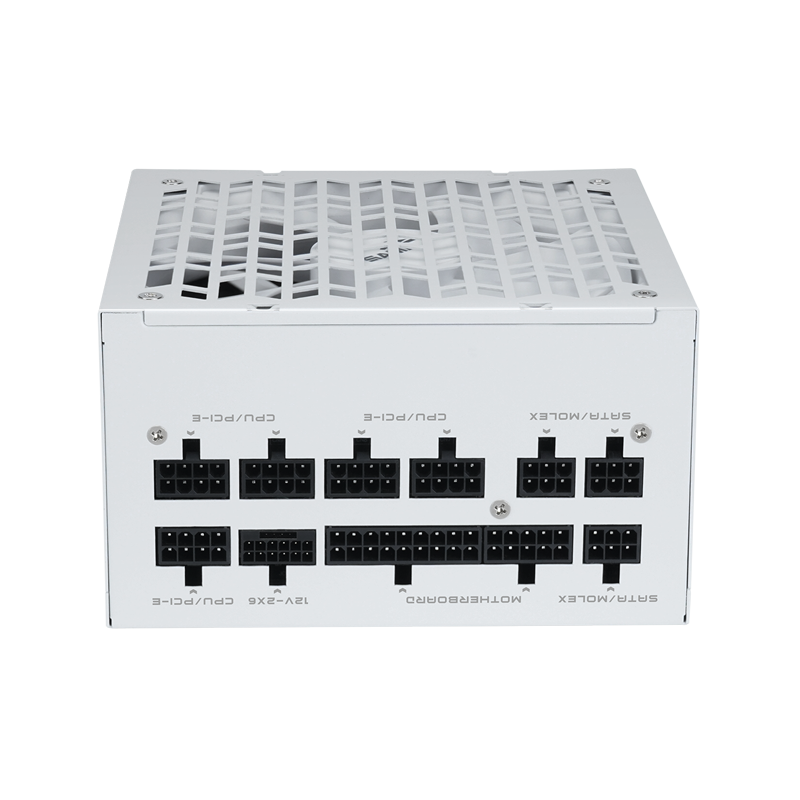

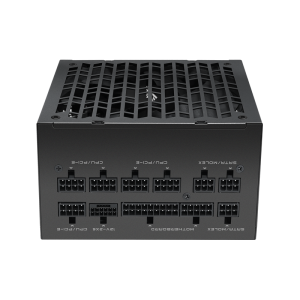

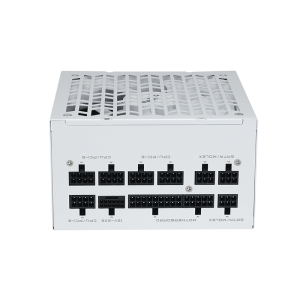

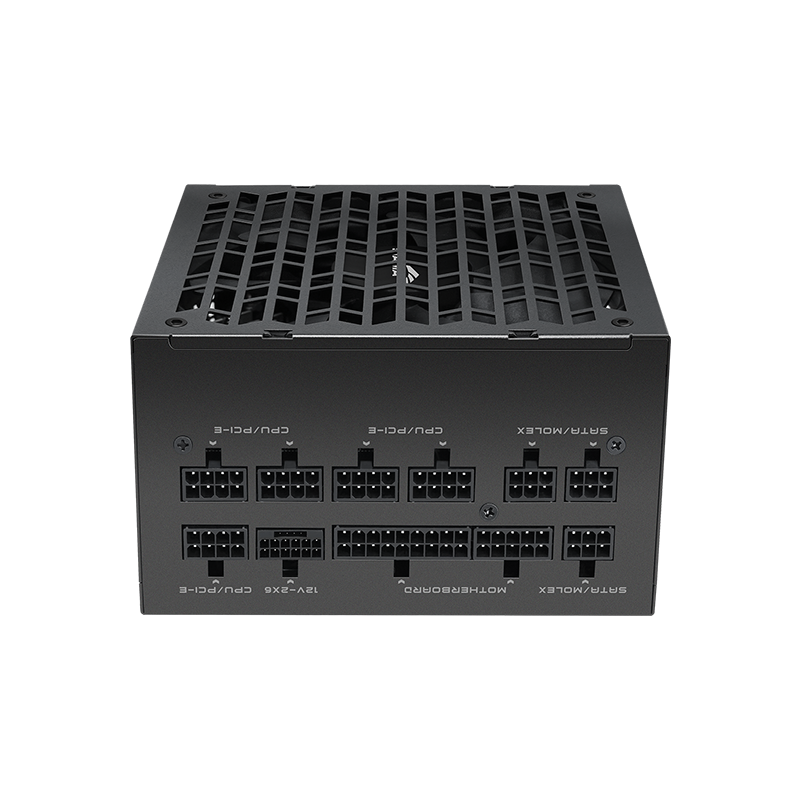

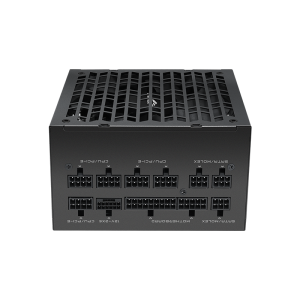

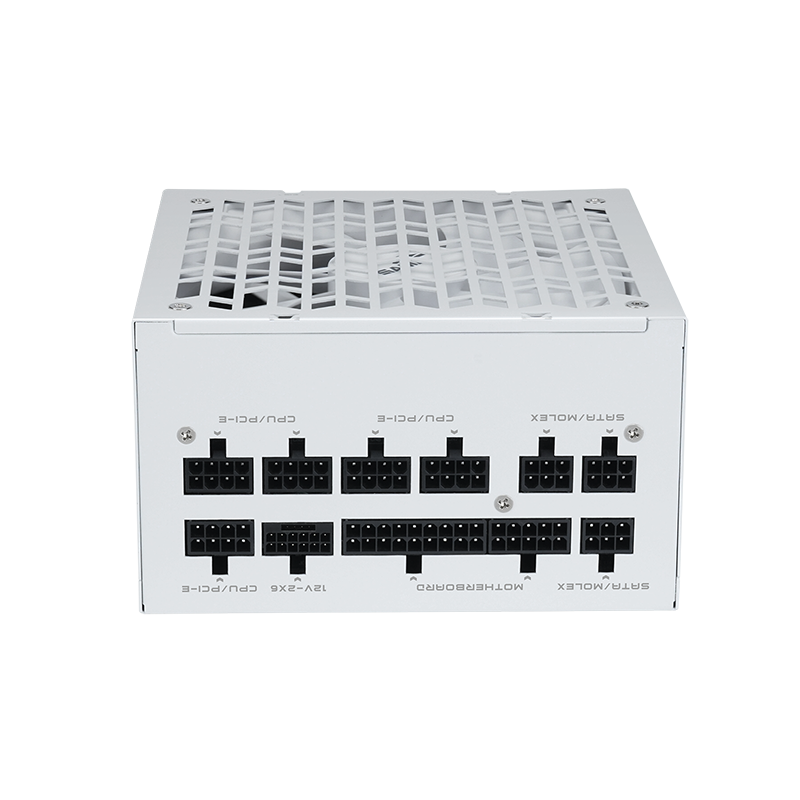

Connectors	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 8 Molex 4 Pin x 4	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 6 Molex 4 Pin x 2	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) Pin x 1 SATA x 6 Molex 4 Pin x 2	MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 2 12V-2x6 (12+4) Pin x 1 SATA x 6 Molex 4 Pin x 2
