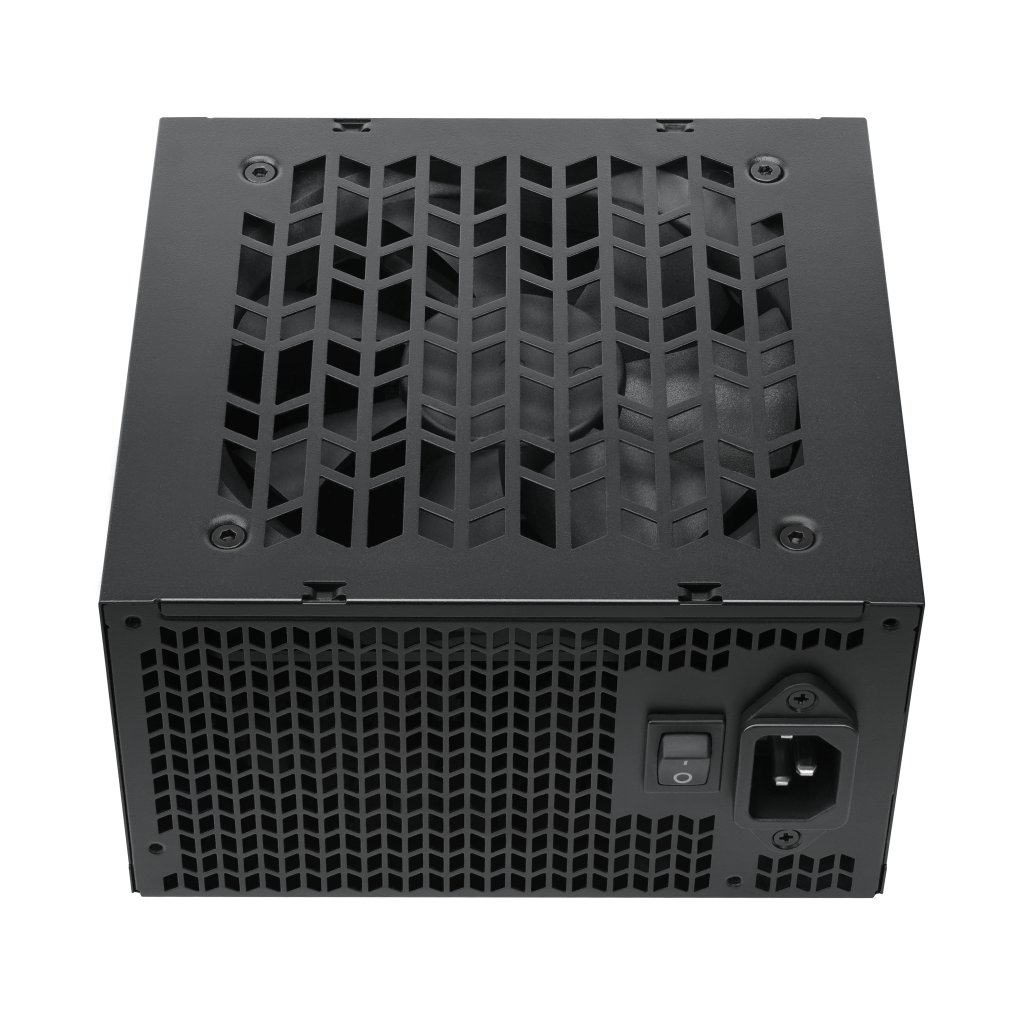

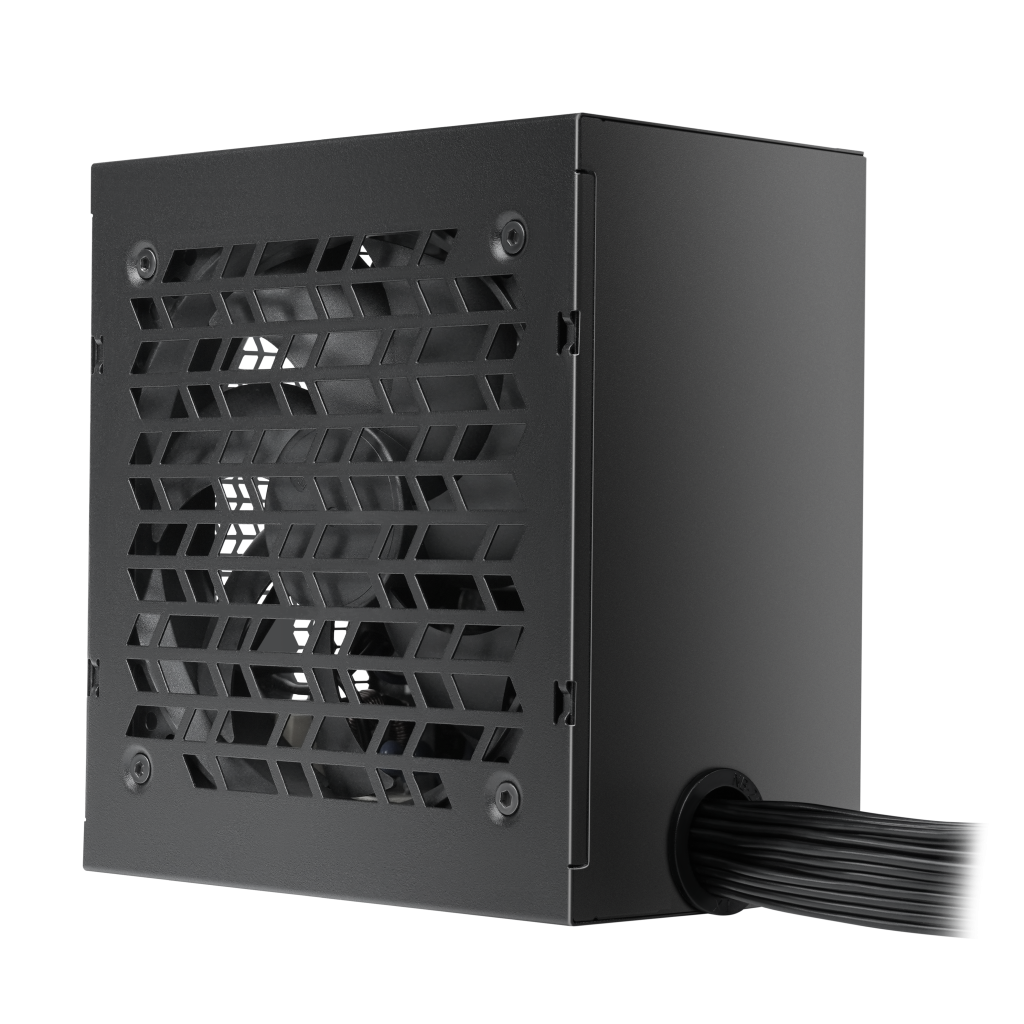

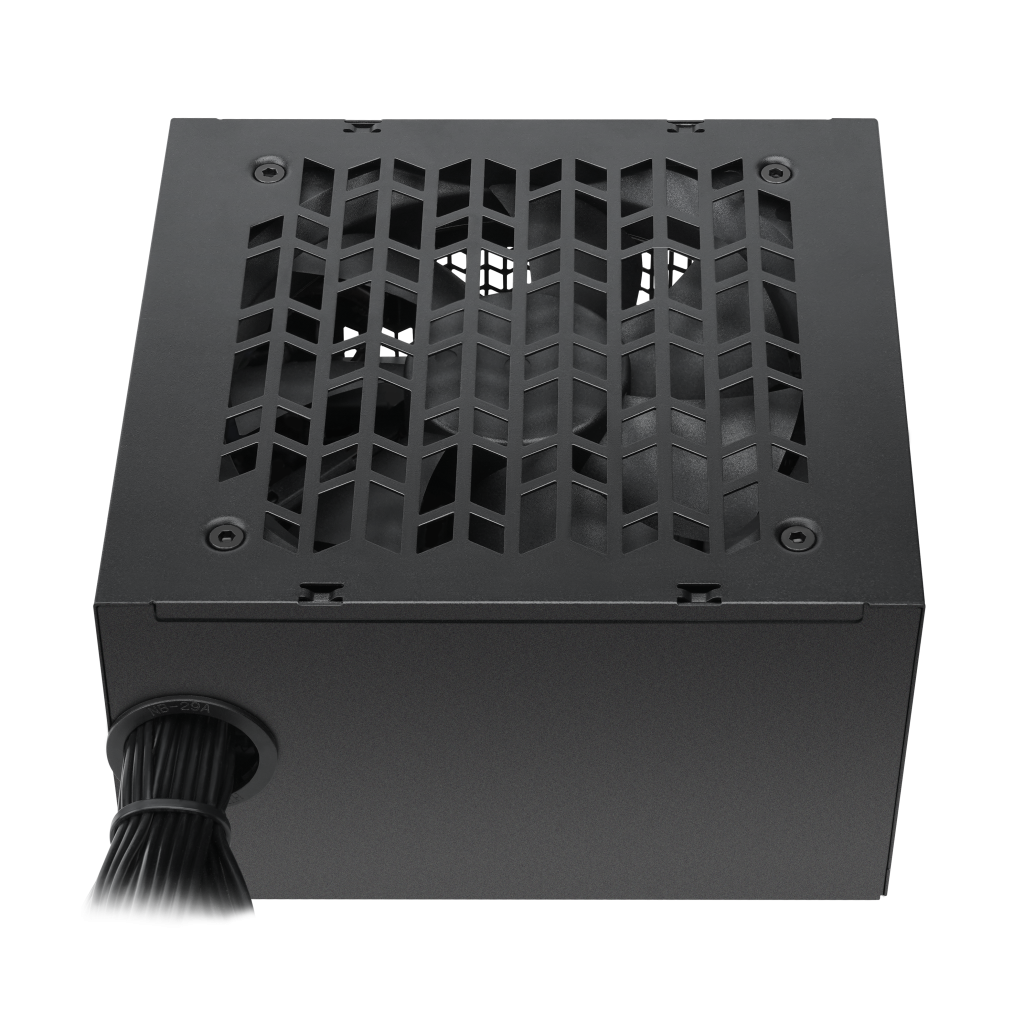

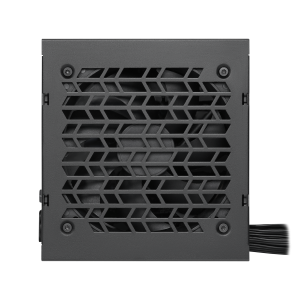

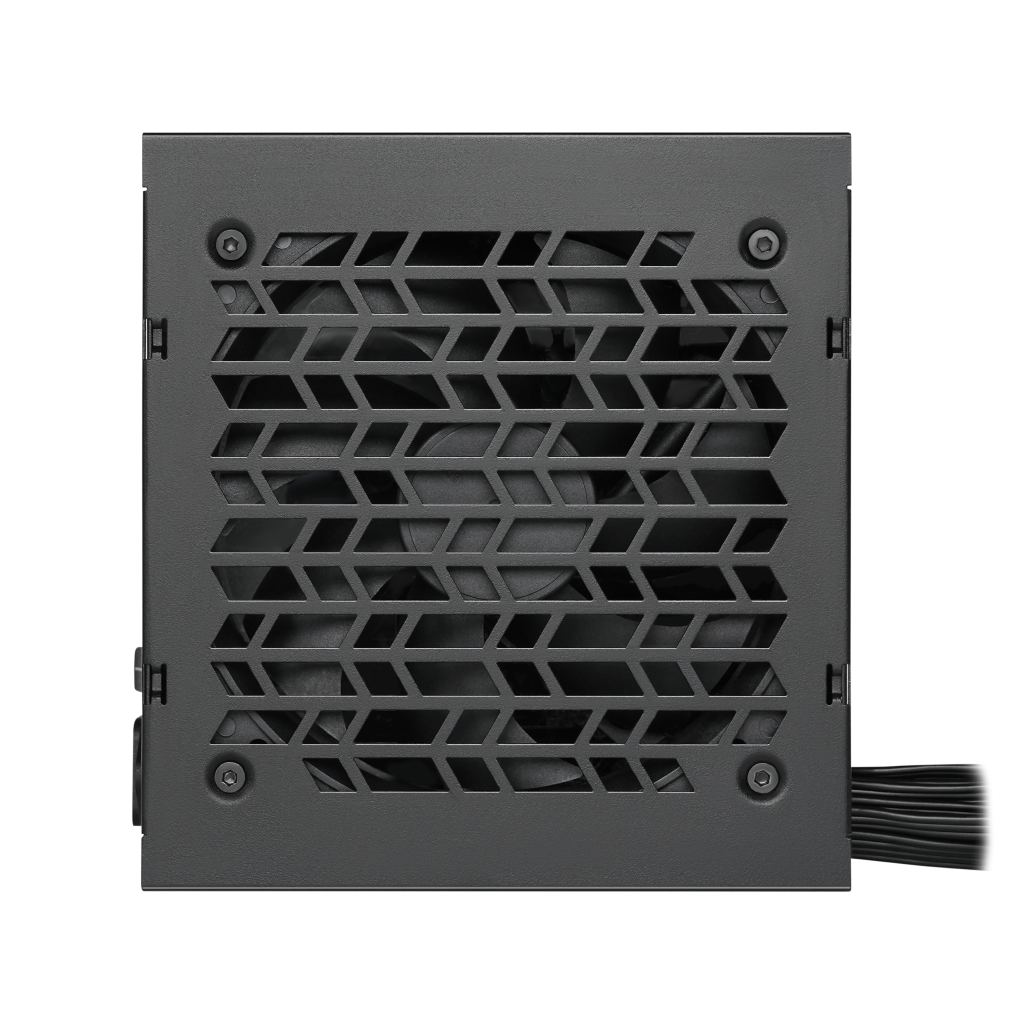

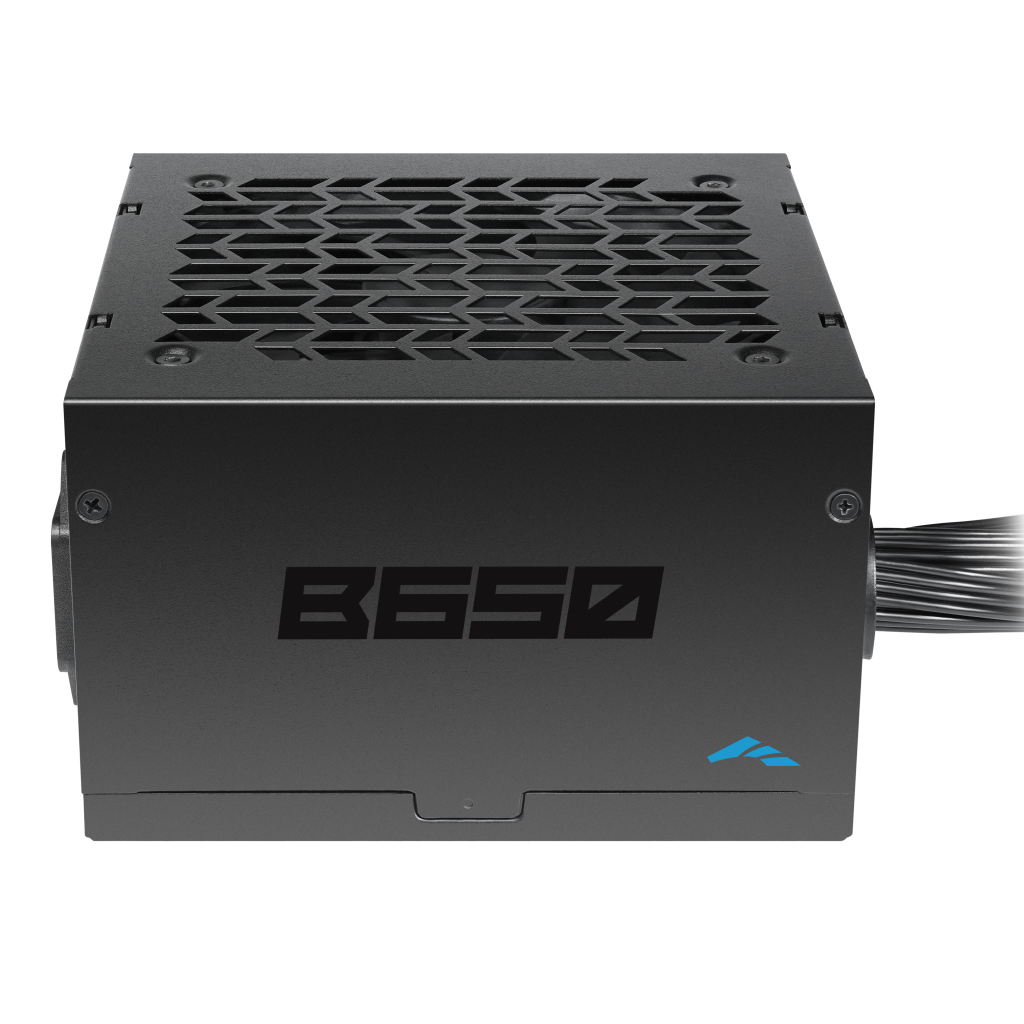

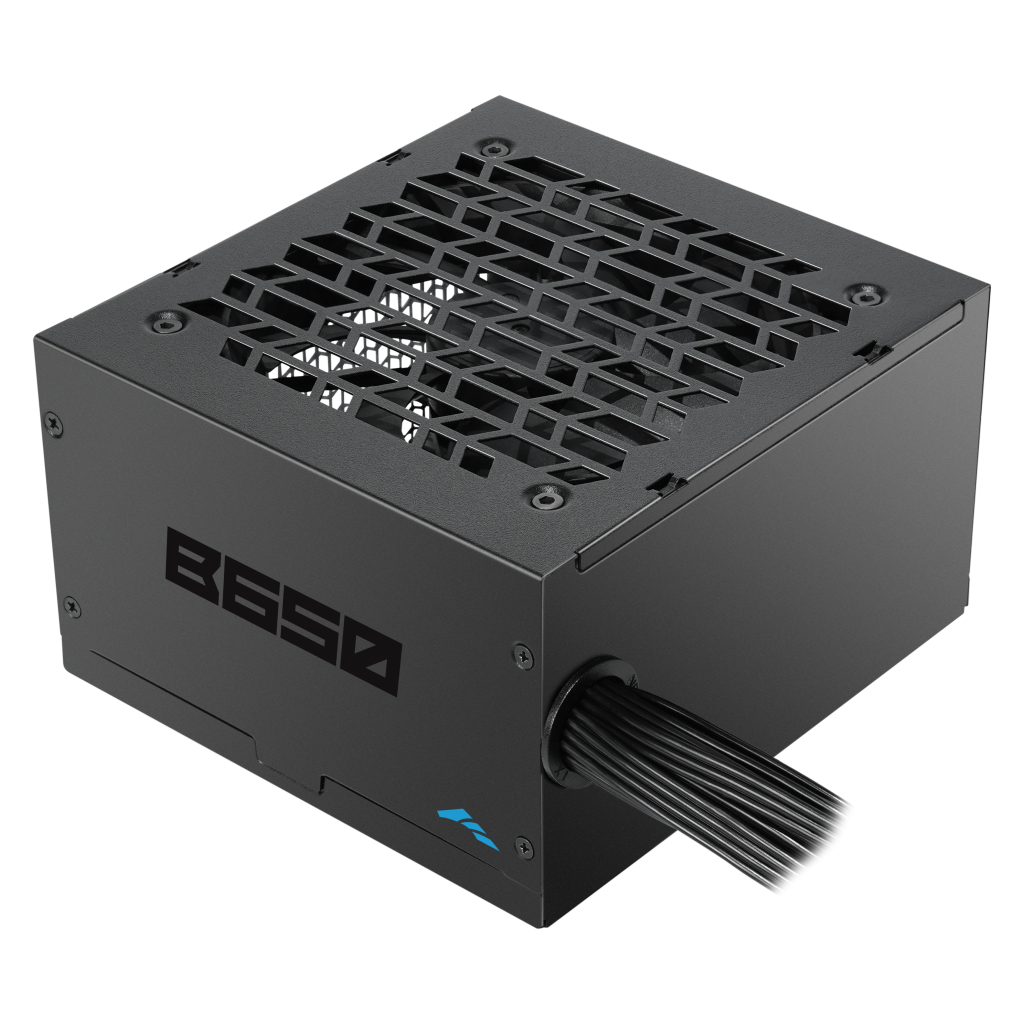

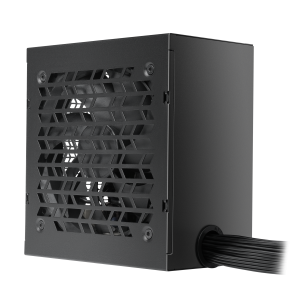

B650

The B Series PSU delivers 80 PLUS Bronze efficiency and reliable ATX 3.1 performance for stable, consistent power. With a native PCIe 5.1 connector, it supports current and future GPUs, keeping your system powerful, stable, and ready for upgrades.

color

#000000 | 1

view specifications

image pack

Specifications

Product Name	B650	B750	B850
Model Number	BTX-650-1BA3	BTX-750-1BA3	BTX-850-1BA3
Output Power	650W	750W	850W
Form Factor	ATX 3.1
Modularity	Non-Modular
Dimensions	140 x 150 x 86mm (L×W×H)
Color	Black
80PLUS Certification	Bronze
Efficiency	>85% Under Typical Load (50% Load)
AC Input	100-240Vac
Fan Size	120mm
Fan Bearing	FDB
Fan Bearing	100-240VAC
Operating Temperature	0-40°C
Protection	OTP / OCP / OPP / SCP / OVP / UVP / SIP/ NLO
Safety	CE / TUV / cTUVus / FCC / ICES / UKCA / EAC
Environmental Compliance	RoHS / WEEE / ErP 2014
MTBF	100,000 Hours
Connectors	MB ATX 24 Pin x1 CPU (4+4) Pin x 2 PCI-E(6+2) Pin x 2 12V-2x6 (12+4) Pin x 1 SATA x 6 Molex 4 Pin x 2	MB ATX 24 Pin x1 CPU (4+4) Pin x 2 PCI-E(6+2) Pin x 2 12V-2x6 (12+4) Pin x 1 SATA x 6 Molex 4 Pin x 2	MB ATX 24 Pin x1 CPU (4+4) Pin x 2 PCI-E(6+2) Pin x 2 12V-2x6 (12+4) Pin x 1 SATA x 6 Molex 4 Pin x 2
