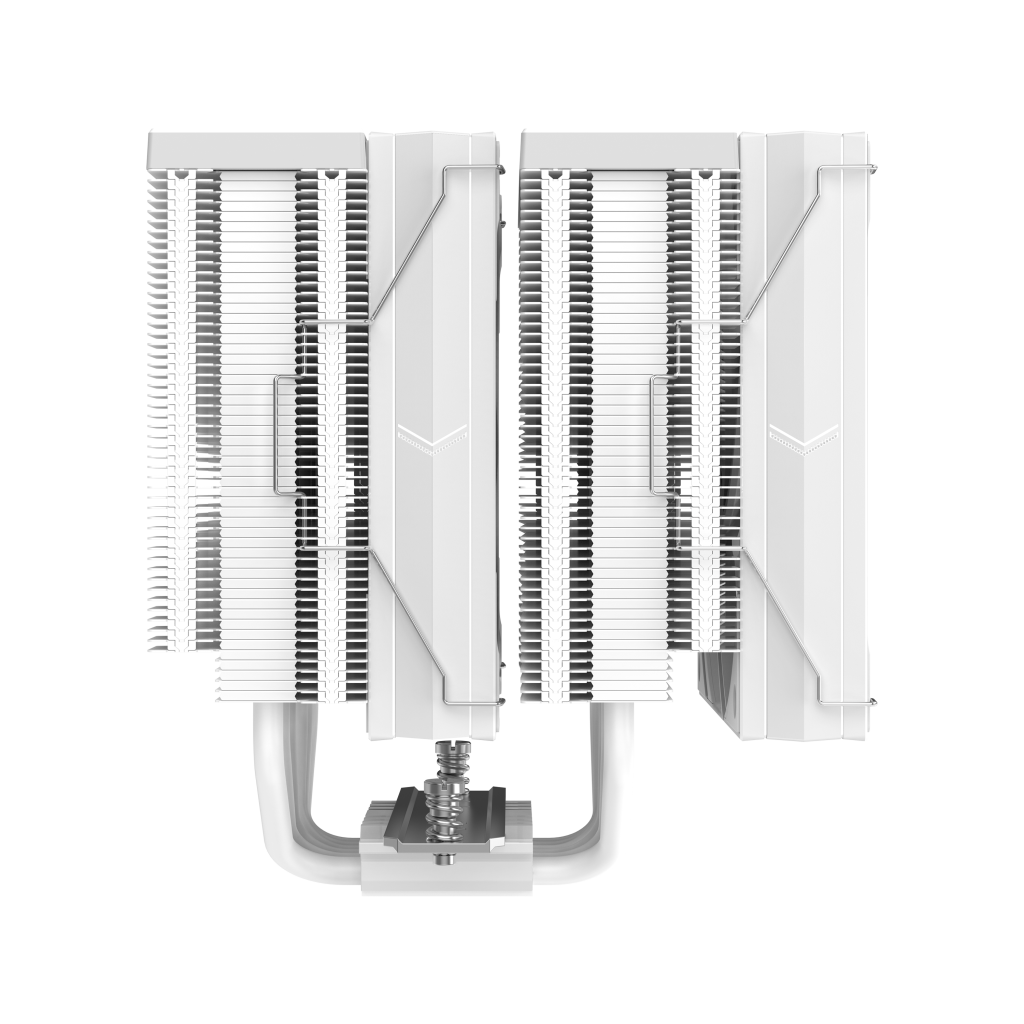

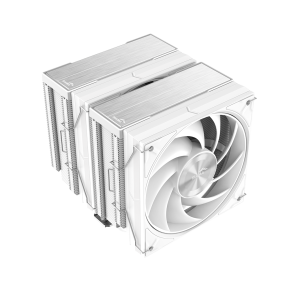

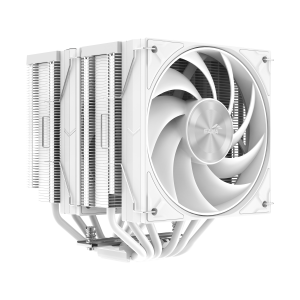

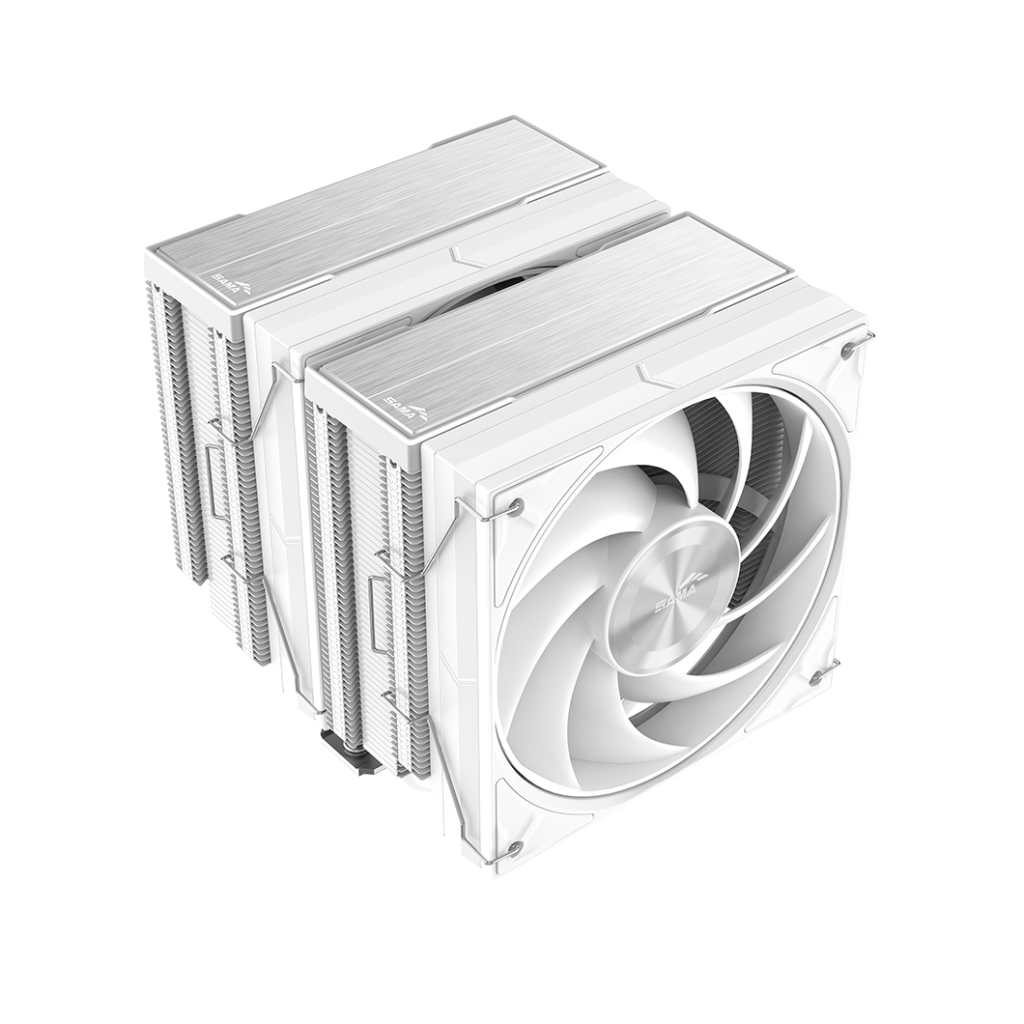

A60W

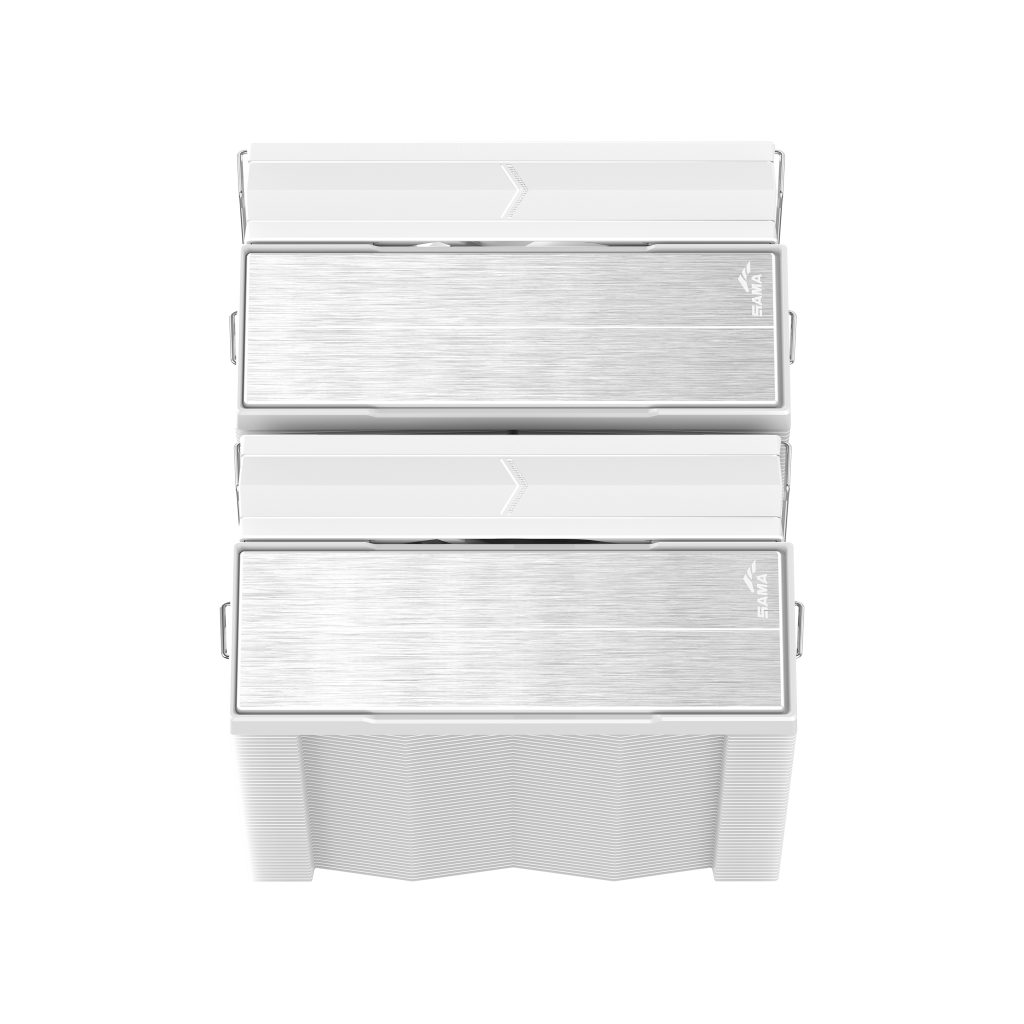

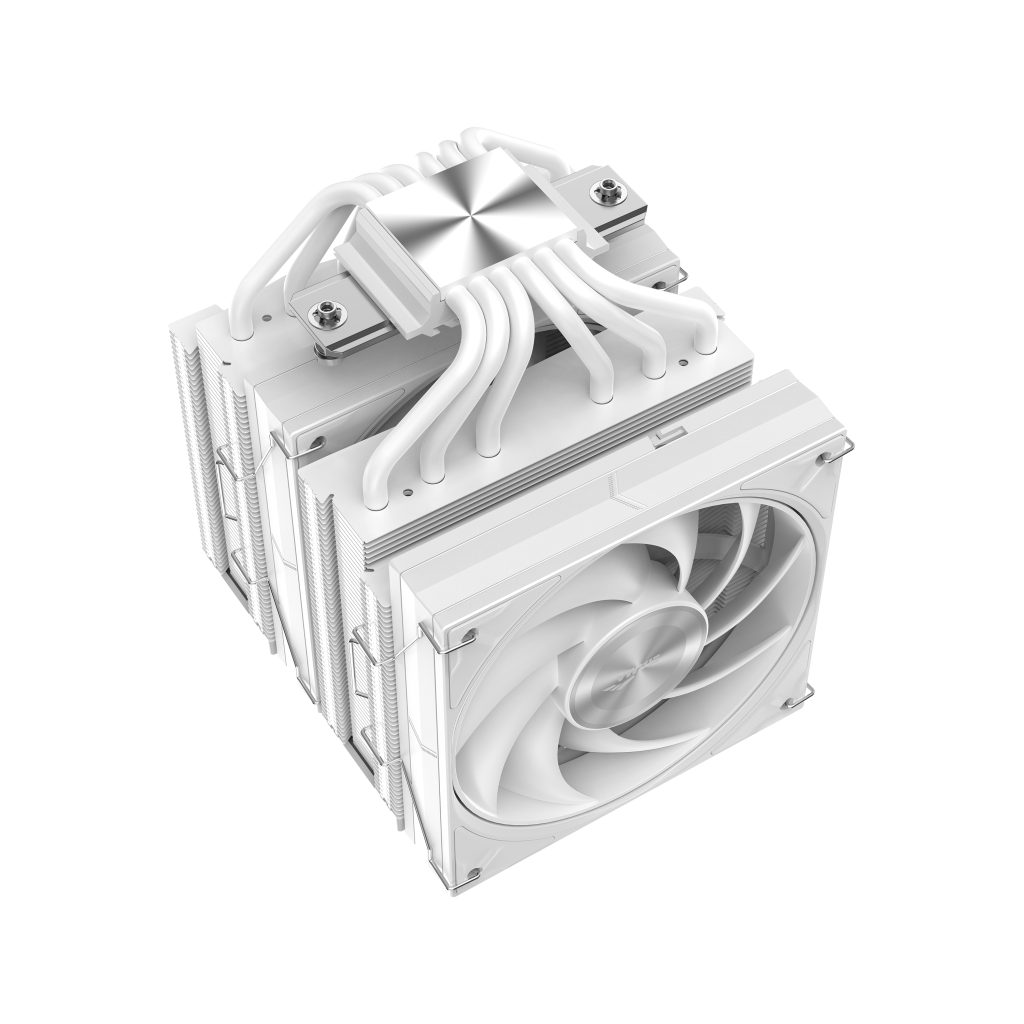

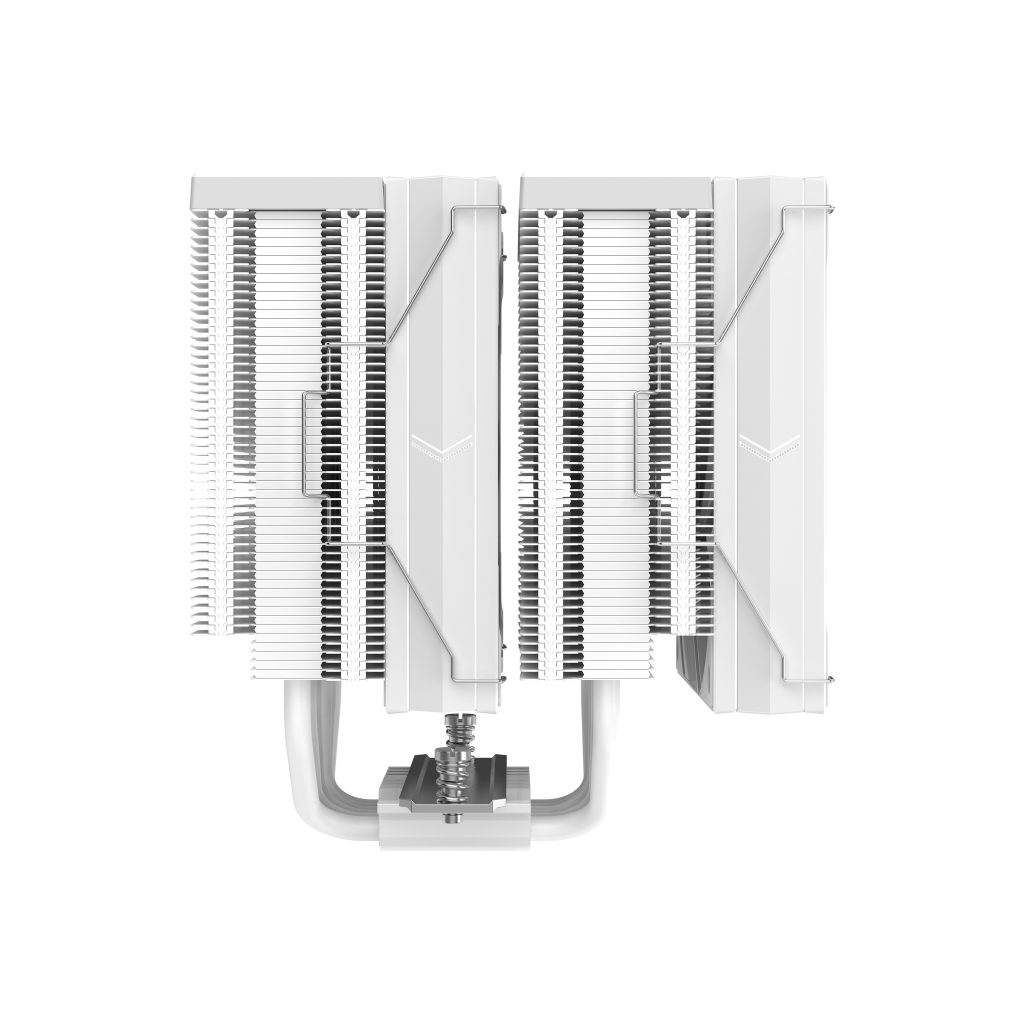

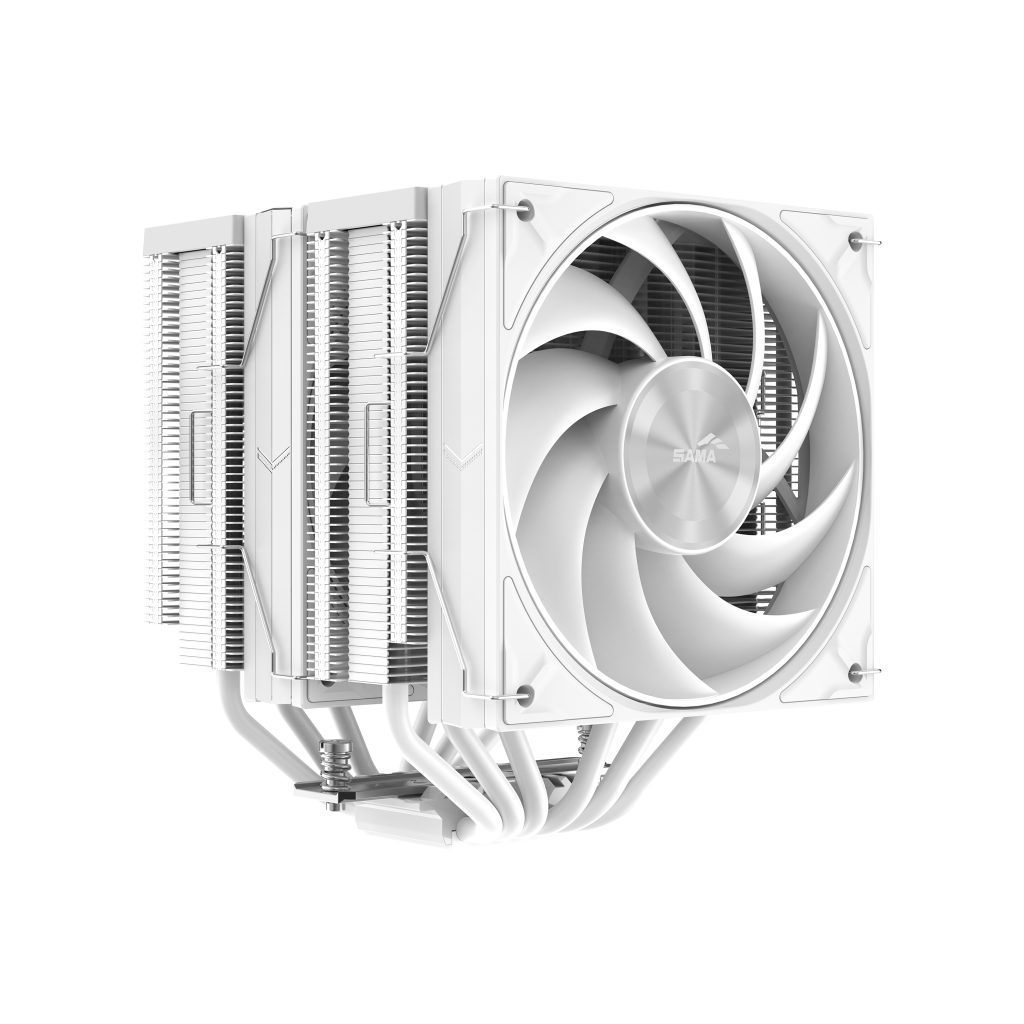

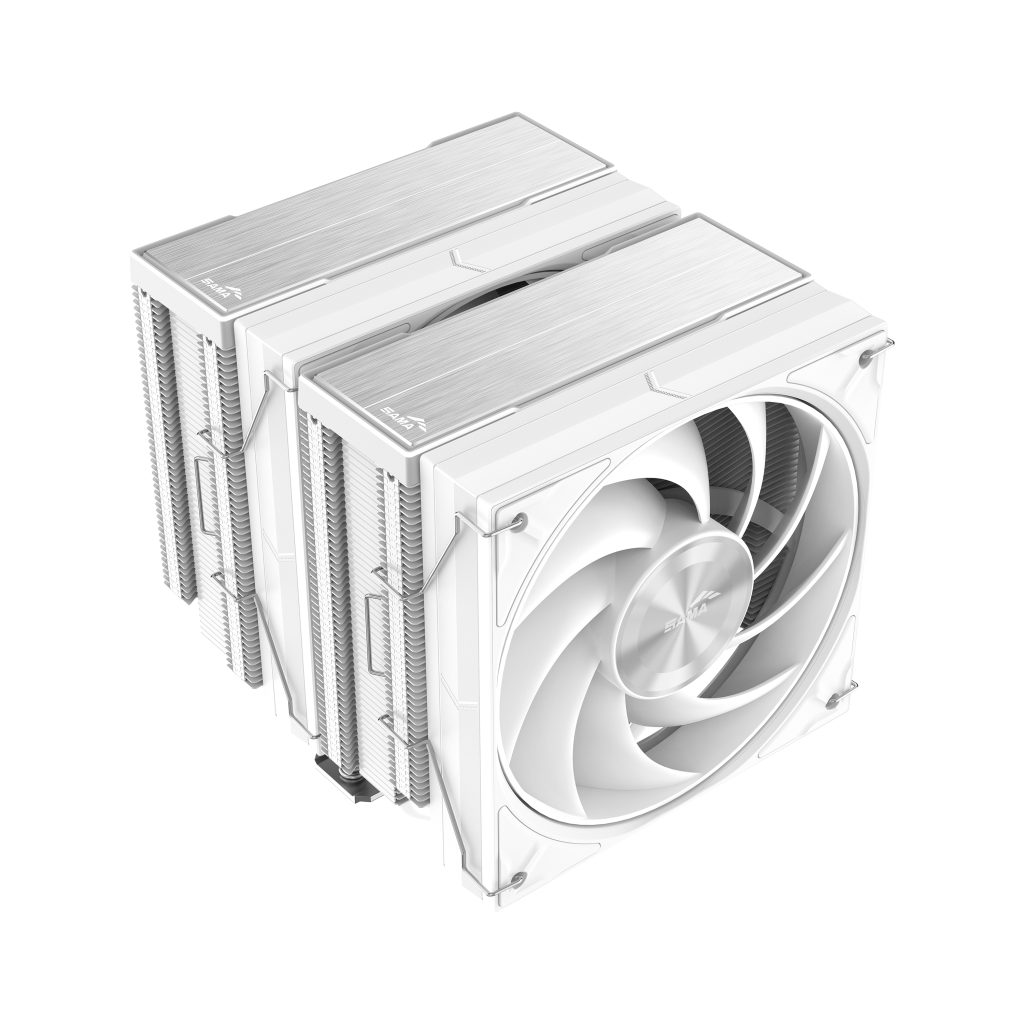

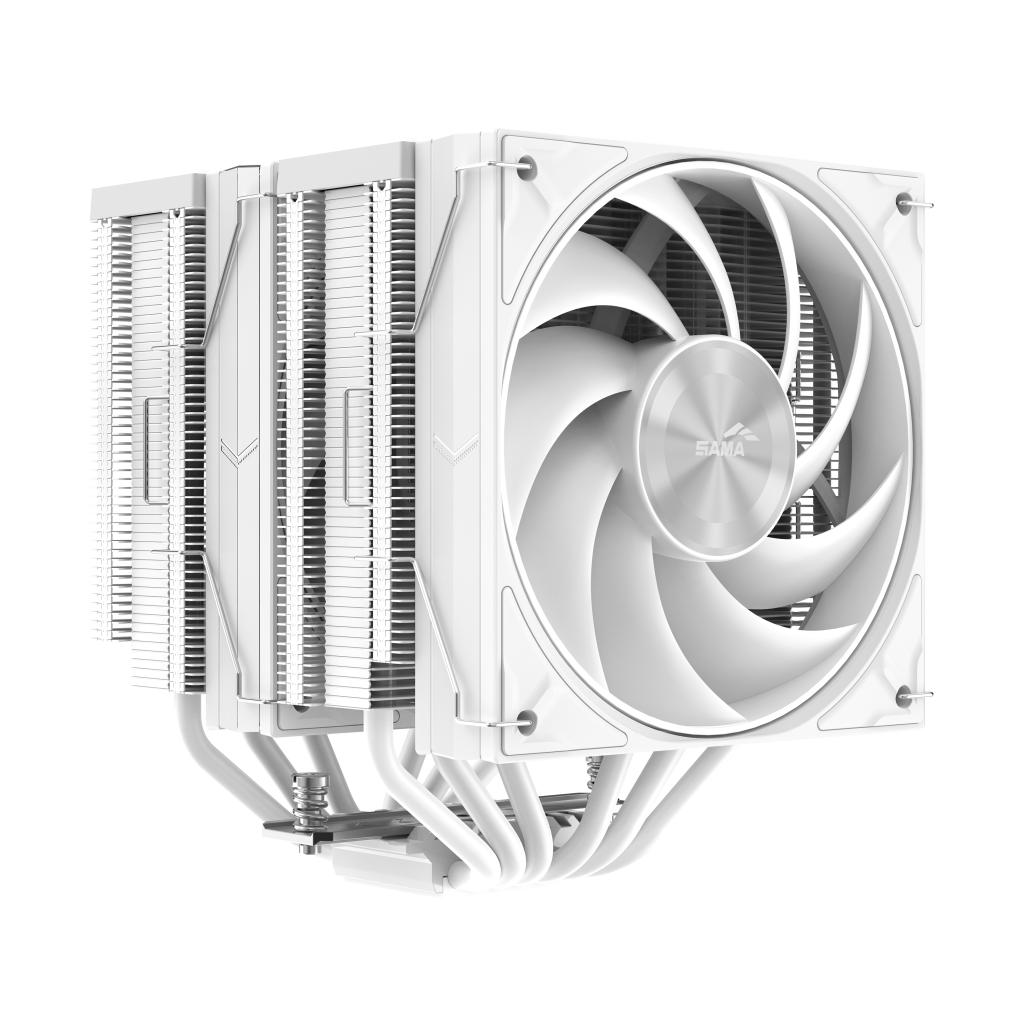

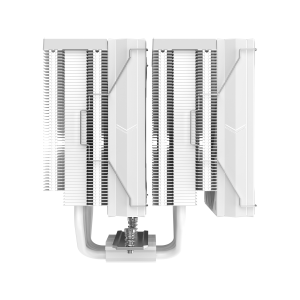

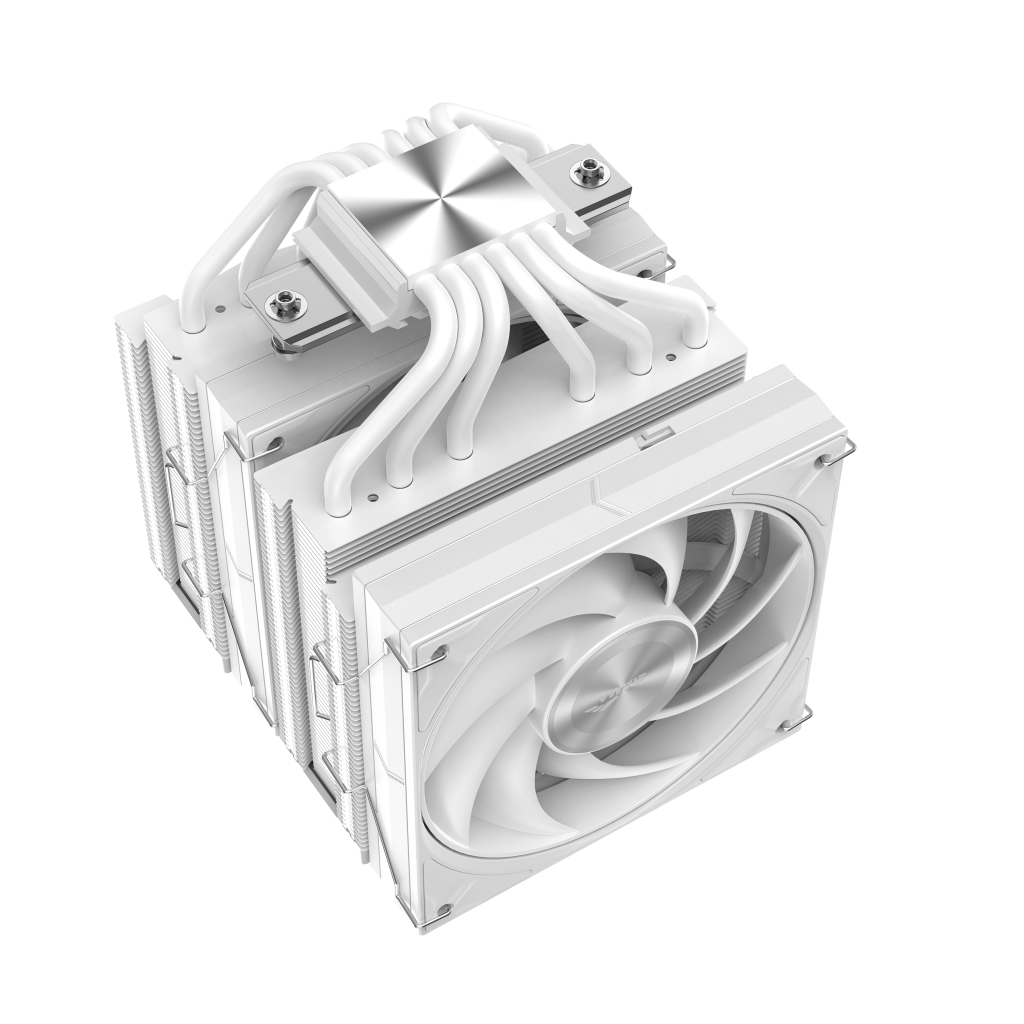

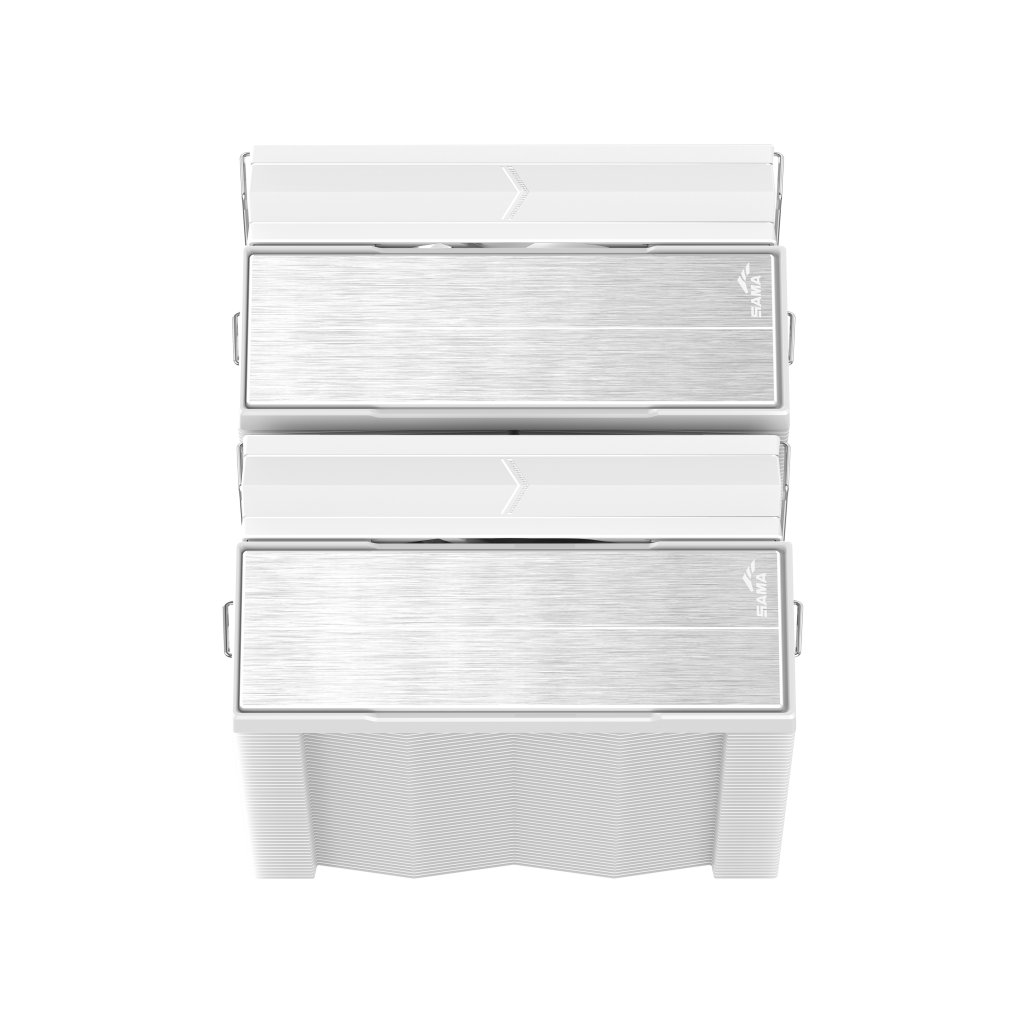

This premium cooler features a minimalist all-white design with a brushed metal top, paired with dual 120mm guide ring fans for powerful, quiet cooling.

Color

#ffffff

Specifications

Model	A60W
EAN	6930788486373
P/N	A60-WHWNNXOX-G
TDP	265W
CPU Socket	Intel LGA:115X/1200/1700/1851 AMD : AM4/AM5
Dimension	124×142.5×156.5mm

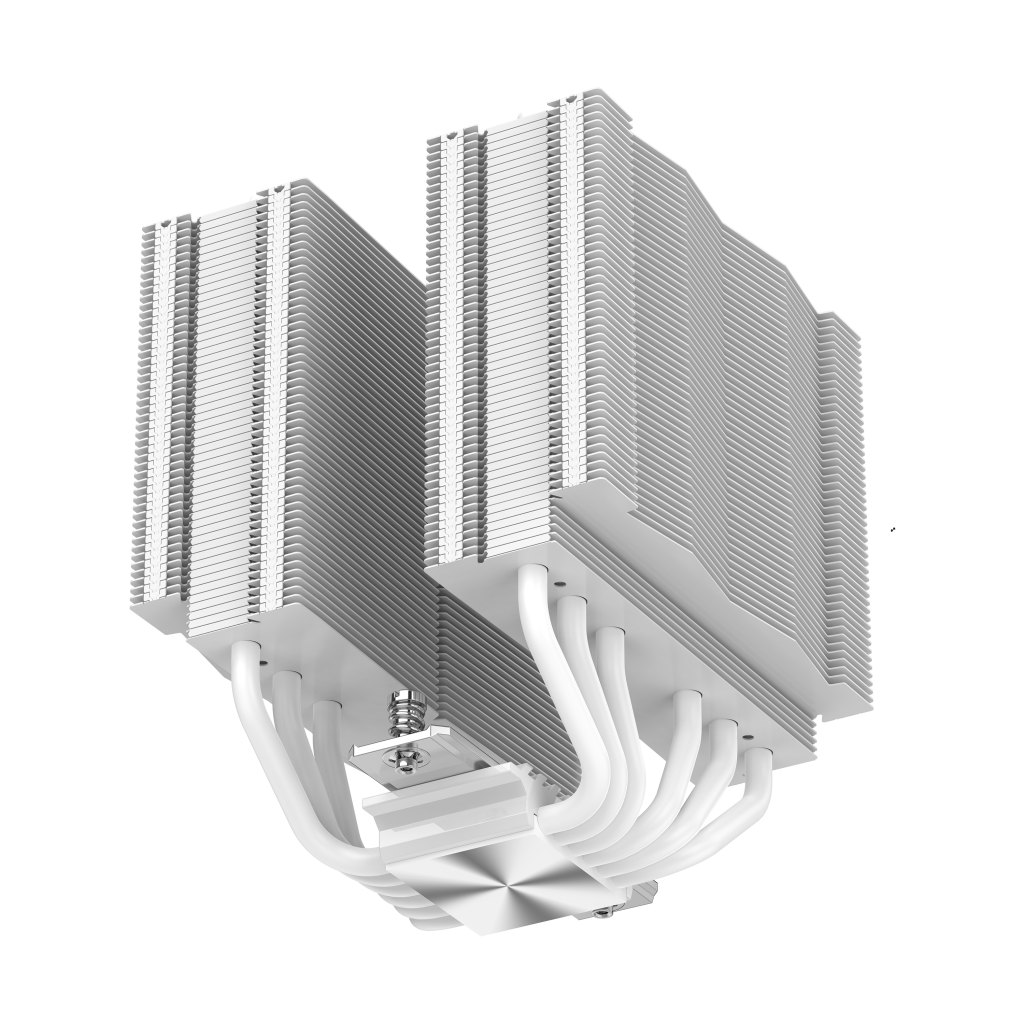

Heatpipe	Φ6mm×6
Color	White
Fan Quantity	2pcs
Warranty	3 Years
Fan	Dimension:120×120×25mm Bearing Type:Hydro Bearing Noise:29dB-A Speed:800~2200±10% RPM Air Flow:78 CFM Air Pressure:2.7 mmH2 O Rated Voltage:12 VDC Rated Current:0.15 A Power Consumption:1.8 W Fan Connector:4-Pin PWM
