A60L

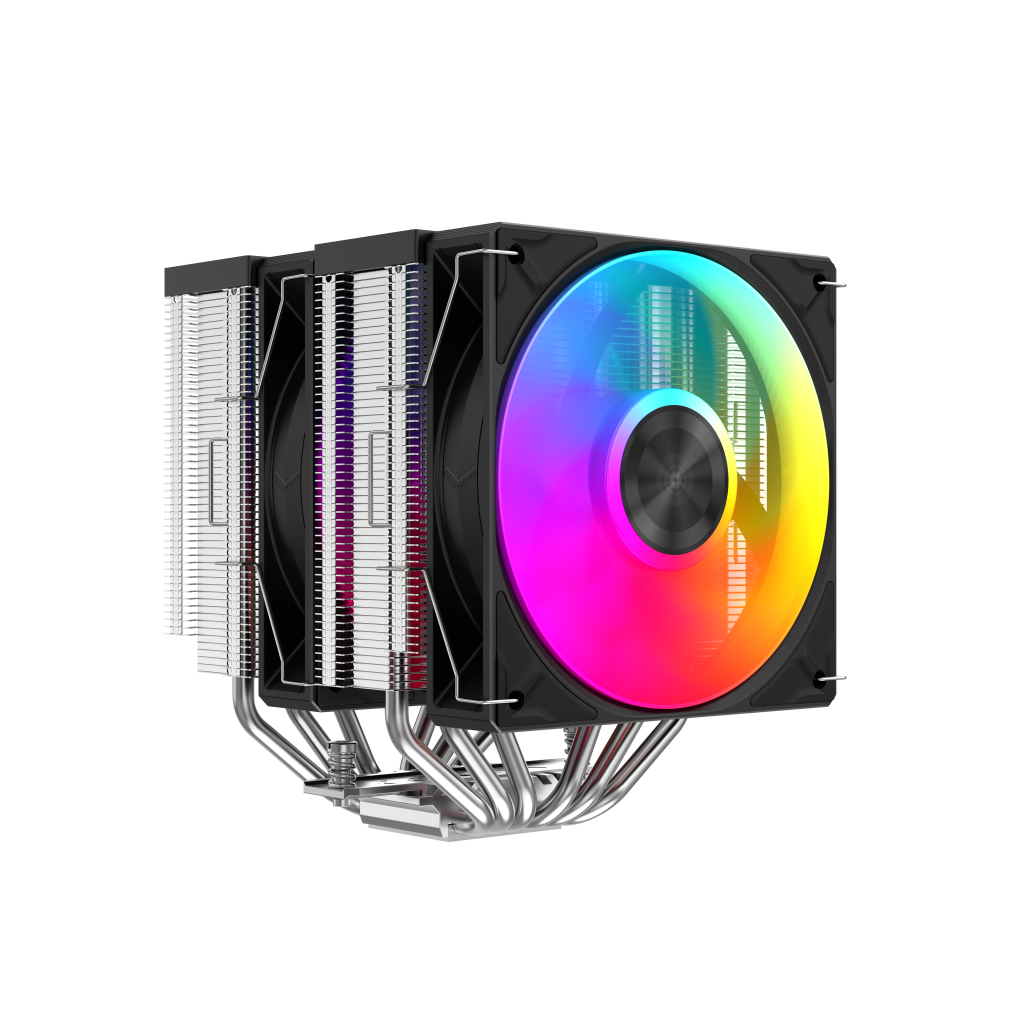

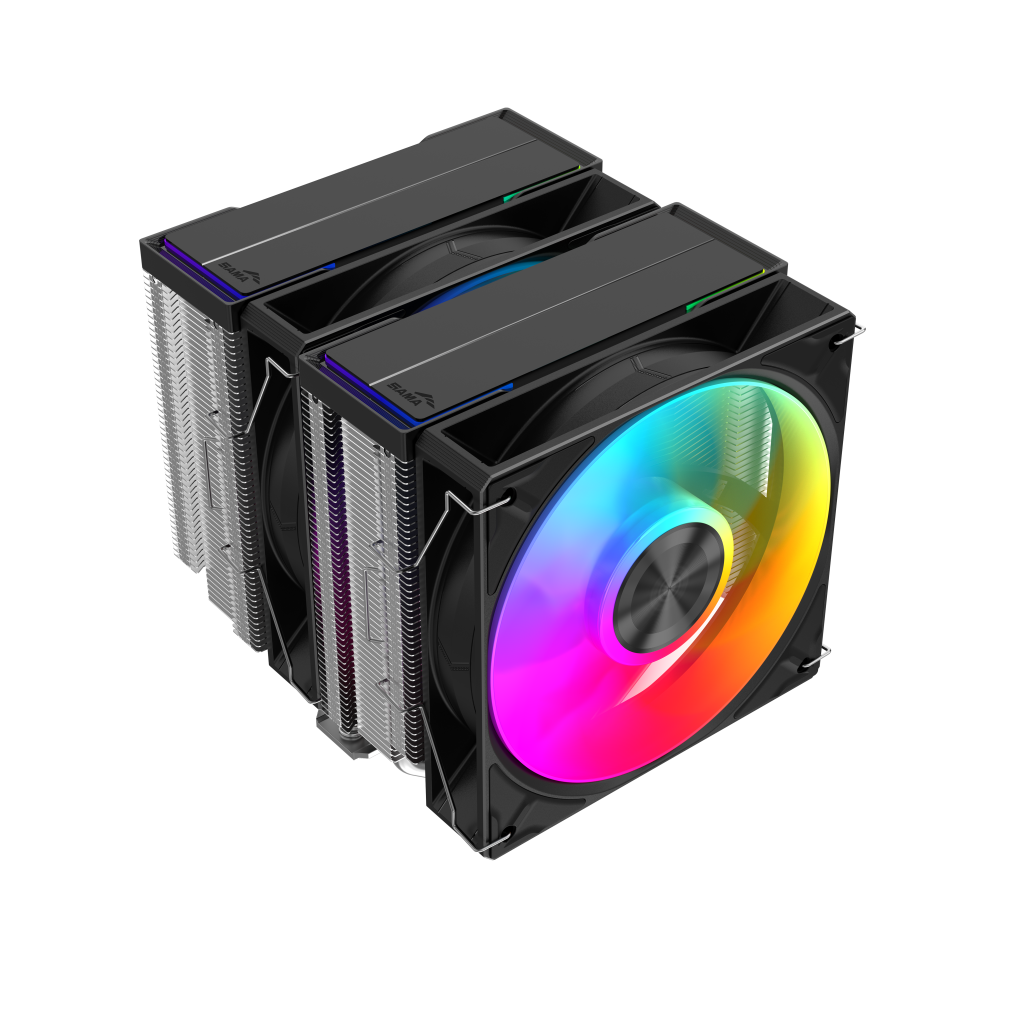

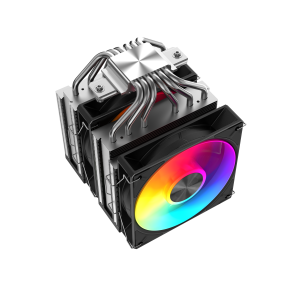

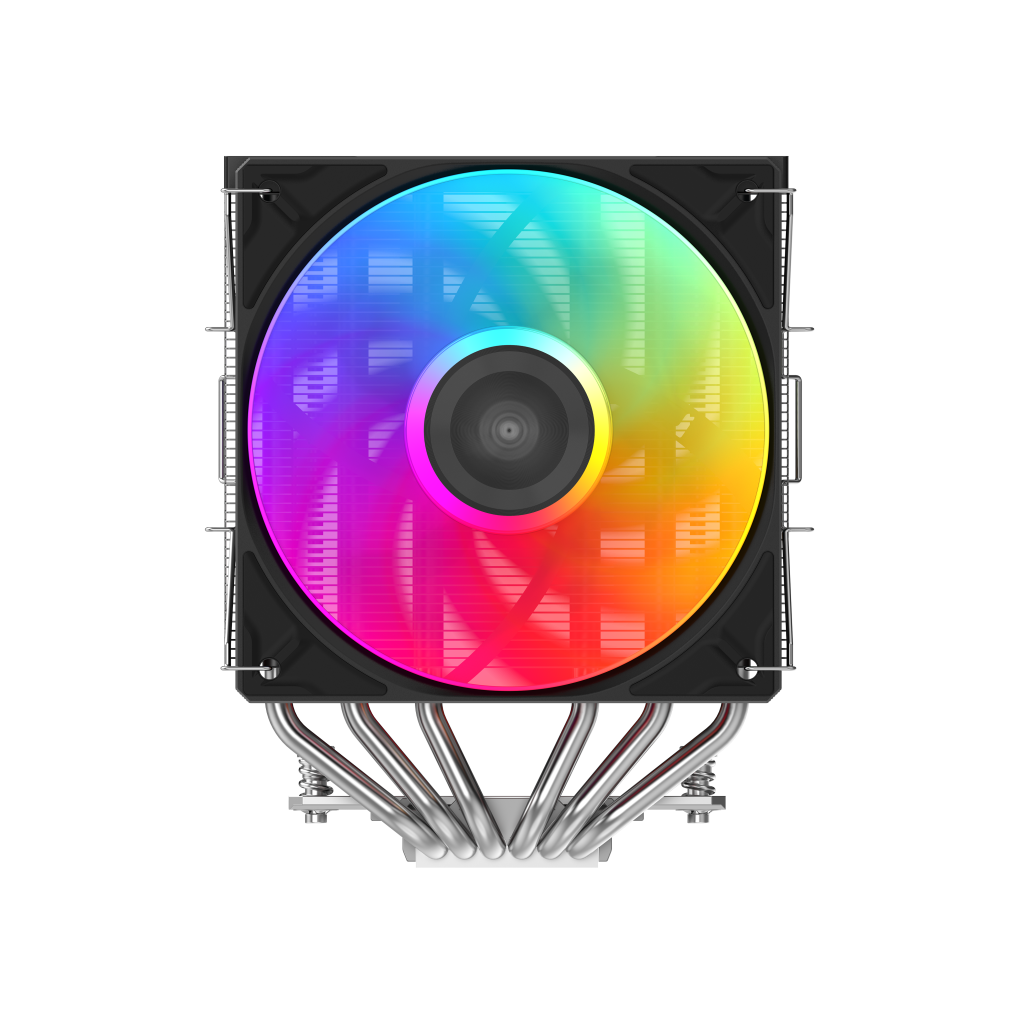

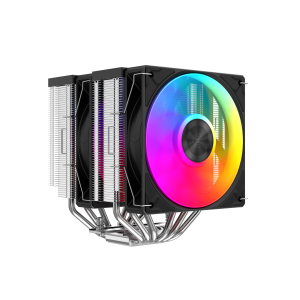

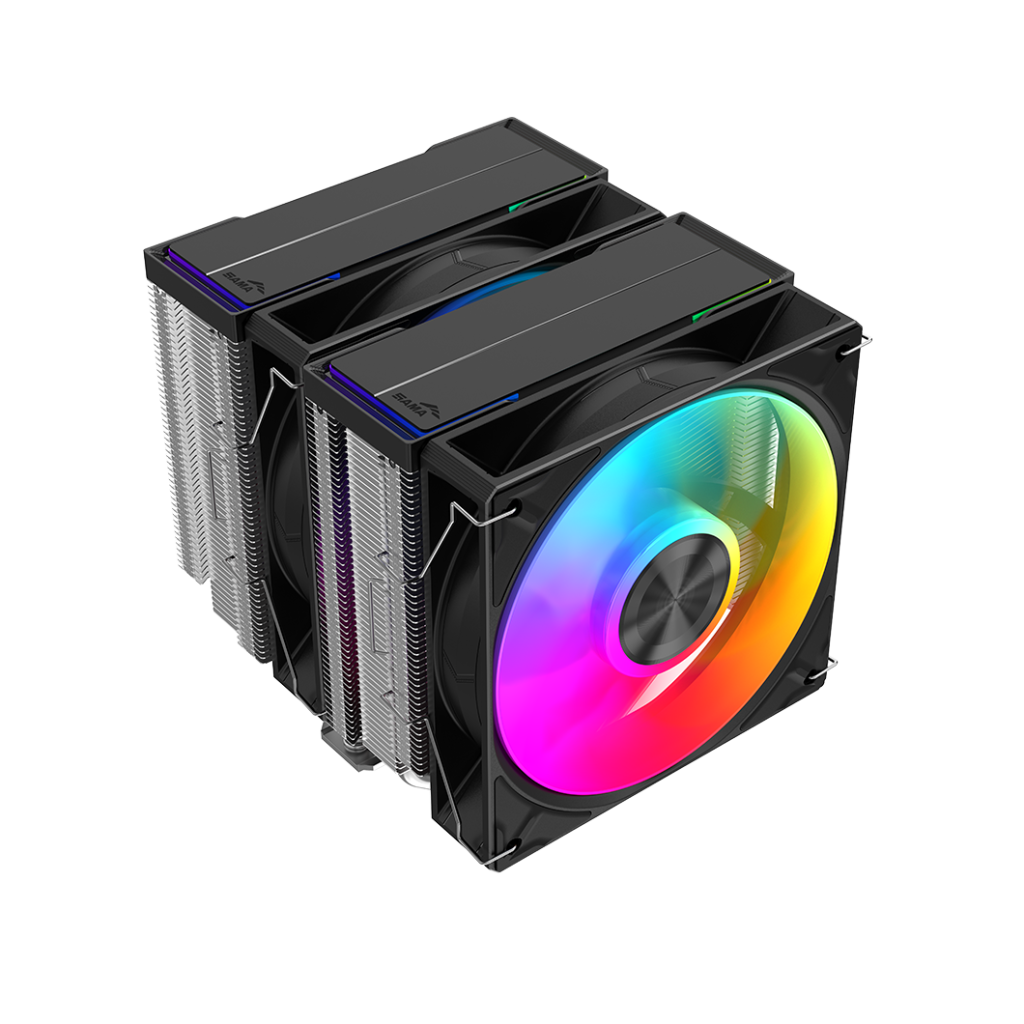

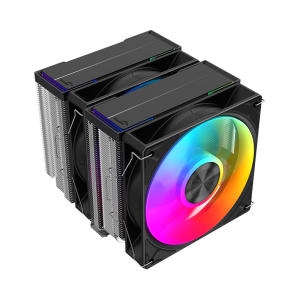

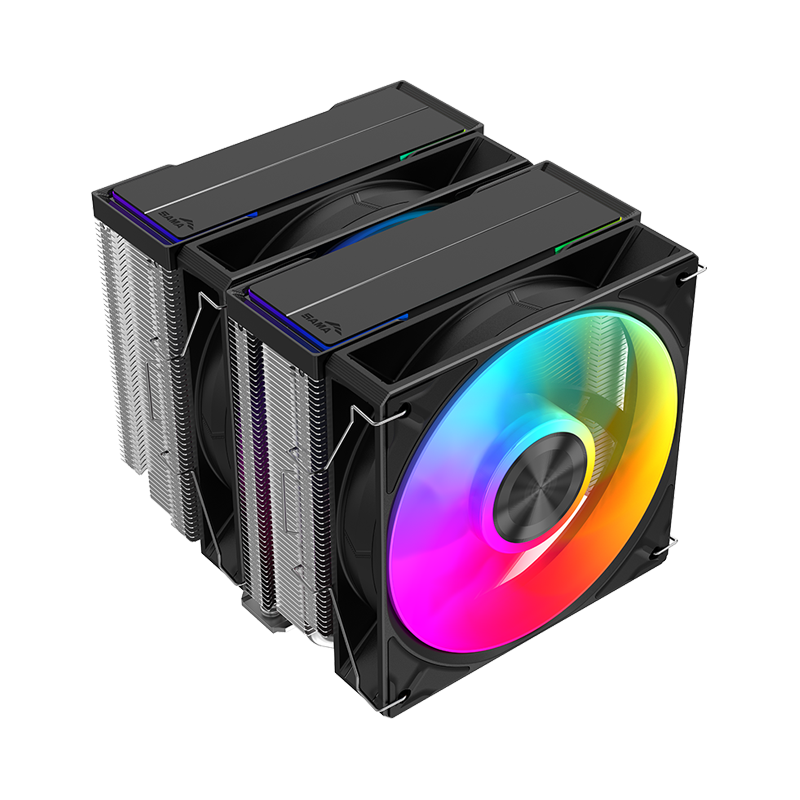

Introducing the SAMA A60L: this premium CPU cooler carries a minimalist raw metal look, now paired with a sleek plastic top cover accented by dual ARGB light strips for a vibrant visual upgrade. It comes equipped with dual 120mm guide ring ARGB fans, combining high-performance cooling with stunning lighting effects and low noise output.

Color

#c0c0c0

Specifications

Model	A60L
EAN	6930788486397
P/N	A60-XXWAYXOX-G
TDP	265W
CPU Socket	Intel : LGA115X/1200/1700/1851 AMD : AM4/AM5
Product Dimension	124×142.5×156.5mm
Heatpipe	Φ6mm×6
Color	Silver
Fan Quantity	2pcs
Warranty	3 Years
Fan	Dimension: 120×120×25mm Bearing Type: Hydro Bearing Noise: 29 dB-A Speed: 800~2200±10% RPM Air Flow: 75.2 CFM Air Pressure: 2.43 mmH2O Rated Voltage: 12 VDC Rated Current: 0.15 A Power Consumption: 1.8 W Fan Connector: 4-Pin PWM
LED	LED Type: ARGB LED Connector: 3-Pin LED Rated Voltage: 5 V
