Air Cooling

A60B

Dual-Tower/ All-Black Desgin/ Metal Top Cover/ "Wave-Shaped" Fin Array/ Server-Grade Guide Ring Fans/ Full RAM Clearance/ Freezee Thermal Paste Included/ Versatile Compatibility
Color
  • #000000

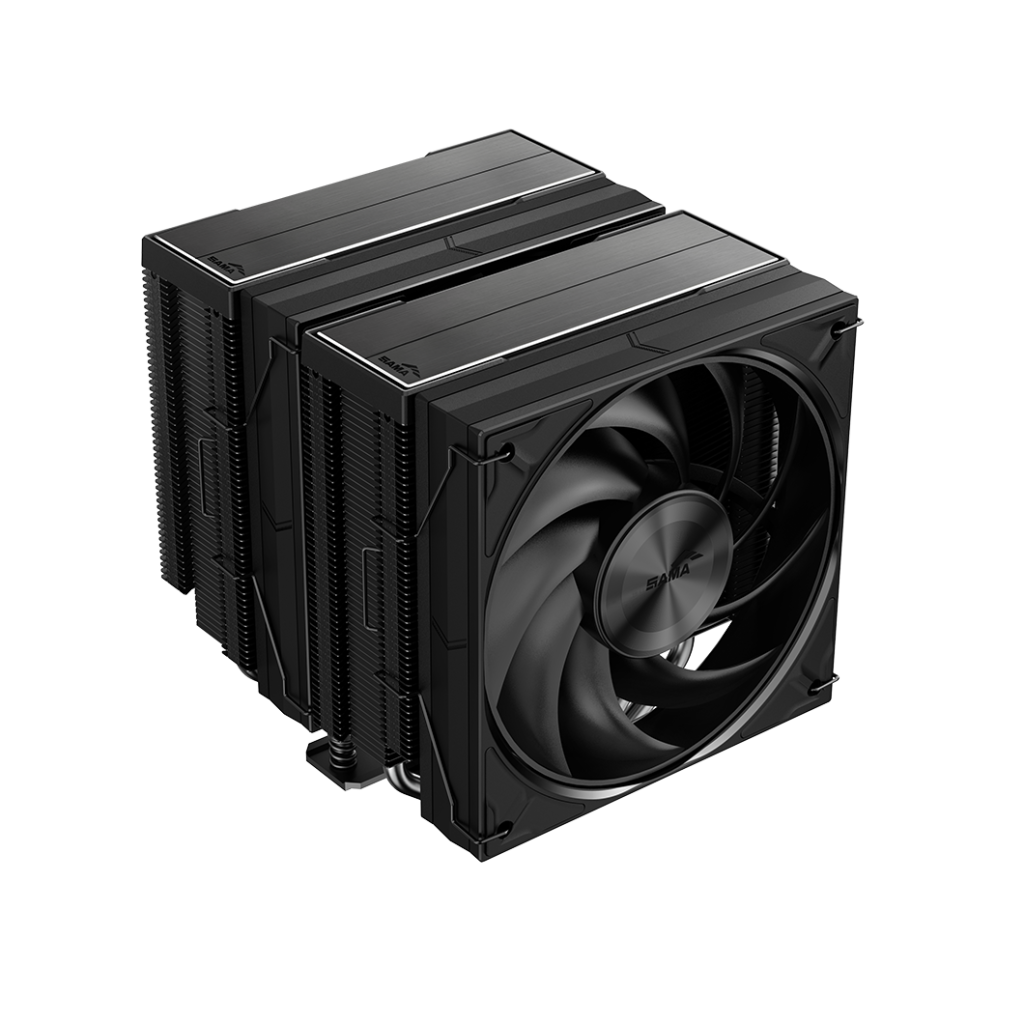

A60B

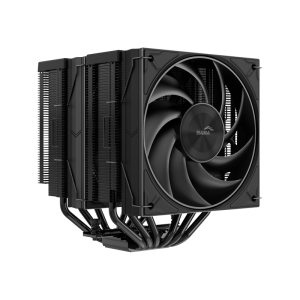

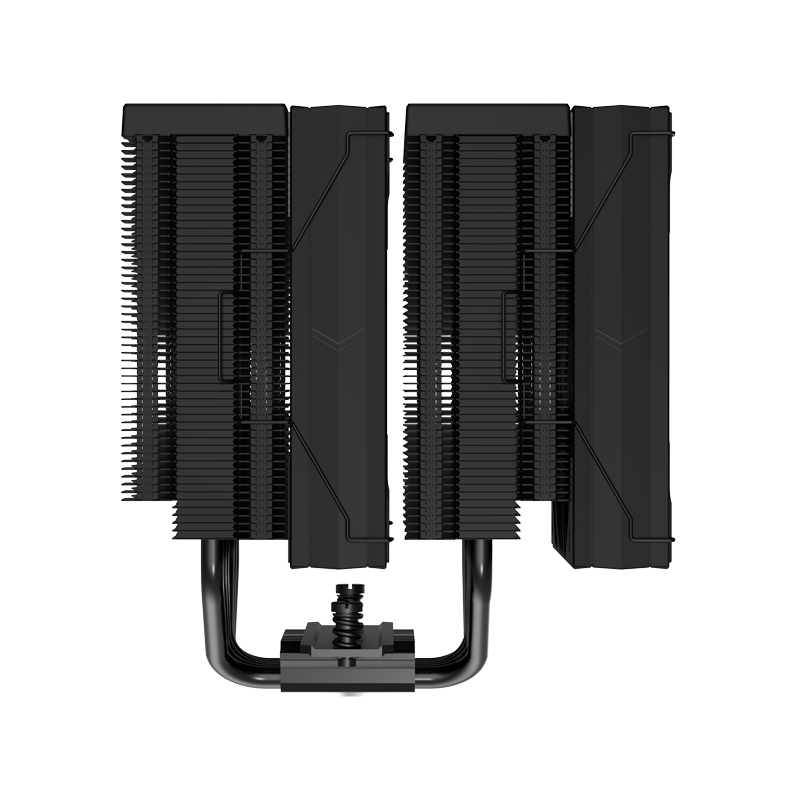

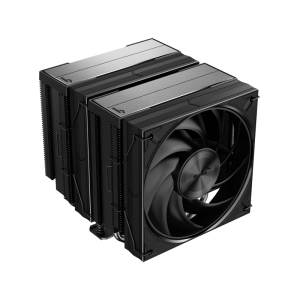

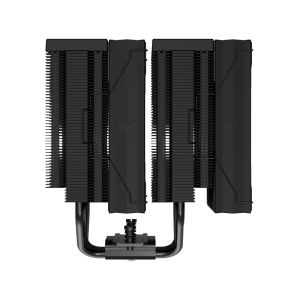

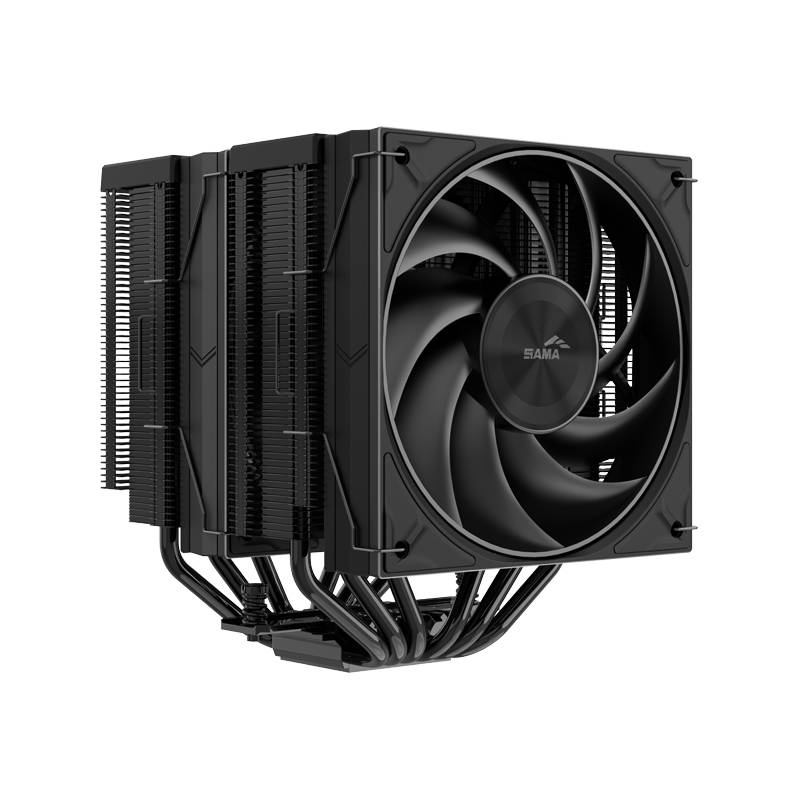

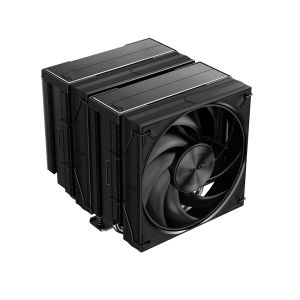

This premium CPU cooler showcases a minimalist all-black design, topped with a brushed metal cover for a sleek, sophisticated look. Its signature fan frame houses dual 120mm guide ring fans, delivering high-performance cooling with low noise output.

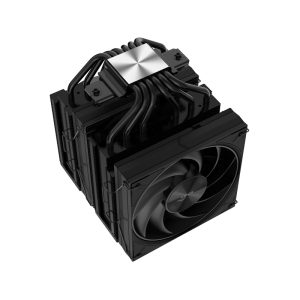

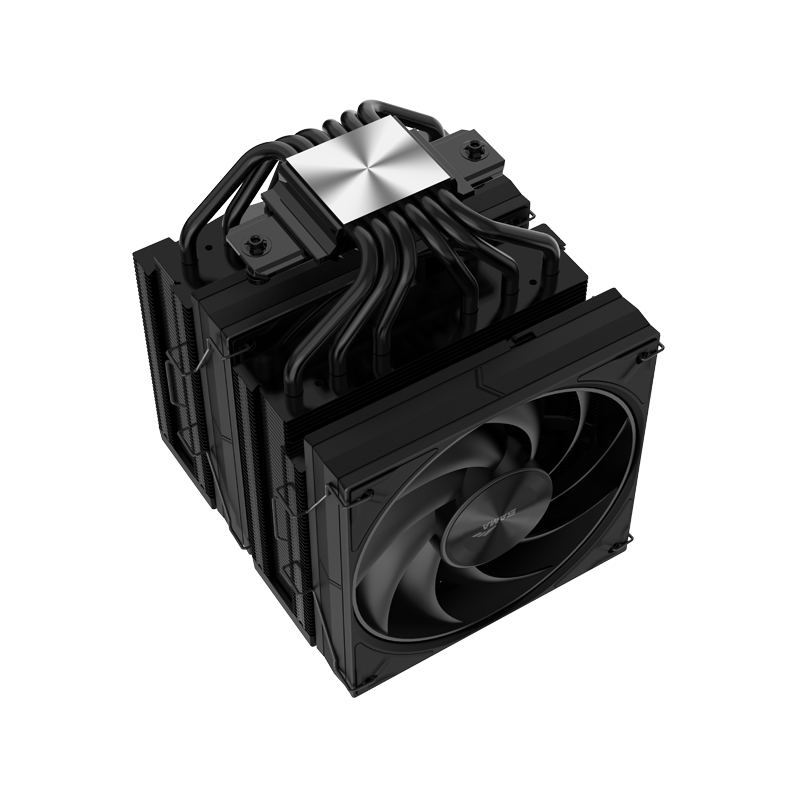

METAL TOP COVER

Crafted with a premium brushed metal top cover, the A60B delivers not only reliable performance but also a refined aesthetic—where function meets flawless design.

ADVANCED COOLING SOLUTIOON

1
Equipped with six composite heatpipes, offering superior heat dissipation and enhanced support for high-performance CPUs.
2
Fully black-coated pure copper heat sinkbase, tightly bonded to the heatpipes through reflow soldering for highly efficient heat dissipation.

MICRO-CONVEX STRUCTURE

Crafted with precision CNC micro-convex
machining, the CD-patterned high-gloss mirror
base ensures optimal contact with the CPU
surface, enabling rapid and efficient heat
transfer from the processor core.

OPTIMIZED FIN ARRAY

Features a hybrid fin
design that
combines folded
and interlocked fins
for enhanced heat
dissipation and
structural stability.
Optimized "wave-shaped" fin array helps reduce wind shear noise.
TDP: 265W *TDP(Thermal Design Power) Reference: Each heat pipe is individually tuned based on AGHP technology, taking into account the CPU’s real-world thermal behavior — such as transient loads, peak power, and idle power draw. By adjusting the power distribution among the heat pipes, the cooler achieves a wide thermal dissipation range with a substantially enhanced maximum cooling capacity.

POWERFUL AND QUIET

  • Air Pressure: 2.7mm H2O
  • Air Flow: 78CFM
  • Speed: 800~2200±10% RPM
  • Noise: 29dB-A

GUIDE RING FAN

Built with a guide ring design and server-grade
materials, the fan delivers powerful, stable
cooling performance for demanding systems.
1
The fan frame features subtle angular contours that play with light and shadow, while selective glossy accents add visual depth and sophistication to the overall design.
2
The ring helps channel airflow into a more focused, straight path, enhancing both fan efficiency and quiet operation.
3
Server-grade iron housing, copper shaft, and steel core, achieves M/G-grade dynamic balance.
4
Black metal CD texture sticker (Not pre-applied)

SEAMLESS FIT FOR ANY BUILD

The A60B is engineered to ensure zero interference with memory modules, providing full RAM clearance for effortless installation in any build.

Freezee Thermal Paste

Included with the A60 series, Freezee thermal paste is a nano-engineered compound made from zinc oxide and aluminum powder, offering stable performance with an impressive thermal conductivity rating of 14.8 W/m·K.

VERSATILE COMPATIBILITY

Equipped with versatile mounting sockets compatible with mainstream CPUs, ensuring hassle-free installation across a wide range of systems.

FOCUS ON DETAIL

The A60B comes equipped with a sturdy metal backplate for added durability, a user-friendly mounting system for easy installation, delivering a complete and efficient cooling solution with no extra hassle.

Specifications
Model A60 B
EAN 6930788486366
P/N A60-BKWNNXOX-G
TDP 265W
CPU Socket Intel : LGA115X/1200/1700/1851
AMD : AM4/AM5
Product Dimension 124×142.5×156.5mm
Heatpipe Φ6mm×6
Color Black
Fan Quantity 2pcs
Warranty 3 Years
Fan Dimension: 120×120×25mm
Bearing Type: Hydro Bearing
Noise: 29 dB-A
Speed: 800~2200±10% RPM
Air Flow: 78 CFM
Air Pressure: 2.7 mmH2O
Rated Voltage: 12 VDC
Rated Current: 0.15 A
Power Consumption: 1.8 W
Fan Connector: 4-Pin PWM
