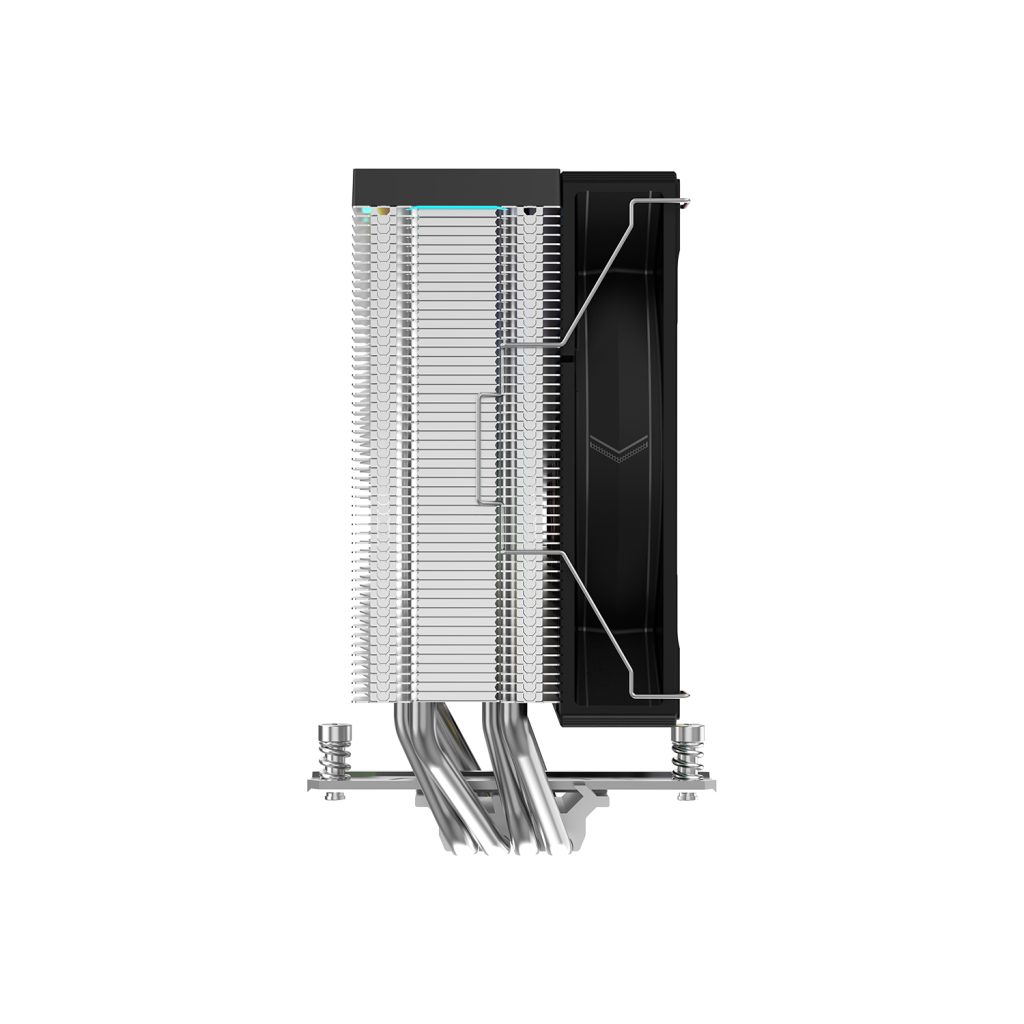

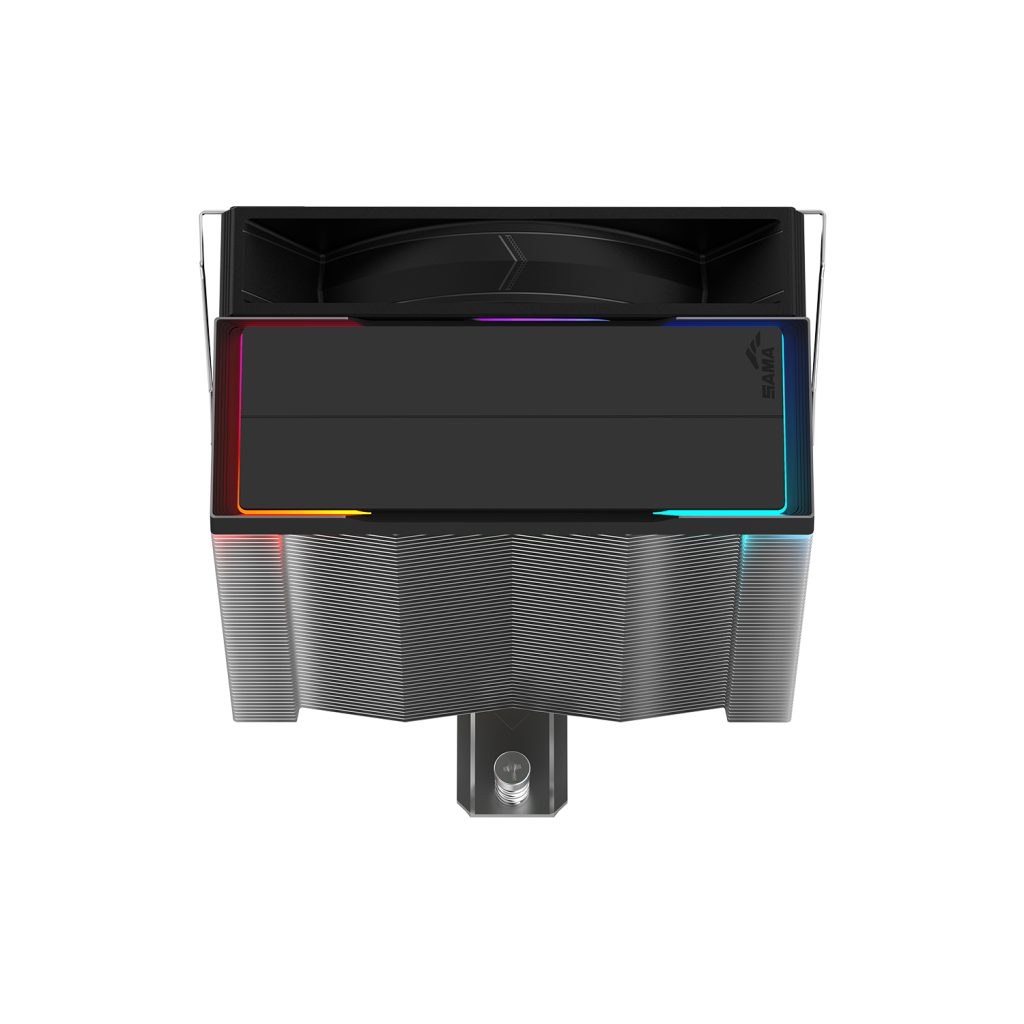

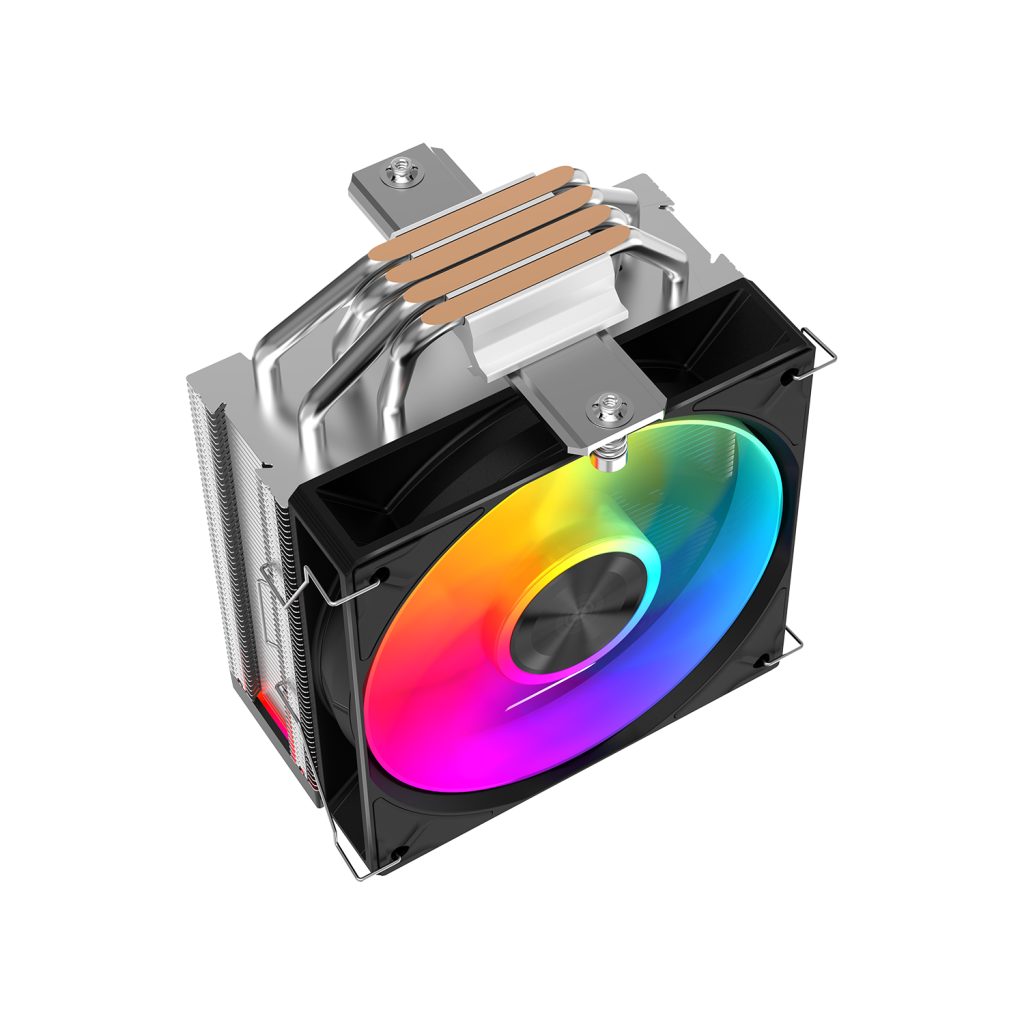

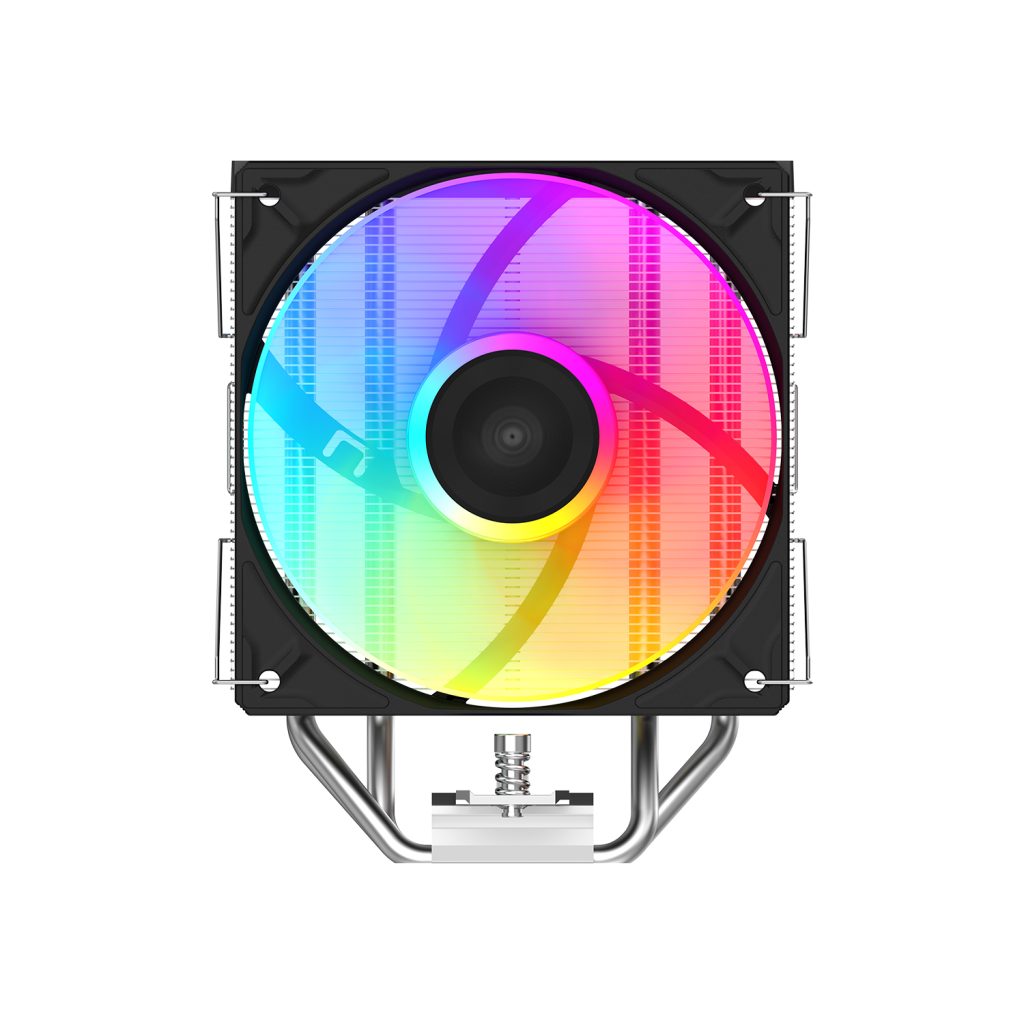

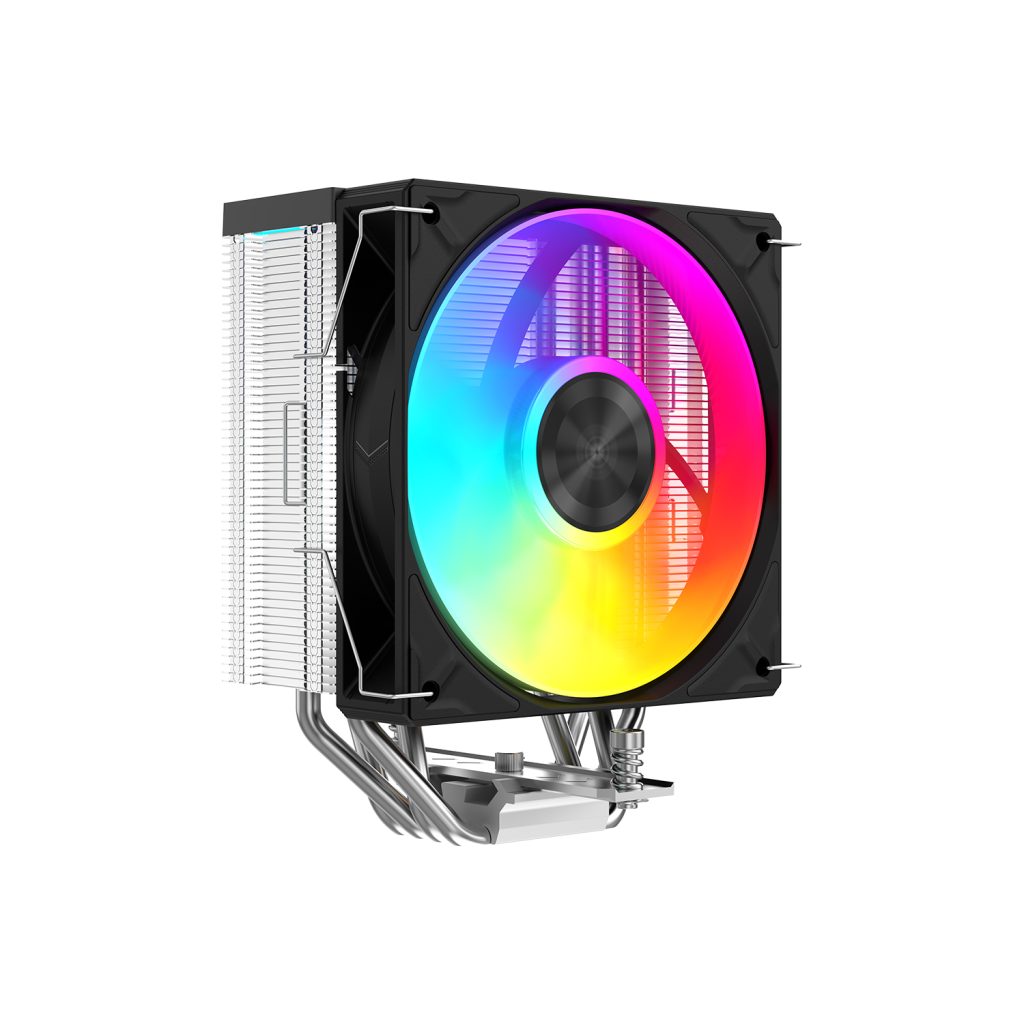

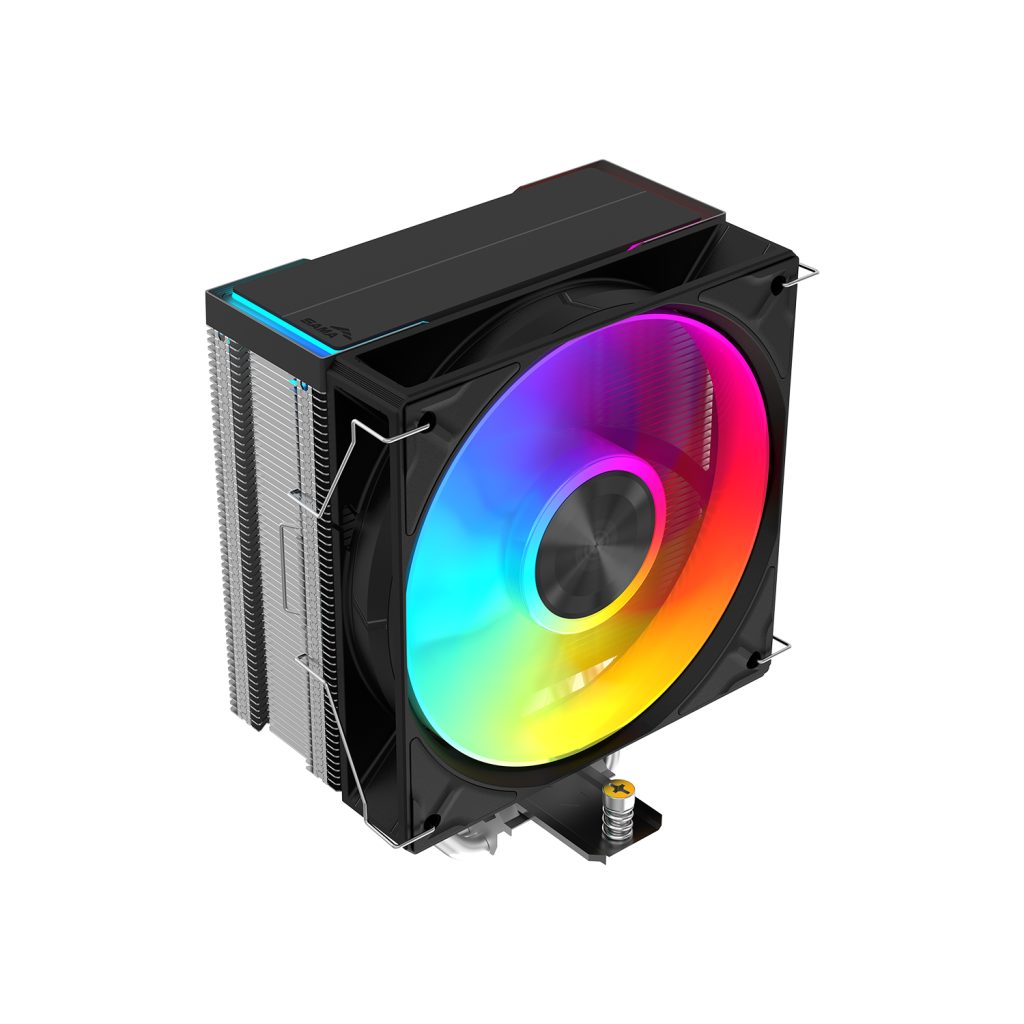

A40L

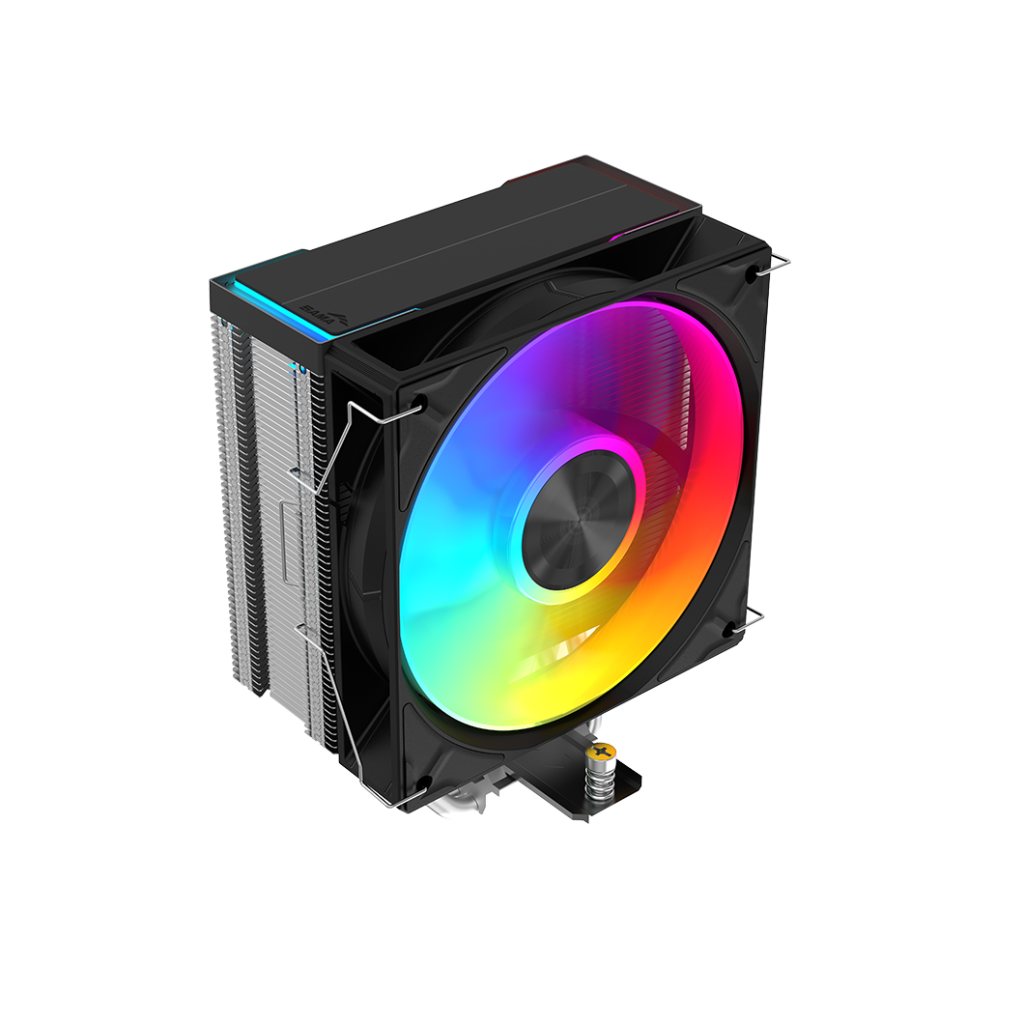

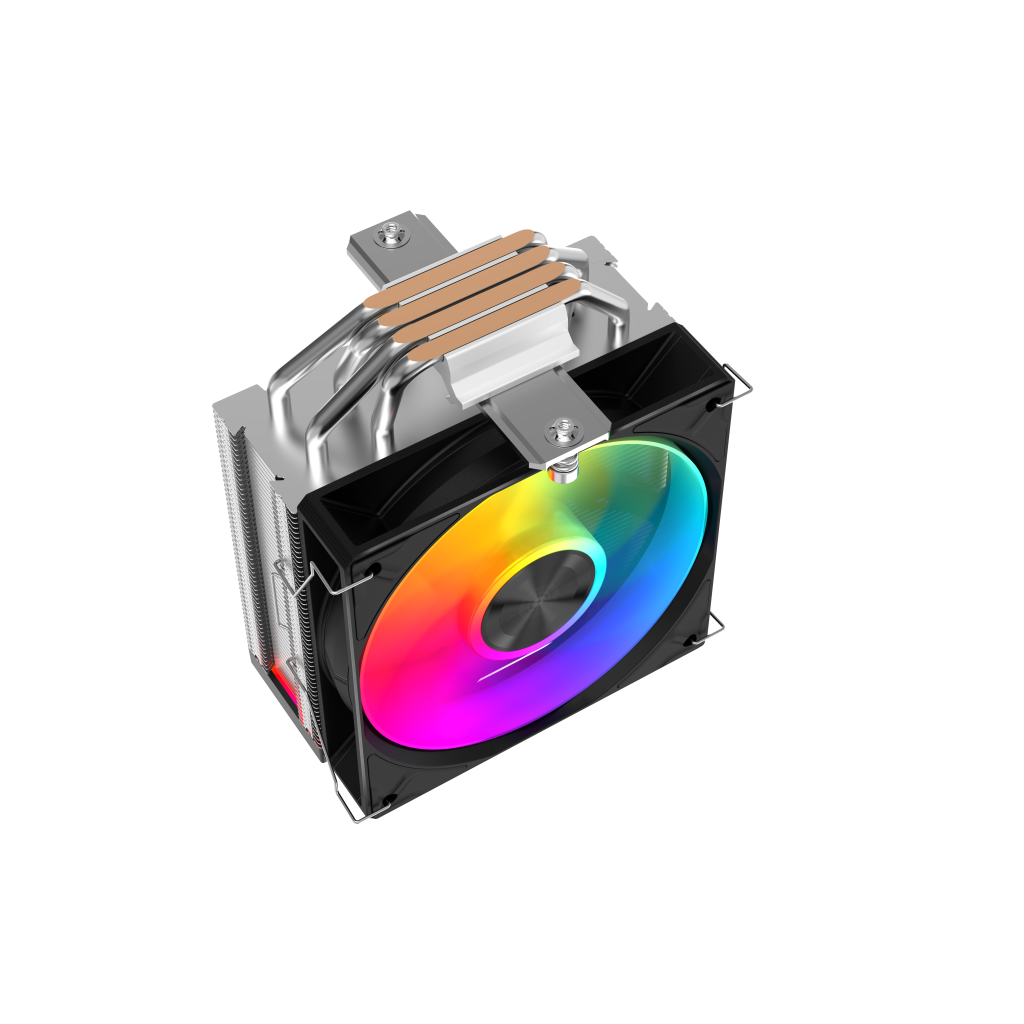

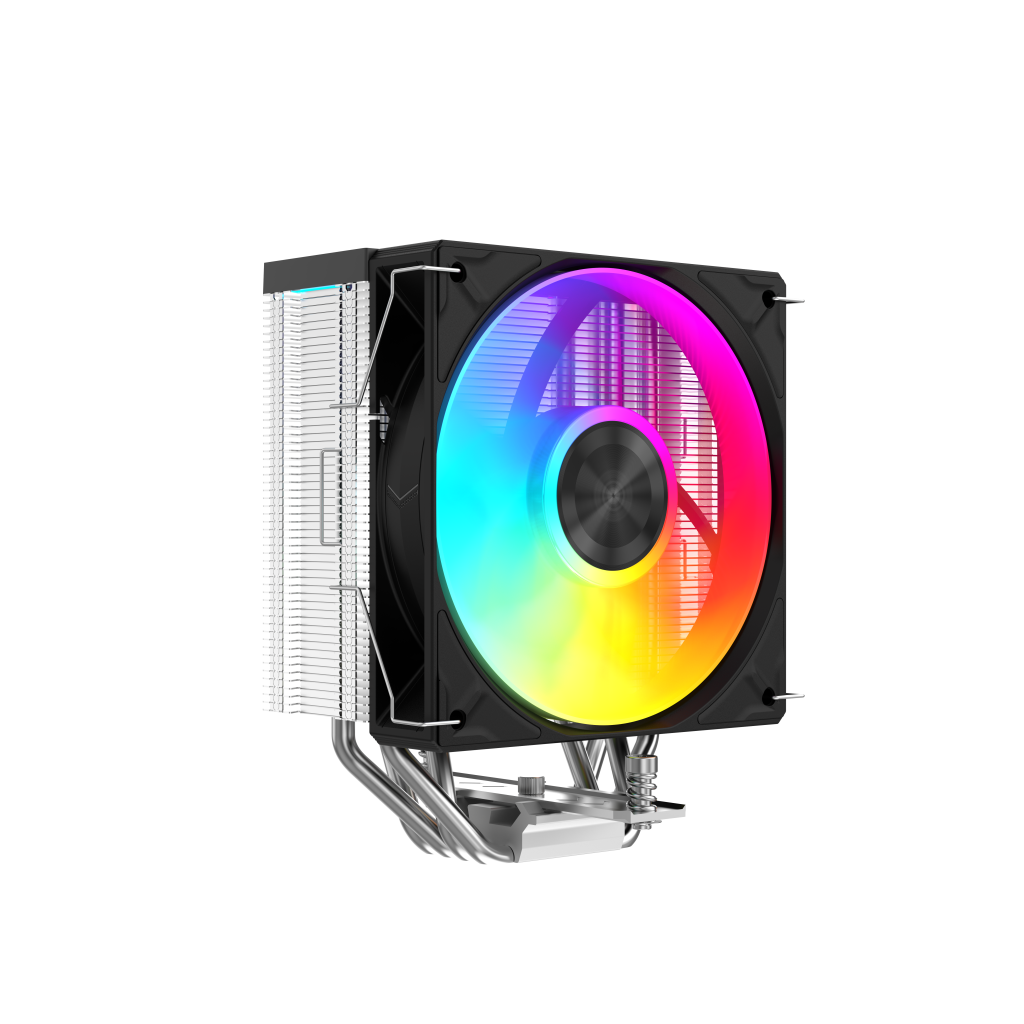

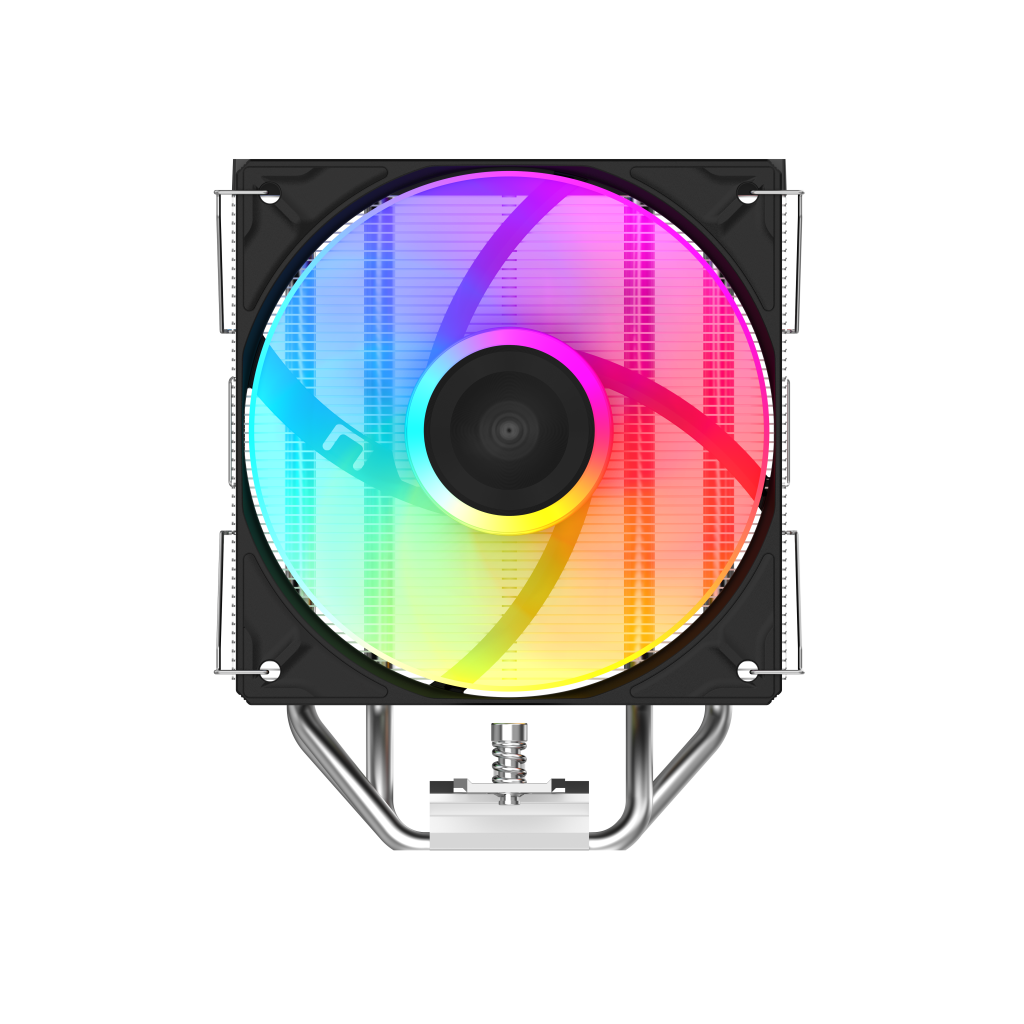

Introducing the SAMA A40L: a compact single-tower cooler with a raw metal finish, ARGB side strips, and direct-touch heat pipes for efficient thermal transfer. Paired with a quiet 120mm ARGB fan, it delivers strong cooling and vibrant lighting in a space-saving design.

Color

#c0c0c0

Specifications

Model	A40L
EAN	6930788486847
P/N	A40-XXWAYXOX-G
TDP	240W
CPU Socket	Intel : LGA115X/1200/1700/1851 AMD : AM4/AM5

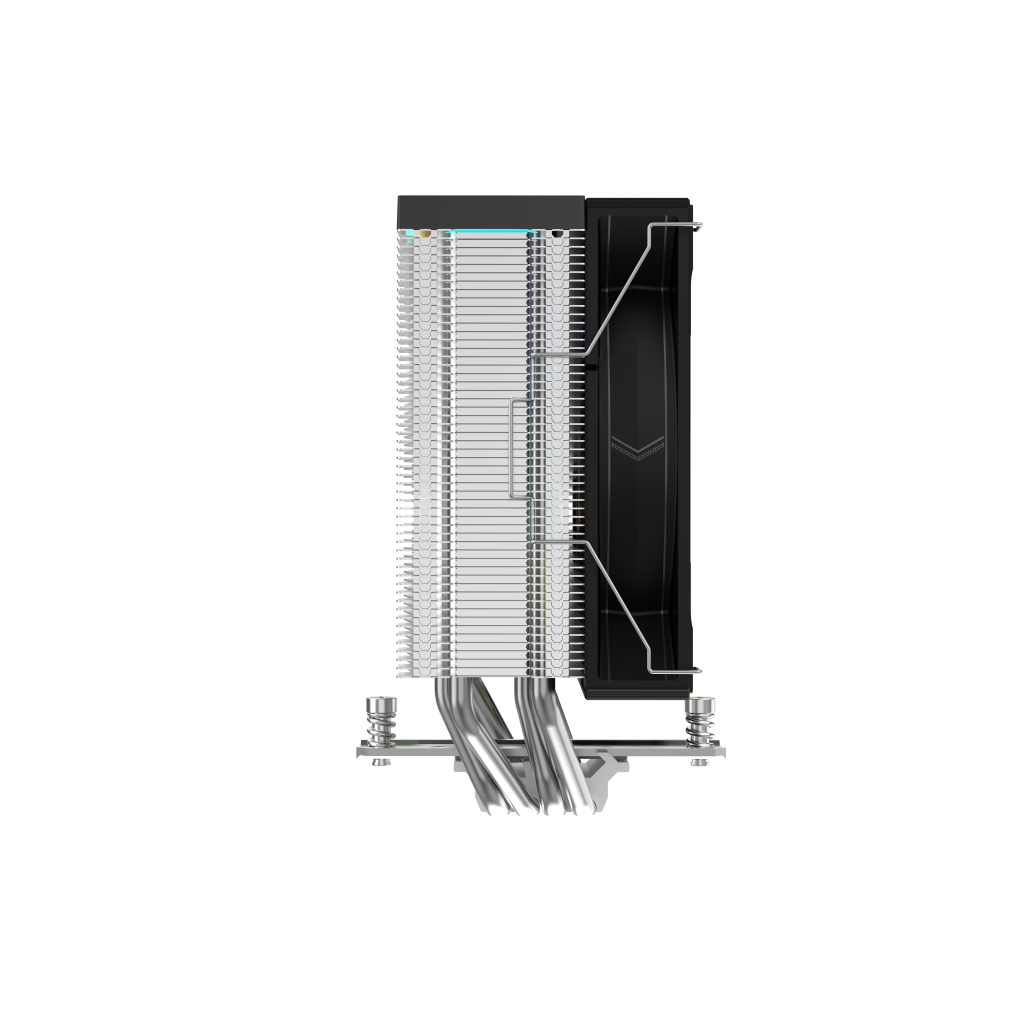

Product Dimension	122×71×152mm

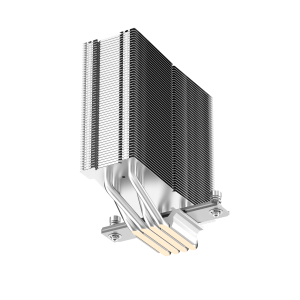

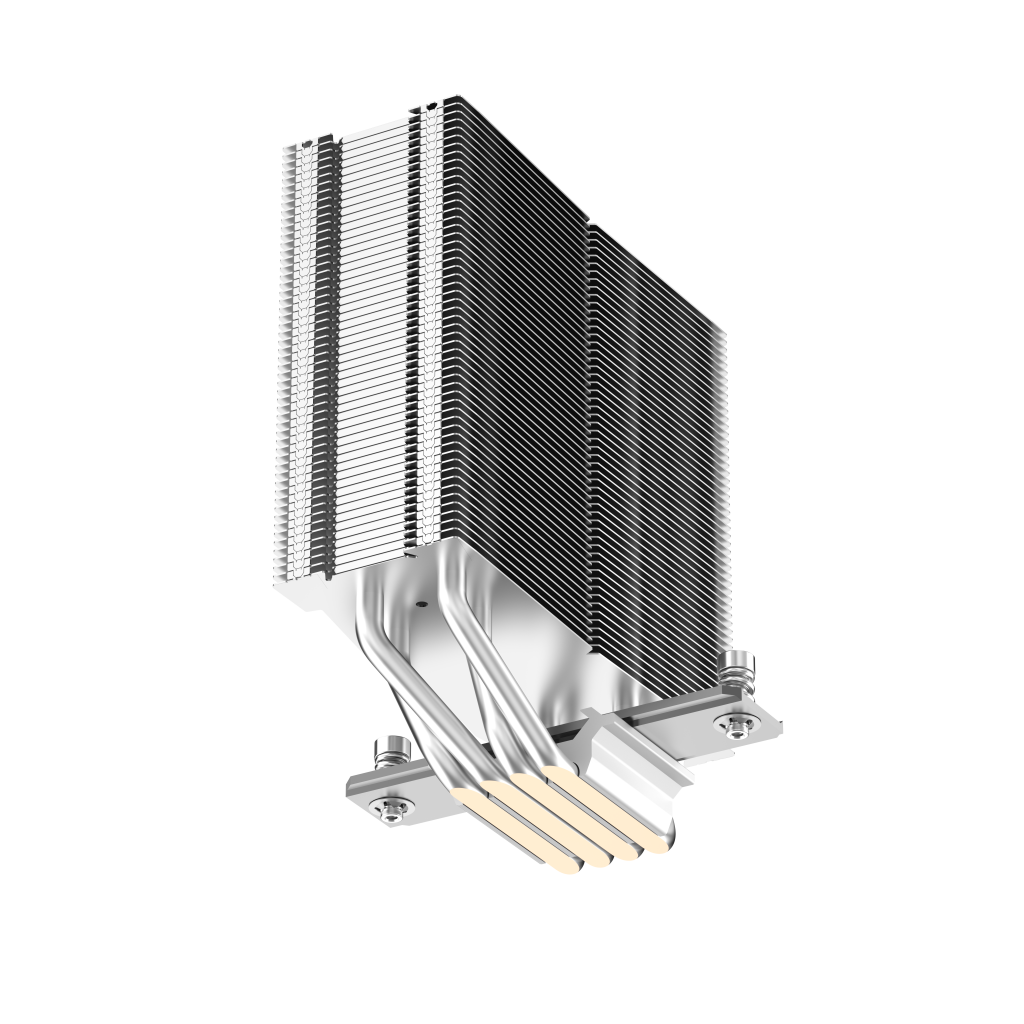

Heatpipe	Φ6mm×4
Color	Silver
Fan Quantity	1pcs
Warranty	3 Years

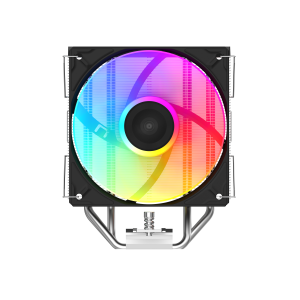

Fan	Dimension: 120×120×25mm Bearing Type: Hydro Bearing Noise: 29 dB-A Speed: 800~2200±10% RPM Air Flow: 75.2 CFM Air Pressure: 2.43 mmH2O Rated Voltage: 12 VDC Rated Current: 0.15 A Power Consumption: 1.8 W Fan Connector: 4-Pin PWM

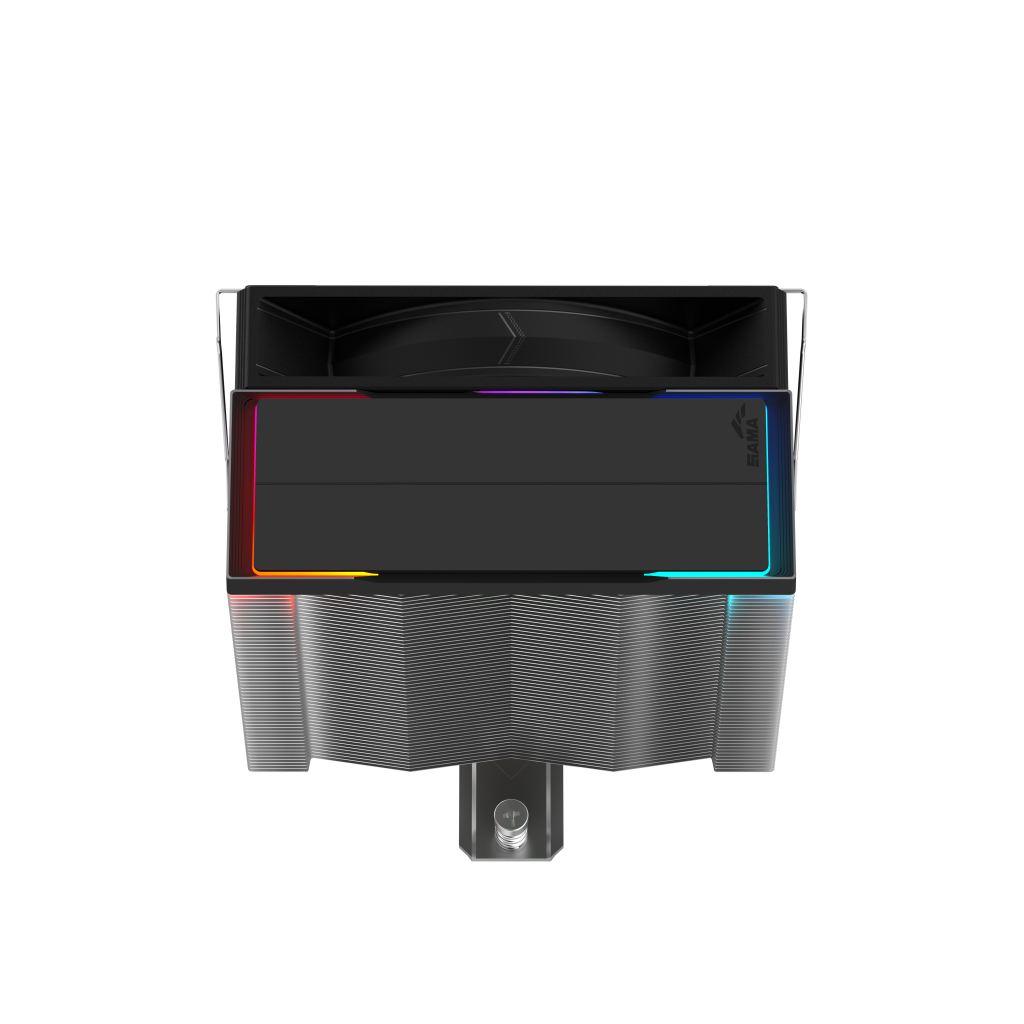

LED	LED Type: ARGB LED Connector: 3-Pin LED Rated Voltage: 5 V

Cases
- Full-Tower
- Mid-Tower
  - S40
  - V40
  - V50
  - V60
  - Z60
  LEARN MORE

  The SAMA S40 case, equipped with a large mesh front panel and four pre-installed high-performance ARGB fans, provides powerful cooling performance while displaying stunning lighting effects.

  Dimensions: 485×215×483mm (L×W×H)

  Motherboard Support: ATX, M-ATX, ITX

  Power Supply Type: ATX (Maximum Length: 220mm)

  LEARN MORE

  The SAMA V40 case boasts dual tempered glass panels, offering a stunning 270° panoramic view that beautifully displays the interior components of your build.

  Dimensions: 453×235×450mm (L×W×H)

  Motherboard Support: ATX, M-ATX, ITX, Back-connect ATX/M-ATX

  Power Supply Type: ATX, (Maximum Length: 265mm)

  LEARN MORE

  Blending practicality with aesthetics, the SAMA V50 takes PC case design to a new level. With two tempered glass panels and a removable pillar, it offers a seamless 270° view to showcase your build beautifully.

  Dimensions: 441×235×501mm (L×W×H)

  Motherboard Support: ATX, M-ATX, ITX, Back-connect ATX/M-ATX

  Power Supply Type: ATX, (Maximum Length: 250mm)

  LEARN MORE

  The SAMA V60 case showcases a stylish dual-chamber design, featuring an elegantly curved front panel for an appealing, modern look. The right-side panel is equipped with two large mesh sections, enhancing airflow and enabling compatibility with up to 10 fans for impressive cooling power. This combination of aesthetics and high-performance functionality makes the V60 case a perfect choice for a build that prioritizes both visual appeal and cooling efficiency.

  Dimensions: 475×285×398mm (L×W×H)

  Motherboard Support: ATX, M-ATX, ITX, Back-connect ATX/M-ATX

  Power Supply Type: ATX, (Maximum Length: 210mm)

  LEARN MORE

  The SAMA Z60 case elevates functionality with an elegant design, featuring two authentic walnut strips on the front panel for a touch of natural warmth that complements your living space.

  Dimensions: 480×235×496mm (L×W×H)

  Motherboard Support: EEB, E-ATX (≤277mm), ATX, M-ATX, ITX, Back-connect ATX

  Power Supply Type: ATX (Maximum length: 250mm / 160mm with HDD cage installed)
- Small Form-Factor
Cooling
- AlO Cooling
  - Q60
  - Q70
  - L60
  - L40
  LEARN MORE

  Featuring an LCD screen on its aluminum water block, the SAMA Q60 AIO introduces a new, visually immersive cooling experience.

  Dimensions: 397*120*27mm

  Support Platform: Intel LGA :115X/1200/1700/20XX/1851 AMD:AM5/AM4

  Fan Dimensions: 120*120*28mm

  LEARN MORE

  Introducing the SAMA Q70, a 360 AIO that features a detachable LCD screen, marking the introduction of modular functionality to offer enhanced customization options.

  Dimensions: 397*120*27mm

  Support Platform: Intel LGA :115X/1200/1700/20XX/1851 AMD:AM5/AM4

  Fan Dimensions: 120*120*28mm

  LEARN MORE

  The SAMA L Series AIO features a water block topped with a fully reflective cap, creating a vibrant RGB lighting effect that enhances the visual appeal of your build.

  Dimensions: L40:277*120*27mm | L60:397*120*27mm

  Support Platform: Intel LGA :115X/1200/1700/1851/20XX AMD:AM5/AM4

  Fan Dimensions: 120*120*25mm

  LEARN MORE

  Topped with a fully reflective cap, the water block delivers vibrant RGB lighting, while the high-performance aluminum radiator ensures efficient cooling with bold visual flair.

  Dimensions: L40:277*120*27mm | L60:397*120*27mm

  Support Platform: Intel LGA :115X/1200/1700/1851/20XX AMD:AM5/AM4

  Fan Dimensions: 120*120*25mm
- Air Cooling
  - A60W
  - A40L
  - X30
  - X40
  - X40L
  - A40
  - A40E
  - A60E
  - A60B
  - A60L
  LEARN MORE

  This premium cooler features a minimalist all-white design with a brushed metal top, paired with dual 120mm guide ring fans for powerful, quiet cooling.

  Dimensions: 124×142.5×156.5mm (LxWxH)

  Support Platform: Intel: LGA 115X/1366/1700 AMD:AM4/AM3+/AM3/AM2+/AM2

  Fan Dimensions: 120 x 120 x 25mm

  LEARN MORE

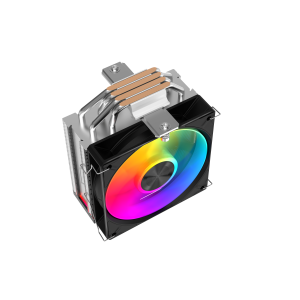

  Introducing the SAMA A40L: a compact single-tower cooler with a raw metal finish, ARGB side strips, and direct-touch heat pipes for efficient thermal transfer. Paired with a quiet 120mm ARGB fan, it delivers strong cooling and vibrant lighting in a space-saving design.
